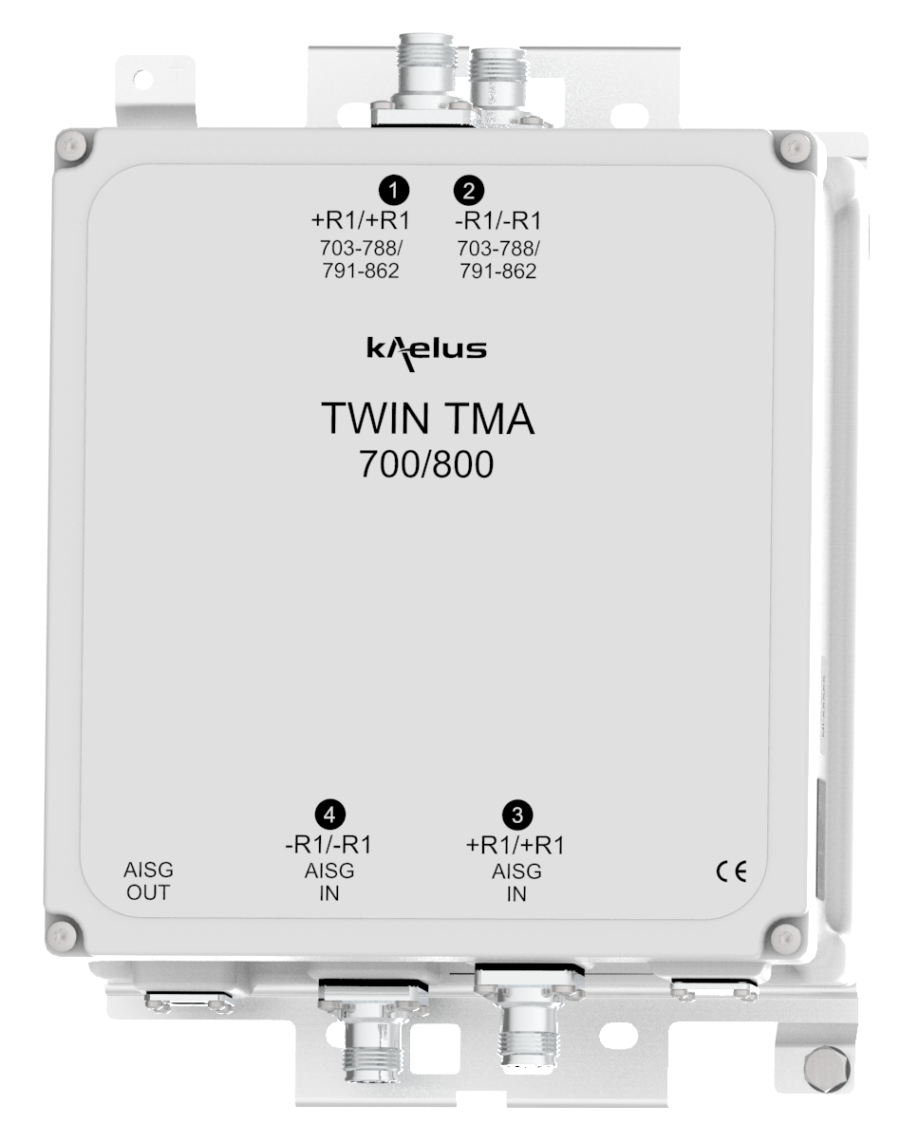

TMA2145 | MI-176

TWIN TMA 700/800

Designed to be deployed in co-located 700 and 800MHz networks the Kaelus TMA2145F01V1-1 provides gain in the 700 and the 800 uplink bands.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus. The MI-176 and the TMA2145 are the same product but to ease the transition for our customers both Kaelus and Microdata part numbers will be maintained.

MI-176: part number under Microdata brand
TMA2145: part number under Kaelus brand

FEATURES

  • Internal diplexing of the 700MHz and 800MHz bands allows for single ANT and BTS ports
  • Excellent noise figure performance
  • Diplexed BTS Port that enable antenna and feeder sharing
  • Fail safe bypass mode with lightning protection
  • AISG2.0 compatible
  • Compact, low weight

technical specifications
Band Name 700 800
downlink
Passband 758 - 788MHz 791 - 821MHz
Insertion loss 0.4dB typical
Return loss 18dB minimum
Maximum input power 200W (average) / 2000W (PEP)
Intermodulation products -160dBc in RX band at ANT Port
uplink
Passband 703 - 733MHz 832 - 862MHz
Gain 12dB
Return loss 16dB minimum
Bypass return loss 12dB minimum
Bypass loss 1.7dB typical
Noise figure 1.1dB typical
Output IP3 +25dBm typical
electrical
Impedance 50Ohms
aisg mode of operation (auto selected on valid aisg 2.0 frames)
The TMA unit switches to AISG mode when valid frames are detected on one of the BTS ports.
DC supply voltage 24V DC nominal (9 - 30V DC)
AISG version 3GPP/AISG 2.0
Power consumption, AISG mode 4W maximum
AISG connector, current rating IEC60130-9, 8-pin female
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to +155°F
Ingress protection IP67
Lightning protection IEC61312-1, RF: ±5kA (8/20us)
MTBF >1,000,000 hours
Compliance EMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
Dimensions H x D x W 265X149X246 mm | 10.4x5.9x9.7 in (excluding brackets and connectors)
Weight 10.1 kg | 22.27 lb
Finish Powder coated, NCS 1502-R
Connectors 4.3-10 (F) x 4, AISG (F) 8 pin x 1
Mounting Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles
shipping information
Carton size 410 x 316 x 251mm | 16.14x12.44x9.88in
Gross weight (including packaging) 11.1kg | 24.47lbs
ordering information
Part Number Configuration Optional Features Connectors AISG Mode
TMA2145F01V1-1 TWIN, 2 in / 2 out BASE MODEL
KAELUS BRAND
4.3-10 (F), 1xAISG COMMON MODE
TWOTWO**
TMA2145F01V2-1 TWIN, 2 in / 2 out BASE MODEL
KAELUS BRAND
7-16 (F), 1xAISG COMMON MODE
TWOTWO**
MI-17601 TWIN, 2 in / 2 out BASE MODEL
MICRODATA BRAND
7/16 (F), 1xAISG COMMON MODE
ONETWO*
MI-17602 TWIN, 2 in / 2 out BASE MODEL
MICRODATA BRAND
7/16 (F), 1xAISG COMMON MODE
TWOTWO**
MI-17606 TWIN, 2 in / 2 out BASE MODEL
MICRODATA BRAND
7/16 (F), 2xAISG INDEPENDENT
MI-17631 TWIN, 2 in / 2 out BASE MODEL
MICRODATA BRAND
4.3-10 (F), 1xAISG COMMON MODE
ONETWO*
MI-17632 TWIN, 2 in / 2 out BASE MODEL
MICRODATA BRAND
4.3-10(F), 1xAISG COMMON MODE
TWOTWO**
MI-17636 TWIN, 2 in / 2 out BASE MODEL
MICRODATA BRAND
4.3-10 (F), 2xAISG INDEPENDENT
(*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits each
(**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each

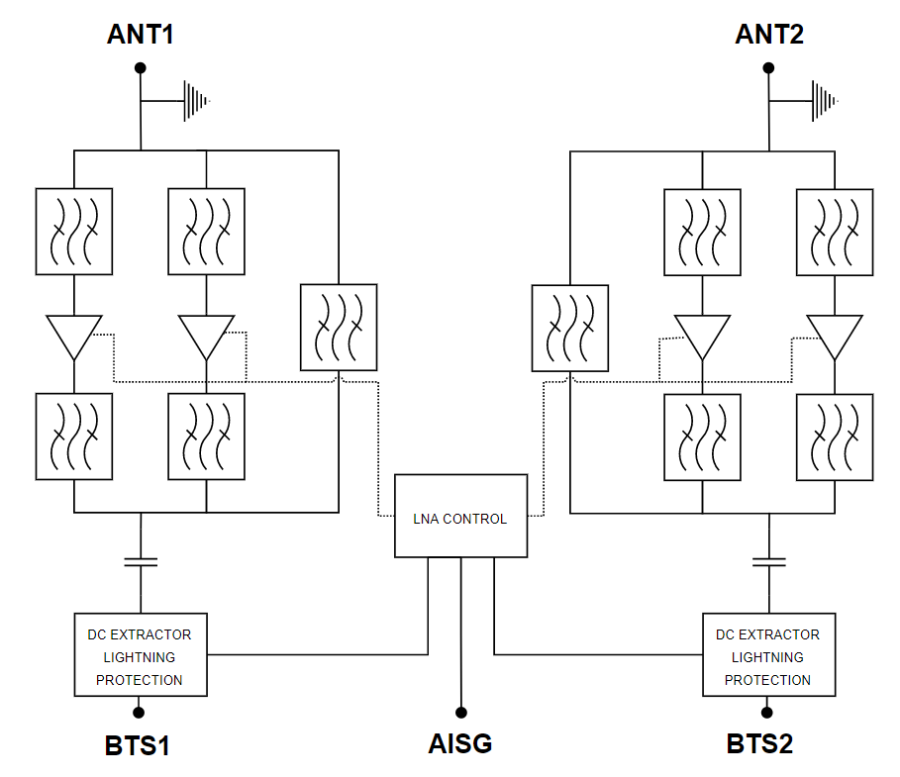

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

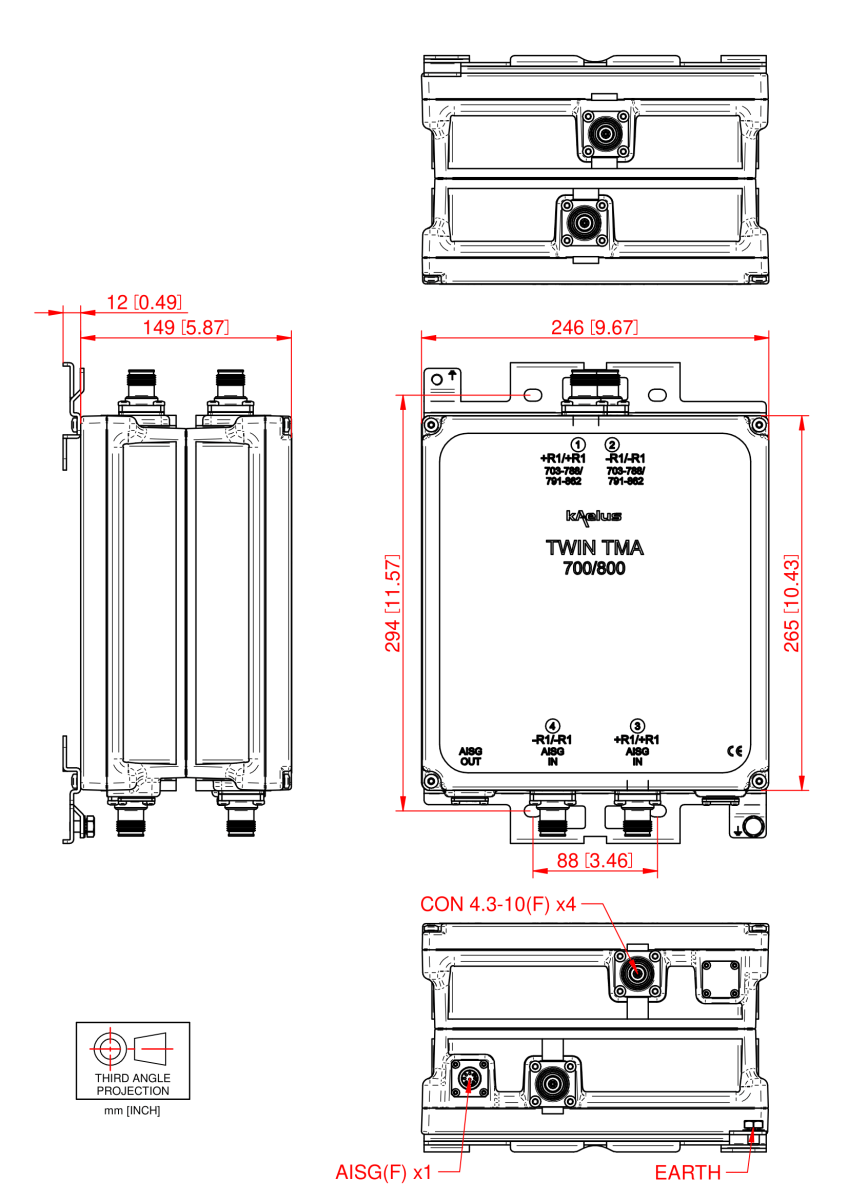

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
