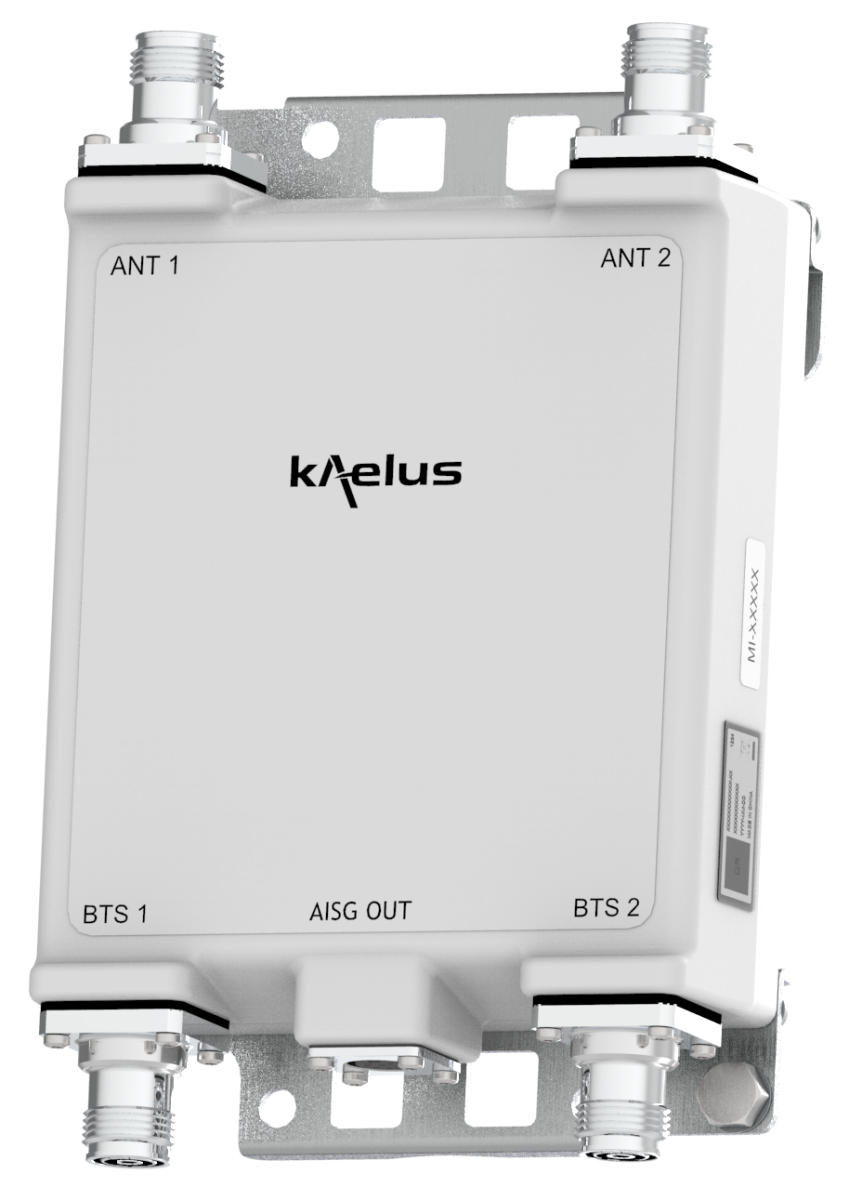

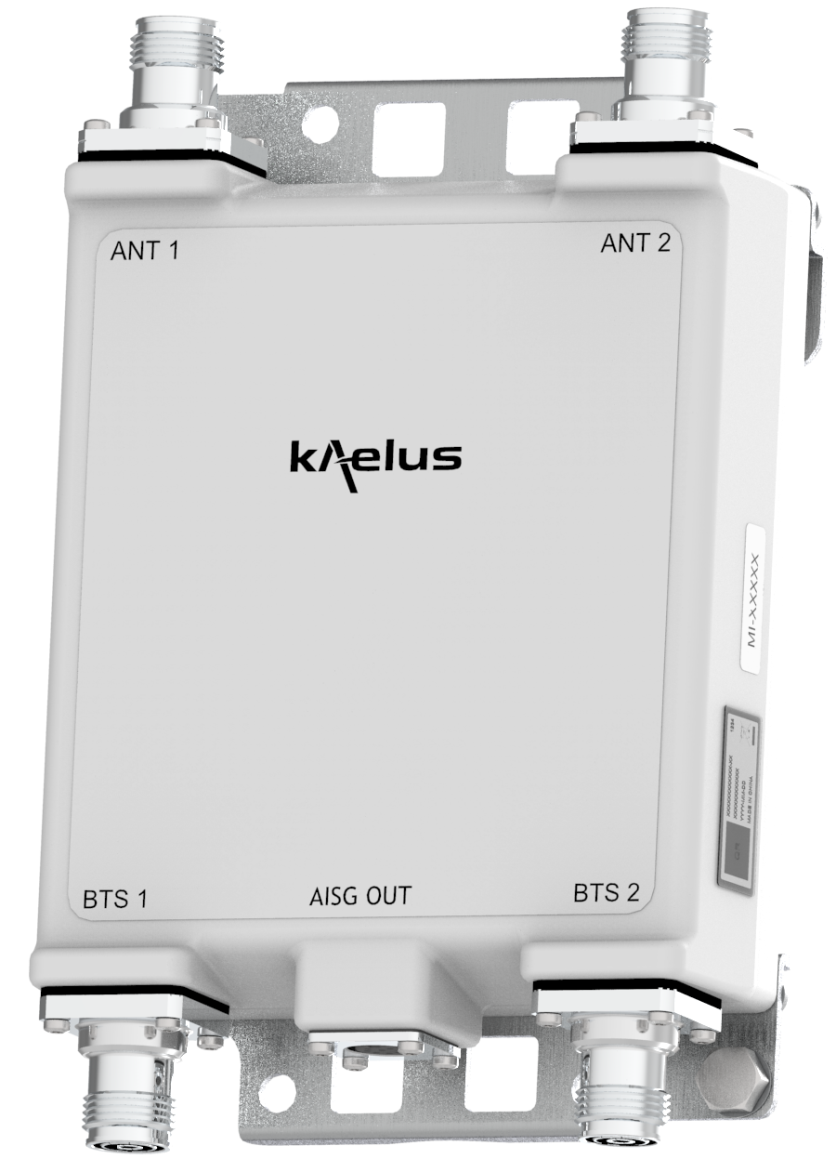

MI-124

MI-124

TWIN TMA AWS

Designed to be deployed in collocated AWS systems, the Kaelus MI-124 enhances cell uplink coverage in AWS through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

  • Improved base station sensitivity through gain in the AWS uplink
  • Excellent noise figure performance
  • Full AISG operation and RET antenna support, AISG2.0 compatible
  • Small and light for minimum visual impact
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band NameAWS
downlink
Passband2110 - 2200MHz
Insertion loss0.3dB typical
Return loss20dB typical, 18dB minimum
Maximum input power200W (average)
Intermodulation products-165dBc typ in RX band at ANT
uplink
Passband1710 - 1780MHz
Gain12dB
Return loss16dB
Bypass return loss12dB
Bypass loss2dB typical
Noise figure1.3dB typical
Output IP325dBm typical
Maximum input power with no damage12dB typical
electrical
Impedance50Ohms
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default operating mode and can be configured to specific customer requirements. Please contact Kaelus for more information.
DC supply voltage+9 to +15V DC
DC supply current, normal mode80-130mA
DC supply current, alarm mode170-180mA
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port.
DC supply voltage+9.0V to +30V DC
AISG version2.0
Power consumption, AISG mode< 2W
AISG connector, current ratingIEC60130-9, 8-pin female, 1.6A
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F
Ingress protectionIP67
MTBF>1,200,000 hours
ComplianceEMC: EN 301 489-8
Safety: IEC/EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
Dimensions H x D x W175 x 47 x 153 mm | 6.9 x 1.85 x 6.0 1in (excluding brackets and connectors)
Weight2.5kg | 5.511lbs
FinishPowder coated, NCS 1502-R
Connectors4.3-10 (F) long neck or 7/16(F)
AISG (F)
Wind Load165N @70m/s
MountingPole/wall bracket using two metal clamps, suits 40-140mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsAISG Mode
MI-12401TWIN, 2 in / 2 outBASE MODEL7/16 (F)Refer to AISG MODE OF OPERATION section
MI-12431TWIN, 2 in / 2 outBASE MODEL4.3-10 (F)Refer to AISG MODE OF OPERATION section

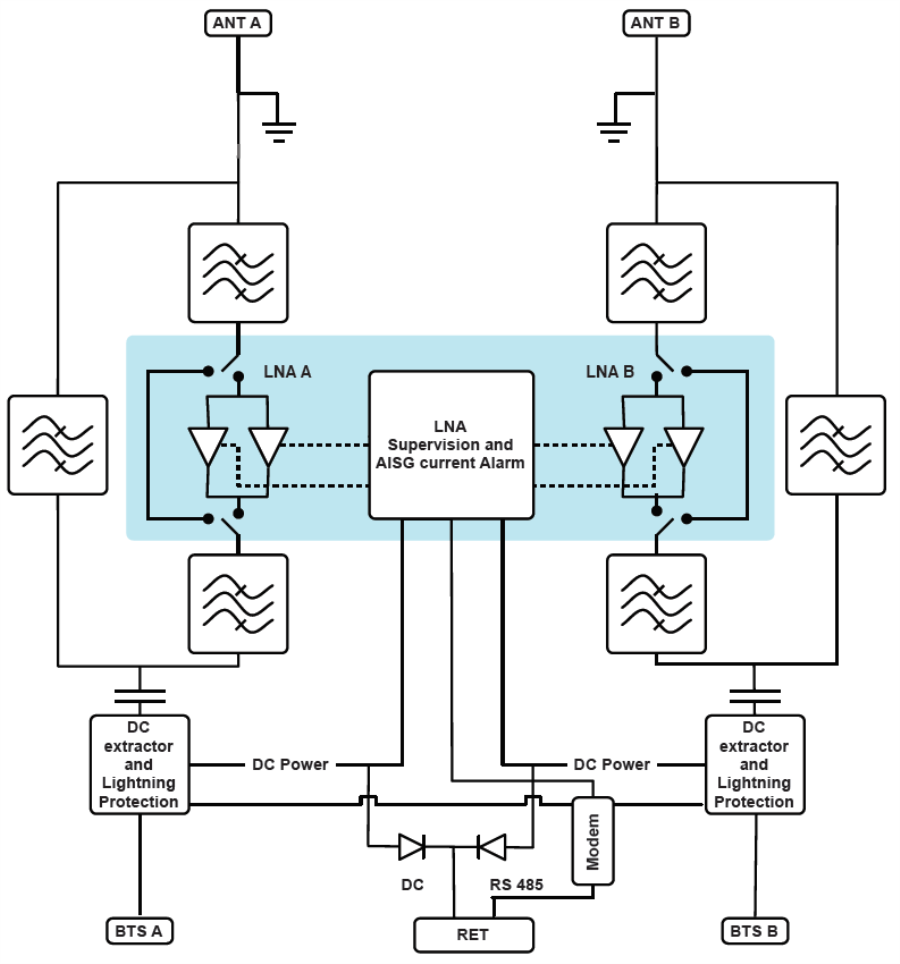

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

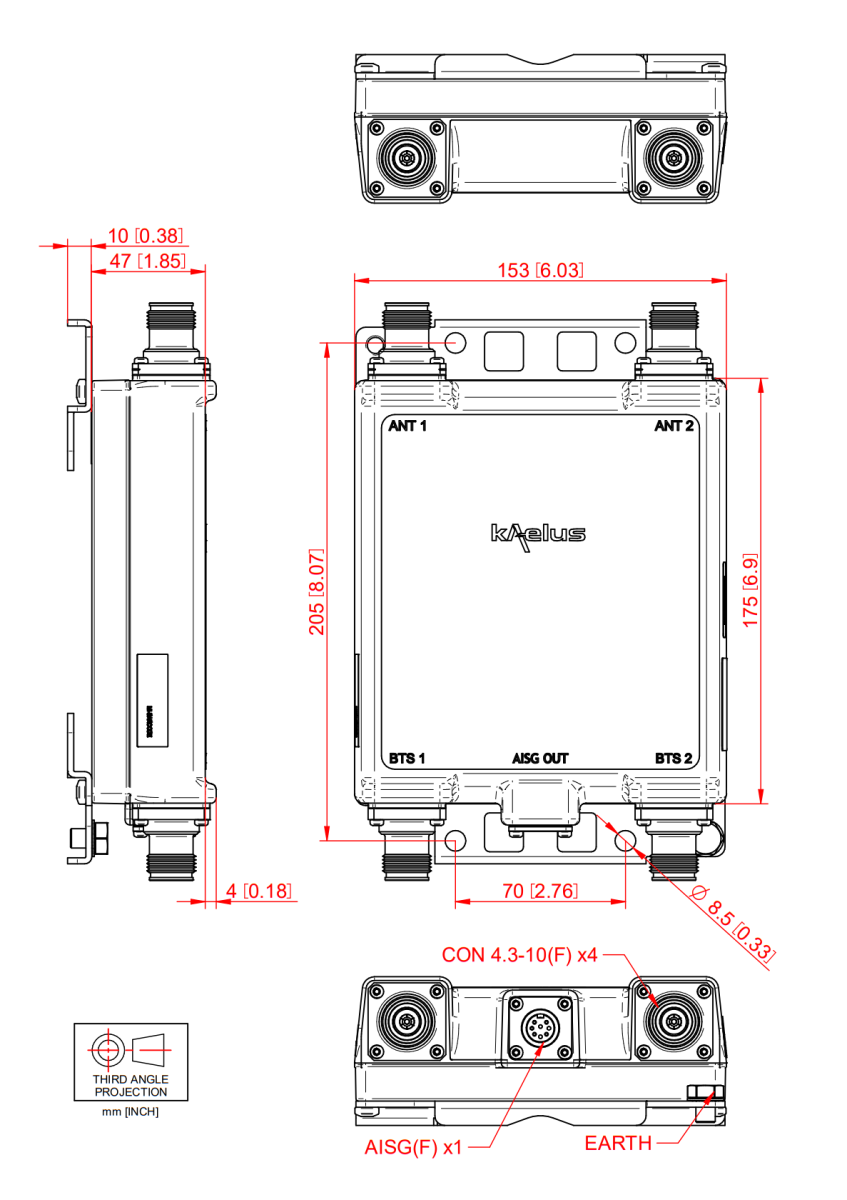

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
