TMA2038

TWIN TMA 900

LAST TIME BUY: 31/12/2021
REPLACEMENT PRODUCT: MI-163


The TMA2038 has been designed to operate in any 900MHz cellular network and provides excellent noise figure performance with flexible AISG options.

FEATURES

  • Dual duplexed TMA providing Improved base station sensitivity through excellent noise performance and high linearity
  • Hardware and software configuration using AISG “personality” upload
  • High reliability with full lightning protection and a fail-safe bypass mode
  • AISG and current dump compatible
  • Bandwidth 25MHz tunable anywhere in 900MHz band

technical specifications
downlink (tx) path
PassbandAny 25MHz within 925-960MHz
935-960MHz ( F1x ) 925-950MHz ( F2x )
Bandwidth25MHz
Return loss18dB minimum
Insertion loss0.35dB typical mid band
EVM3%
Group delay variation5ns maximum (200kHz) | 20ns maximum (4MHz)
Maximum input power with no damage200W (average) / 1.6kW (PEP)
uplink (rx) path
PassbandAny 25MHz within 880-915MHz
890-915MHz ( F1x ) 880-905MHz ( F2x )
Bandwidth25MHz
Nominal gainVariable 8 to 16dB (selected via AISG)
Gain variation over frequency, temperature±1dB maximum
Noise figure1.0dB typical (12dB gain)
1.6dB maximum (12dB gain) at band edge
Return loss18dB minimum operating, 12dB minimum in bypass mode
Insertion loss2.0dB typical, 3dB maximum in bypass mode
Group delay variation10ns maximum (200kHz) | 40ns maximum (4MHz)
Maximum input power with no damage+12dBm maximum
Input intercept point (3rd order)+8dBm minimum
electrical
Impedance50ohms
Intermodulation products<-153dBc at antenna ports, with 2 x 43dBm TX carriers
rejection
50 - 800MHz 46dB minimum
1050 - 2200MHz 46dB minimum
2200 - 2750MHz 26dB minimum
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default TMA operating mode and can be configured to specific customer requirements. The generic personality is configured so that both channels are independently powered and monitored via the respective BTS port. The BTS port sinks additional current to indicate an alarm state in its uplink path. Normal operating and alarm current values are configured independently and are alterable via a field-loadable personality file.
DC supply voltage8.5V to 30V DC, case is DC ground
DC supply voltage via BTS-RF cableEach BTS port powered individually (programmable)
DC supply current, normal mode100 ± 20mA per port (programmable)
DC supply current, alarm mode150 - 300mA per port (programmable)
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to either BTS1 or BTS2 port. The TMA unit switches to AISG mode when valid frames are detected on one of the BTS ports. Both LNA’s take DC power from the port with AISG frames or, if DC is present on both ports, both channels supply equal power to the TMA.
AISG version2.0 (1.1 optional)
Supply current, AISG mode55mA at 30V, 135mA at 12V
Power consumption, AISG mode1.5W @ 7.5V, 1.8W @ 30V typical
AISG connector, current ratingIEC60130-9, < 4A peak, 2A continuous, pin 6
Field firmware upgradableYes
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40º to +65ºC | -40º to +149ºF
Ingress protectionIP67
Lightning protectionIEC61312-1, RF: ±2kA maximum (10/350us)
AISG: ±0.5kA maximum (10/350us)
MTBF>500,000 (hours)
ComplianceEMC:EN301 489, ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W217 x 239 x 81mm | 8.54 x 9.41 x 3.19in
Weight7.5kg | 16.53lbs
FinishPainted, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 4 long shank, AISG (F) x 1
MountingPole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectors
Note: other CWA configurations available, contact Kaelus for details
TMA2038F10V1-1TWIN, 2 in / 2 outUplink passband 890 to 915MHz
Downlink passband 935 to 960MHz
DIN 7-16 (F)
TMA2038F20V1-1TWIN, 2 in / 2 outUplink passband 880 to 905MHz
Downlink passband 925 to 950MHz
DIN 7-16 (F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

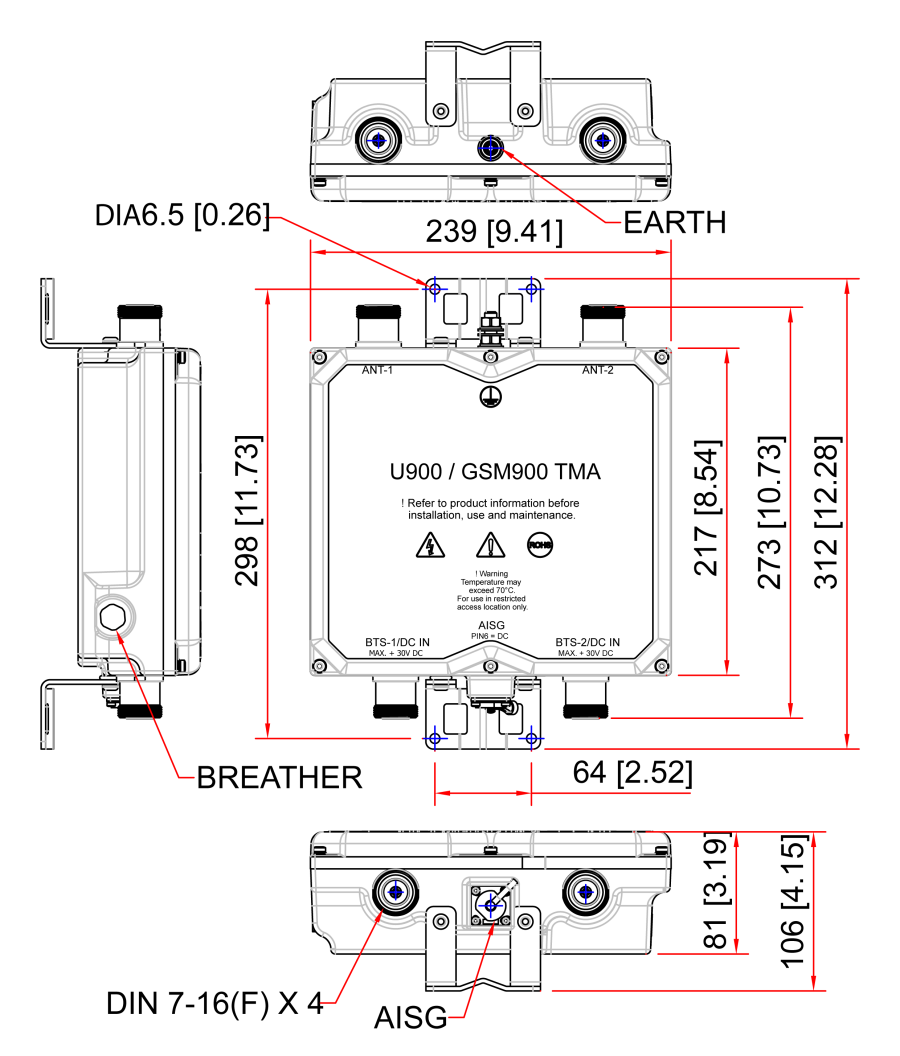

MECHANICAL BLOCK DIAGRAM
