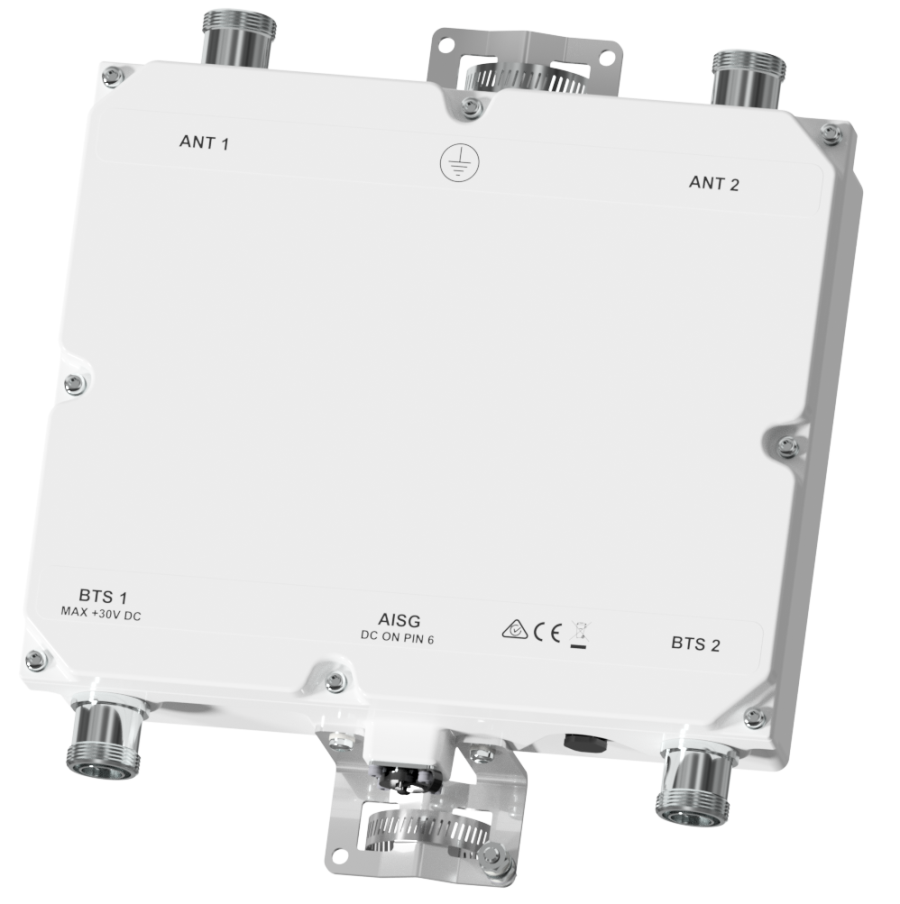

TMA2050

TWIN TMA 900

Designed to be used at co-located 850MHz and 900MHz sites, the Kaelus TMA2050 provides rejection of the 850MHz downlink frequencies while amplifying the 900MHz thereby removing the need for external 900MHz filtering.

FEATURES

  • Part band GSM900 with rejection below 890MHz, ideal for co-located 900 and 850MHz networks
  • Twin 900MHz TMA unit with high linearity and low noise figure performance
  • Hardware and software configuration using AISG personality upload
  • High reliability with lightning protection and bypass mode

technical specifications
downlink (tx) path
Passband943 - 960MHz
BandwidthUp to 17MHz tuned anywhere within 935 - 960MHz
Return loss18dB minimum
Insertion loss0.35dB typical
EVM2% typical / 5% maximum in any 4MHz
Group delay variation5ns maximum per 200kHz, 20ns maximum per 4MHz
Maximum input power with no damage200W (average) / 2kW (PEP)
uplink (rx) path
Passband898 - 915 MHz
Bandwidth17MHz tuned anywhere within 890 - 915MHz
Nominal gain13 ± 1dB
Gain variation over frequency, temperature±0.45dB maximum
Noise figure1.1dB typical
Return loss18dB minimum, 12dB minimum bypass mode
Insertion loss2.5dB typical bypass mode
EVMin any 4MHz
2% typical / 5% maximum (902 - 915MHz)
6% typical / 10% maximum (898 - 902MHz)
Group delay variation20ns maximum per 200kHz, 100ns maximum per 4MHz
Output IP3+10dBm minimum (3rd order)
Maximum input power with no damage<12dBm
rejection
ANT to BTS, vs 902.5MHz, F00V1
50 - 890MHz50dBc minimum
922.5 - 932.5MHz30dBc minimum
1000 - 2200MHz30dBc minimum
electrical
Impedance50ohms
Intermodulation products-153dBc maximum at antenna ports, BTS port with 2 x 43dBm TX carriers
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default TMA operating mode and can be configured to specific customer requirements using a personality file. The TMA2050F00V1 is configured so that both channels are powered and monitored via the BTS1 port. The BTS1 port consumes different current to indicate an alarm state in either uplink path. Normal operating and alarm current values are configured independently and are alterable via a field-loadable personality file. Please contact Kaelus for more information.
DC supply voltage+8.5V to +30V DC
DC supply voltage via BTS-RF cableBTS1 (F00V1: BTS2 does not support DC)
DC supply current, normal mode250mA typical
DC supply current, alarm mode135mA (LNA1), 195mA (LNA2) (typical)
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals must be applied to BTS1 port. The TMA switches to AISG mode when valid frames are detected on BTS 1 port. If DC is present on BTS2 port then no current is drawn on BTS2 port.
AISG version2.0 (1.1 optional)
Supply current, AISG mode55mA at 30V, 120mA at 12V typical
Voltage drop, BTS to AISG port 1.1 V maximum
AISG connector, current ratingIEC60130-9, 8-pin female, < 4A peak, 2A continuous, pin 6
Field firmware upgradableYes by AISG download
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40º to +65ºC | -40º to +149ºF
Ingress protectionIP67
Altitude2,600m | 8,530ft maximum
Lightning protectionIEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us)
MTBF>1,000,000 (hours)
ComplianceEMC:EN301 489
mechanical
Dimensions H x D x W331 x 300 x 86mm | 13 x 11.8 x 3.38in (excluding brackets and connectors)
Weight10.5kg | 23.1lbs
FinishPainted, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 4 long neck
MountingPole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectors
Contact Kaelus for options.
TMA2050F00V1-1 TWIN 2 in / 2 outDC on BTS1 onlyDIN 7-16 (F)

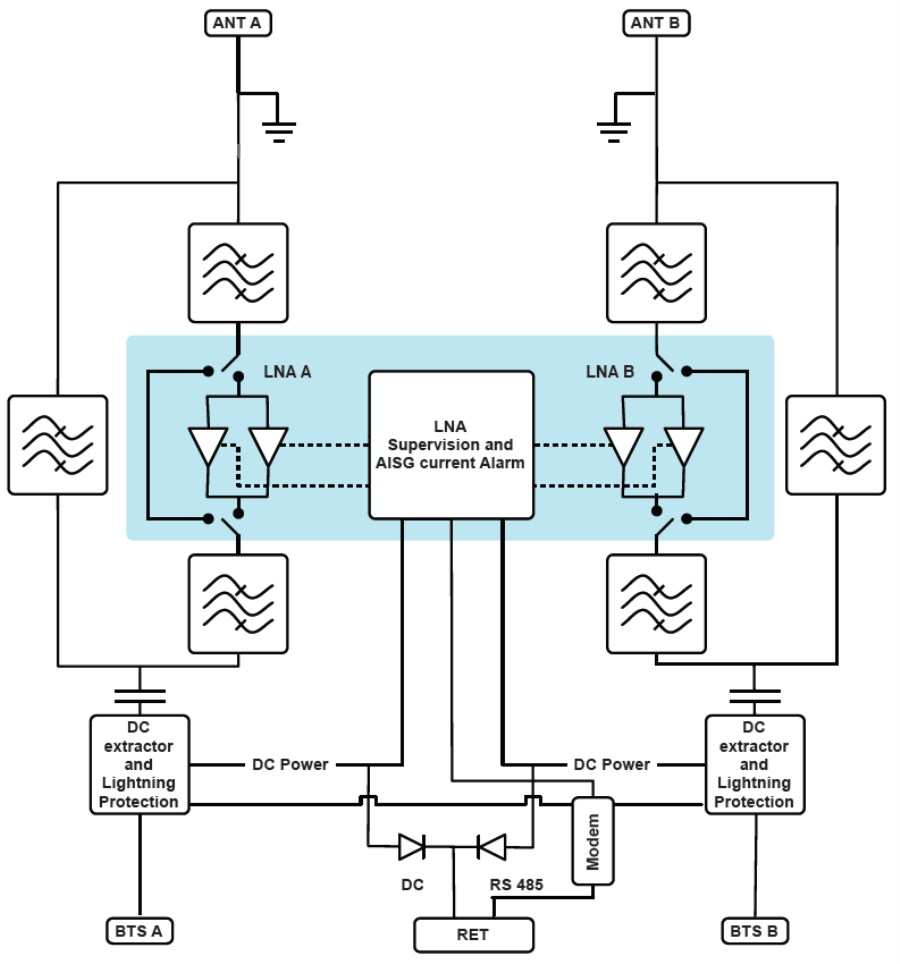

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

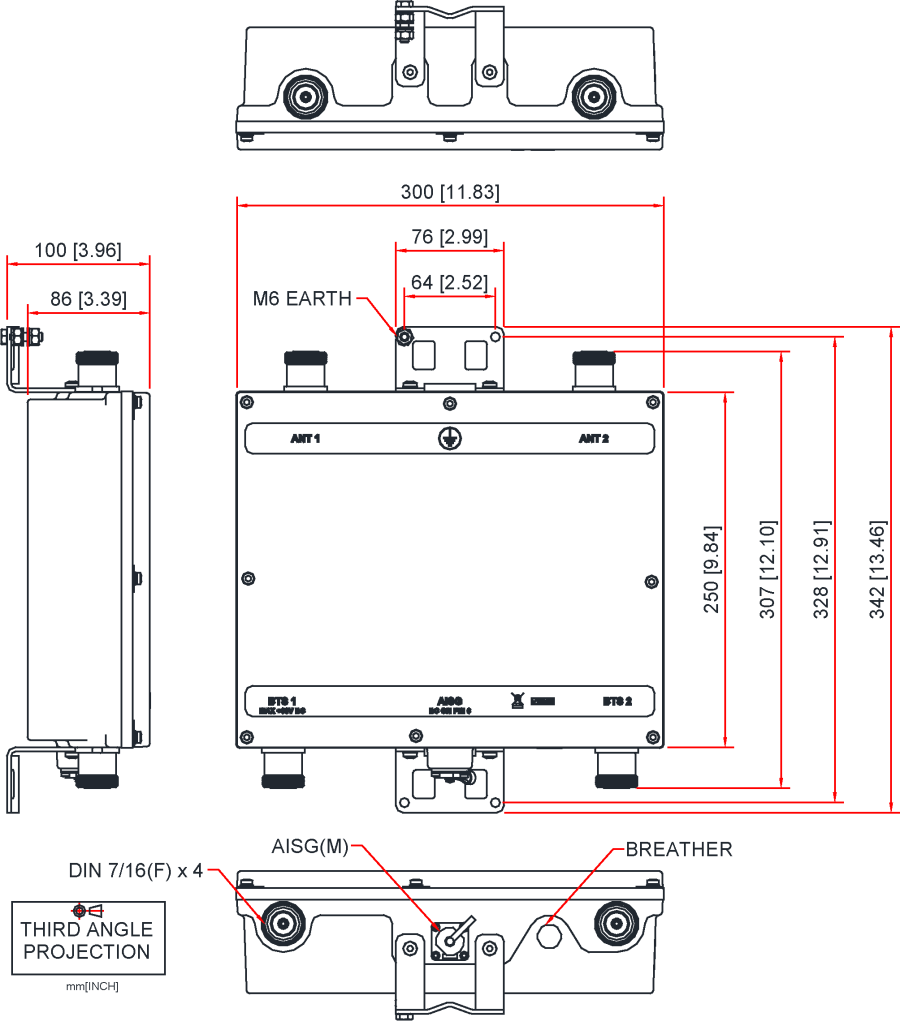

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
