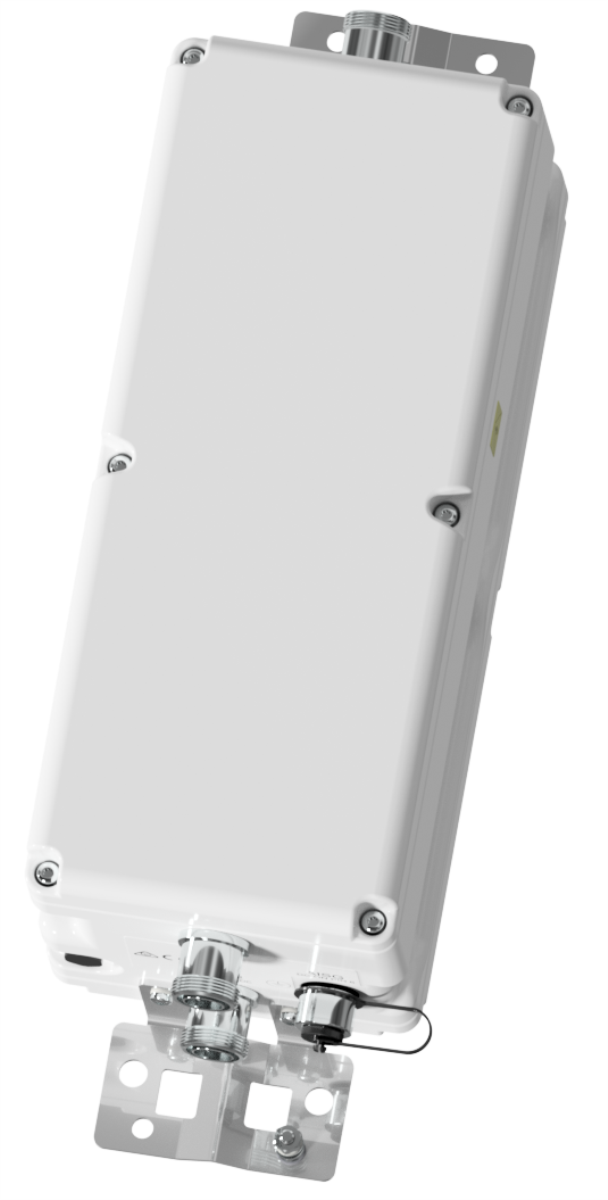

TMA2094

TMA2094

TWIN TMA 700, LOWPASS

Designed to be deployed in 700, 850/900MHz shared antenna systems, the Kaelus TMA2094 provides gain at the 700MHz uplink band while allowing 850/900 services to pass through to the antenna thereby saving OPEX and CAPEX.

FEATURES

  • Improved base station sensitivity through gain in 700Mhz band
  • Bypass for 850/900 bands with internal diplexing of the 807-960 and 700MHz bands
  • Rejection of digital TV broadcast channels
  • Hardware and software configuration using AISG “Personality” upload
  • Fail safe bypass mode with lightning protection
  • High linearity and low noise performance
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
700mhz downlink (tx) path
Passband768 - 803MHz
Bandwidth35MHz
Return loss18dB minimum
Insertion loss0.2dB typical, 0.4dB maximum
Group delay variation70ns maximum
Absolute group delay80ns maximum
Maximum input power with no damage150W (average) / 1.5kW (PEP)
Intermodulation @ antenna ports-150dBc maximum in RX band with 2 x 20W carriers
700mhz uplink (rx) path
Passband713 - 748MHz
Bandwidth35MHz
Nominal gain16dB minimum
Gain variation over frequency, temperature± 1dB maximum
Noise figure1.2dB typical, 1.6dB maximum
Return loss18dB minimum operating, 12dB minimum in bypass mode
Bypass loss2.5dB typical, 3.2dB maximum
Group delay variation150ns maximum
Absolute group delay250ns maximum
Output IP3+30dBm typical
Maximum input power with no damage12dBm maximum
700mhz uplink aws (tx) path
RX in filter rejection50dB @ 50 - 694MHz
850 - 900mhz bypass path
Passband807 - 960MHz
Return loss18dB minimum
Insertion loss0.2dB typical, 0.4dB maximum
Group delay variation30ns maximum
Absolute group delay40ns maximum
Maximum input power with no damage160W (average) / 1.5kW (PEP)
Intermodulation @ antenna ports-150dBc maximum in RX band with 2 x 20W carriers
electrical
Impedance50ohms
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default operating mode and can be configured to specific customer requirements. The F01V1 personality is configured so that both channels are independently powered and monitored via the respective BTS port. The BTS port sinks additional current to indicate an alarm state in its uplink path. Normal operating and alarm current values are configured independently via a field-loadable personality file. Please contact Kaelus for more information.
DC supply voltage8.5V to 30V DC, case is DC ground
DC supply voltage via BTS-RF cableThrough BTS connectors
DC supply current, normal mode150 ± 20mA per port, 1.3W @ 8.5V, 4.5W @ 30V typical
DC supply current, alarm mode programmable range220 ± 20mA per port, 3.3W @ 15V per port typical
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to either BTS1 or BTS2 ports. The TMA2094F01V2-1 unit switches to AISG mode when valid frames are detected on one of the BTS ports. Both LNAs take DC power from the port with AISG frames or, if DC is present on both ports, both channels supply equal power to the TMA2094F01V2-1.
DC supply voltage+8V to +30V DC
AISG version2.0 (1.1 optional)
Supply current, AISG mode220mA @ 8.5V, 70mA @ 30V typical
Voltage drop, BTS to AISG port 1.5V maximum at 2A
Power consumption, AISG mode1.9W @ 8.5V, 2.1W @ 30V typical
AISG connector, current ratingIEC60130-9, 8-pin female, < 4A peak, 2A continuous, pin 6
Field firmware upgradableYes
autosensing function on ant 1 port (aisg mode only)
When a valid AISG signal is applied to either of the BTS ports, the TMA2094F01V2-1 communicates in AISG mode and applies DC/AISG to the ANT1 port. If a low resistance is detected on ANT1 port, DC/AISG is subsequently disconnected from the ANT1 port. In CWA mode, the autosensing switch is open and no DC will be passed ANT1.
Mode of operationCurrent draw on ANT1 portAssumption“Autosense + Protection” switch statusComment
CWA modeAnyUnit in CWA modeOpenNo DC will be passed on to ANT1
AISG modeCurrent<4ADevice present or open circuit on ANT1, Unit in AISG ModeCloseAISG signal (sub-carrier) will be supplied thru to ANT1
AISG modeCurrent >4ADC short circuit or low DC resistance present on ANT1 portOpenAttempts are made periodically to re-connect. TMA2094FxxVx-1 will operate in AISG mode.
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-10º to +55ºC | -5º to +131ºF
Ingress protectionIP67
Altitude2,600m | 8,530ft maximum
Lightning protectionIEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us)
MTBF>1,000,000 (hours)
ComplianceEMC:EN301 489, ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W380 x 160 x 180mm | 14.96 x 6.3 x 7.1in (excluding brackets and connectors)
Weight16kg | 35.27lbs
FinishPainted, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 4 long neck, AISG (F) x 1
MountingPole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectors
TMA2094F01V2-1 TWIN 2 in / 2 outSTANDARDDIN 7-16 (F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
