TMA2147 | MI-161

TWIN TMA 700

Designed to be deployed with 700MHz systems, this Tower Mounted Amplifier enhances cell uplink coverage through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus. The MI-161 and the TMA2147 are the same product but to ease the transition for our customers both Kaelus and Microdata part numbers will be maintained.

MI-161: part number under Microdata brand
TMA2147: part number under Kaelus brand

FEATURES

  • Designed as a part band TMA with a 35MHz bandwidth, several tuning options are available. Refer to the ordering information table for details
  • Improved base station sensitivity through gain in the 700 uplink bands
  • Excellent noise figure performance
  • AISG2.0 compatible
  • Compact, low weight

technical specifications
Band Name 700
downlink
Passband 758 - 788MHz (MI-161x3, TMA2147F01Vx-1)
773 - 803MHz (MI-161x2, TMA2147F11Vx-1)
Insertion loss 0.35dB typical
Return loss 20dB typical, 18dB minimum
Maximum input power 100W (average) / 1000W (PEP)
Intermodulation products -160dBc in RX band at ANT
uplink
Passband 703 - 733MHz (MI-161x3, TMA2147F01Vx-1)
718 - 748MHz (MI-161x2, TMA2147F11Vx-1)
Gain 12dB
Return loss 16dB minimum
Bypass return loss 12dB minimum
Bypass loss 1.5dB typical
Noise figure 1.3dB typical
Output IP3 +25dBm typical
Maximum input power with no damage +12dBm
Rejection 25dB minimum at 698 MHz
electrical
Impedance 50Ohms
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. Each LNA is controlled uniquely by its sub-unit number.
DC supply voltage +9.0V to +30V DC
AISG version 2.0
Power consumption, AISG mode <2W
AISG connector, current rating IEC60130-9, 8-pin female
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to +155°F
Ingress protection IP67
Lightning protection IEC61312-1, RF: ±5kA (8/20us), AISG: ±2kA common mode (8/20us)
MTBF >1,000,000 hours
Compliance EMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS
mechanical
Dimensions H x D x W 231 x 246 x 82mm | 9.09 x 9.69 x 3.23in (excluding brackets and connectors)
Weight 6.5kg | 14.33lbs
Finish Powder coated, NCS 1502-R
Connectors DIN 7-16 (F) long neck or 4.3-10 (F) long neck (see ordering information)
AISG (F)
Mounting Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles
shipping information
Carton size 370 x 300 x 180mm
Gross weight (including packaging) 6.6kg
ordering information
Part Number Configuration Optional Features Connectors AISG Mode
TMA2147F01V1-1 TWIN, 2 in / 2 out D/L: 758-788MHz
U/L: 703-733MHz
KAELUS BRAND
4.3-10 (F) Refer to AISG MODE OF OPERATION section
TMA2147F01V2-1 TWIN, 2 in / 2 out D/L: 758-788MHz
U/L: 703-733MHz
KAELUS BRAND
7-16 (F) Refer to AISG MODE OF OPERATION section
TMA2147F11V1-1 TWIN, 2 in / 2 out D/L: 773-803MHz
U/L: 718-748MHz
KAELUS BRAND
4.3-10 (F) Refer to AISG MODE OF OPERATION section
TMA2147F11V2-1 TWIN, 2 in / 2 out D/L: 773-803MHz
U/L: 718-748MHz
KAELUS BRAND
7-16 (F) Refer to AISG MODE OF OPERATION section
MI-16133 TWIN, 2 in / 2 out D/L: 758-788MHz
U/L: 703-733MHz
MICRODATA BRAND
4.3-10 (F) Refer to AISG MODE OF OPERATION section
MI-16103 TWIN, 2 in / 2 out D/L: 758-788MHz
U/L: 703-733MHz
MICRODATA BRAND
7-16 (F) Refer to AISG MODE OF OPERATION section
MI-16132 TWIN, 2 in / 2 out D/L: 773-803MHz
U/L: 718-748MHz
MICRODATA BRAND
4.3-10 (F) Refer to AISG MODE OF OPERATION section
MI-16102 TWIN, 2 in / 2 out D/L: 773-803MHz
U/L: 718-748MHz
MICRODATA BRAND
7-16 (F) Refer to AISG MODE OF OPERATION section

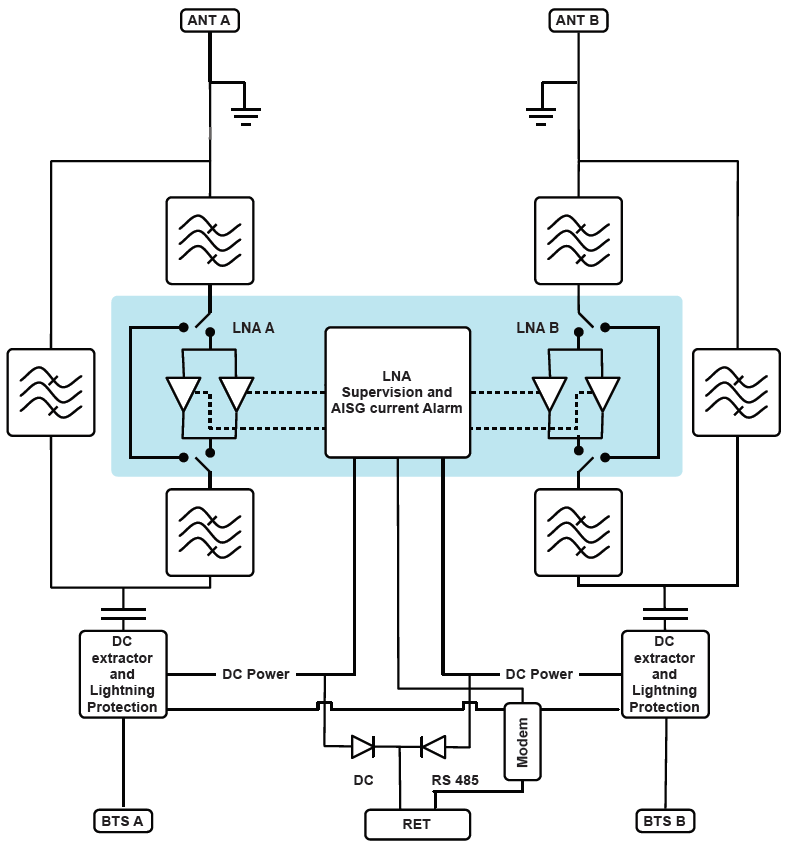

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

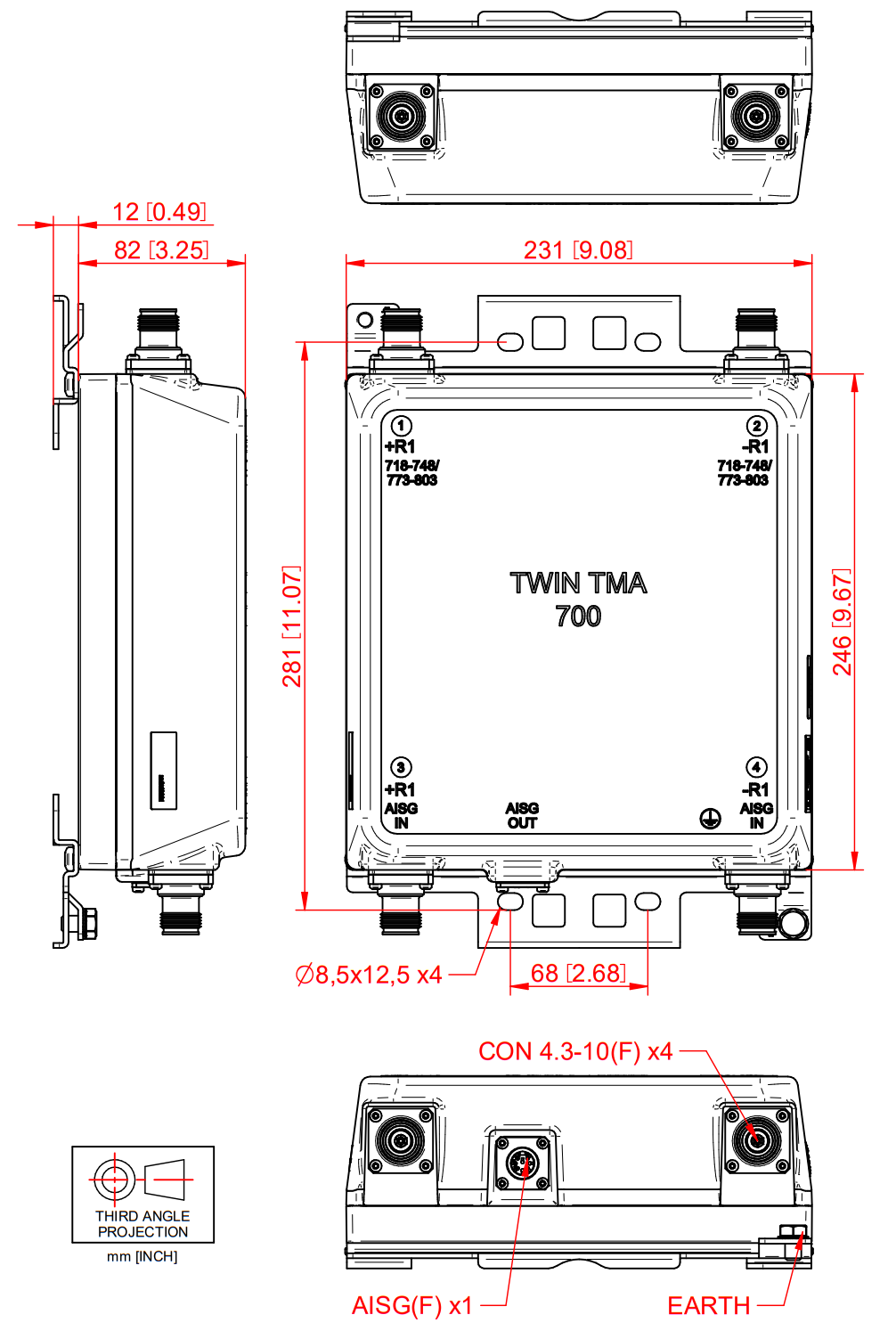

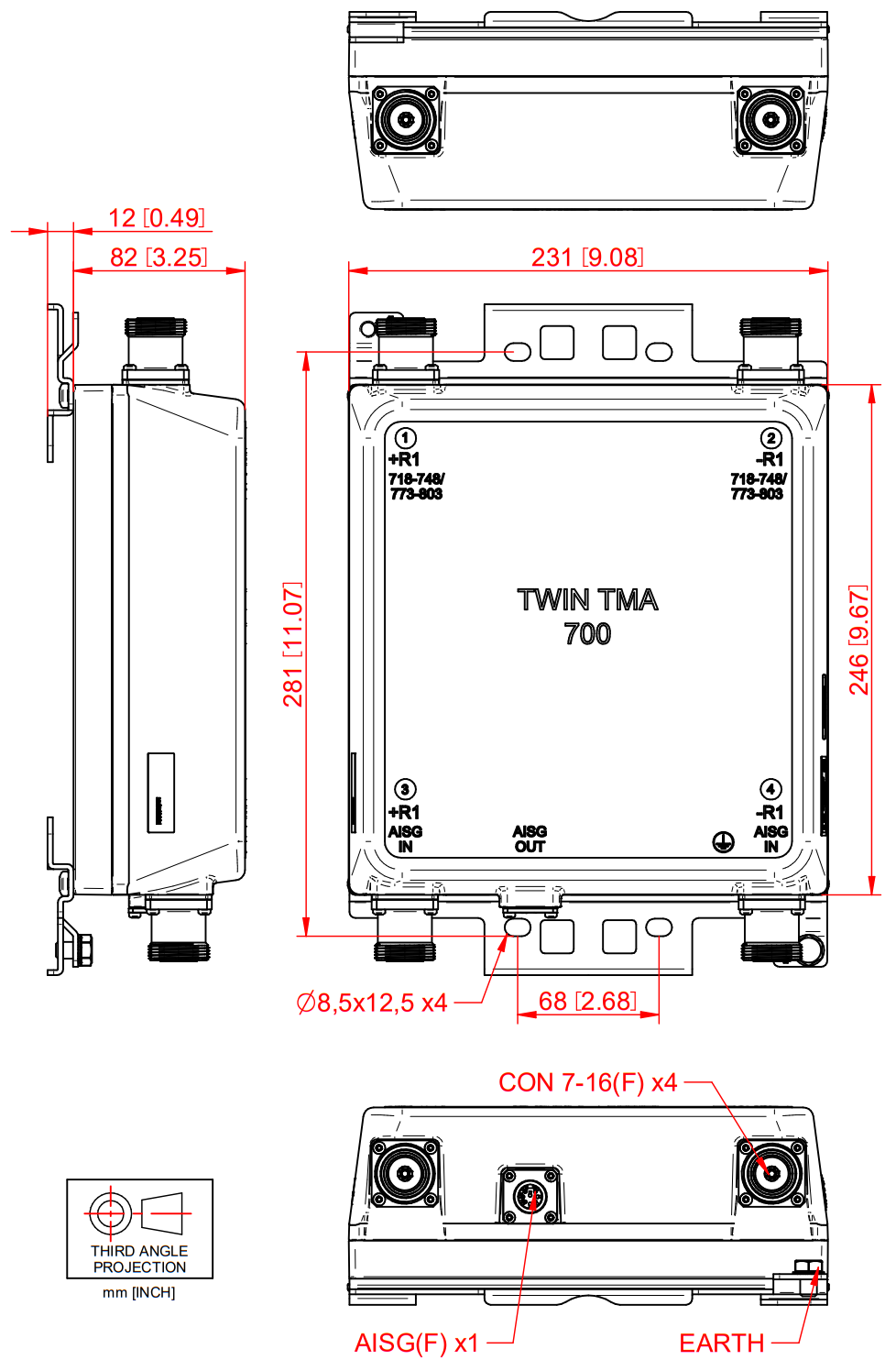

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
