TWIN TMA 2100

Designed to be deployed with 2100MHz systems, this Tower Mounted Amplifier enhances cell uplink coverage through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus. The MI-116 and the TMA2152 are the same product but to ease the transition for our customers both Kaelus and Microdata part numbers will be maintained.

MI-116: part number under Microdata brand
TMA2152: part number under Kaelus brand

FEATURES

  • Excellent noise figure performance
  • Suitable for collocation with 1800MHz system
  • AISG2.0 compatible
  • Compact, low weight
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name 2100
downlink
Passband 2110 - 2170MHz
Insertion loss 0.3dB typical
Return loss 20dB typical, 18dB minimum
Maximum input power 200W (average) / 2kW (PEP)
Intermodulation products -168dBc in RX band at ANT
uplink
Passband 1920 - 1980MHz
Gain 12dB
Return loss 18dB minimum
Bypass return loss 12dB
Bypass loss 2.0dB typical
Noise figure 1.3dB typical
Output IP3 +25dBm minimum
Maximum input power with no damage +12dBm
RX in filter rejection @ 1805-1880 60dB minimum, 70dB typical
electrical
Impedance 50Ohms
power supply and alarm (current window alarm mode, default)
DC supply voltage 9V to 31V DC, case is DC ground via BTS-RF cable
DC supply current, normal mode 100-130mA maximum per port
DC supply current, alarm mode 170-180 mA per port (9-15V input)
aisg mode of operation (auto selected on valid aisg 2.0 frames)
The TMA unit switches to AISG mode when valid frames are detected on one of the BTS ports.
DC supply voltage 9V to 31V DC
AISG version 2.0
Power consumption, AISG mode 2 W maximum
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to +149°F
Ingress protection IP67
Lightning protection IEC61312-1, RF: ±5kA (8/20us), AISG: ±2.5kA common mode (8/20us)
MTBF >1,000,000 hours
Compliance EMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS
mechanical
Dimensions H x D x W 153.5 x 174 x 53mm | 6.04 x 6.85 x 2.09in (excluding brackets and connectors)
Weight 2.4kg | 5.29lbs
Finish Powder coated, NCS 1502-R
Connectors DIN 7-16 (F) long neck or 4.3-10 (F) long neck (see ordering information
AISG (F)
Mounting Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles
shipping information
Carton size 270 x 210 x 130mm
Gross weight (including packaging) 3.6kg
Carton Qty / Pallet 72
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
xx denotes customized CWA configuration
TMA2152F01V1-1 TWIN, 2 in / 2 out BASE MODEL - KAELUS BRAND 4.3-10 (F) Refer to AISG MODE OF OPERATION section
TMA2152F01V2-1 TWIN, 2 in / 2 out BASE MODEL - KAELUS BRAND 7-16 (F) Refer to AISG MODE OF OPERATION section
MI-11631 TWIN, 2 in / 2 out BASE MODEL - MICRODATA BRAND 4.3-10 (F) Refer to AISG MODE OF OPERATION section
MI-11601 TWIN, 2 in / 2 out BASE MODEL - MICRODATA BRAND 7-16 (F) Refer to AISG MODE OF OPERATION section

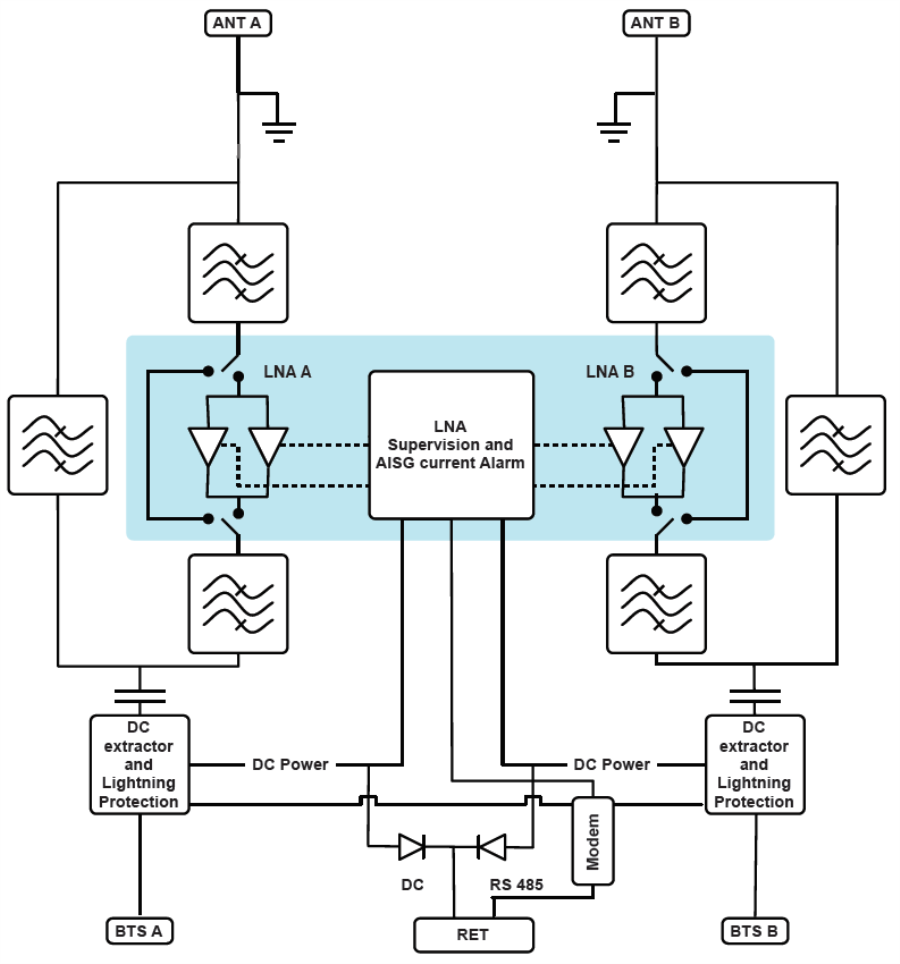

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

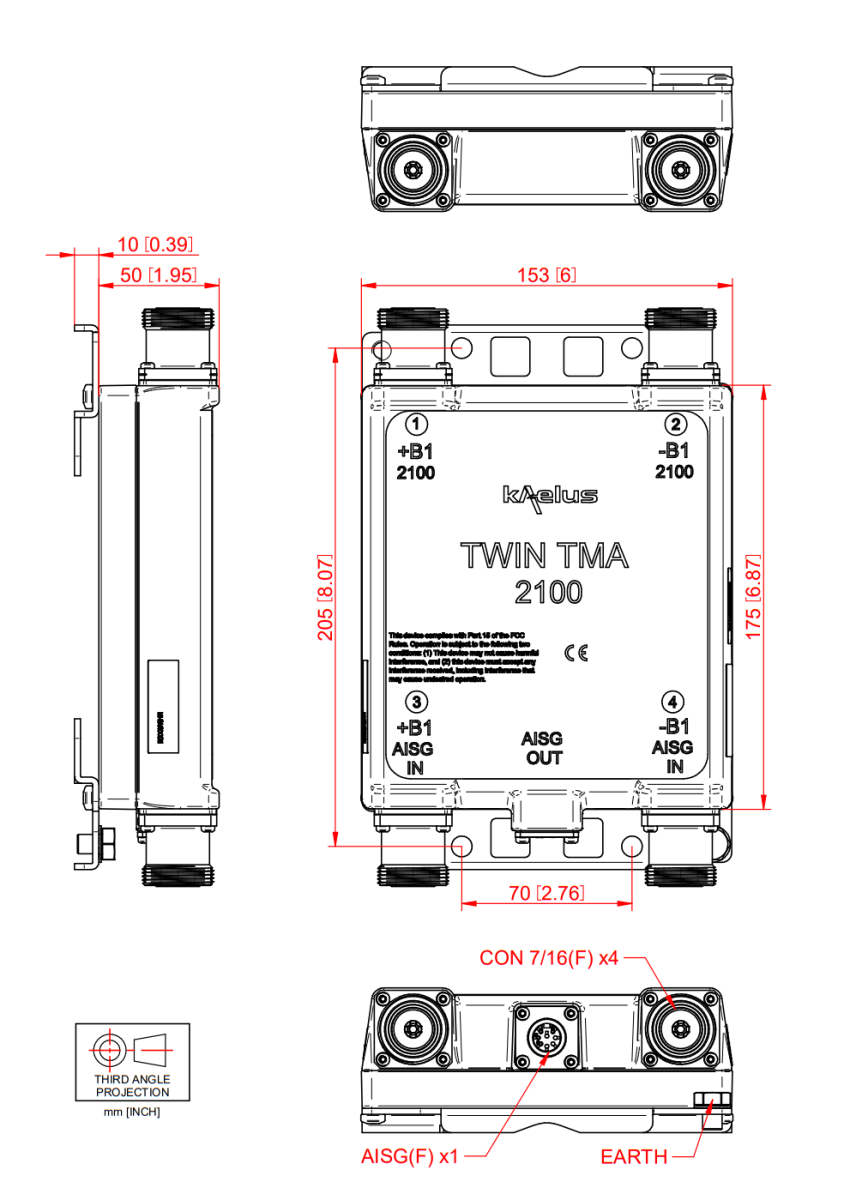

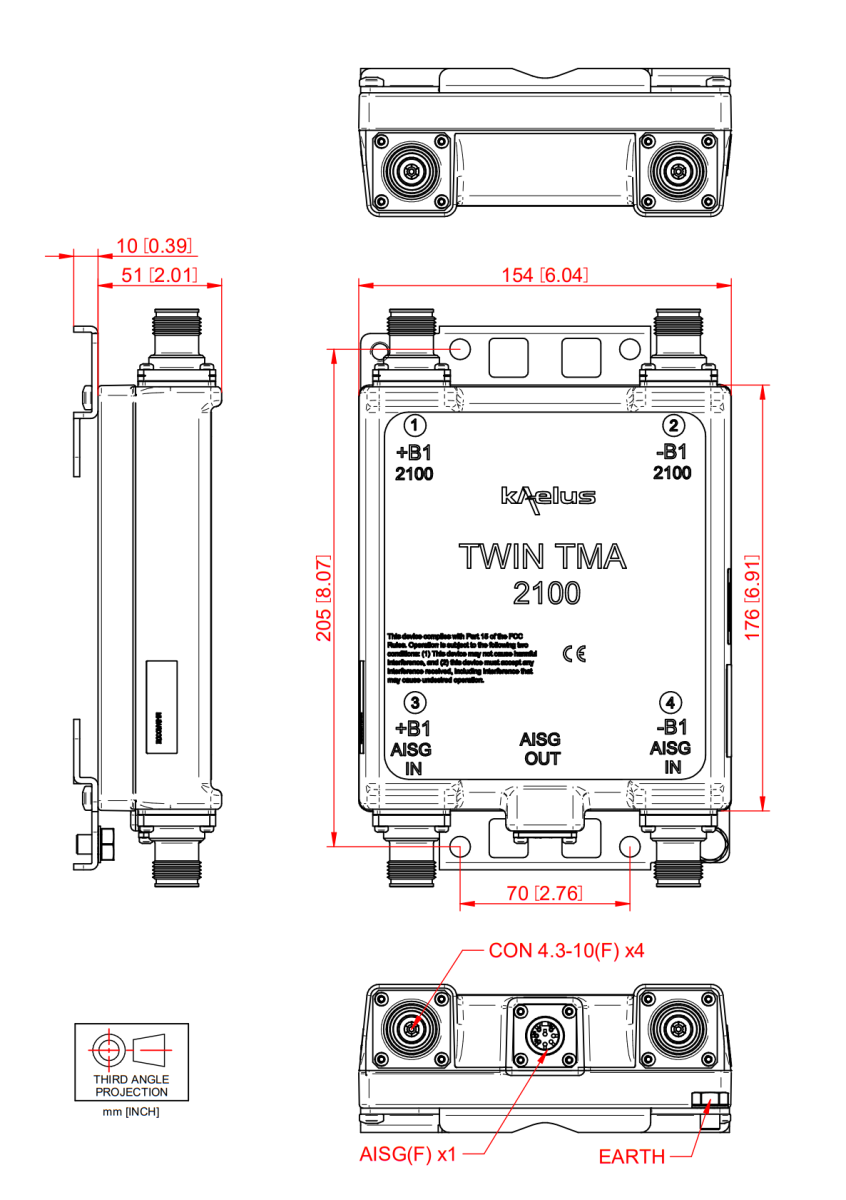

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
