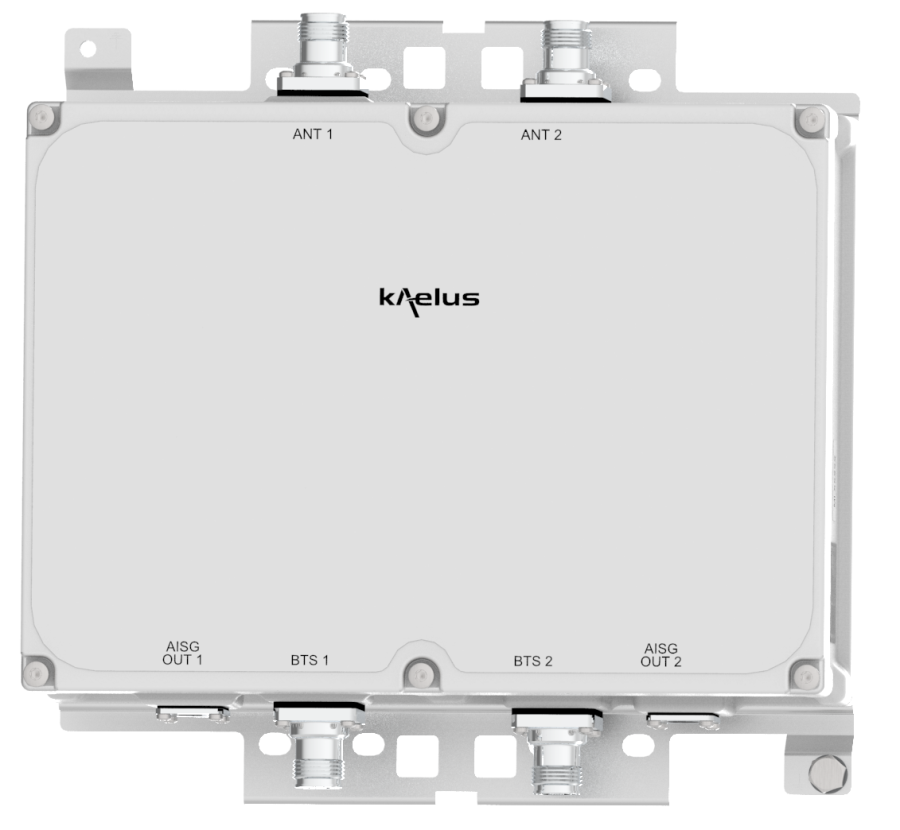

MI-158

TMA TWIN 1800/2100/2600

Designed to be deployed in co-located Low band, 1800, 2100 and 2600MHz systems with wideband antennas, this Tower Mounted Amplifier provides gain in all of the high bands.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

Improved base station sensitivity through gain in the 1800, 2100 and 2600 uplink
Internal diplexing on the high band port of 1800,2100 and 2600 bands: 2 Antenna ports
Excellent noise figure performance
Full AISG operation and RET antenna support, AISG2.0 compatible
Small and light for minimum visual impact

Download PDF

GET A QUOTE

technical specifications

Band Name

1800

2100

2600

downlink

Passband

1805 - 1880MHz

2110 - 2170MHz

2620 - 2690 MHz

Insertion loss

0.5dB typical

0.4dB typical

Return loss

20dB typical, 18dB minimum

Maximum input power

200W (average)*

Intermodulation products

-160dBc in RX band at ANT

uplink

Passband

1710 - 1785MHz

1920 - 1980MHz

2500 - 2570MHz

Gain

12dB

Return loss

16dB

Bypass return loss

14dB

Bypass loss

2dB typical

2.2dB typical

2dB typical

Noise figure

1.4dB typical

Output IP3

25dBm typical

(*) Limited to 500W (average) combined power at the common ports.

electrical

Impedance

50Ohms

aisg mode of operation (auto selected on valid aisg 2.0 frames)

AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. Each LNA is controlled uniquely by its sub-unit number.

DC supply voltage

24 V DC nominal
+9.0V to +31V DC

AISG version

2.0

Power consumption, AISG mode

< 4W

AISG connector, current rating

IEC60130-9, 8-pin female

environmental

For further details of environmental compliance, please contact Kaelus.

Temperature range

-40ºC to +65ºC | -40°F to +155°F

Ingress protection

IP67

Lightning protection

RF: ±5kA (8/20us), AISG: ±2kA common mode (8/20us)

MTBF

>1,000,000 hours

Compliance

EMC: EN 301 489-23
Safety: EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETSI 300 019-1-1 class 1.2

mechanical

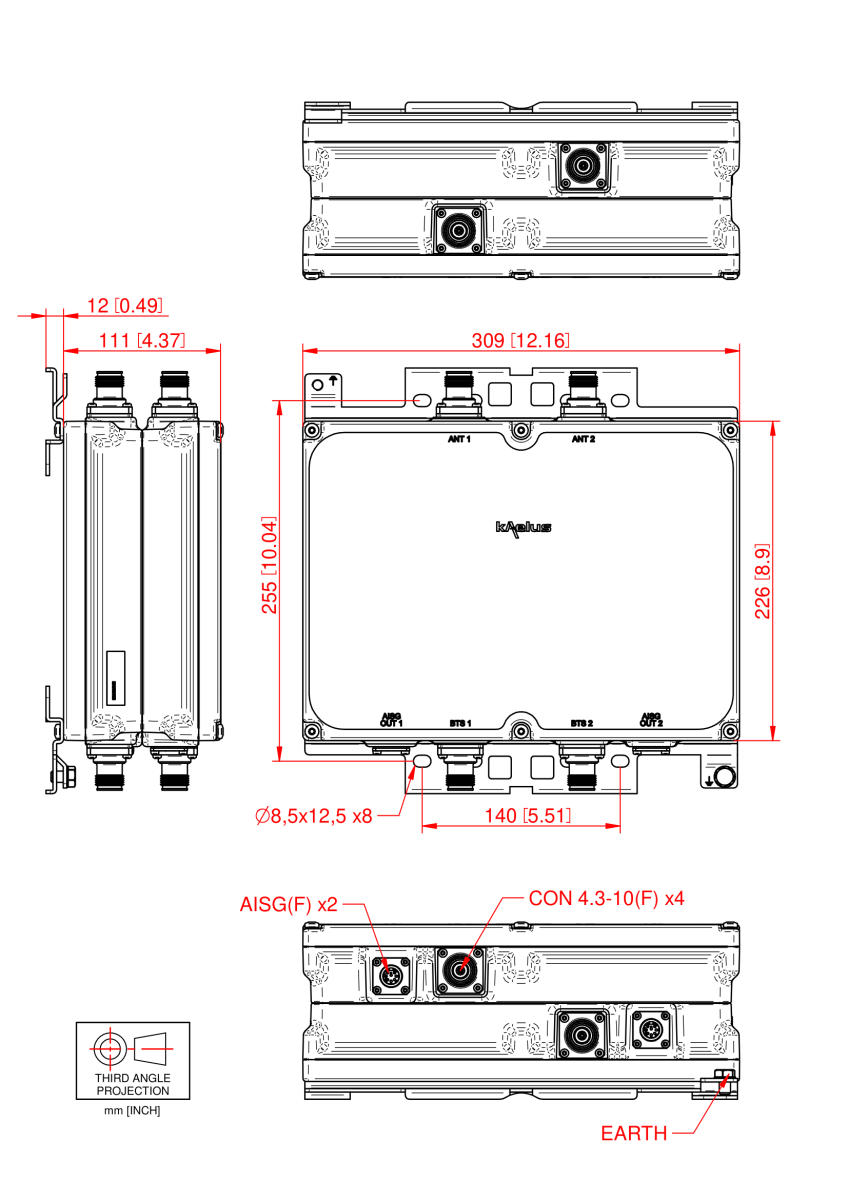

Dimensions H x D x W

226 x 111 x 309mm | 8.9 x 4.37 x 12.16in (excluding brackets and connectors)

Weight

10.8kg | 23.81lbs

Finish

Powder coated, NCS 1502-R

Mounting

Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles

shipping information

Carton size

390 x 390 x 220mm

Carton Qty / Pallet

ordering information

Part Number

Configuration

Optional Features

Connectors

AISG Mode

MI-15801

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
1 x AISG

TWOTWO

MI-15802

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
1 x AISG

TRITWO

MI-15803

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
1 x AISG

ONETWO

MI-15806

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
2 x AISG

INDEPENDENT MODE

MI-15831

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
1 x AISG

TWOTWO

MI-15832

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
1 x AISG

TRITWO

MI-15833

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
1 x AISG

ONETWO

MI-15836

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
2 x AISG

INDEPENDENT MODE

Note: in the AISG mode "ONETWO " the multi band TMA is seen as 1 logic units with 2 subunits each and it is only required to connect to one of the two BTS ports. Either port can be used.

Note: in the AISG mode "TWOTWO " the multi band TMA is seen as 2 logic units with 2 subunits each and it is only required to connect to one of the two BTS ports. Either port can be used.

Note: in the AISG mode "TRITWO " the multi band TMA is seen as 3 logic units with 2 subunits each and it is only required to connect to one of the two BTS ports. Either port can be used.

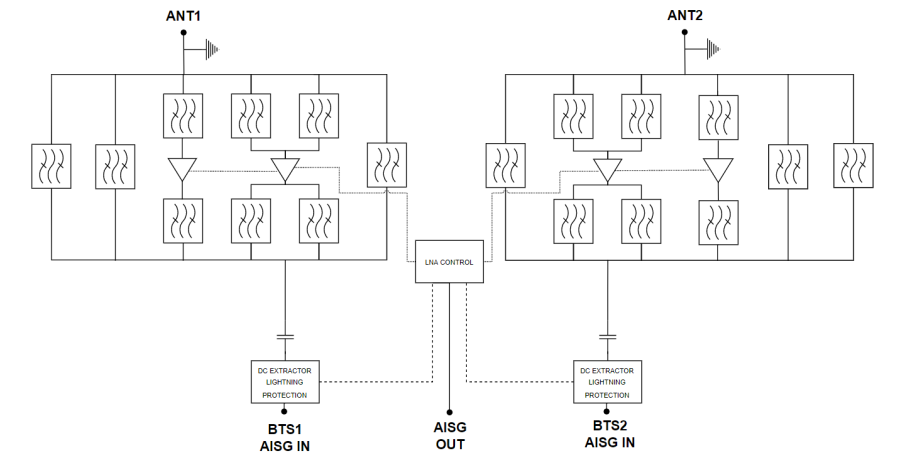

electrical block diagram
