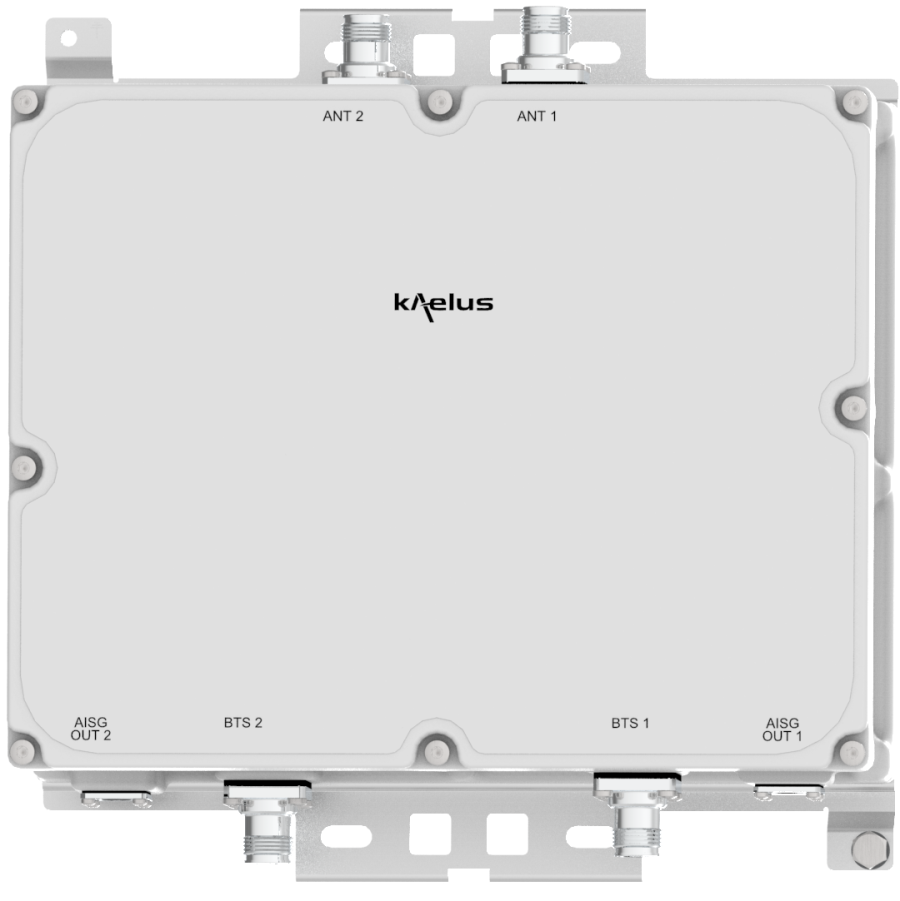

MI-173

TMA TWIN 700/800/900

Designed to be deployed in co-located Low band, 700, 800 and 900MHz systems with wideband antennas, this Tower Mounted Amplifier provides gain in all of the low bands.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

Improved base station sensitivity through gain in the 700, 800 and 900 uplink
Internal diplexing on the low band port of 700, 800 and 900 bands: 2 Antenna ports
Excellent noise figure performance
Full AISG operation and RET antenna support, AISG2.0 compatible
Small and light for minimum visual impact

Download PDF

GET A QUOTE

technical specifications

Band Name

700

800

900

downlink

Passband

758-788MHz

791-821MHz

925-960MHz

Insertion loss

0.5dB typical

Return loss

20dB typical, 18dB minimum

Maximum input power

200W (average)*

Intermodulation products

-160dBc in RX band at ANT

uplink

Passband

703-733MHz

832-862MHz

880-915MHz

Gain

12dB

Return loss

16dB

Bypass return loss

12dB

Bypass loss

2.2dB typical

Noise figure

1.4dB typical

Output IP3

25dBm typical

(*) Limited to 500W (average) combined power at the common ports.

electrical

Impedance

50Ohms

aisg mode of operation (auto selected on valid aisg 2.0 frames)

AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. Each LNA is controlled uniquely by its sub-unit number.

DC supply voltage

24 V DC nominal
+9.0V to +31V DC

AISG version

2.0

Power consumption, AISG mode

< 4W

AISG connector, current rating

IEC60130-9, 8-pin female

environmental

For further details of environmental compliance, please contact Kaelus.

Temperature range

-40ºC to +65ºC | -40°F to +155°F

Ingress protection

IP67

MTBF

>1,000,000 hours

Compliance

EMC: EN 301 489-23
Safety: EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETSI 300 019-1-1 class 1.2

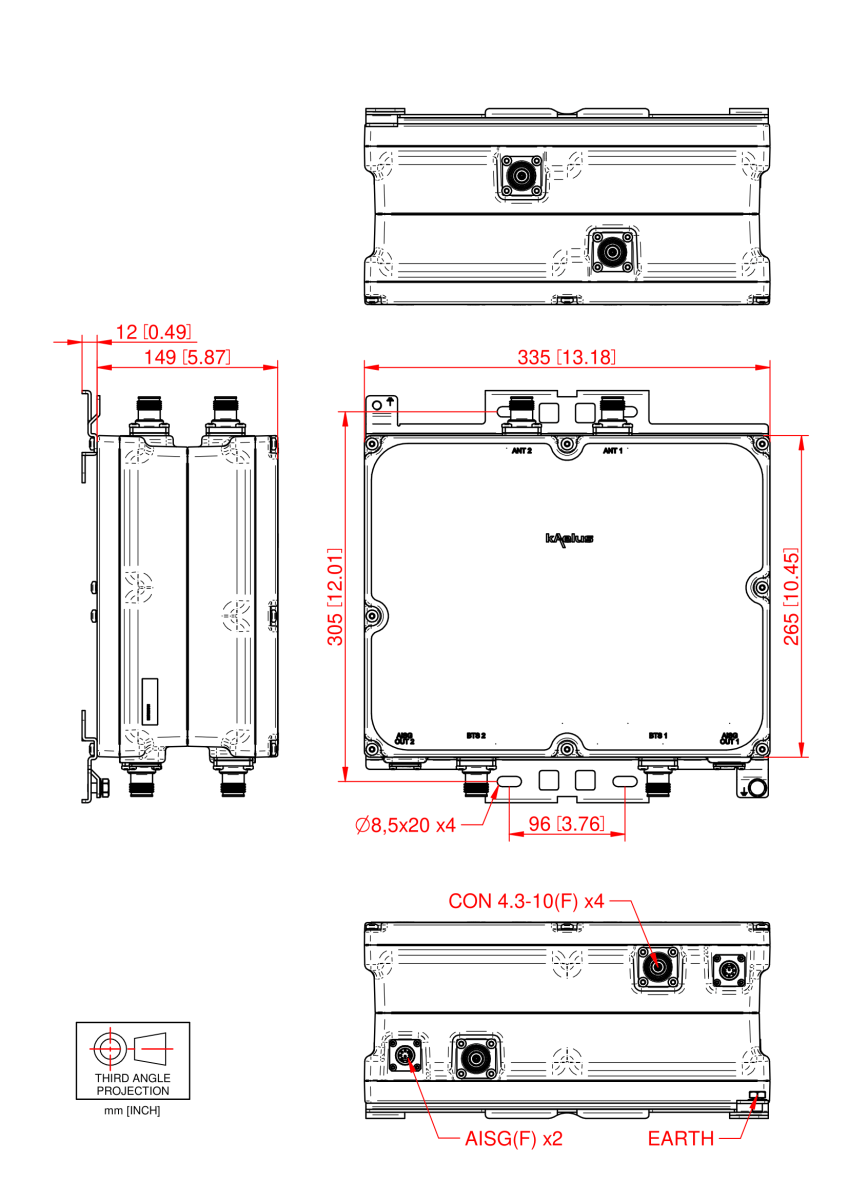

mechanical

Dimensions H x D x W

265 x 149 x 335mm | 10.45 x 5.87 x 13.18in (excluding brackets and connectors)

Weight

14kg | 30.86lbs

Finish

Powder coated, NCS 1502-R

Mounting

Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles

shipping information

ordering information

Part Number

Configuration

Optional Features

Connectors

AISG Mode

MI-17301

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
1 x AISG

TWOTWO

MI-17302

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
1 x AISG

TRITWO

MI-17303

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
1 x AISG

ONETWO

MI-17306

TWIN, 2 in / 2 out

BASE MODEL

7/16 (F)
2 x AISG

INDEPENDENT MODE

MI-17331

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
1 x AISG

TWOTWO

MI-17332

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
1 x AISG

TRITWO

MI-17333

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
1 x AISG

ONETWO

MI-17336

TWIN, 2 in / 2 out

BASE MODEL

4.3-10 (F)
2 x AISG

INDEPENDENT MODE

Note: in the AISG mode "ONETWO " the multi band TMA is seen as 1 logic units with 2 subunits each and it is only required to connect to one of the two BTS ports. Either port can be used.

Note: in the AISG mode "TWOTWO " the multi band TMA is seen as 2 logic units with 2 subunits each and it is only required to connect to one of the two BTS ports. Either port can be used.

Note: in the AISG mode "TRITWO " the multi band TMA is seen as 3 logic units with 2 subunits each and it is only required to connect to one of the two BTS ports. Either port can be used.

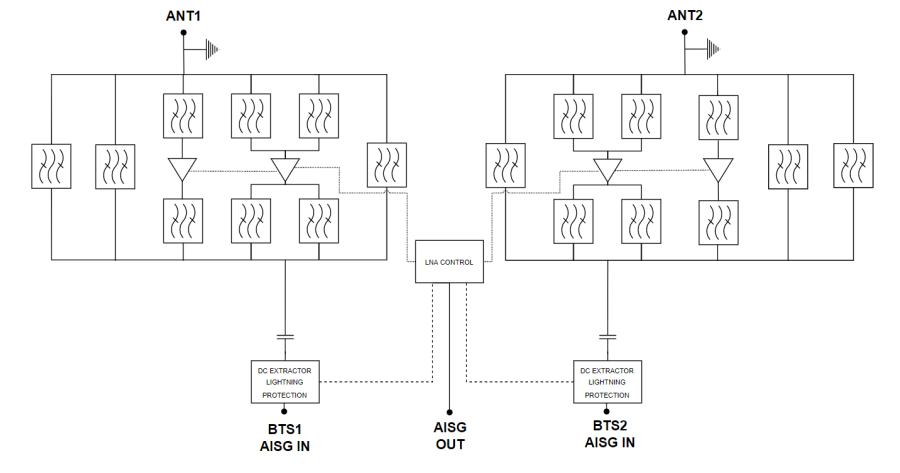

electrical block diagram
