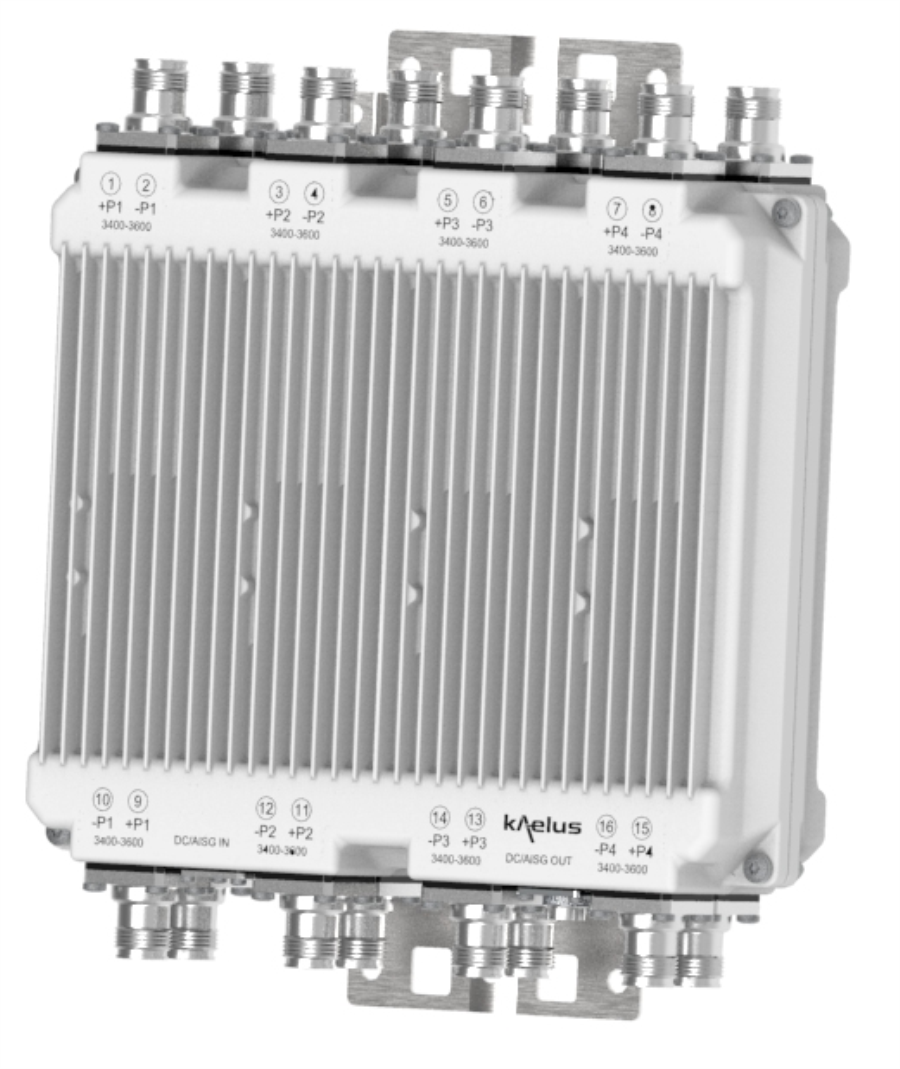

TMA TDD 3700-4100 4x4 & 8x8 mimo

Designed to be deployed with 3700-4100MHz TDD systems, the Kaelus KA-1006 enhances cell uplink coverage through improved system noise figure, thereby saving operational and capital expenditure. It can be used in 4x4 or 8x8 MIMO systems.


  • Improved base station sensitivity through gain in 3700-4100MHz
  • Suitable for 5G NR signals
  • Full AISG operation and RET antenna support
  • Small and light for minimum visual impact

technical specifications
Band 3700-4100MHz
Passband 200MHz Band within 3700 - 4100MHz
Insertion loss 1.3dB typical
Return loss 18dB minimum
Maximum input power 50W per channel
Passband 200MHz Band within 3700 - 4100MHz
Gain 12dB
Return loss 18dB minimum
Bypass return loss 18dB minimum
Bypass loss 1.3dB typical
Noise figure 1.6dB typical
Output IP3 +25dBm typical
Impedance 50Ohms
aisg mode of operation
DC/AISG signal must be applied to the AISG IN port to power up the Low Noise Amplifiers (LNA) in the Uplink path. Each LNA is controlled uniquely by its sub-unit number.
DC supply voltage +9V to +30V DC
AISG version 2.0
Power consumption, AISG mode 2W per channel
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | +40°F to +149°F
Ingress protection IP67
Lightning protection RF: ±5kA maximum (8/20us), AISG: ±2.5kA maximum (common mode)
MTBF 1.0Mh (4x4), 0.5Mh (8x8)
Compliance EMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
Feature 8x8 4x4
Dimensions H x D x W 290x240x80 mm | 11.4x9.5x3.1 in 290x240x44 mm | 11.4x9.5x1.7 in
Volume 5.6 L 3.1 L
Weight 8.9kg | 19.8 lbs 4.8kg | 10.7 lbs
Finish NCS 1502-R
Wind Load 286 N @70 m/s
Mounting Pole/wall bracket supplied with two metal clamps 40-140mm diameter poles
shipping information
Carton size 400 x 500 x 200mm 400 x 500 x 160mm
Gross weight (including packaging) 9.9kg 5.8kg
ordering information
Part Number Configuration Passband Connectors AISG Mode
KA-1006-4041 4x4, 4 in / 4 out 3700-3900MHz NEX10(F) ONEFOR
KA-1006-4031 4x4, 4 in / 4 out 3700-3900MHz 4.3-10 (F) ONEFOR
KA-1006-8041 8x8, 8 in / 8 out 3700-3900MHz NEX10(F) ONEOCT
KA-1006-8031 8x8, 8 in / 8 out 3700-3900MHz 4.3-10 (F) ONEOCT
KA-1006-4141 4x4, 4 in / 4 out 3900-4100MHz NEX10(F) ONEFOR
KA-1006-4131 4x4, 4 in / 4 out 3900-4100MHz 4.3-10 (F) ONEFOR
KA-1006-8141 8x8, 8 in / 8 out 3900-4100MHz NEX10(F) ONEOCT
KA-1006-8131 8x8, 8 in / 8 out 3900-4100MHz 4.3-10 (F) ONEOCT
Other frequency tuning available, please contact Kaelus.

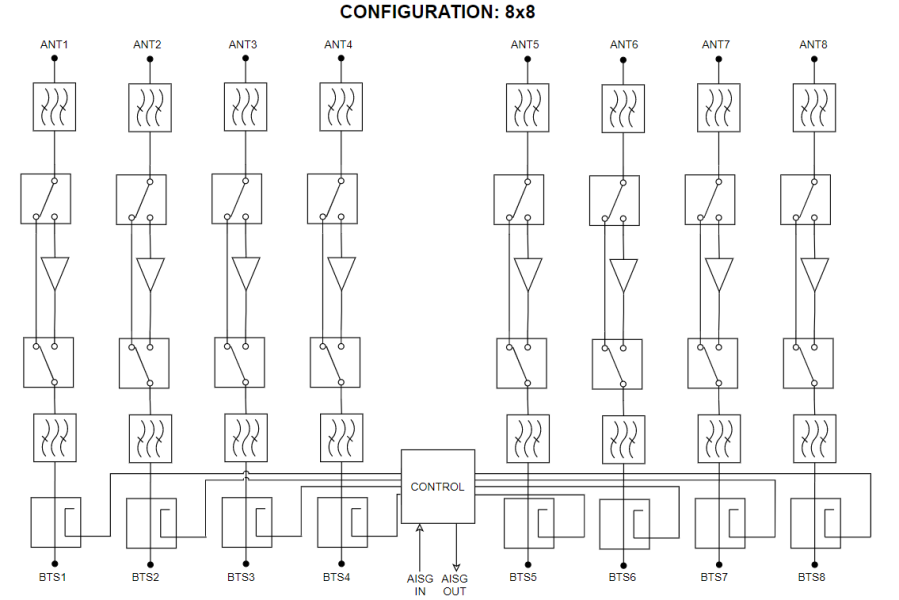

electrical block diagram

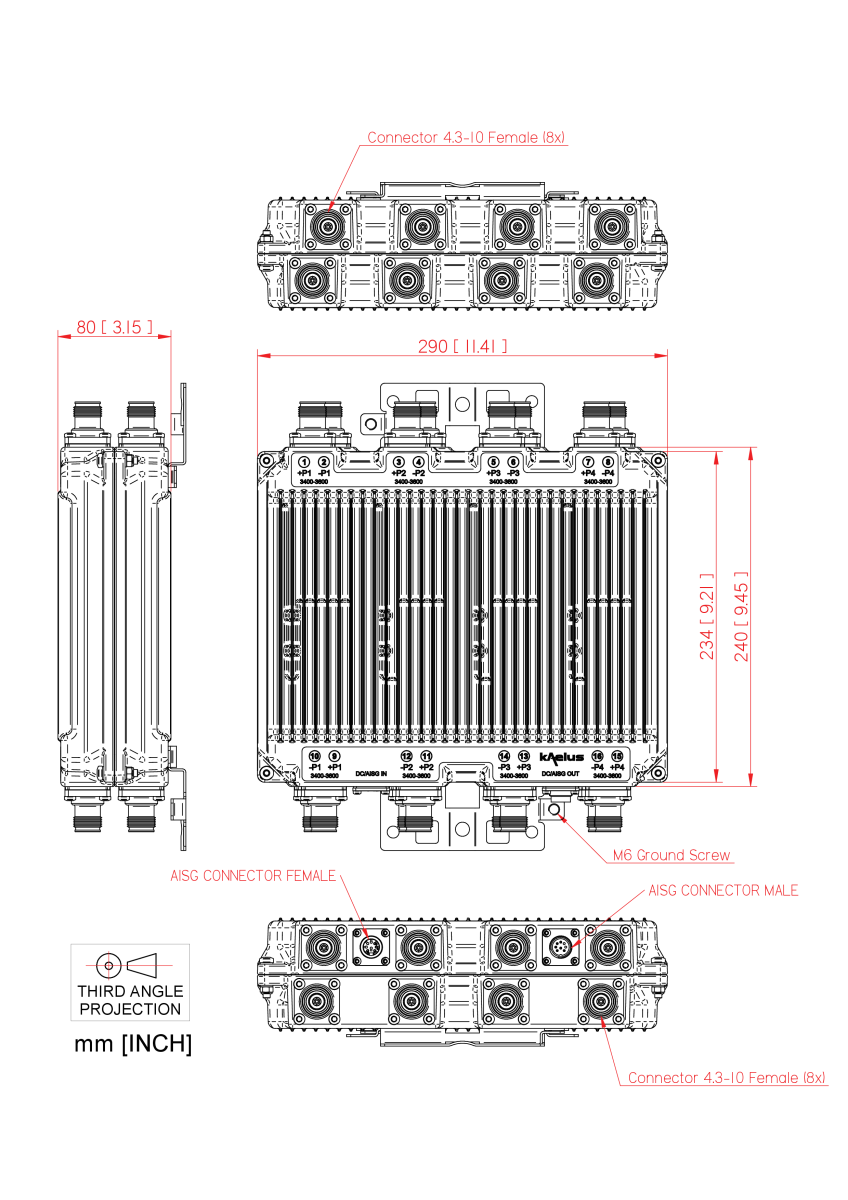

mechanical block diagram
