Parallel PIM Testing for R&D and manufacturers

Parallel PIM Testing for R&D and manufacturers

iBA-SW-GT

Are you working with Antenna manufacturing ?

Do you find it time-consuming to execute PIM-testing on multi-port antennas?

Is Quality of test-results an issue?

Is the report-documentation a hassle?

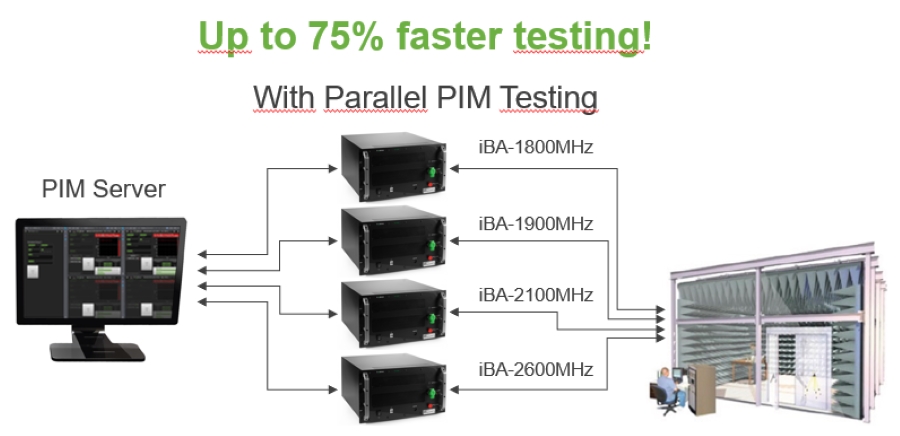

Did you know the Kaelus iBA Bench PIM Tester allows simultaneous PIM testing across multiple ports? Measure 2, 3, 4, or more bands in parallel and cut your PIM test cycle time by up to 75%, boosting efficiency and productivity.

You only need a current Kaelus iBA, the iBA system control SW (PIM Server) version v12.40.0 or later, and a license file to unlock the parallel PIM test functionality.

The PIM Server API is a  programming interface used to control and perform measurements using Kaelus Bench PIM instruments, and is provided with all Bench PIM instruments.


GET A QUOTE
GET A QUOTE

Product Resources

To use the iBA Group test feature, for Concurrent multiple iBA PIM tests with integrated DUT test reports.

Here is what you do:

Provide the serial numbers of all iBAs to be used in the testing group to your Kaelus representative.

A feature file for each iBA will be provided to you.

Copy the feature file for each iBA into the top directory of the corresponding iBA instrument via USB.

Once all iBAs in the group have their feature files installed, restart the iBA System control SW (PIM Server) and set it to SUPERVISOR mode to add test groups.

NOTE: This is an optional SW feature.


For a quick start with parallel PIM Testing and to maximize the efficiency of your testing setup, explore our Quick User Guide and the instruction video. They provide step-by-step instructions and practical tips to help you get started seamlessly.
