Door interlock Module

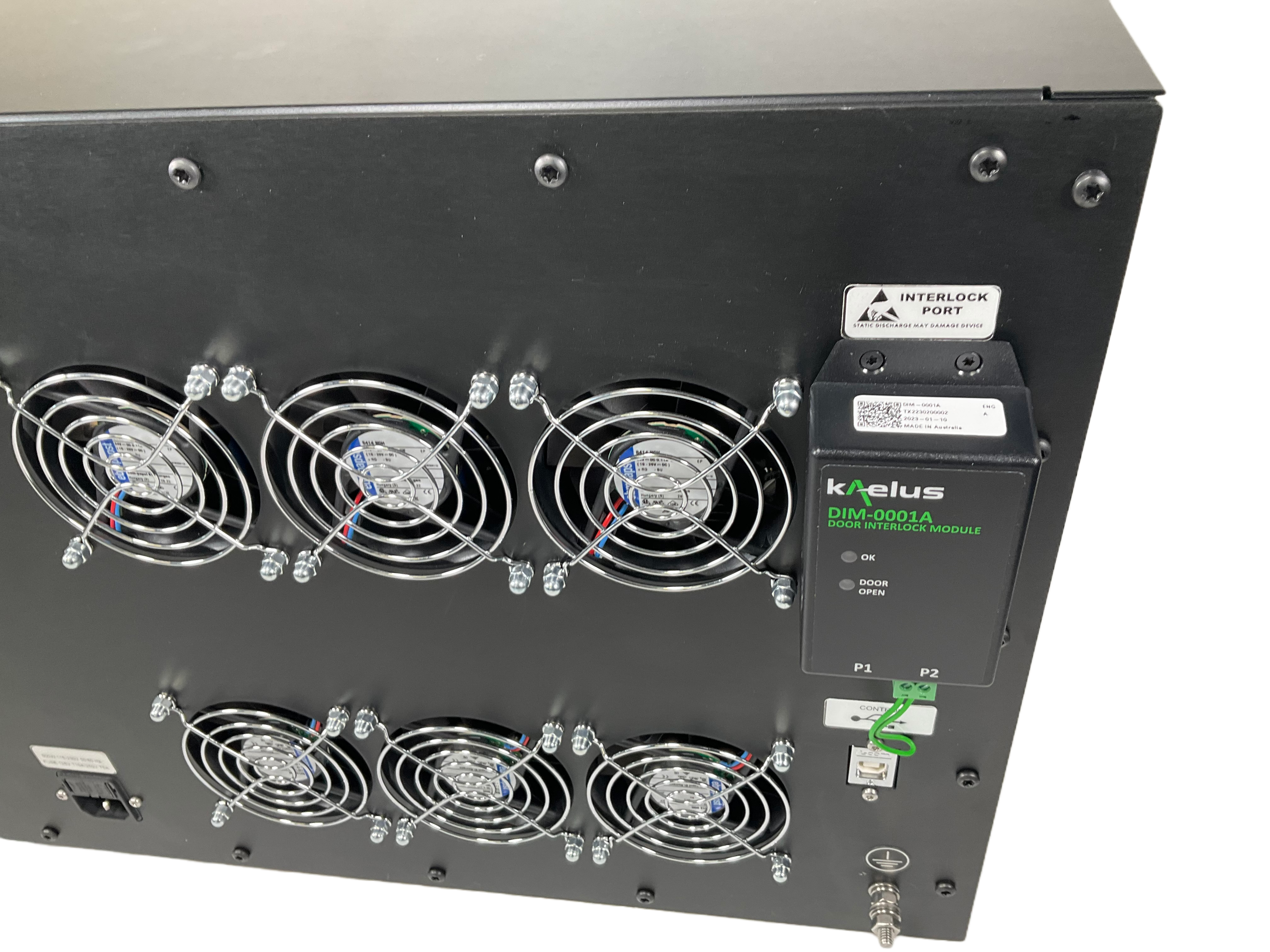

Introducing the Kaelus Door Interlock Module. Perform PIM testing safely by adding a RF interupt function to your iBA. Connect the Anechoic chamber's door to the Door Interlock Module (DIM) on the iBA. When opening the anechoic chamber's door, the DIM module prevents the iBA to turn on the RF power, the inspection of the Device Under Test can then be performed safely.

FEATURES

  • Daisy chain multiple Door interlock module to control several IBAs and chamber's locks
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
specifications
technical
Total Cable Lenght - DIM module to Chamber's lock50 meters max
technical specifications
mechanical
Dimensions H x D x W109 x 54 x 30mm | 4.27 x 2.13 x 1.19in
Weight50g | 0.1lbs
environmental
Temperature range+10ºC to +40ºC | +50°F to +104°F (operating)
Operational humidity5% to 90% non-condensing
Storage temperature range-20°C to +60°C | -4°F to +140°F
ordering information
Part NumberDescription
DIM-0001ADoor interlock Module
product compatibility
Compatible with iBAs purchased with Interlock function.
Your iBA was purchased without the interlock function? Contact Kaelus for an upgrade.
mechanical block diagram

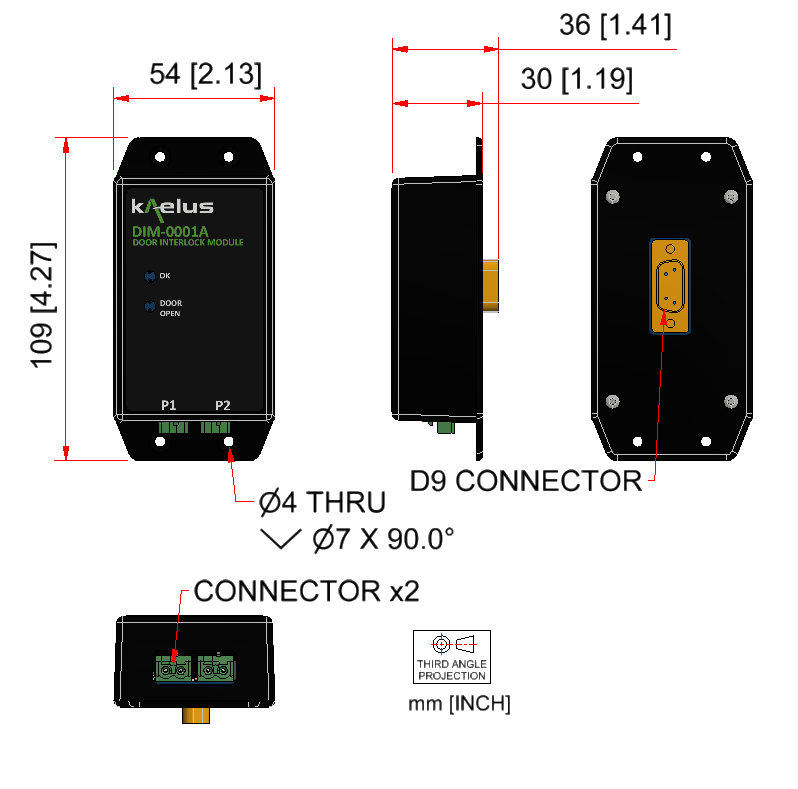

MECHANICAL BLOCK DIAGRAM
wiring diagram

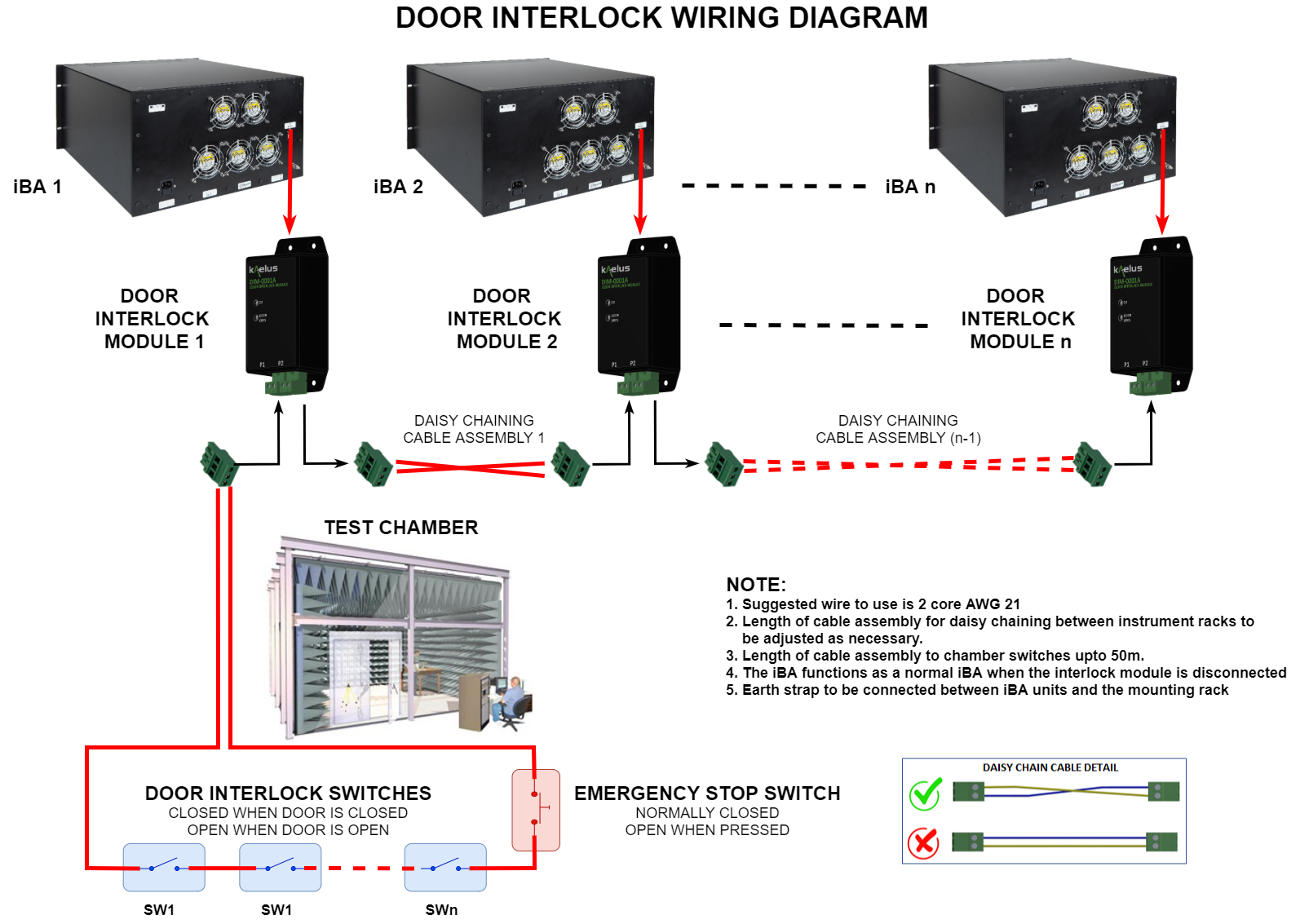

WIRING DIAGRAM

GET A QUOTE
