iAK-0090A

iAK-0090A

iPA Soft Case Accessory Kit

Reach maximum efficiency and safety in your test environment through the Kaelus *iPA Portable PIM Analyzer and Range-to-Fault (RTF) technology, together with the Kaelus iAK Accessory Kit series. This kit includes all necessary accessories required to perform a system check of your Kaelus iPA PIM analyzer as well as all required PIM testing.

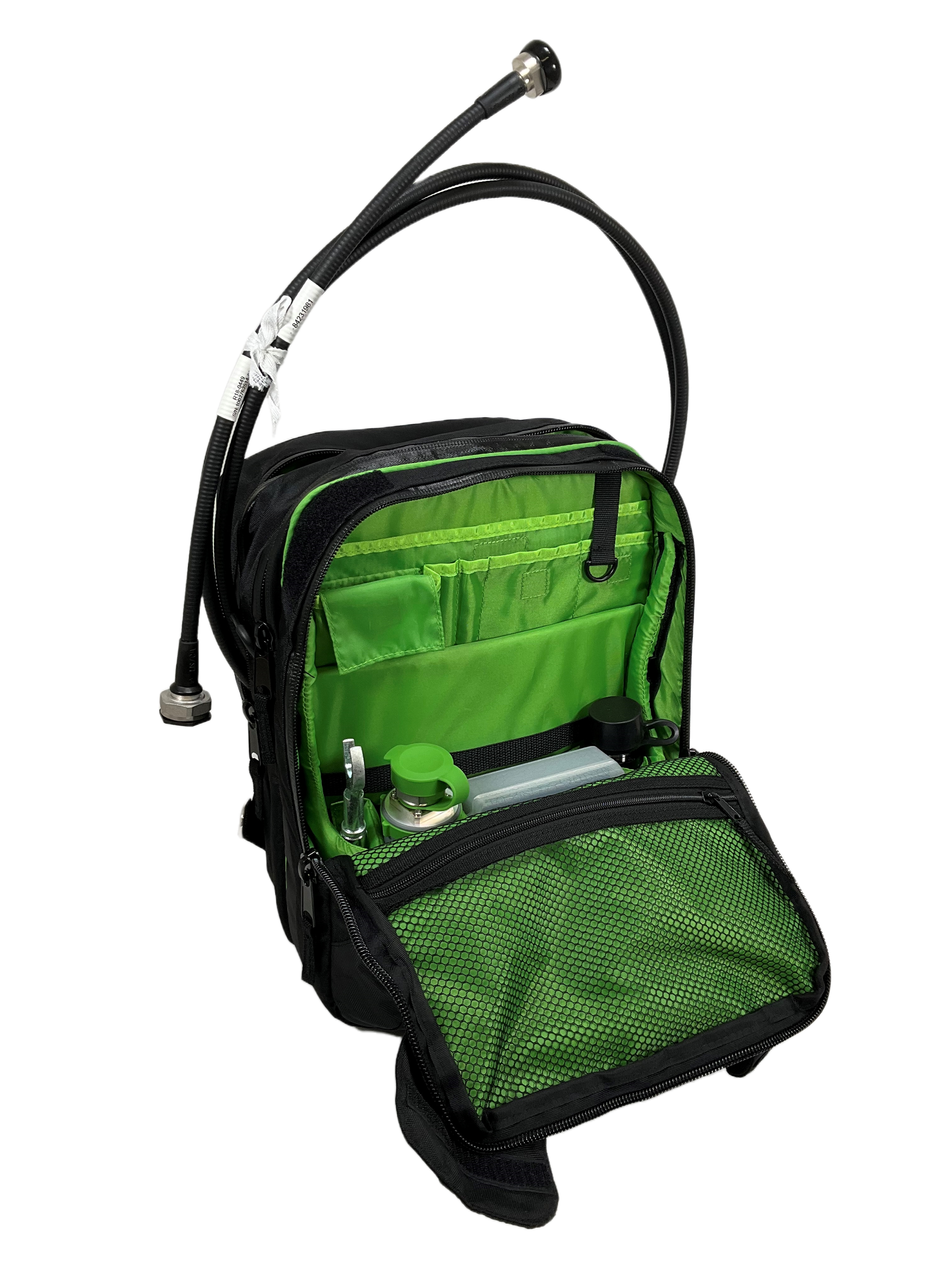

The iAK-0090A soft case accessory kit completes your Kaelus PIM testing solution for use in any test environment from the top of the tower, the base of the tower, rooftop, in-building for DAS systems. In addition, the backpack is rugged enough for complete protection of the iPA components during transport or on-site testing.

*iPA and RTF sold separately.

FEATURES

  • High Capacity Battery
  • PIM source and low PIM load
  • Light weight
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE

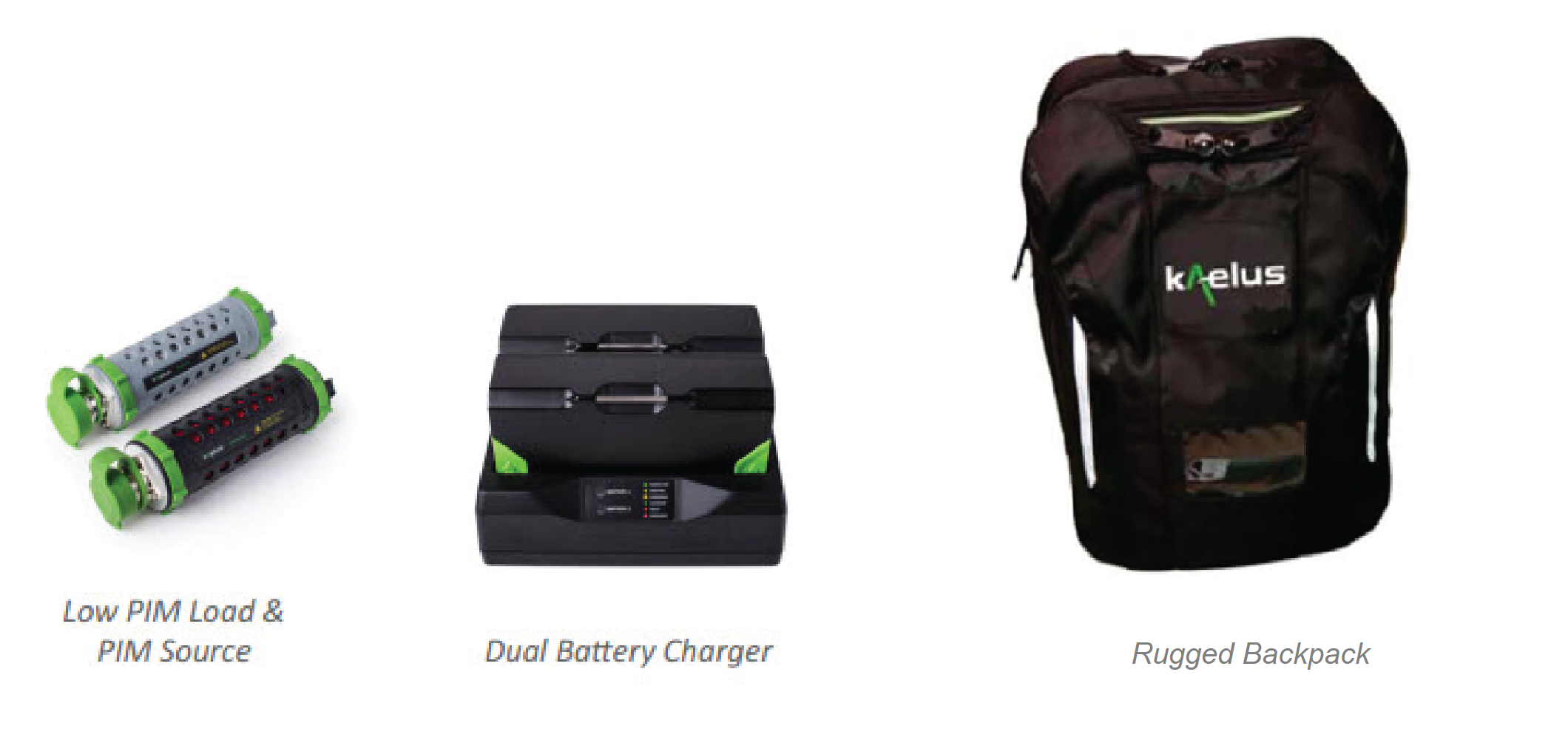

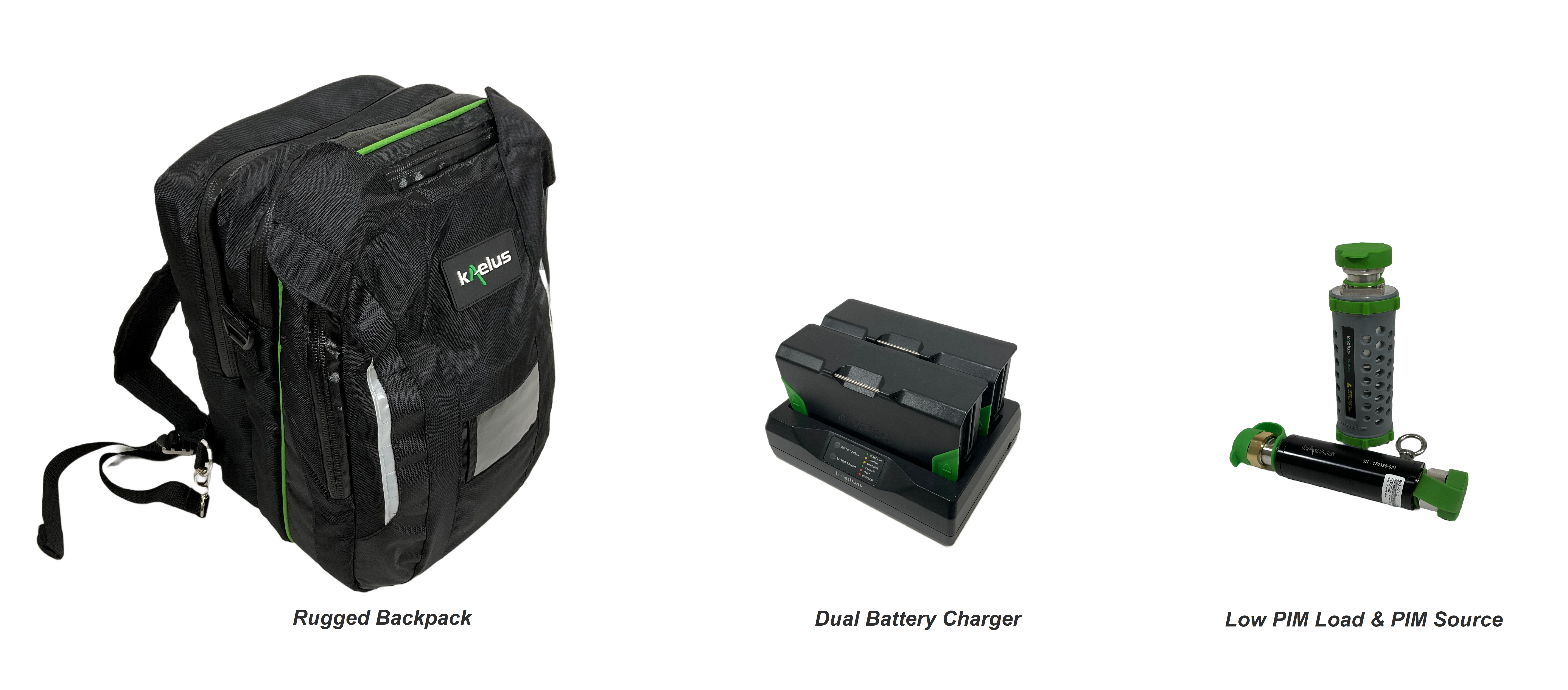

kit contents
QUANTITY PART NUMBER DESCRIPTION
1 R29-1486 Soft transit case
1 CIS-0001A PIM source
1 PIL-0005A Low PIM load
1 ASSY123721 3m test cable, 7/16 (M) to 4.3-10 (M)
1 R29-4858 Torque wrench, 22mm, 5Nm
for torquing down 4.3-10 connectors
1 R29-1851 Torque wrench, 32mm, 25Nm
for torquing down 7/16 connectors
1 ASSY108321 High Capacity Battery
1 R92-0443 Dual battery charging cradle
1 R92-0459 Connector cleaning kit
1 R92-0460 Adaptor kit
Note Kit contents is subject to change
adaptor kit r92-0460 contents
QUANTITY PART NUMBER DESCRIPTION
1 R40-10100 Adaptor 7/16 D (M) - 4.3-10 (F)
1 R40-10101 Adaptor 7/16 (F) - 4.3-10 (F)
1 R40-10114 Adaptor 7/16 (M) - 4.3-10 (M)
1 R40-10111 Adaptor 7/16 (F) - 4.3-10 (M)
1 R40-10102 Adaptor 4.3-10 (F) to 4.3-10 (F)
1 R79-10093 Adaptor 7/16 (F) - 7/16 (F)
Check out iAK-0060A (Premium accessory kit with hardcase) for alternative handling of the iPA and its accessories.
