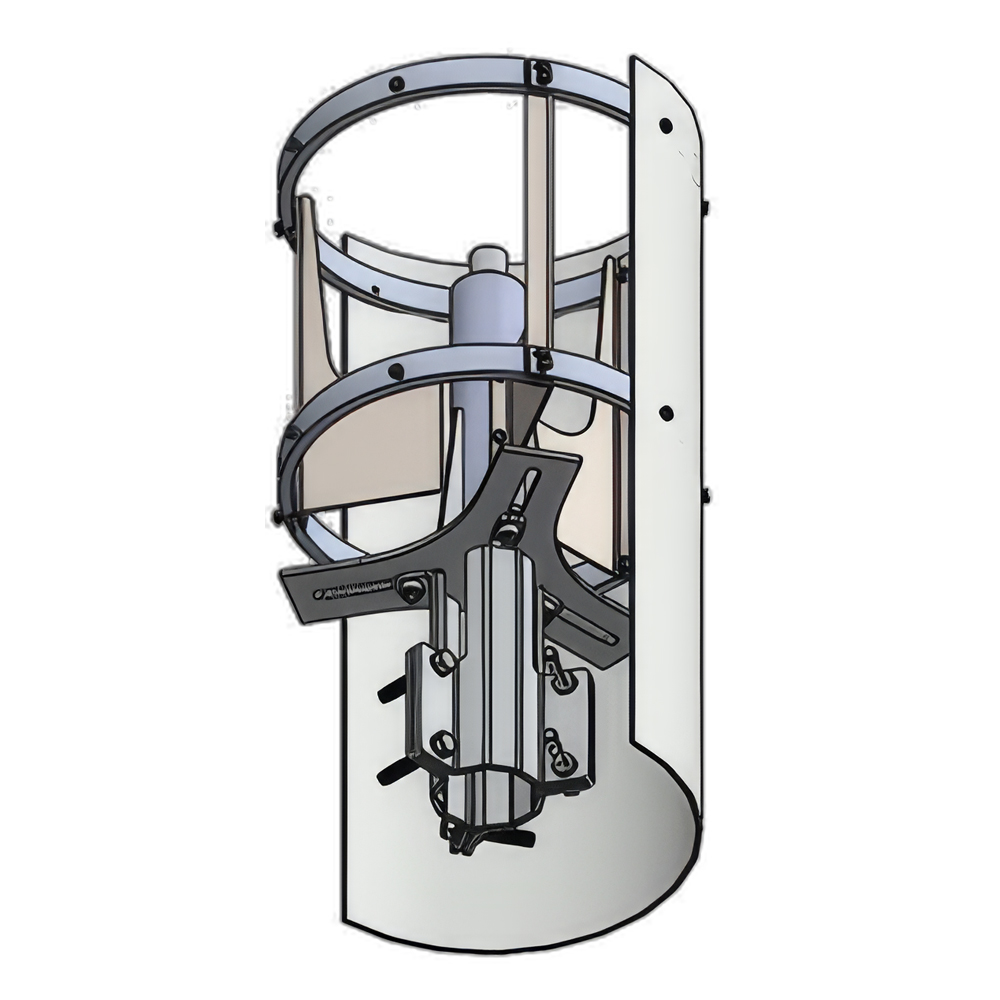

Mounting kit for Canister Antenna D60-160mm
KIT-000040-P
Designed for Top pole installation. Pole D60-160mm
This kit is compatible with Antennas;
M0MPBx0x-V1-P1
MCMPBx0x-V1-P1
MPMPBx0x-V1-P1
SPECIFICATIONS |
| MECHANICAL | |||||||||||||||
| Dimensions Length, Width, Depth [ inch|mm] | 10.24 x 10.00 x 18.19 | 260 x 254 x 462 | ||||||||||||||
| Net Weight [lbs|kg] | 8.38 | 3.8 | ||||||||||||||
| Volume for Canister Antenna with Cover [ft3|m3] | 1.62 | 0.046 | ||||||||||||||
| Bracket material | Aluminium | ||||||||||||||
| Screw/nut material | Stainless steel | ||||||||||||||
| Cover material | ASA | ||||||||||||||
| Cover color [RAL] | 7035 | ||||||||||||||
| Windload, Calculation [mph|km/h] | 93.2 | 150 | ||||||||||||||
| Windload, Maximum (total windload, including antenna) [lbf|kg] | 26.7 | 12.1 | ||||||||||||||
| Survival Wind Speed [mph|km/h] | 150 | 241.4 | ||||||||||||||
SHIPPING INFORMATION |
|||||||||||||||
| Packing Size: Length, Width, Depth [inch|mm] | 22 x 13.8 x 12.2 | 558.8 x 350.5 x 309.9 | ||||||||||||||
| Shipping Weight [lbs|kg] | 13.2 | 6 | ||||||||||||||

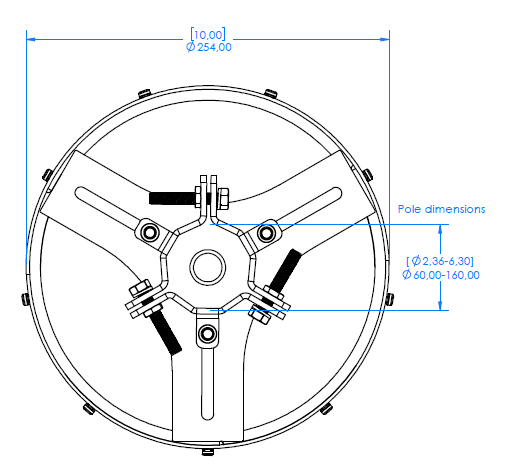

MECHANICAL BLOCK DIAGRAM |
