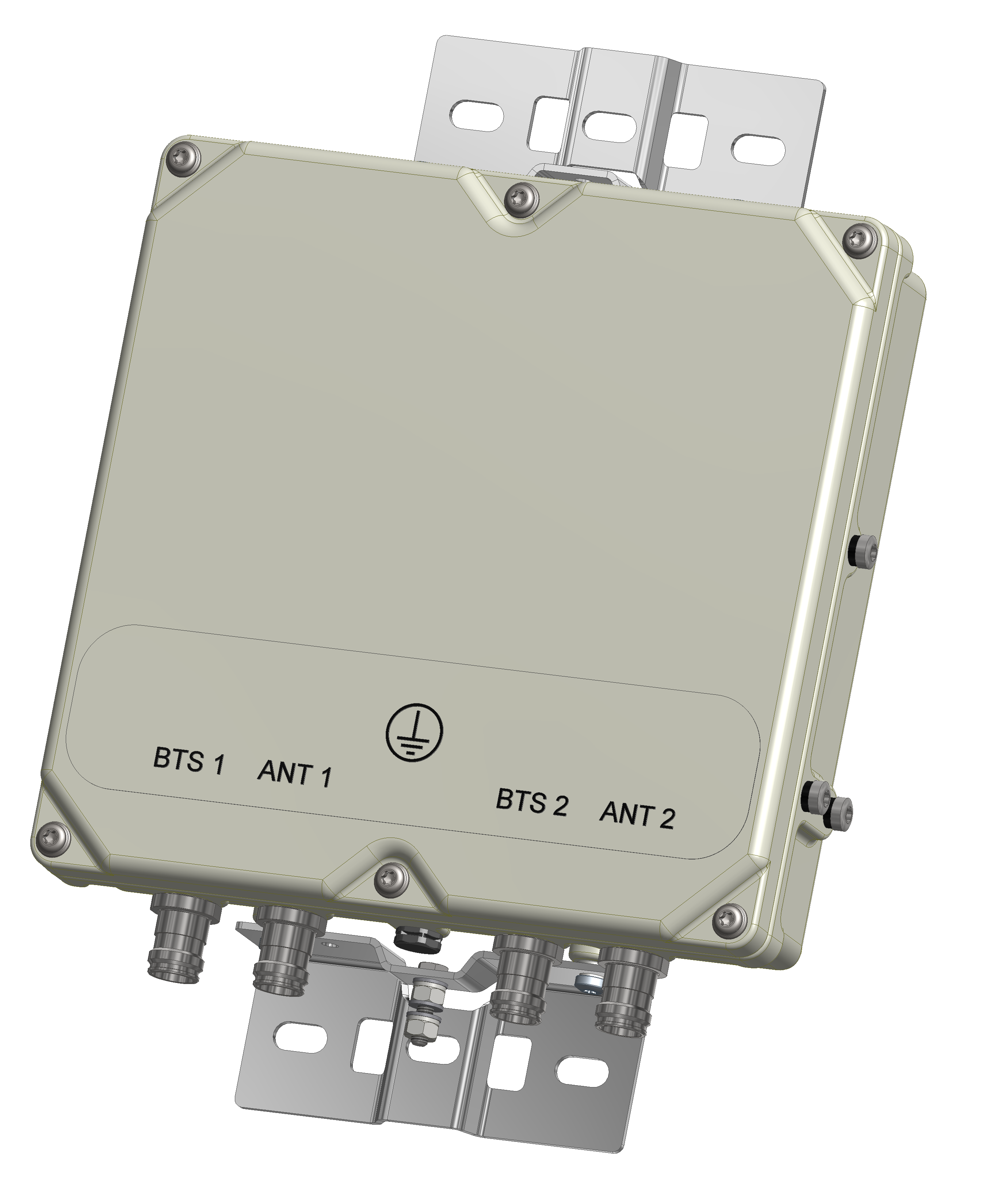

TWIN BANDSTOP 900MHz INTERFERENCE MITIGATION FILTER

The KA-6030 is ideal for co-located 700, 850 and 900 networks. Utilising a 2.6MHz guardband the KA-6030 provides rejection of the 900 UL band while passing 700/850 UL and DL bands. Capable of being used in an outdoor environment the KA-6030 contains two identical bandstop filters, suitable for 2x2 MIMO configuration, offering excellent insertion loss, group delay and rejection.

FEATURES

  • Passes full 700 and 850 bands
  • Low insertion loss
  • Rejection of 900MHz uplink
  • DC/AISG pass
  • Twin unit
  • Dual twin mounting available
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
BAND NAME700 PATH / 850 UPLINK PATH850 DOWNLINK PATH
Passband698 - 849MHz869 - 891.5MHz
Insertion loss0.1dB typical / 0.3dB maximum0.5dB typical, 1.45dB maximum
Return loss24dB typical, 18dB minimum
Maximum input power (Per Port)100W average200W average and 66W per 5MHz
Rejection53dB minimum @ 894.1 - 896.5MHz
electrical
Impedance50Ohms
Intermodulation products-160dBc maximum in UL Band (assuming 20MHz Signal), with 2 x 43dBm carriers
-153dBc maximum with 2 x 43dBm
dc / aisg
Passband0 - 13MHz
Insertion loss0.3dB maximum
Return loss15dB minimum
Input voltage range± 33V
DC current rating2A continuous, 4A peak
Compliance3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-20ºC to +60ºC | -4°F to +140°F
Ingress protectionIP67
Altitude2600m | 8530ft
Lightning protectionRF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must be terminated with some lightning protection circuits.
MTBF>1,000,000 hours
ComplianceETSI EN 300 019 class 4.1H, RoHS, NEBS GR-487-CORE
mechanical
Dimensions H x D x W269 x 277 x 80mm | 10.60 x 10.90 x 3.15in (Excluding brackets and connectors)
Weight8.0 kg | 17.6 lbs (no bracket)
FinishPowder coated, light grey (RAL7035)
ConnectorsRF: 4.3-10 (F) x 4
MountingOptional pole/wall bracket supplied with two metal clamps 45-178mm diameter poles or custom bracket. See ordering information.
ordering information
Part NumberConfigurationOptional FeaturesConnectors
KA-6030-2032TWIN, 2 in / 2 out DC/AISG PASS4.3-10 (F)
electrical block diagram
