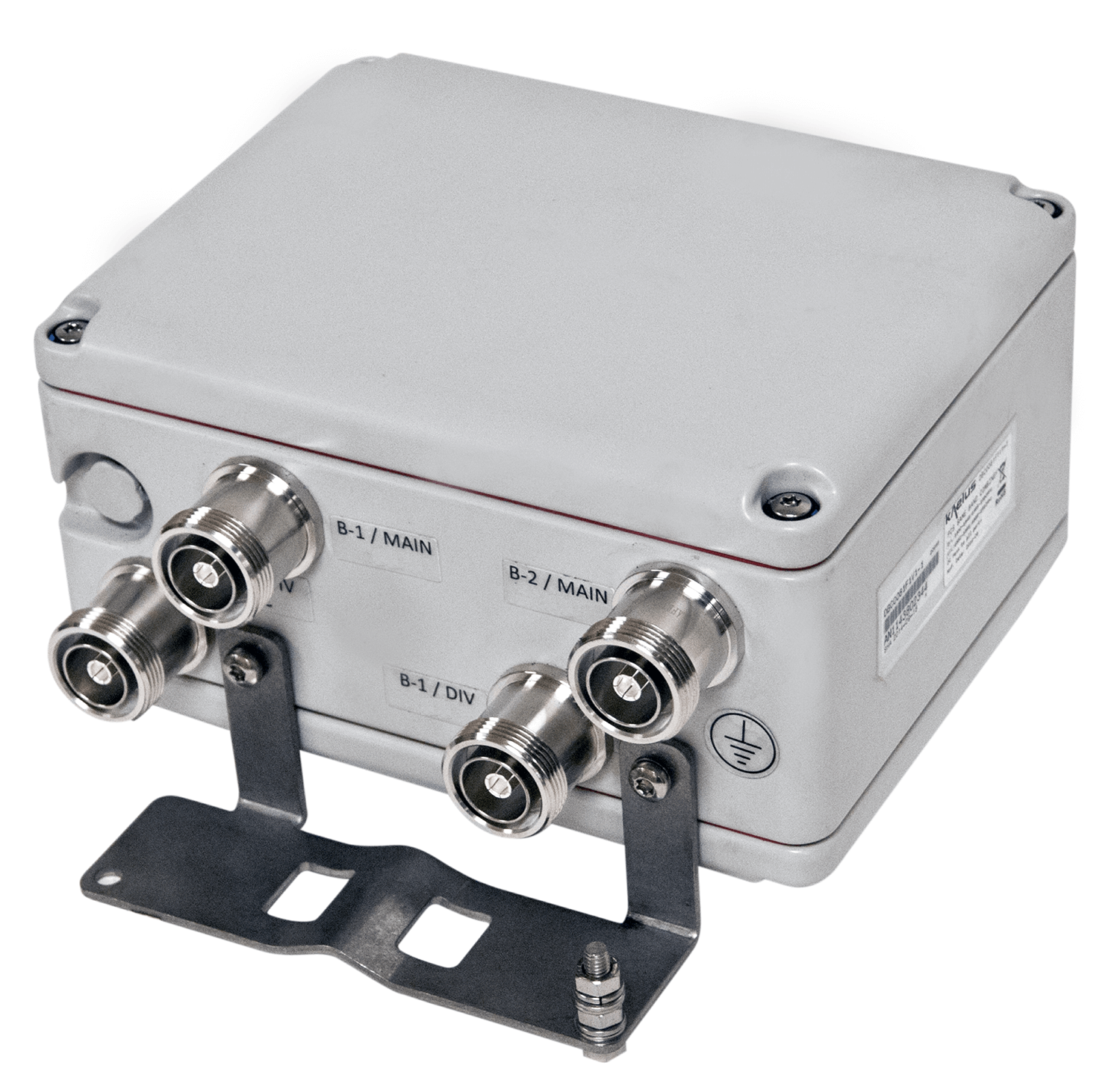

DBC0081F1V3-1

DBC0081F1V3-1

TWIN SAME BAND COMBINER, 1900

Designed to combine the 1900 A and the 1900 C or E bands the Kaelus DBC0081 provides a compact twin combining solution with low insertion, The DBC0081 solution minimizes feeders, TMA’s and antennas thereby saving both capital and operational expenditure when combining two base stations.

FEATURES

  • Allows two 1900 base stations to share feeders, TMAs and antennae
  • Variable DC / AISG pass options available
  • Low downlink and uplink insertion losses
  • Suitable for indoor and outdoor use

technical specifications
Port Name B-1 TX/Rx B-2 TX/Rx
downlink
Passband 1930 - 1945MHz 1965 - 1990MHz
Insertion loss 0.5dB typical
Return loss 18dB minimum
Maximum input power 100W (average) / 1kW (PEP)
uplink
Passband 1850 - 1865MHz 1885 - 1910MHz
Insertion loss 0.65dB typical 0.8dB typical
Return loss 18dB minimum
isolation com port must be terminated in 50ohms
B1 TX frequency range 35dB typical, 30dB minimum
B2 TX frequency range 35dB typical, 30dB minimum
B1 RX frequency range 35dB typical, 30dB minimum
B2 RX frequency range 35dB typical, 30dB minimum
electrical
Impedance 50Ohms
Intermodulation products -161dBc typical / -153dBc maximum all ports with 2 x 20W carriers in RX band
dc / aisg
Passband 0 - 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Insertion loss, two DC/AISG pass 4.5dB maximum
Return loss, two DC/AISG pass 9dB typical
Input voltage range +/- 33V maximum, 4A peak maximum
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -20ºC to +55ºC | +4°F to +131°F
Ingress protection IP67
Altitude 2,000m | 6,500ft
Lightning protection RF: ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W 203 x 158 x 109mm | 8 x 6.2 x 4.3in
Weight 6.30kg | 13.9lbs
Finish Powder coated, light grey (RAL7035)
Connectors DIN 7-16 (F) x 6 long neck
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Description
DBC0081F1V1-1 Twin Same Band Combiner, 1900, DC/AISG through to both 1900 ports
DBC0081F1V2-1 Twin Same Band Combiner, 1900, DC/AISG through to B1 1900 port
DBC0081F1V3-1 Twin Same Band Combiner, 1900, DC/AISG through to B2 1900 port
DBC0081F1Vx-1 Twin Same Band Combiner, 1900, various DC/AISG pass options available
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

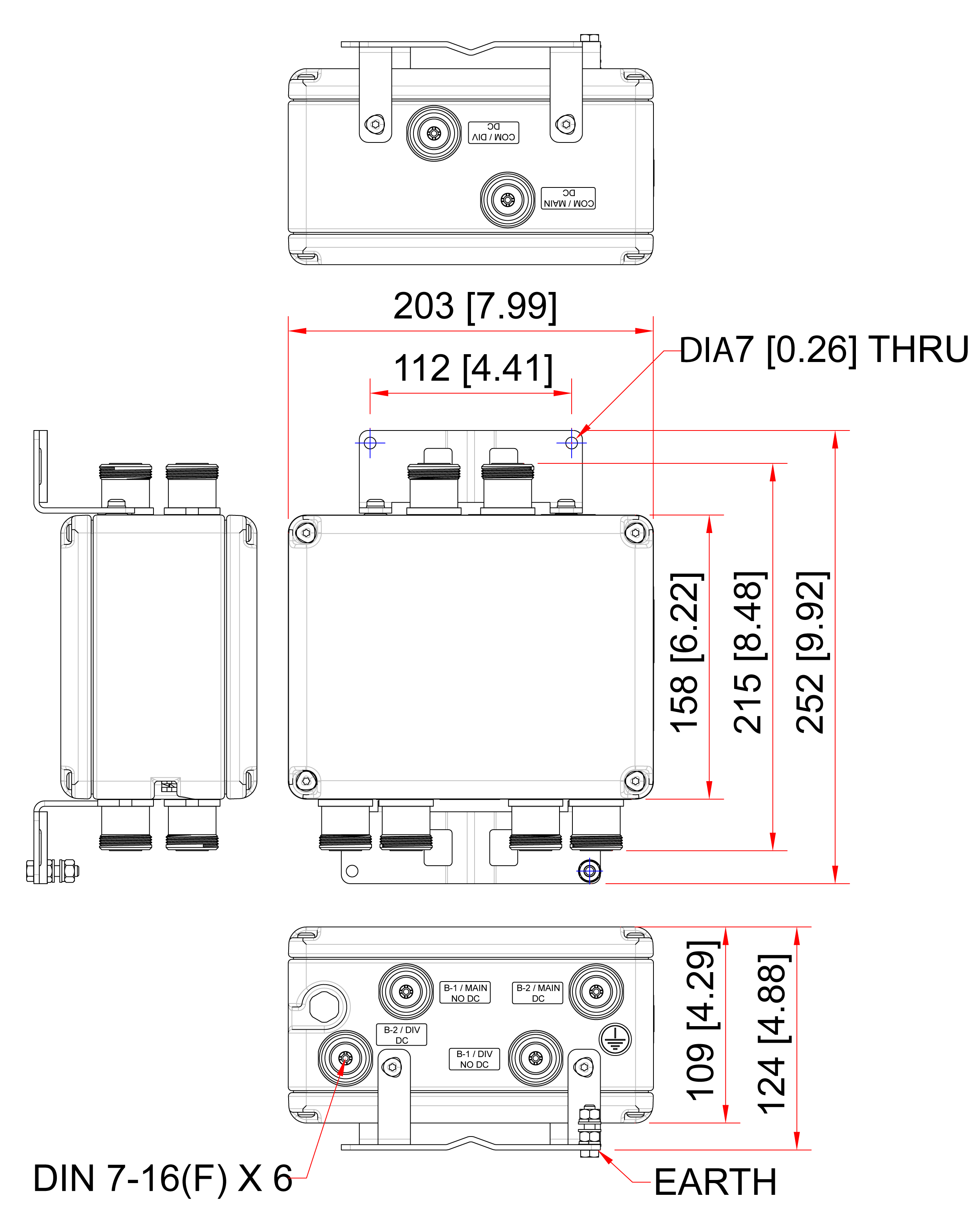

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
