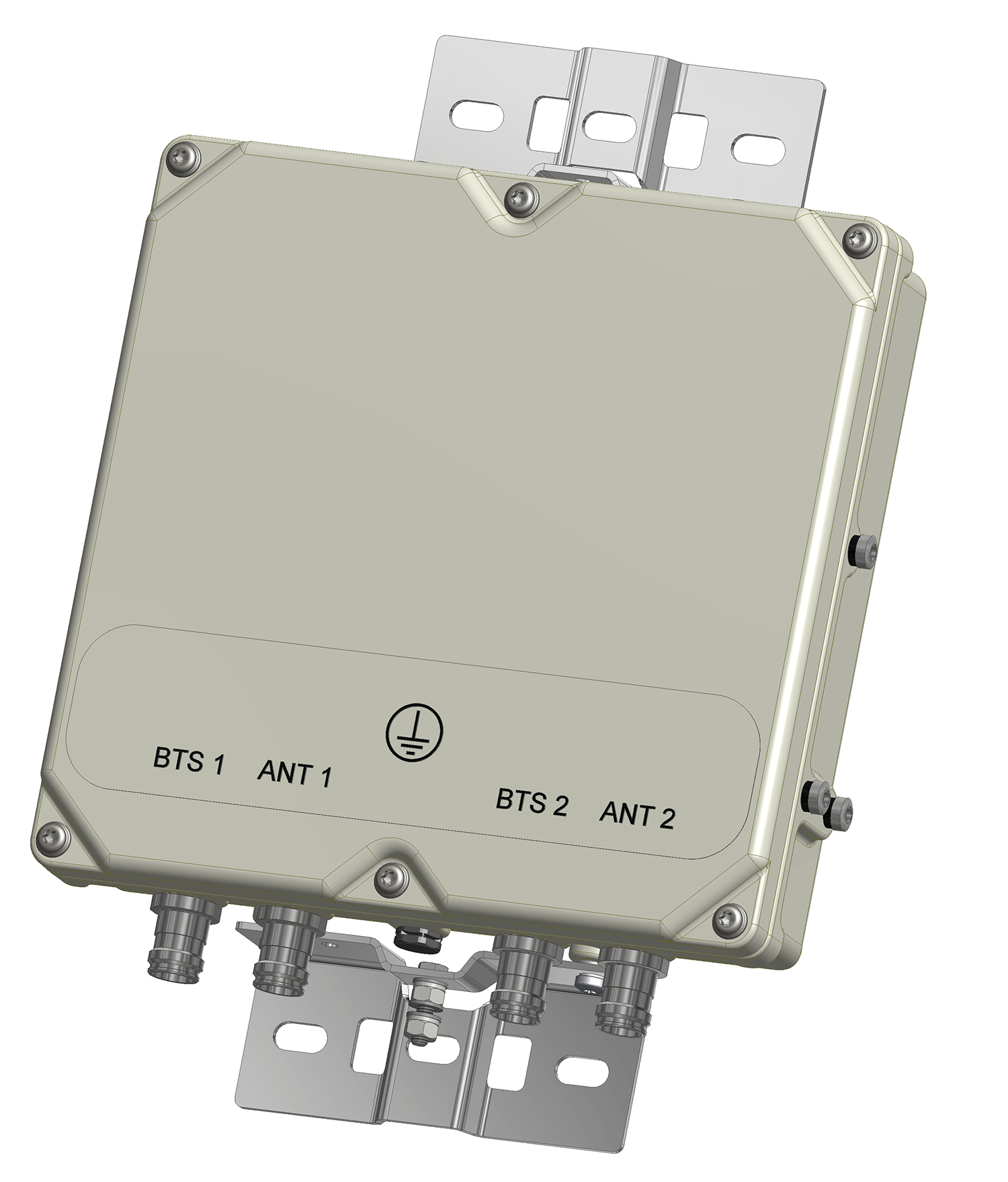

TWIN BANDSTOP 900MHz INTERFERENCE MITIGATION FILTER

The BSF0020 is ideal for co-located 700, 850 and 900 networks. Utilising a 2.6MHz guardband the BSF0020 provides rejection of the 900 UL band while passing 700/850 UL and DL bands. Capable of being used in an outdoor environment the BSF0020 contains two identical bandstop filters, suitable for 2x2 MIMO configuration, offering excellent insertion loss, group delay and rejection.

FEATURES

  • Passes full 700 and 850 bands
  • Low insertion loss
  • Rejection of 900MHz uplink
  • DC/AISG pass
  • Twin unit
  • Dual twin mounting available

technical specifications
BAND NAME700 PATH / 850 UPLINK PATH850 DOWNLINK PATH
Passband698 - 849MHz869 - 891.5MHz
Insertion loss0.1dB typical / 0.3dB maximum0.5dB typical, 1.45dB maximum
Return loss24dB typical, 18dB minimum
Maximum input power (Per Port)100W average200W average and 66W per 5MHz
Rejection53dB minimum @ 894.1 - 896.5MHz
electrical
Impedance50Ohms
Intermodulation products-160dBc maximum in UL Band (assuming 20MHz Signal), with 2 x 43dBm carriers
-153dBc maximum with 2 x 43dBm
dc / aisg
Passband0 - 13MHz
Insertion loss0.3dB maximum
Return loss15dB minimum
Input voltage range± 33V
DC current rating2A continuous, 4A peak
Compliance3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-20ºC to +60ºC | -4°F to +140°F
Ingress protectionIP67
Altitude2600m | 8530ft
Lightning protectionRF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must be terminated with some lightning protection circuits.
MTBF>1,000,000 hours
ComplianceETSI EN 300 019 class 4.1H, RoHS, NEBS GR-487-CORE
mechanical
Dimensions H x D x W269 x 277 x 80mm | 10.60 x 10.90 x 3.15in (Excluding brackets and connectors)
Weight8.0 kg | 17.6 lbs (no bracket)
FinishPowder coated, light grey (RAL7035)
ConnectorsRF: 4.3-10 (F) x 4
MountingOptional pole/wall bracket supplied with two metal clamps 45-178mm diameter poles or custom bracket. See ordering information.
ordering information
Part NumberConfigurationOptional FeaturesConnectors
BSF0020F3V1TWIN, 2 in / 2 out DC/AISG PASS
NO BRACKET
4.3-10 (F)
BSF0020F3V1-1TWIN, 2 in / 2 out DC/AISG PASS4.3-10 (F)
BSF0020F3V1-2QUAD, 4 in / 4 out DC/AISG PASS4.3-10 (F)
electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

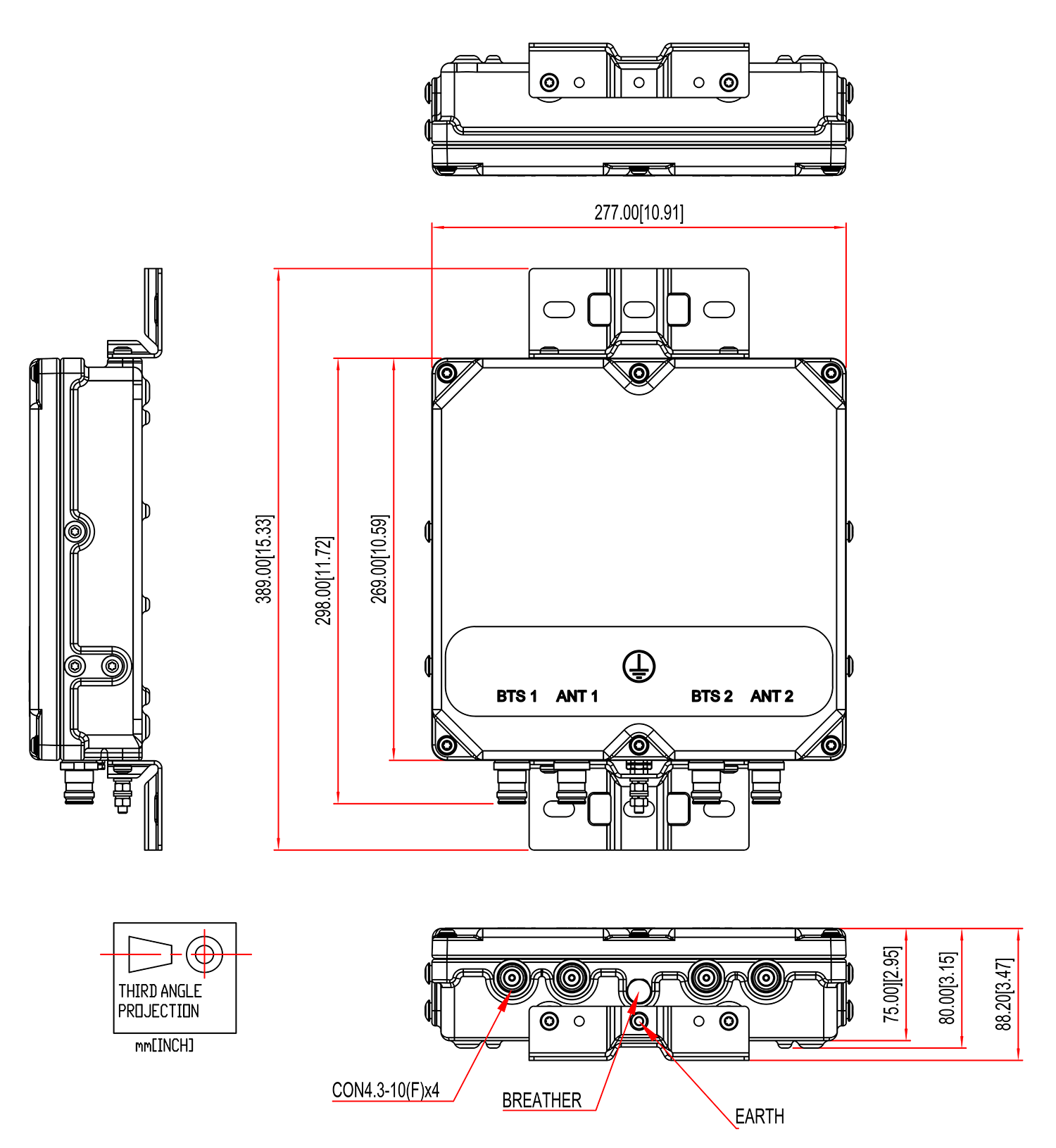

MECHANICAL BLOCK DIAGRAM
