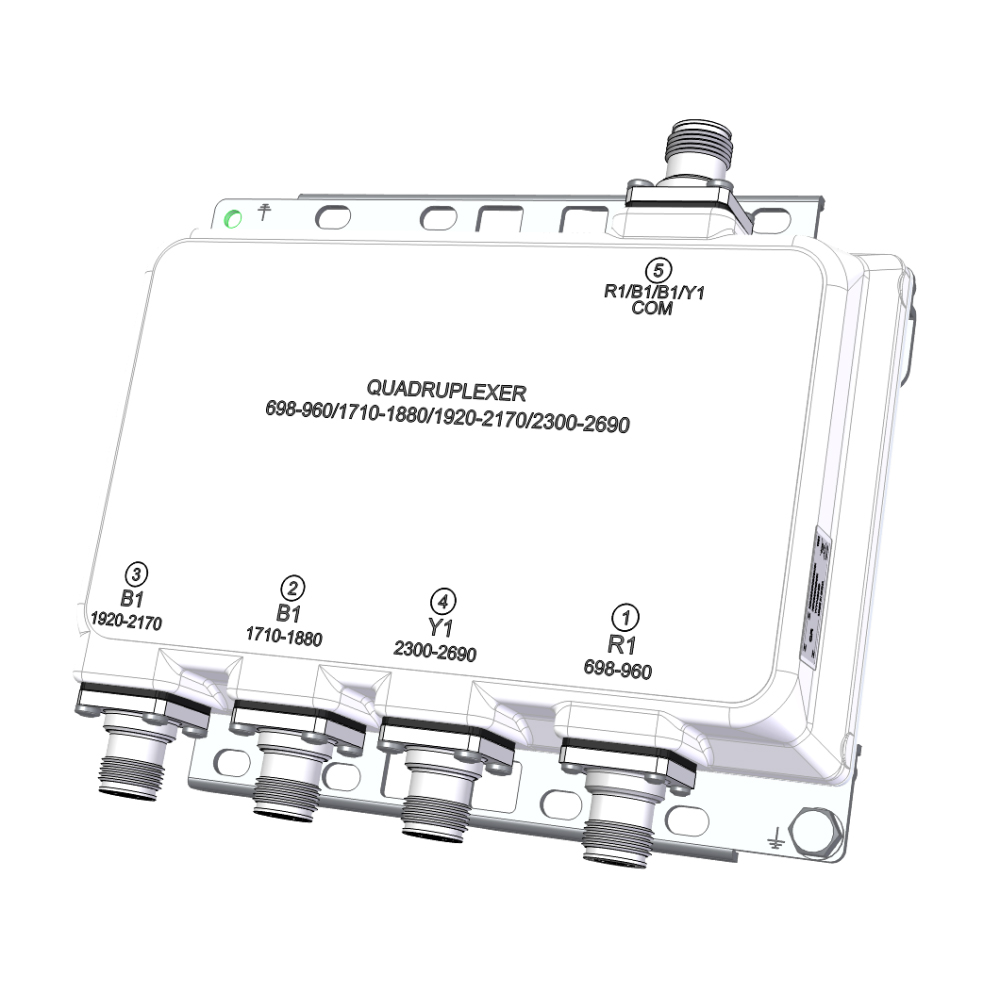

QUADRUPLEXER 698-960/1710-1880/1920-2170/2300-2600
The Kaelus QBC0017 is a bi-directional Quadruplexer designed to combine 700- 900 with 1800, 2100 and 2300-2600 technologies, the QBC0017 provides excellent insertion loss and passive intermodulation performance. Bidirectional passage of DC/AISG is an option provided in this outdoor product.
FEATURES
- Enables antenna/feeder sharing for 700-900, 1800, 2100 and 2300-2600 networks
- Low insertion loss & high return loss
- Low passive IM performance
- Hard Wired and DC Autosense versions available
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 700-900 | 1800 | 2100 | 2300-2600 | |||||||||||
| Passband | 698 – 960MHz | 1710 – 1880MHz | 1920 – 2170MHz | 2300 – 2690MHz | |||||||||||
| Insertion loss | 0.1dB typical 0.25dB maximum |
0.4dB typical 0.5dB maximum |
0.3dB typical 0.55dB maximum |
0.2dB typical 0.3dB maximum |
|||||||||||
| Return loss | 18dB minimum | ||||||||||||||
| Maximum input power | 250W (average) | 250W (average) | 250W (average) | 250W (average) | |||||||||||
| Intermodulation products | -160 dBc maximum with 2 x +43dBm TX Carrier (IM3) | -160 dBc maximum with 2 x +43dBm TX Carrier (IM3) | -168 dBc maximum with 2 x +43dBm TX Carrier (IM7) | -160 dBc maximum with 2 x +43dBm TX Carrier (IM3) | |||||||||||
| Rejection in 700-900 | N/A | 50dB minimum | 55dB minimum | 50dB minimum | |||||||||||
| Rejection in 1800 | 50dB minimum | N/A | 50dB minimum | 50dB minimum | |||||||||||
| Rejection in 2100 | 50dB minimum | 50dB minimum | N/A | 50dB minimum | |||||||||||
| Rejection in 2300-2600 | 50dB minimum | 50dB minimum | 50dB minimum | N/A | |||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| DC / AISG | |||||||||||||||
| For DC-FIXED versions, DC/AISG can be fully connected (DC all) or a specific connection can be ordered (DC custom). For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected. |
|||||||||||||||
| Feature | DC FIXED | DC AUTOSENSE | |||||||||||||
| Passband | 0 – 3MHz | 0 – 3MHz | |||||||||||||
| Insertion loss, single DC/AISG pass | 1dB maximum | 1dB maximum | |||||||||||||
| Return loss, single DC/AISG pass | 12dB minimum | 12dB minimum | |||||||||||||
| Insertion loss, two DC/AISG pass | 4.5dB maximum | ||||||||||||||
| Return loss, two DC/AISG pass | 6dB typical | ||||||||||||||
| Input voltage range | 8 – 30V DC | 8 – 30V DC | |||||||||||||
| DC current rating | 3A | 2A | |||||||||||||
| Compliance | 3GPP, TS 25.461 | ||||||||||||||
| Port priority (combiner mode) | N/A | Refer to ordering table | |||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | ±5kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | ETS 300 019-1-4 Class 4.1E, IEC/EN 62368-1 | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 250 x 160 x 49.5 mm | 9.84 x 6.30 x 1.95 in maximum | ||||||||||||||
| Weight | 4.5kg / 9.92lbs | ||||||||||||||
| Finish | NCS 1502-R (light grey) | ||||||||||||||
| Connectors | 4.3-10 (F) | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 40-140 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| QBC0017F1V1-1 | SINGLE 1 in / 4 out | BASE MODEL | 4.3-10 (F) | NO DC | |||||||||||
| QBC0017F1V94-1 | SINGLE 1 in / 4 out | DC AUTOSENSING WITHOUT LED | 4.3-10 (F) | PRIORITY: 1800 / 700-900 / 2100 / 2600 |
|||||||||||

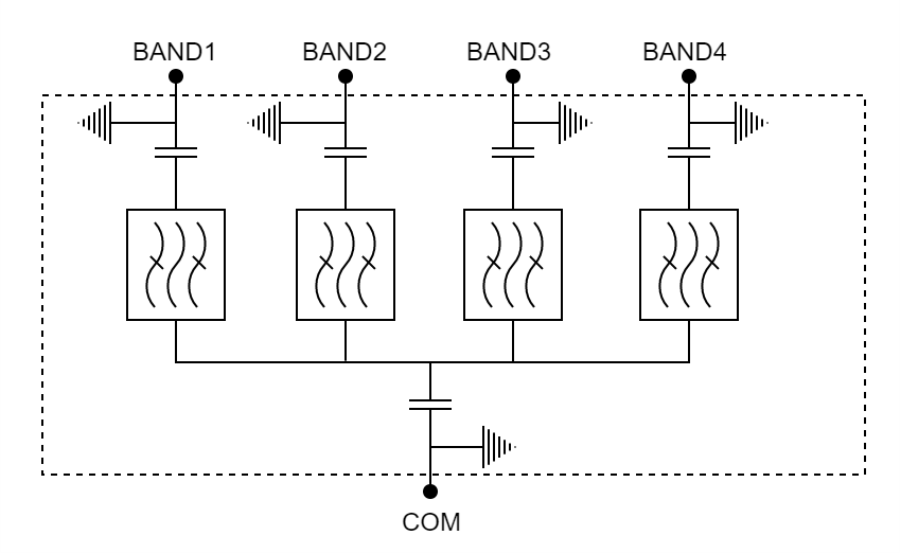

ELECTRICAL BLOCK DIAGRAM |
|||||||||||||||
| For clarity, only Electrical Block Diagram for the Fixed DC (No DC) is shown | |||||||||||||||
|

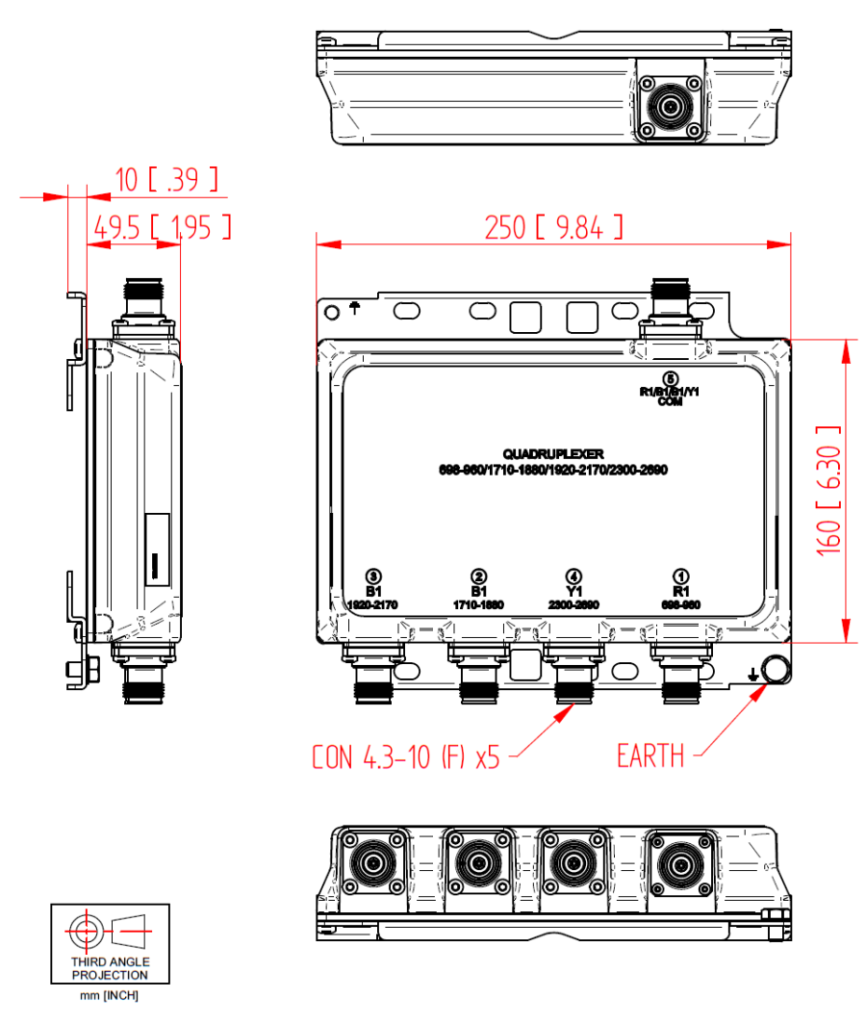

MECHANICAL BLOCK DIAGRAM |
