KA-6008-8433

3.7GHz BAND INTERFERENCE MITIGATION FILTER

The KA-6008-8433 is an interference mitigation filter tunable to two different positions: when set to position one, it rejects interference in the Satellite Communication Band (3820-3980MHz) band while passing 3700-3760MHz (A1/A2/A3 Block). When the Satellite Communication Band is vacated, the filter can be reconfigured to position two to pass 3700-3980MHz (A, B and C block). The change of configuration can be performed remotely via AISG. Capable of being used in an outdoor environment, the KA-6008-8433 contains eight identical filters, suitable for 8x8 MIMO configuration, offering excellent insertion loss and rejection.

FEATURES

  • Remote tunable filter set to 2 positions: position one, passing A1/A2/A3 block only, mitigates interference in the Satellite Communication band and position two allows the full 3.7GHz (A, B and C block) spectrum use, once the Satellite Communication band has been vacated.
  • Low insertion loss
  • Outdoor and indoor configurations
  • 8 in, 8 out configuration suitable for 8x8 MIMO configuration

technical specifications
POSITION POSITION 1 (Factory setting) POSITION 2
Passband 3700-3760MHz 3700-3980MHz
Insertion loss 0.55 typ / 0.75dB maximum 0.35dB typ / 0.5dB max
Return loss 24dB typical, 20dB minimum
Maximum input power 75W per channel
Intermodulation products -153dBc (2x20W, IM5)
Group Delay Absolute 20ns typ, 30ns max 3ns typ, 4.5ns max
Group Delay Variation across 60MHz 7ns typ, 15ns max 1ns typ, 2ns max
Group Delay Tracking between channels 15ns ±5ns at 3700MHz
10ns ±5ns at 3730MHz
17ns ±10ns at 3760MHz
< 4.5ns
Rejection 60dB minimum @ 3820-3980MHz N/A
electrical
Impedance 50Ohms
dc / aisg
Compliance AISG2.0, 3GPP TS 25.461
Input voltage range 10 - 30V
DC current rating 2A average maximum, 4A peak
Power Consumption 2W maximum in idle state
15W maximum during tuning
Device Type TMAAP
AISG command for device setting Position 1: "TMA SET Mode" to Normal Mode
Position 2: "TMA SET Mode" to Bypass Mode
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to +149°F
Ingress protection IP67, Outdoor unit
Lightning protection RF port: ±5kA maximum
(8/20us), IEC 61000-4-5
MTBF >500,000 hours
Compliance ETSI EN 300 019 class 4.1E, RoHS
mechanical
Dimensions H x D x W 201 x 108 x 296mm | 7.91 x 4.25 x 11.65in (Excluding brackets and connectors)
Weight 12kg | 26.5lbs estimated
Finish Powder coated, light grey (NCS 1502-R)
Connectors RF: 4.3-10 (F)
Mounting Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles
ordering information
models
PRODUCT NUMBER CONFIGURATION OPTIONAL FEATURES CONNECTORS
KA-6008-8433 8 way, 8 in / 8 out Tunable filter
AISG IN on port BTS1
4.3-10 (F)
accessories
PRODUCT NUMBER DESCRIPTION
KA-9007-0001 Low-PIM bracket
electrical block diagram
KA-6008-WXYZ where
  • W denotes the configuration: W=8, 8 way - 8:8
  • X denotes the optional feature: X=0, basic - fixed tuned to position 1, X=4, tunable
  • Y denotes the connector type: Y=3, 4.3-10 (F)
  • Z denotes the DC configuration: Z=1, No DC, Z=3, DC on first port (BTS1)
KA-6008-8433 is shown

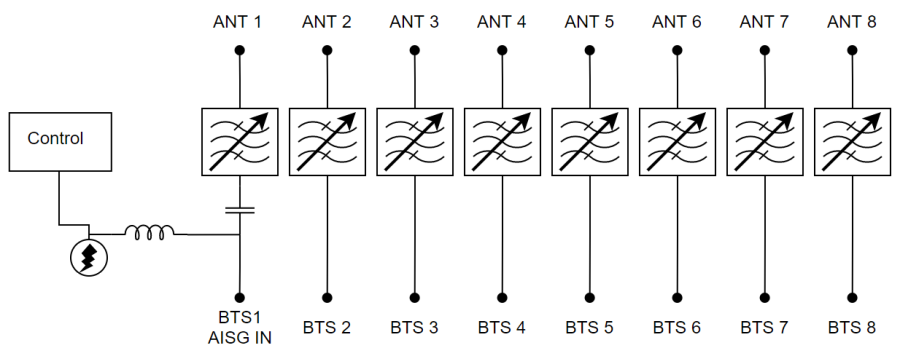

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

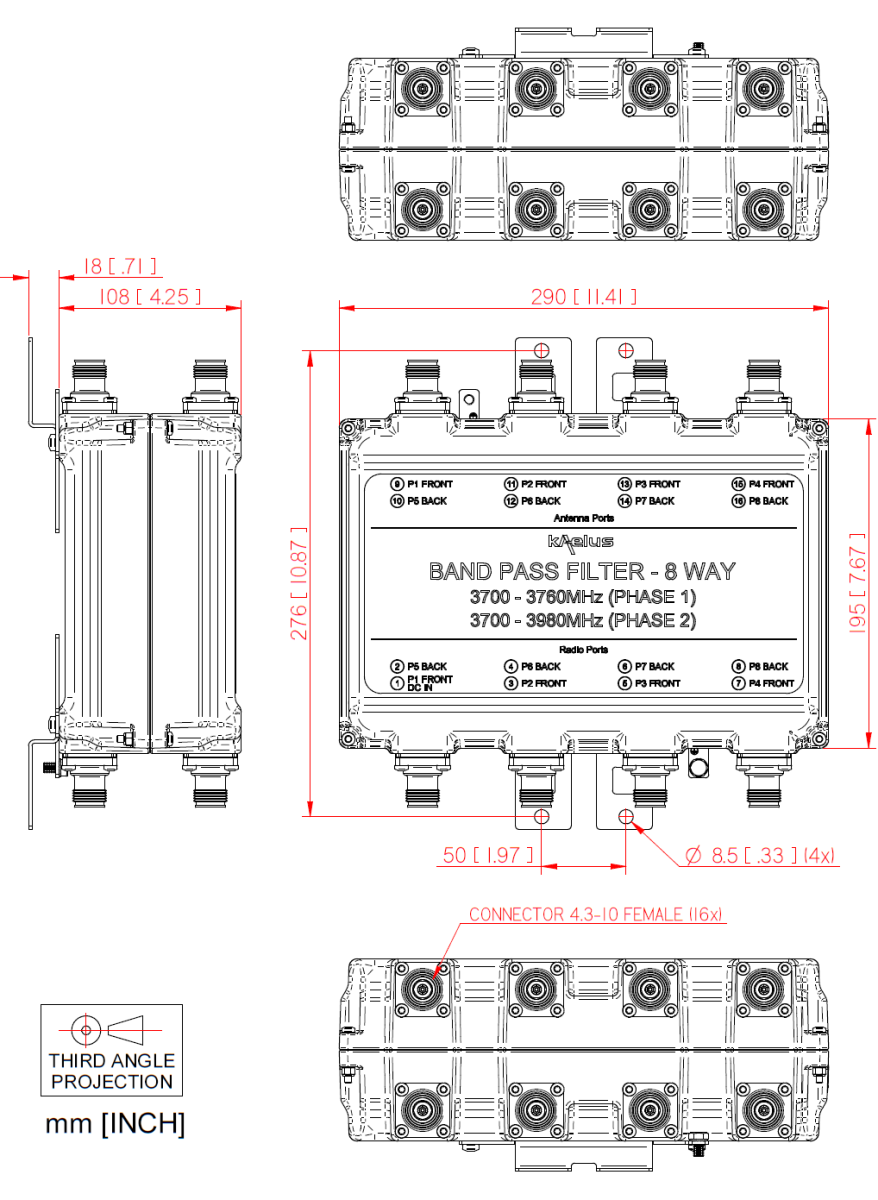

MECHANICAL BLOCK DIAGRAM
