DBC0129F1V1-1

QUAD DIPLEXER AWS/WCS-PCS

Kaelus world proven outdoor solutions provide strong RF performance coupled with rugged features. The DBC0129 dual band combiner combines the AWS/WCS band with PCS. The DBC0129 can be used at either the BTS or antenna end of the feeder.

FEATURES

  • Designed for multi-band, co-located sites
  • Multiple DC/AISG bypass configurations available with built-in lightning protection
  • Suitable for outdoor and indoor applications
  • 4x4 MIMO LTE ready
  • Wall or mast mounting

technical specifications
Band Name AWS/WCS PCS
Passband 1695 - 1780MHz, 2110 - 2360MHz 1850 - 1995MHz
Insertion loss < 0.2dB typical, < 0.3dB maximum < 0.25dB typical, < 0.38dB maximum
Return loss > 20dB
Maximum input power 100W (average) / 1kW (PEP)
Intermodulation products -160dBc maximum at 2 x 43dBm TX Carrier
Rejection PCS > 40dB N/A
Rejection AWS/WCS N/A > 40dB
dc / aisg
Feature DC-FIXED DC-AUTOSENSE
Compliance 3GPP, TS 25.461
Passband 0 - 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Insertion loss, two DC/AISG pass 4.5dB maximum
Return loss, two DC/AISG pass 6dB typical
Input voltage range 8 – 31V DC
DC current rating 3A 2A
Port priority (combiner mode) N/A Refer Ordering Information
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Lightning protection 5kA maximum (8/20us)
Compliance ETS 300 019 1-4 Class 4.1E (OPERATIONAL)
ETS 300 019 1-1 Class 1.2 (STORAGE)
mechanical
Feature DBC0129F1V1-1: NO DC ALL OTHER VARIANTS
Dimensions H x D x W 220 x 107 x 76mm | 8.7 x 4.2 x 3in 210 x 125 x 78mm | 8.27 x 4.91 x 3.1 in
Weight 3.35kg | 7.37lbs 5kg | 11lbs
Finish Painted, NCS 1502-R
Connectors 4.3-10 (F)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
DBC0129F1V1-1 QUAD 4 in / 8 out FIXED DC 4.3-10 (F) NO DC
DBC0129F1V11-1 QUAD 4 in / 8 out FIXED DC 4.3-10 (F) DC TO PCS
DBC0129F1V12-1 QUAD 4 in / 8 out FIXED DC 4.3-10 (F) DC TO AWS-WCS
DBC0129F1V13-1 QUAD 4 in / 8 out FIXED DC 4.3-10 (F) DC TO ALL
DBC0129F1V71-1 QUAD 4 in / 8 out DC AUTOSENSING
NO LED
4.3-10 (F) PRIORITY AWS-WCS/PCS
DBC0129F1V72-1 QUAD 4 in / 8 out DC AUTOSENSING
NO LED
4.3-10 (F) PRIORITY PCS/AWS-WCS
electrical block diagram
DBC0129F1V-X where X denotes the hardware variant:
  • V1, no DC
  • V11, DC on PCS port (HIGH)
  • V12, DC on AWS-WCS port (LOW)
  • V13, DC on all port
  • V71 or V72, DC autosense
For simplification, only one (single) RF path is shown.
The DBC0129 is packaged as a quad unit
ELECTRICAL BLOCK DIAGRAM

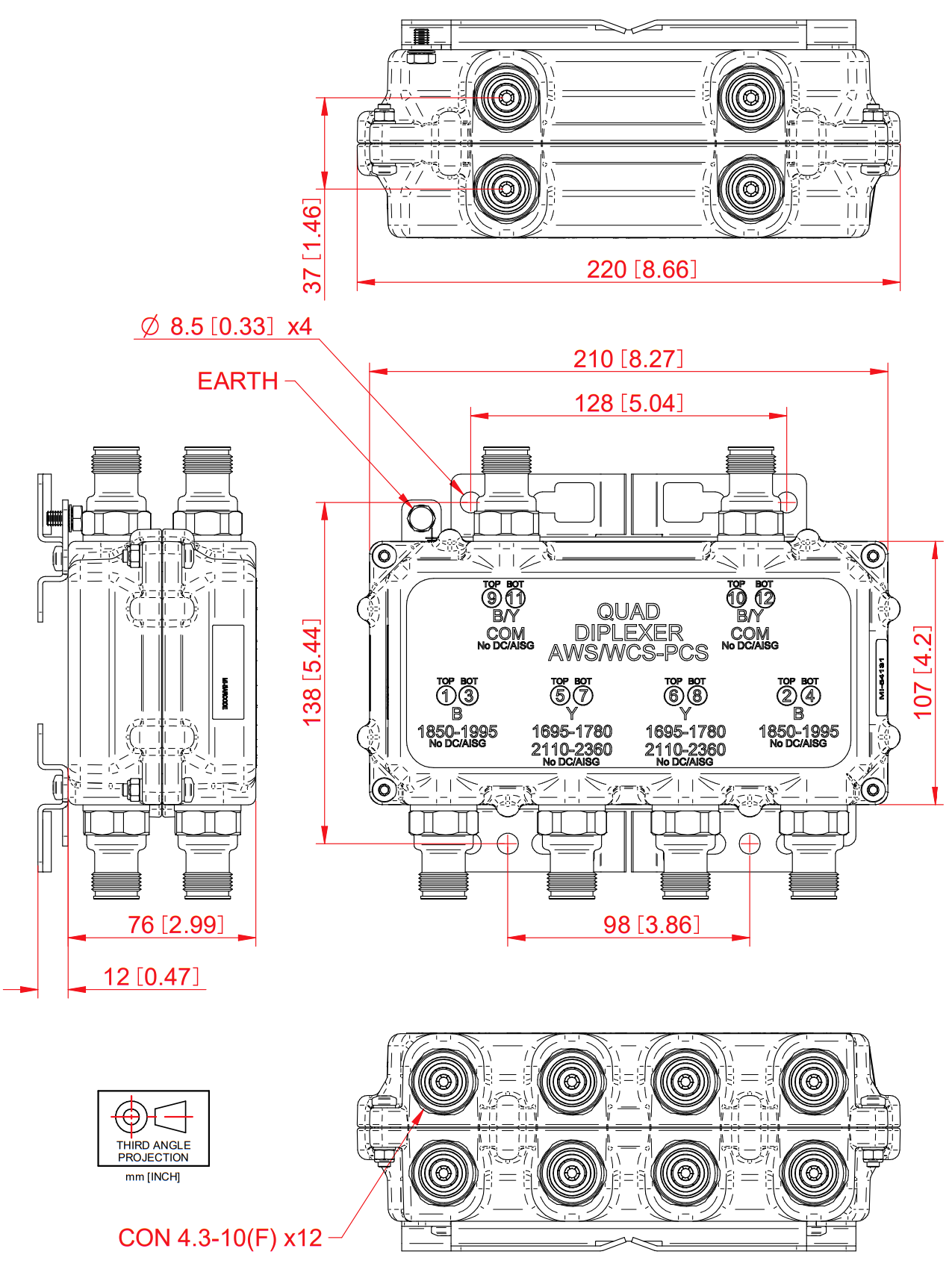

mechanical block diagram
DBC0129F1V1-1 - no DC variant shown
MECHANICAL BLOCK DIAGRAM
