DIPLEXER 555-960/1695-2690

Kaelus world proven outdoor solutions provide strong RF performance coupled with rugged features. The KA-2001 dual band combiner combines the 555-960 MHz and 1695-2690 MHz frequency bands. The KA-2001 can be used at either the BTS or antenna end of the feeder. Single and twin units are available.

FEATURES

  • Very low passive intermodulation
  • Multiple DC/AISG bypass configurations available with built-in lightning protection
  • Single and twin configurations available
  • Suitable for outdoor and indoor applications
  • UMTS & LTE ready
  • Wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name555 - 9601695 - 2690
Passband555 - 960MHz1695 - 2690MHz
Insertion loss0.1dB typical (0.2dB maximum)0.1dB typical (0.2dB maximum)
Return loss> 20dB> 20dB
Maximum input power250W (average) / 2kW (PEP)250W (average) / 2kW (PEP)
Intermodulation products-165dBc (2 x 20W carriers, In receive band)
Rejection high band50dB minN/A
Rejection low bandN/A50dB min
dc / aisg
FeatureDC-FIXED
Compliance3GPP, TS 25.461
Passband0 - 3MHz
Insertion loss, single DC/AISG pass1dB maximum
Return loss, single DC/AISG pass12dB minimum
Insertion loss, two DC/AISG pass4.5dB maximum
Return loss, two DC/AISG pass6dB typical
Input voltage range8 – 30V DC
DC current rating3A
Port priority (combiner mode)N/A
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Lightning protection5kA maximum (8/20us)
MTBF> 1,000,000 Hours
ComplianceETS 300 019 1-4 (OPERATIONAL)
ETS 300 019 1-1 (STORAGE)
mechanical
FeatureDC-FIXED
Dimensions H x D x W (single unit)142 x 55 x 108mm | 5.59 x 2.18 x 4.25in
Dimensions H x D x W (twin unit)142 x 112 x 108mm | 5.59 x 4.51 x 4.25in
Weight (single unit)1.5kg | 3.31lbs
Weight (twin unit)3.1kg | 6.83lbs
FinishPainted, NCS 1502-R
Wind LoadFront 116N, Side 32N (Single)
Front 87N, Side 96N (Twin)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Connectors4.3-10 (F) x 3 long neck (single unit)
4.3-10 (F) x 6 long neck (twin unit)
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectors
KA-2001-1031SINGLE 1 in /2 outFIXED DC4.3-10 (F)
KA-2001-2031SINGLE 2 in /4 outFIXED DC4.3-10 (F)
electrical block diagram

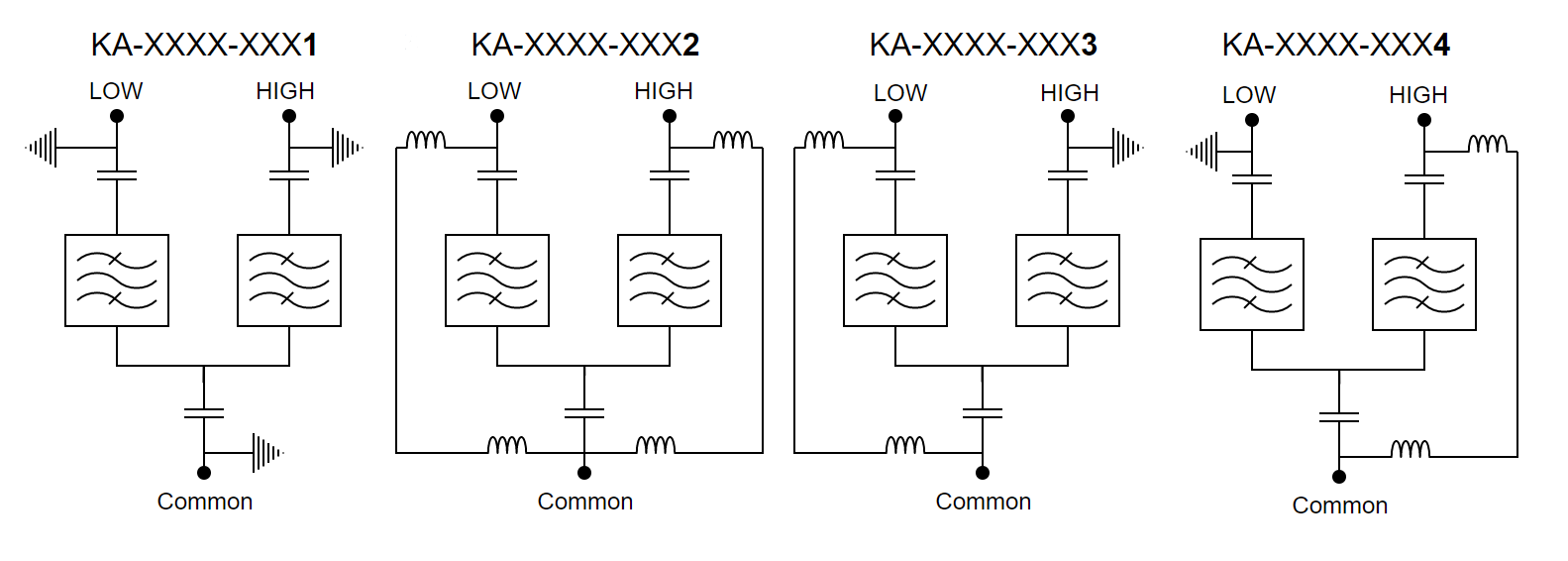

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

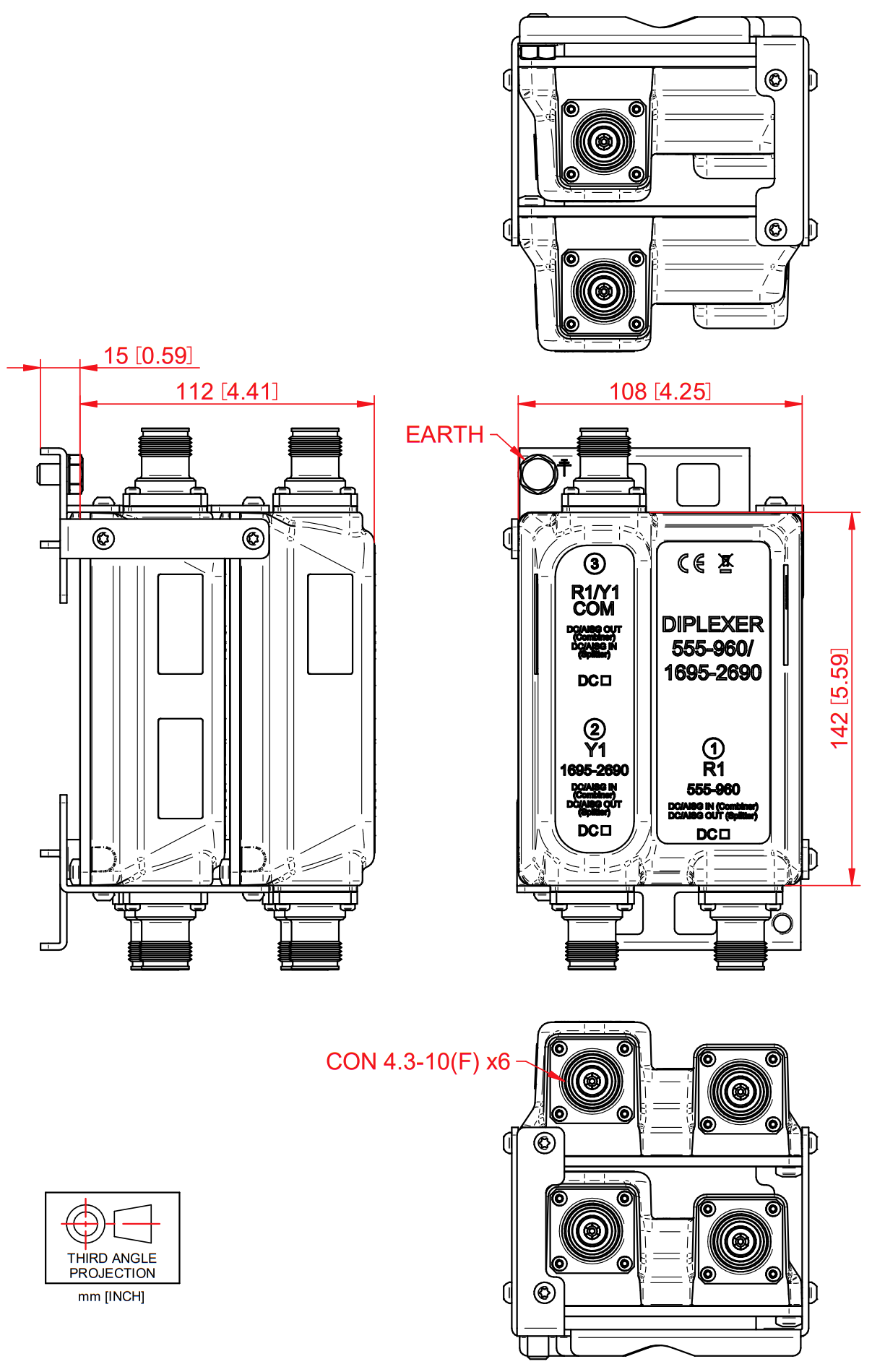

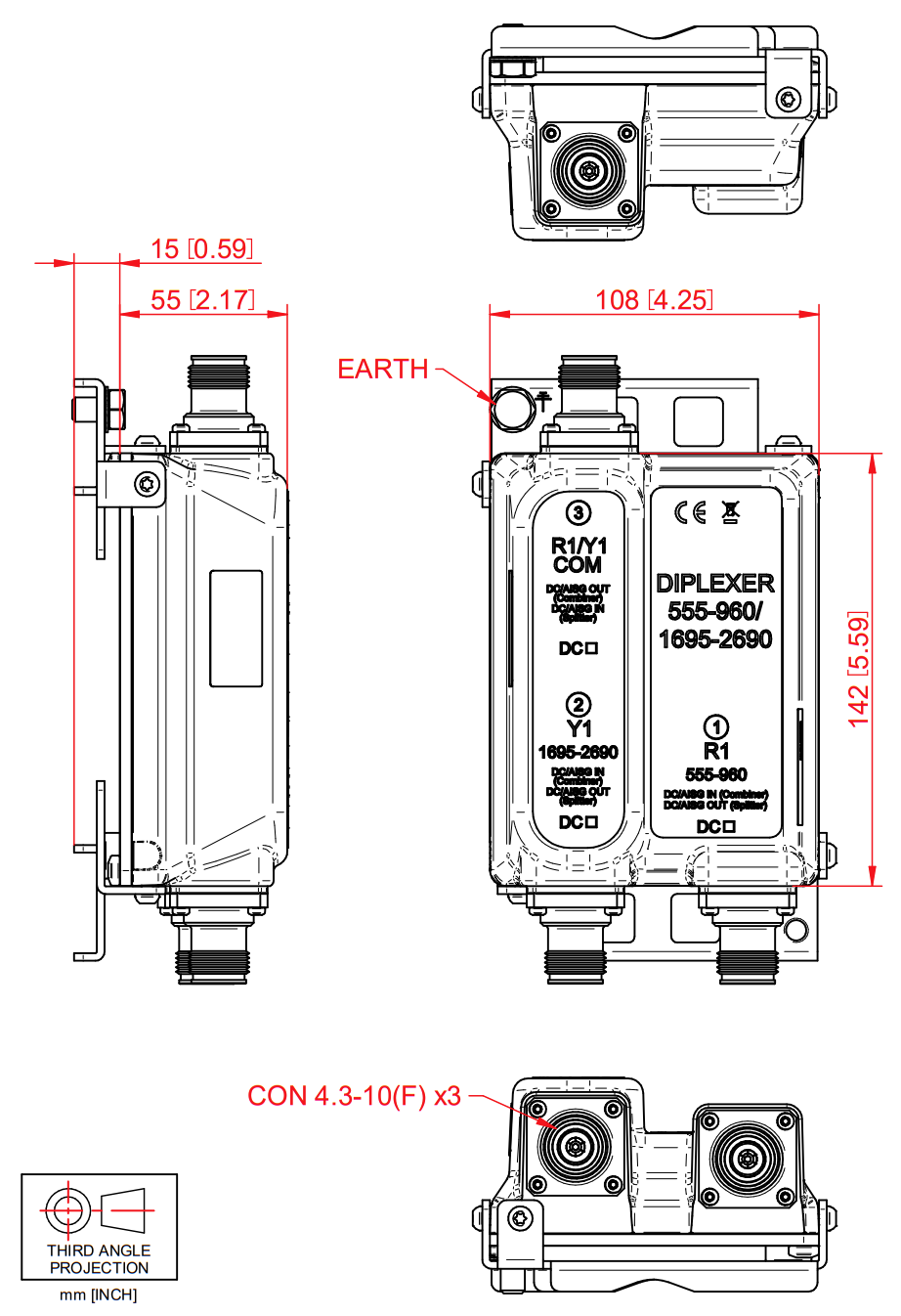

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
