KA-4006

KA-4006

QUADRAPLEXER LB/PCS+AWS/WCS+BRS/C-BAND

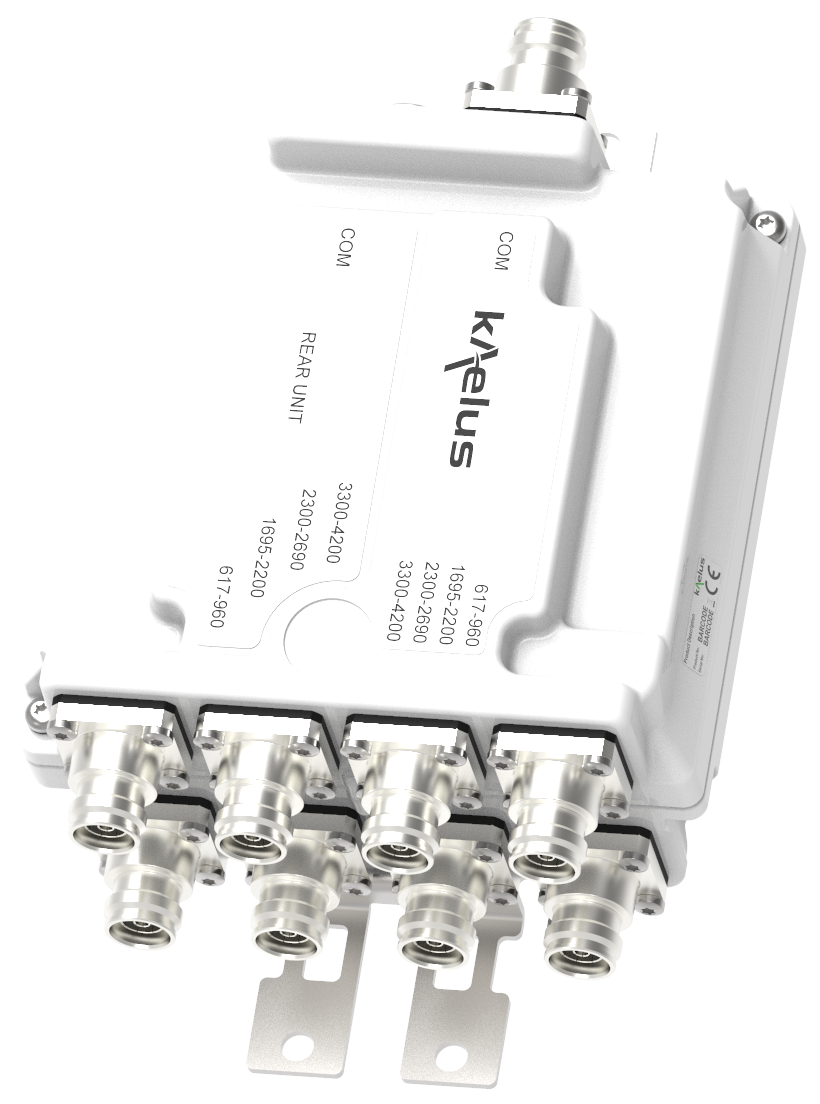

The Kaelus KA-4006 is a bi-directional Quadraplexer, designed to combine or split Lowband, AWS, PCS and 2.6 GHz and 3.5GHz bands. The KA-4006 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for Lowband, AWS, PCS, 2.6 GHz and C-band systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single and dual models available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name 617-960MHz 1695-2200MHz 2300-2690MHz 3300-4200MHz
Passband 617 - 960MHz 1695 - 2200MHz 2300 - 2690 MHz 3300 - 4200MHz
Insertion loss <0.25dB typical, 0.3dB max <0.25dB typical, 0.3dB max <0.35dB typical, 0.4dB max <0.25dB typical, 0.3dB max
Return loss 20dB typical, 18dB minimum
Maximum input power 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP)
Intermodulation products <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) <-145 dBc typ at 2 x +43dBm TX Carrier (IM3)
Rejection 40dB minimum
1695-2200 MHz
2300-2690 MHz
3300-4200 MHz		 40dB minimum
617-960 MHz
2300-2690 MHz
3300-4200 MHz		 40dB minimum
617-960 MHz
1695-2200 MHz
3300-4200 MHz		 40dB minimum
617-960 MHz
1695-2200 MHz
2300-2690 MHz
electrical
Impedance 50Ohms
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to 149°F
Ingress protection IP67
Lightning protection +/-5kA 8/20 µs
MTBF > 1,000,000 Hours
Compliance ETSI 300 019-1-4 Class 4.1
ETSI 300 019-2-3 Class 3.2
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband 0 – 3MHz
Insertion loss 1dB maximum
Return loss 12dB minimum
Input voltage range ± 30V
DC current rating 3A continuous
Compliance 3GPP TS 37.461
mechanical
Dimensions H x D x W (single unit) 170 x 177 x 53mm | 6.7 x 7.3 x 2.1in
Dimensions H x D x W (twin unit) 170 x 177 x 98mm | 6.7 x 7.3 x 3.9in
Weight 5.0kg | 11.0lbs (Twin)
Finish Painted, NCS 1502-R
Connectors 4.3-10 Female
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
KA-4006-1031 4 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) NO DC
KA-4006-1033 4 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC 617-960 TO COMMON
KA-4006-1034 4 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC 1427-2200 TO COMMON
KA-4006-1035 4 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC 2300-2690 TO COMMON
KA-4006-2031 8 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) NO DC
KA-4006-2033 8 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC 617-960 TO COMMON
KA-4006-2034 8 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC 1427-2200 TO COMMON
KA-4006-2035 8 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC 2300-2690 TO COMMON

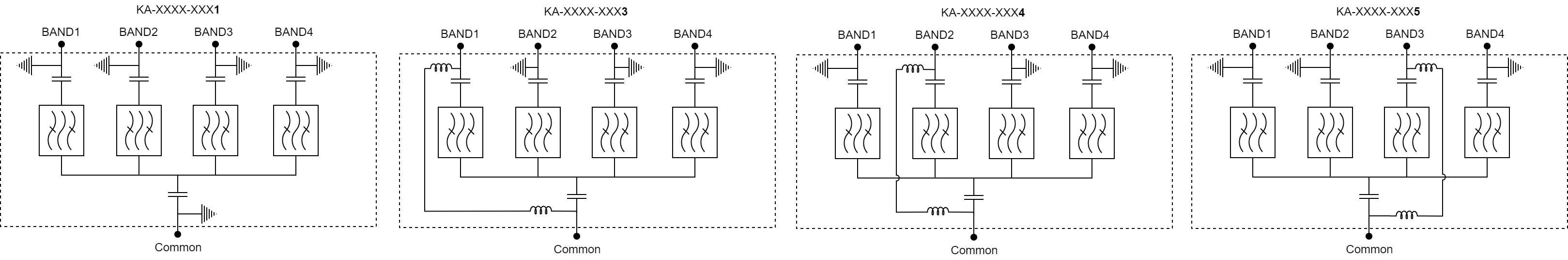

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
KA-4006-XXXZ where
    Z denotes the DC path variant
     BAND 1 port is 617-960 MHz
     BAND 2 port is 1695-2200 MHz
     BAND 3 port is 2300-2690 MHz
     BAND 4 port is 3300-4200 MHz

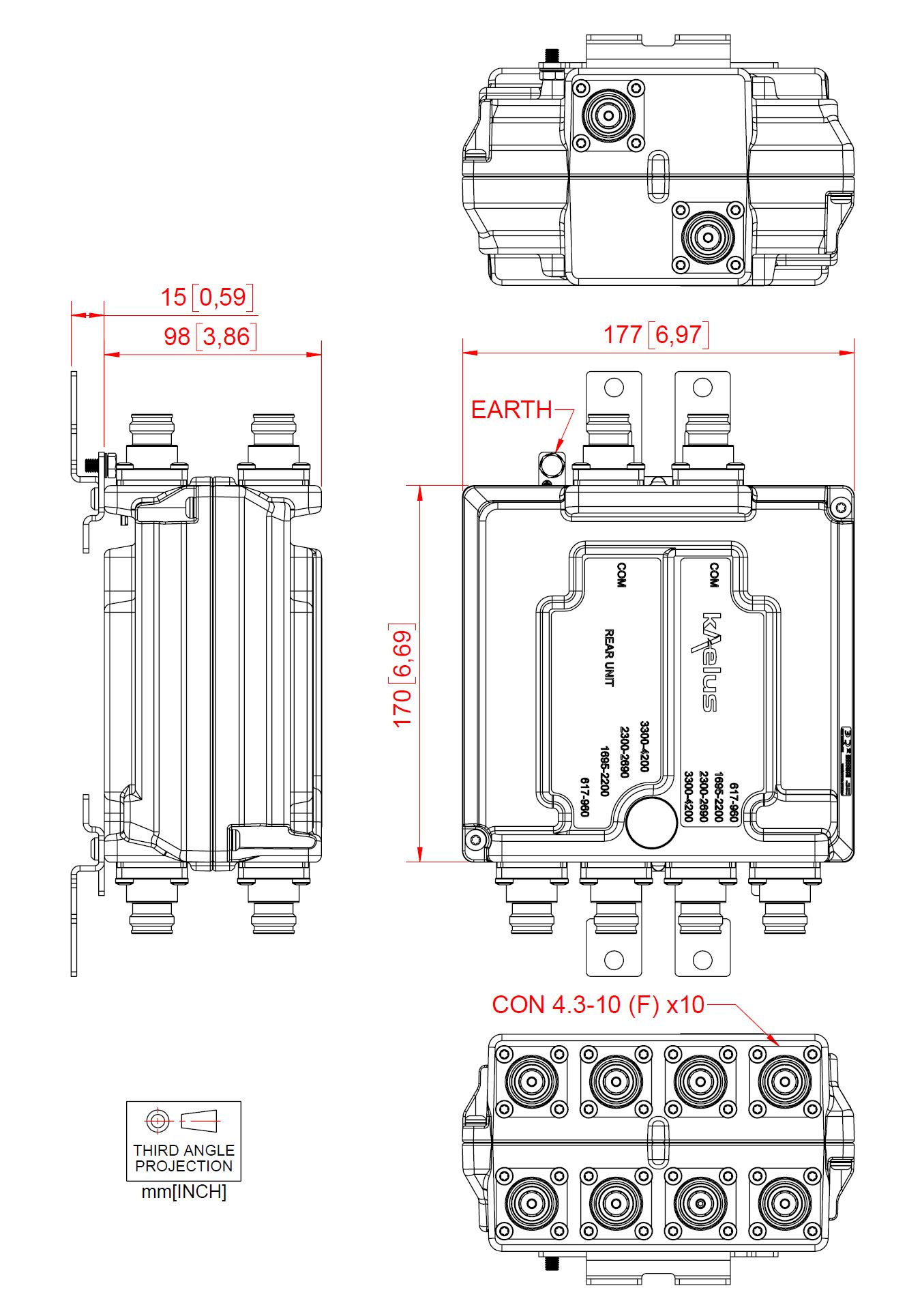

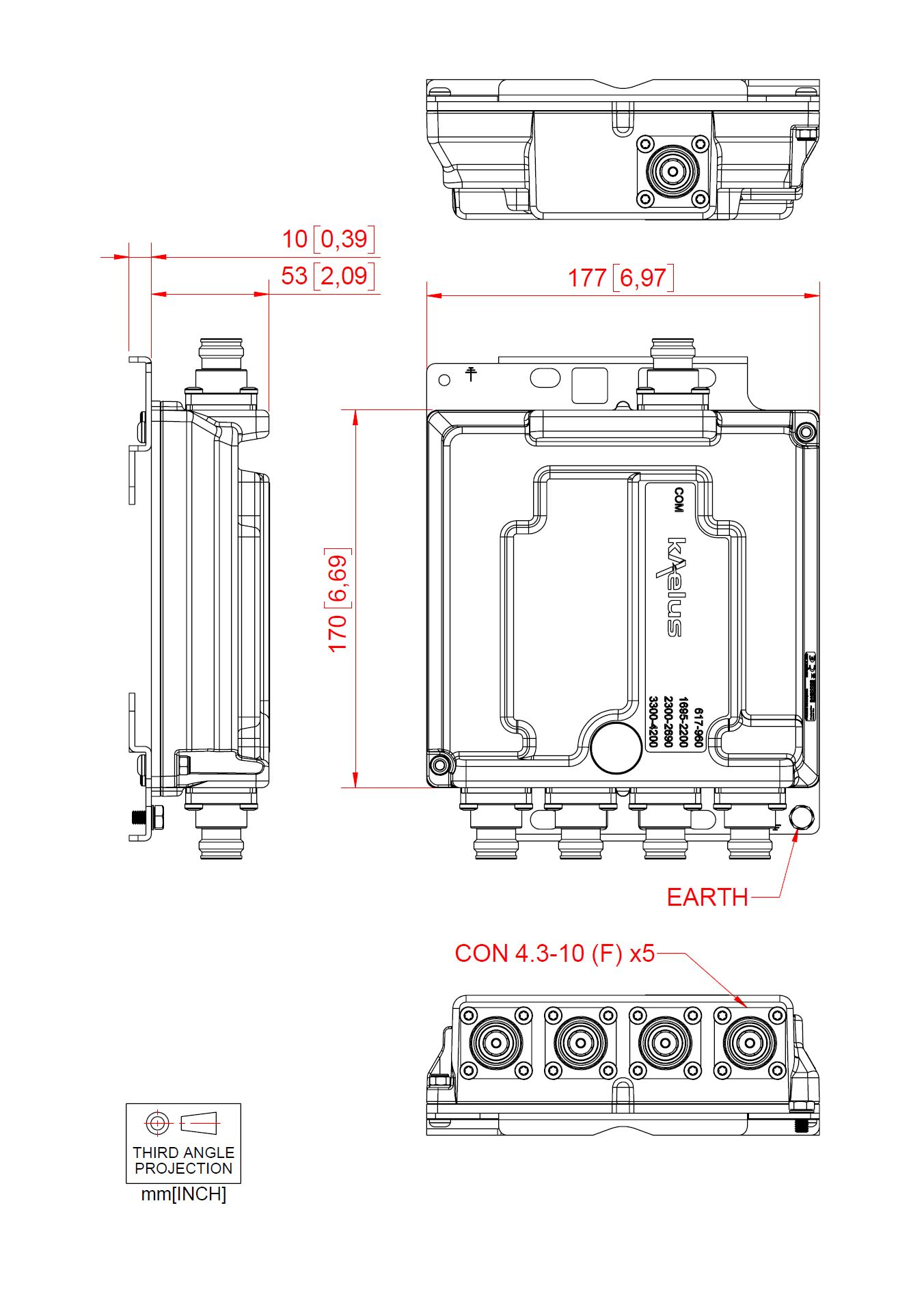

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
