KA-3005

TRIPLEXER AWS/PCS/C-band

The Kaelus KA-3005 is a bi-directional Triplexer, designed to combine or split AWS, PCS and 3.5GHz bands. The KA-3005 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

Enables antenna & coax sharing for AWS, PCS and C-band systems
Compact & lightweight - perfect for Small Cell applications
Low insertion loss & high return loss
Low passive IM performance
Twin and quad models available
Provisions for wall or mast mounting

Download PDF

GET A QUOTE

technical specifications

Band Name

PCS- B25

AWS- B66

C-BAND

Passband

1850 - 1995 MHz

1695 - 1780 & 2110 - 2200 MHz

3450 - 4200 MHz

Insertion loss

<0.3dB typical, 0.4dB max

<0.2dB typical, 0.3dB max

Return loss

20dB typical, 18dB minimum

Maximum input power

80W (average) / 800W (PEP)

Intermodulation products

<-160dBc typ at 2 x +43dBm TX Carrier (IM3)

<-160dBc typ at 2 x +43dBm TX Carrier (IM7)

<-145dBc typ at 2 x +43dBm TX Carrier (IM3)

Rejection

40dB minimum
1695 - 1780 MHz
2110 - 2200&3450-4200 MHz

40dB minimum
1850 - 1995 MHz
3450-4200 MHz

40dB minimum
1695 - 2200 MHz

electrical

Impedance

50Ohms

environmental

For further details of environmental compliance, please contact Kaelus.

Temperature range

-40ºC to +65ºC | -40°F to 149°F

Ingress protection

IP67

Lightning protection

+/-5kA 8/20 µs

MTBF

> 1,000,000 Hours

Compliance

ETSI 300 019-1-4 Class 4.1
ETSI 300 019-2-3 Class 3.2

dc / aisg

DC/AISG path is factory configurable, see ordering information

Passband

0 – 3MHz

Insertion loss

1dB maximum

Return loss

12dB minimum

Input voltage range

± 30V

DC current rating

3A continuous

Compliance

3GPP TS 37.461

mechanical

Dimensions H x D x W (twin unit)

140 x 223 x 78mm | 5.5 x 8.8 x 3.1in

Weight

3.6kg | 8.0lbs (Twin)

Finish

Painted, NCS 1502-R

Connectors

4.3-10 Female

Mounting

Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles

ordering information

Part Number

Configuration

Optional Features

Connectors

DC/AISG Configuration

KA-3005-2031

6 in / 2 out

FIXED DC
FACTORY CONFIGURABLE

4.3-10 (F)

NO DC

KA-3005-2033

6 in / 2 out

FIXED DC
FACTORY CONFIGURABLE

4.3-10 (F)

DC PCS TO COMMON

KA-3005-2034

6 in / 2 out

FIXED DC
FACTORY CONFIGURABLE

4.3-10 (F)

DC AWS TO COMMON

KA-3005-4031

12 in / 4 out

FIXED DC
FACTORY CONFIGURABLE

4.3-10 (F)

NO DC

KA-3005-4033

12 in / 4 out

FIXED DC
FACTORY CONFIGURABLE

4.3-10 (F)

DC PCS TO COMMON

KA-3005-4034

12 in / 4 out

FIXED DC
FACTORY CONFIGURABLE

4.3-10 (F)

DC AWS TO COMMON

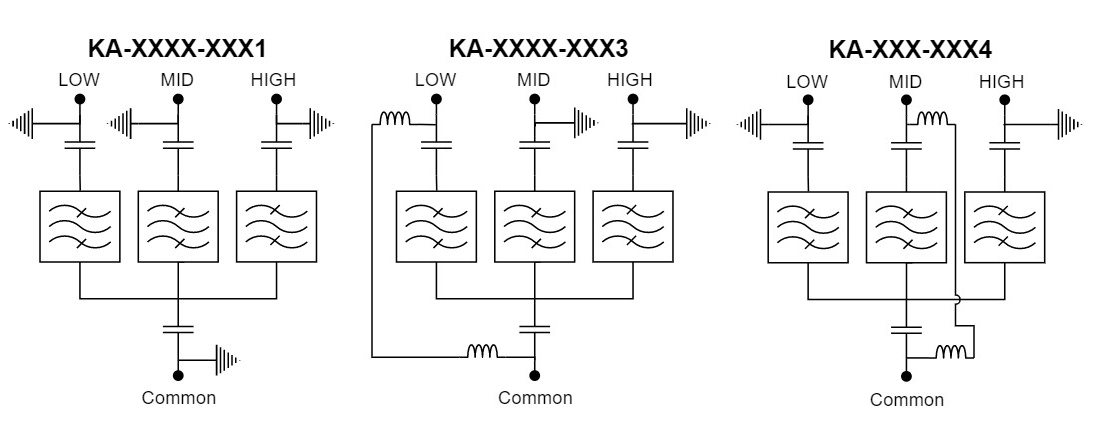

electrical block diagram

KA-3005-XXXZ where
    Z denotes the DC path variant
     LOW port is PCS band
     MID port is AWS band
     HIGH port is 3450-4200 band

mechanical block diagram
