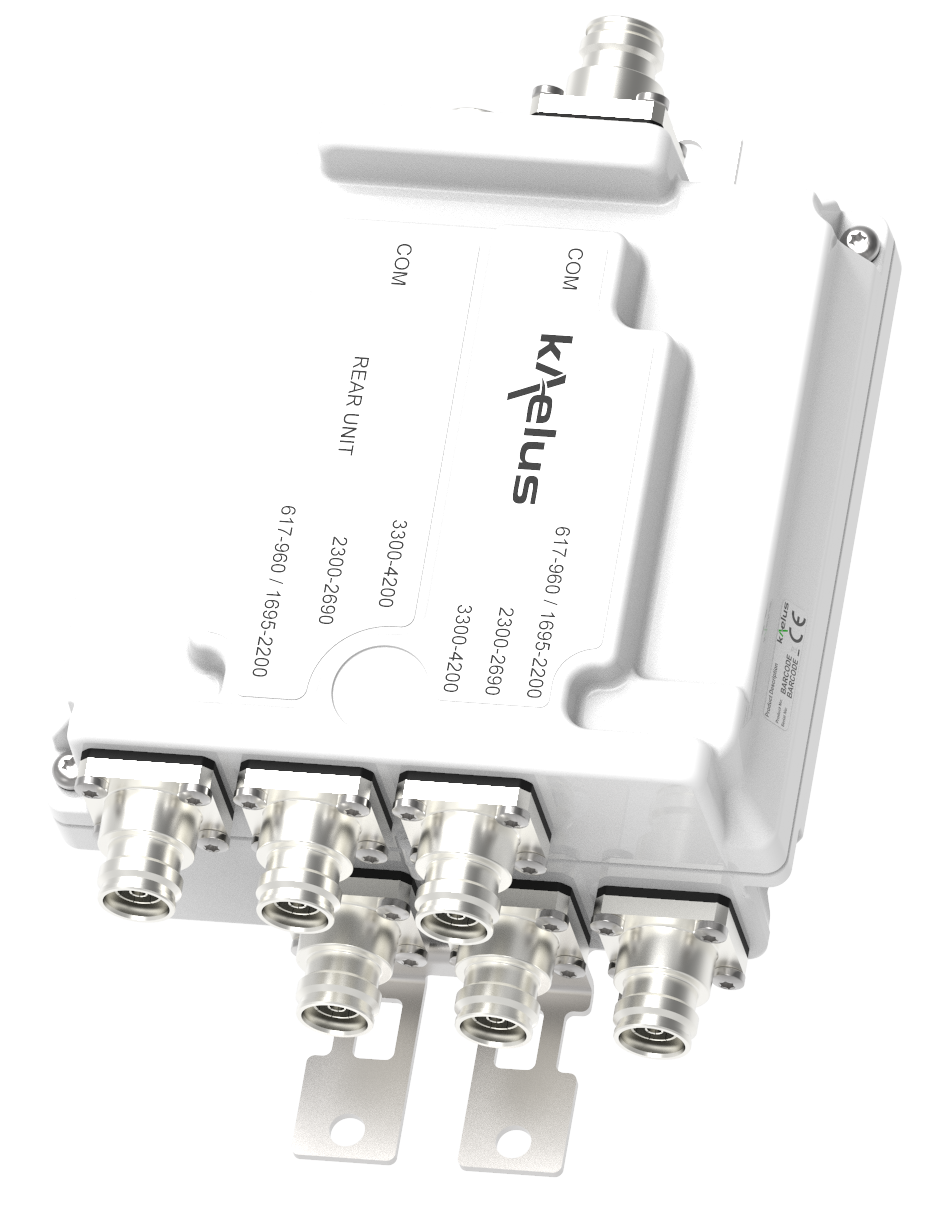

KA-3006

KA-3006

TRIPLEXER LB+PCS+AWS/WCS+BRS/C-BAND

The Kaelus KA-3006 is a bi-directional Triplexer, designed to combine or split Lowband, AWS, PCS and 2.6 GHz and 3.5GHz bands. The KA-3006 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for Lowband, AWS, PCS, 2.6 GHz and C-band systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single and dual models available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name617-960/1695-2200MHz2300-2690MHz3300-4200MHz
Passband617-960/1695-2200 MHz2300-2690 MHz3300-4200 MHz
Insertion loss<0.25dB typical, 0.3dB max<0.35dB typical, 0.4dB max<0.25dB typical, 0.3dB max
Return loss20dB typical, 18dB minimum
Maximum input power100W (average) / 1000W (PEP)100W (average) / 1000W (PEP)100W (average) / 1000W (PEP)
Intermodulation products<-160 dBc typ at 2 x +43dBm TX Carrier (IM3)<-160 dBc typ at 2 x +43dBm TX Carrier (IM3)<-145 dBc typ at 2 x +43dBm TX Carrier (IM3)
Rejection40dB minimum
2300-2690 MHz
3300-4200 MHz		40dB minimum
617-960/1695-2200 MHz
3300-4200 MHz		40dB minimum
617-960/1695-2200 MHz
2300-2690 MHz
electrical
Impedance50Ohms
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to 149°F
Ingress protectionIP67
Lightning protection+/-5kA 8/20 µs
MTBF> 1,000,000 Hours
ComplianceETSI 300 019-1-4 Class 4.1
ETSI 300 019-2-3 Class 3.2
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband0 – 3MHz
Insertion loss1dB maximum
Return loss12dB minimum
Input voltage range± 30V
DC current rating3A continuous
Compliance3GPP TS 37.461
mechanical
Dimensions H x D x W (single unit)170 x 177 x 53mm | 6.7 x 7.3 x 2.1in
Dimensions H x D x W (twin unit)170 x 177 x 98mm | 6.7 x 7.3 x 3.9in
Weight5.0kg | 11.0lbs (Twin)
FinishPainted, NCS 1502-R
Connectors4.3-10 Female
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
KA-3006-10313 in / 1 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)NO DC
KA-3006-10333 in / 1 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)DC LOW TO COMMON
KA-3006-10343 in / 1 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)DC MID TO COMMON
KA-3006-20316 in / 2 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)NO DC
KA-3006-20336 in / 2 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)DC LOW TO COMMON
KA-3006-20346 in / 2 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)DC MID TO COMMON

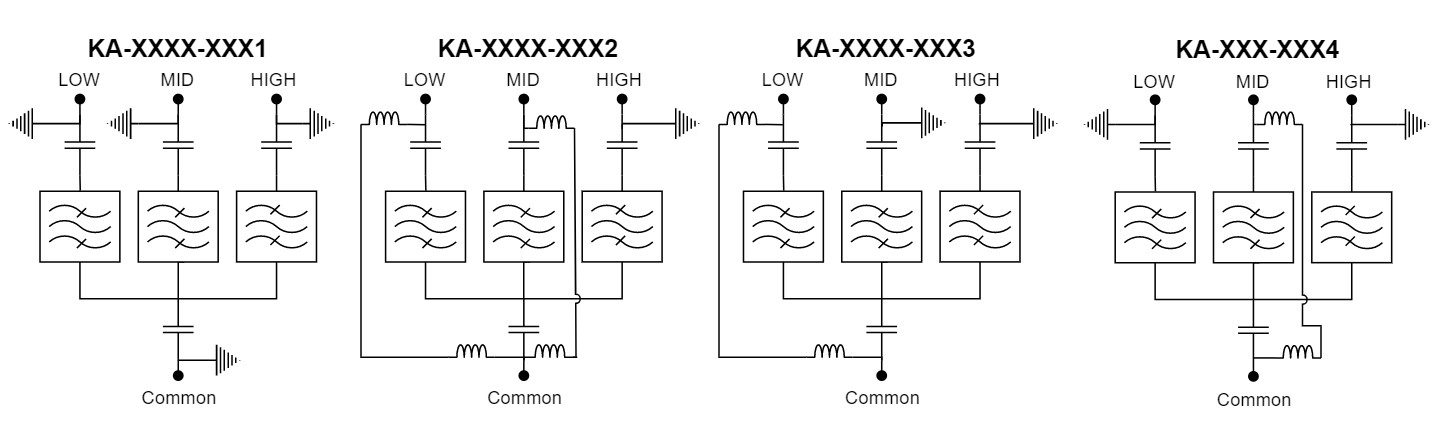

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
KA-3006-XXXZ where
    Z denotes the DC path variant
     LOW port is 617-960/1695-2200 MHz
     MID port is 2300-2690 MHz
     HIGH port is 3300-4200 MHz

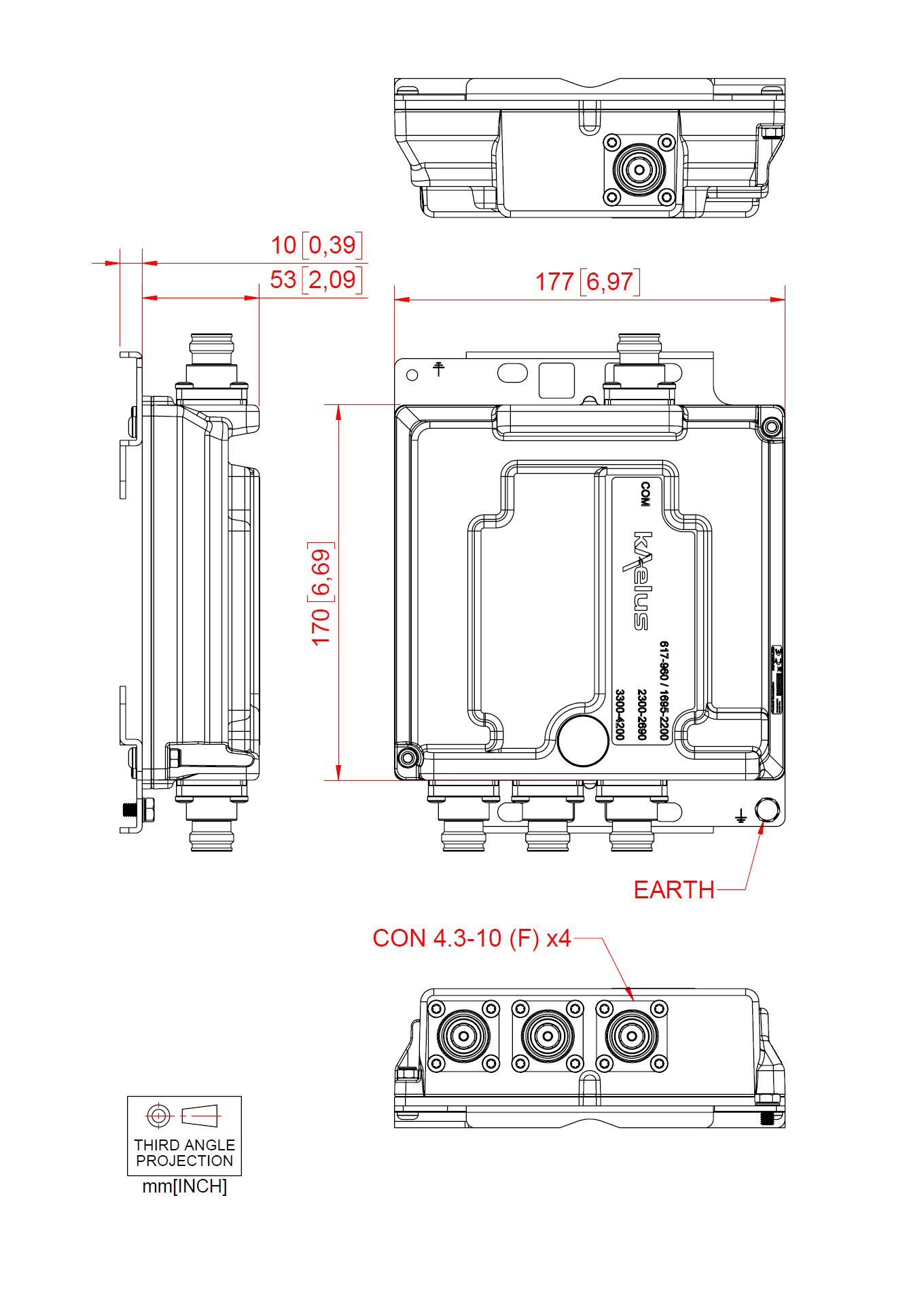

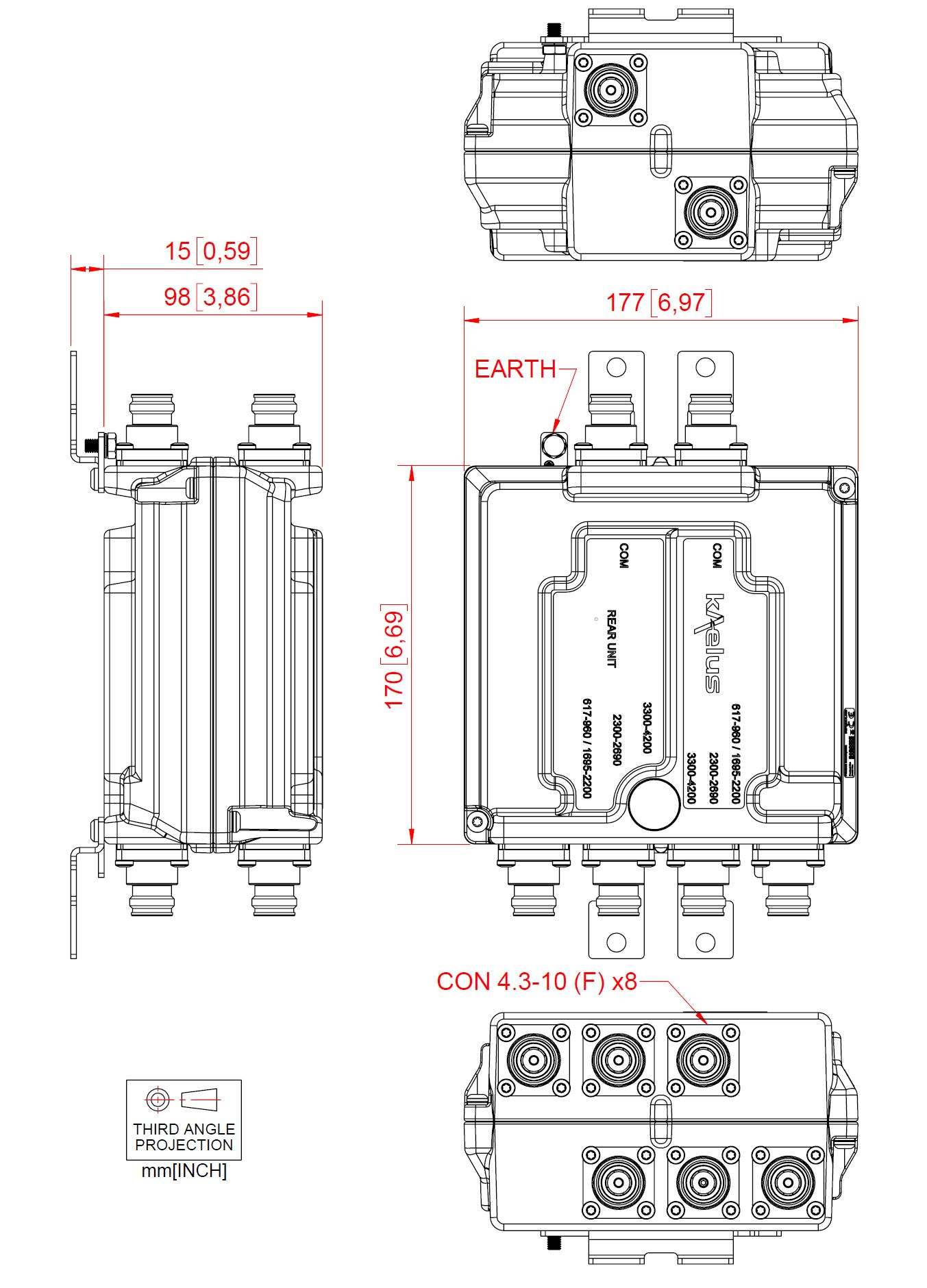

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
