TRIPLEXER 600-700/850/1695-2690

The Kaelus TBC0043 is a bi-directional Triplexer designed to combine 600-700 with 850 and 1695-2690 technologies, the TBC0043 provides excellent insertion loss and passive intermodulation performance.


  • Enables antenna/feeder sharing for 600-700, 850 and 1695-2690 networks
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Twin (-1) and Quad (-2) models available
  • 4.3-10 (F) long neck connectors standard
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
  • AWS3 and 4 ready

technical specifications
Band Name 600-700 850 1695-2690
Passband 555 - 798MHz 824 - 894MHz 1695 - 2690MHz
Insertion loss 0.2dB typical 0.3dB typical 0.25dB typical
Return loss 23dB typical
Maximum input power 120W (average) / 1.2kW (PEP) 120W (average) / 1.2kW (PEP) 120W (average) / 1.2kW (PEP)
rf performance
Rejection in 600-700 N/A 50dB typical 50dB typical
Rejection in 850 50dB typical N/A 50dB typical
Rejection in AWS-WCS 50dB typical 50dB typical N/A
Isolation 50dB typical, 40dB minimum
Impedance 50Ohms
Intermodulation products -161dBc typ, -156dBc maximum
with 2 x 43dBm carriers
Group delay variation over any 10MHz 14ns maximum 10ns maximum 2.5ns typical
Absolute group delay 35 ns maximum 30 ns maximum 5ns typical
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Altitude 3000m/10,000ft maximum
Lightning protection ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Dimensions H x D x W (single twin unit) 207 x 172 x 151 mm | 8.14 x 6.77 x 5.96 in maximum
Dimensions H x D x W (dual twin unit) 207 x 172 x 308.4 mm | 8.14 x 6.77 x 12.14 in maximum
Weight 7.0kg / 15.4lbs (Twin)
14.0kg / 30.9lbs (Quad)
Finish Painted, light grey (RAL7035)
Connectors 4.3-10 (F) x 8 long neck (Twin)
4.3-10 (F) x 16 long neck (Quad)
Wind Load Front 132N, Side 257N (Twin)
Front 160N, Side 384N (Quad)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration

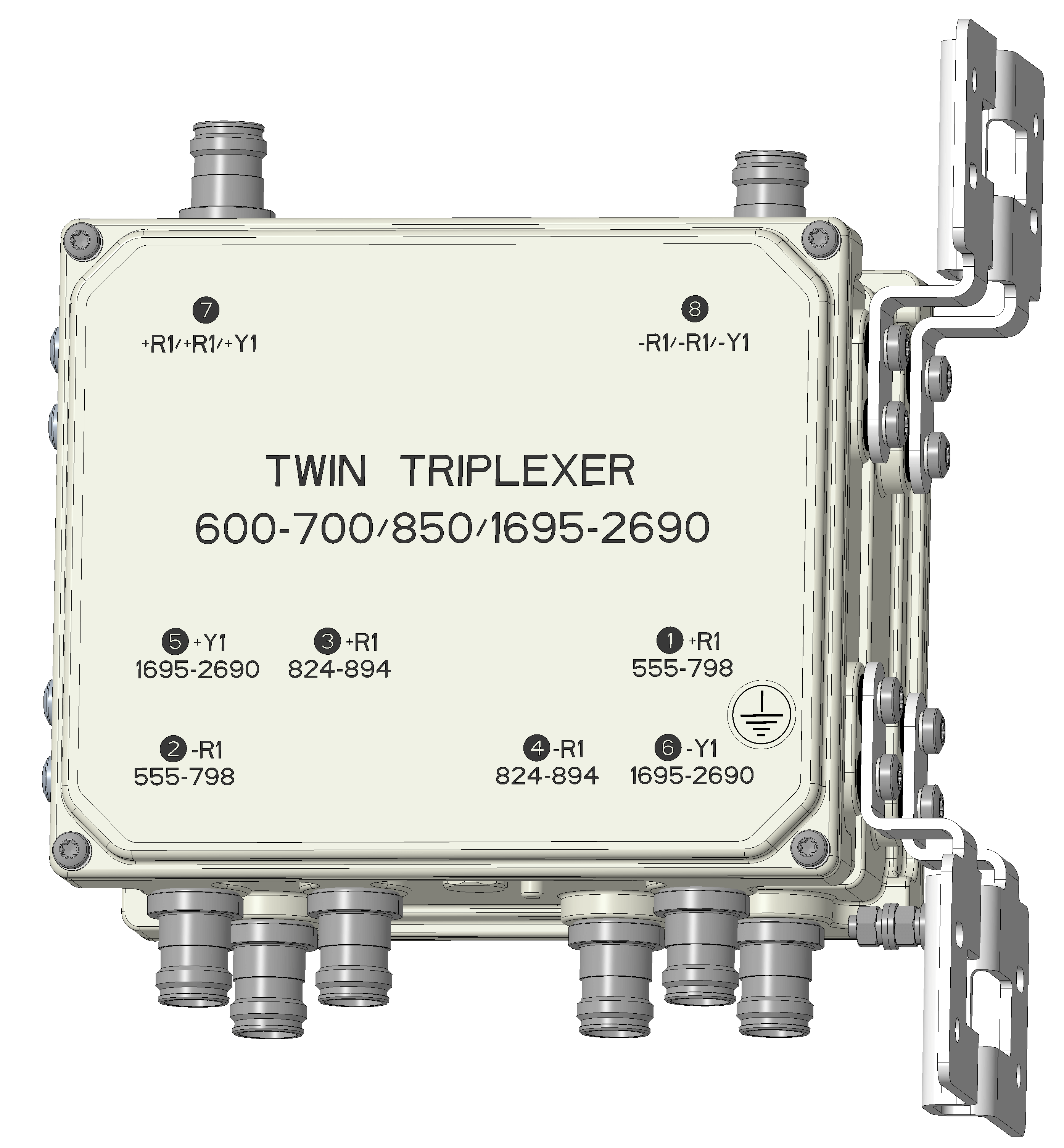

TBC0043F1V94-1 TWIN, 2 in / 6 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) PRIORITY 1695-2690 / 600-700 / 850
TBC0043F1V94-2 QUAD, 4 in / 12 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) PRIORITY 1695-2690 / 600-700 / 850
electrical block diagram

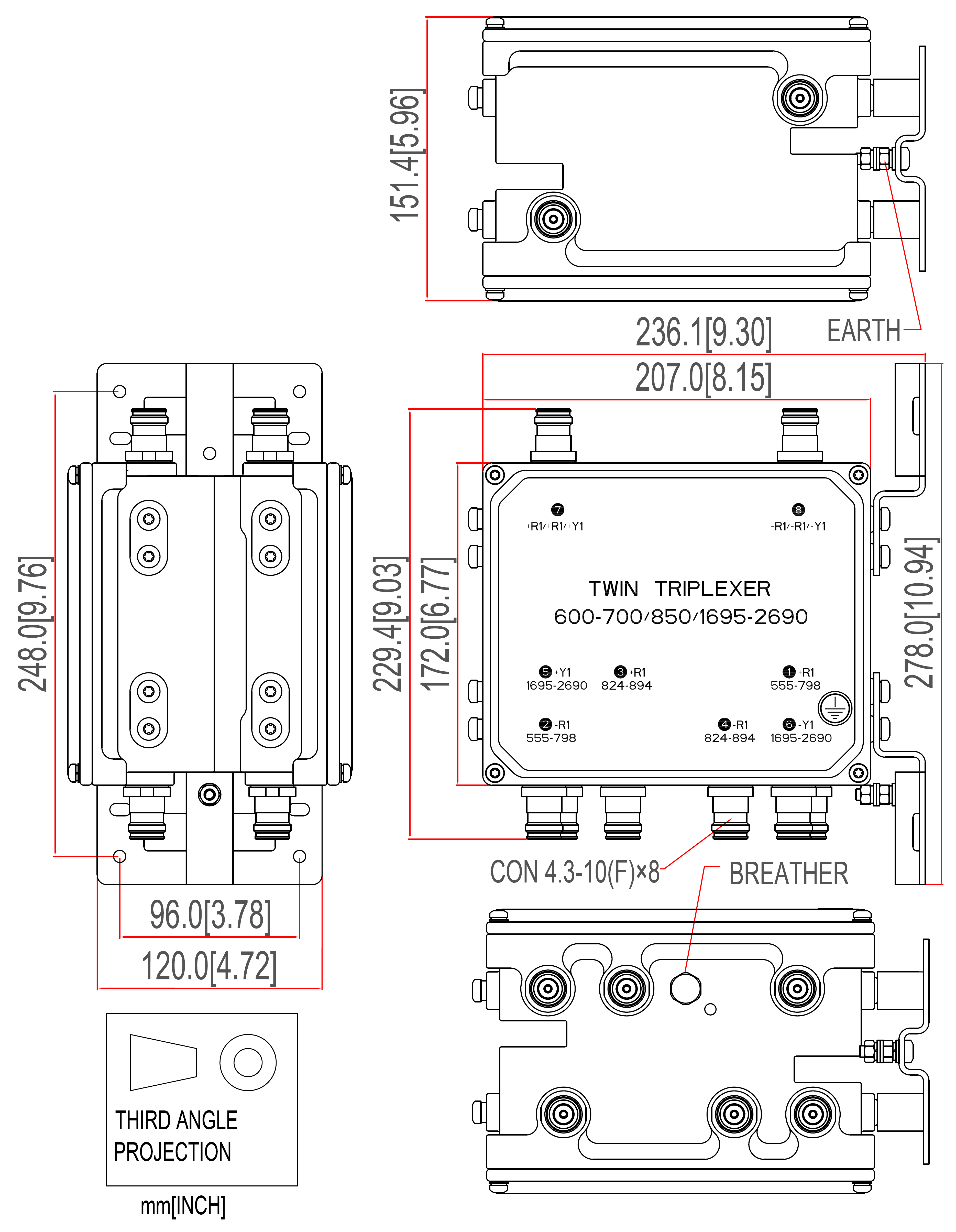

mechanical block diagram
