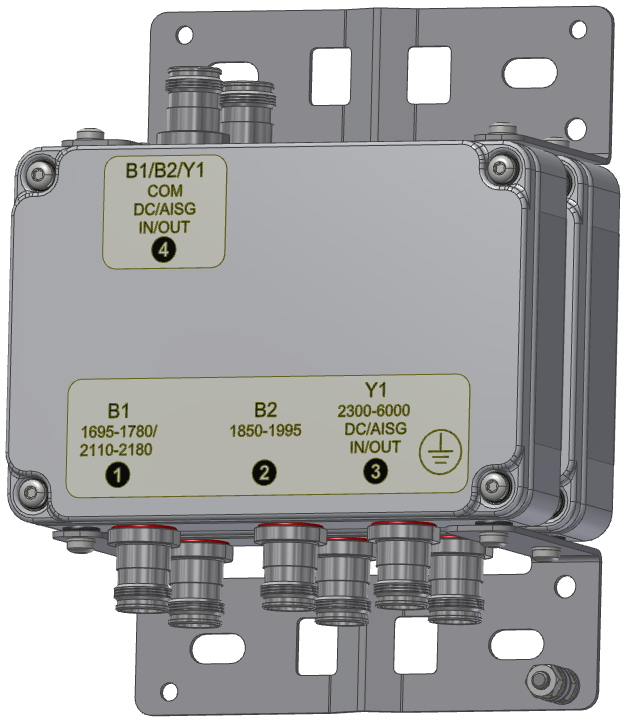

TBC0045F1V1-2

TBC0045F1V1-2

TRIPLEXER 1900/AWS/2300-6000

The Kaelus TBC0045 is a bi-directional Triplexer, designed to combine or split 1900, AWS and 2300-6000MHz bands. The TBC0045 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 1900, AWS & 2300-6000 systems
  • AWS-3 ready
  • Offers low insertion loss
  • Low passive IM performance
  • Wall or mast mounting
  • Single and twin models available
  • 4.3-10 (F) long neck connectors standard
  • DC Pass on 2300-6000 Path
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name 1900 AWS 2300-6000
Passband 1850 - 1995MHz 1695 - 1780MHz /
2110 - 2180MHz		 2300 - 6000MHz
Insertion loss 0.4dB typical
Return loss 24dB typical 24dB typical 20dB typical
Maximum input power 80W (average) / 800W (PEP) 80W (average) / 800W (PEP) 60W (average) / 600W (PEP)
Isolation 40dB typical
electrical
Impedance 50Ohms
Intermodulation products -161dBc typical (-155dBc max.) all ports with 2 x 20W carriers
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40°C to +65ºC | -40°F to +149°F
Ingress protection IP67, Outdoor unit
Lightning protection IEC61312-1, RF: ±5kA maximum (8/20us)
survival without damage (no suppression)
MTBF >1,000,000 hours
mechanical
Dimensions H x D x W (single unit) 190 x 130 x 41mm | 7.5 x 5.1 x 1.6inch (excluding connector and bracket)
Dimensions H x D x W (twin unit) 190 x 130 x 92mm | 7.5 x 5.1 x 3.6inch (excluding connector and bracket)
Weight 2.4kg | 5.30lbs (single)
4.7kg | 10.35lbs (twin)
Finish Painted, light grey (RAL7035)
Connectors 4.3-10 (F) x 4 long neck (single)
4.3-10 (F) x 8 long neck (twin)
Wind Load Front 162N, Side 29N (single)
Front 185N, Side 89N (twin)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
TBC0045F1V1-1 SINGLE 1 in / 3 out FIXED DC 4.3-10 (F) DC ON 2300-2600
TBC0045F1V1-2 TWIN 2 in / 6 out FIXED DC 4.3-10 (F) DC ON 2300-2600

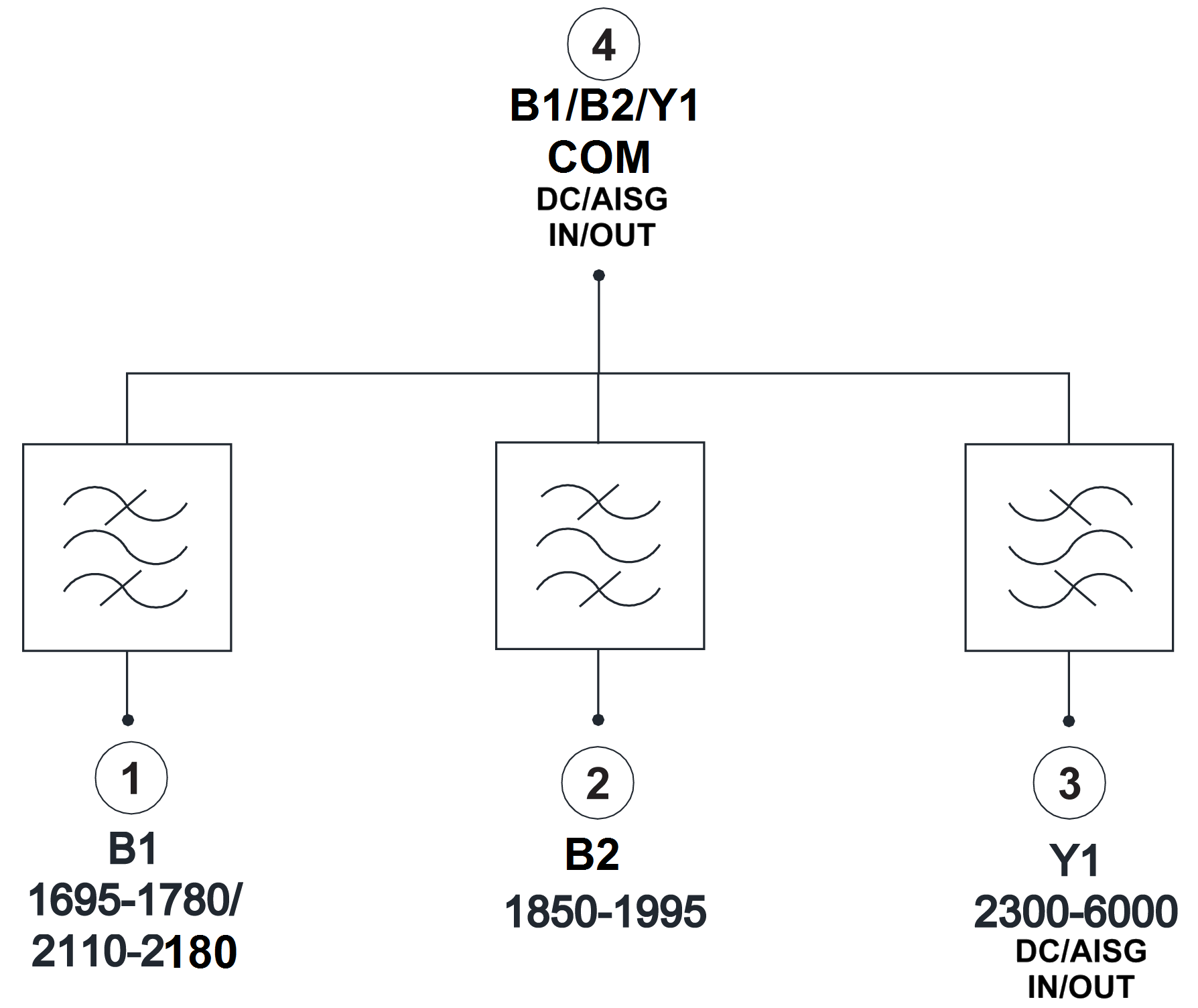

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

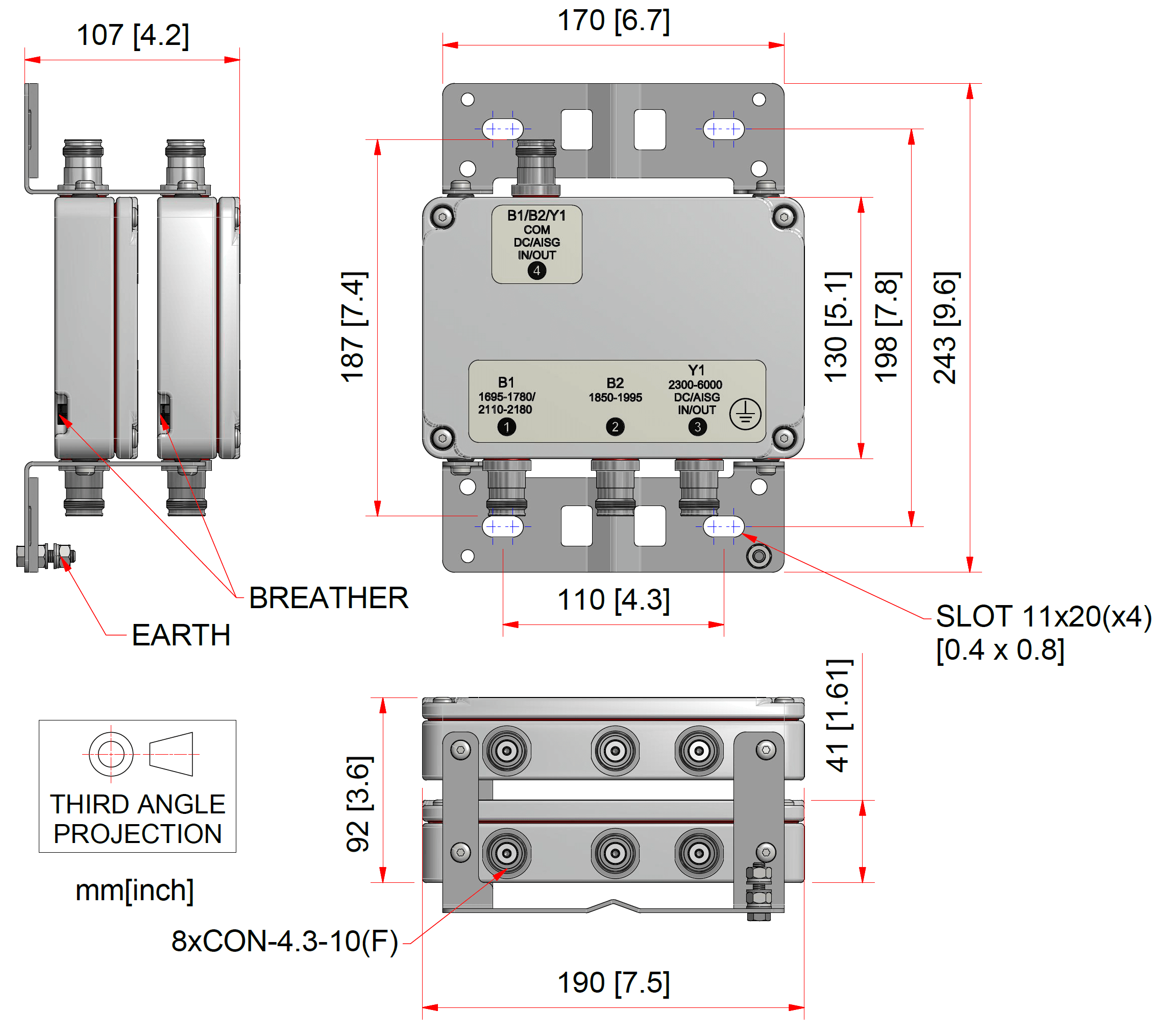

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
