The Kaelus TBC0082 is a bi-directional Triplexer, designed to combine or split 555-960MHz, 1900 and AWS-WCS bands. The TBC0082 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package


  • Enables antenna & coax sharing for 555-960MHz, 1900 & AWS-WCS systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 4.3-10 (F) long neck connectors standard
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
  • AWS3 and 4 ready

technical specifications
Band Name 555-960 1900 AWS-WCS
Passband 555 - 960MHz 1850 - 1995MHz 1695 - 1780MHz /
2110 - 2360MHz
Insertion loss 0.2dB typical 0.25dB typical 0.25dB typical
Return loss 24dB typical 24dB typical 24dB typical
Maximum input power 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP)
Isolation 40dB typical (35dB minimum)
Impedance 50Ohms
Intermodulation products -161dBc maximum all ports with 2 x 43dBm carriers
For further details of environmental compliance, please contact Kaelus.
Temperature range -40°C to +65ºC | -40°F to +149°F
Ingress protection IP67, Outdoor unit
Lightning protection IEC61312-1, RF: ±5kA maximum (8/20us)
survival without damage (no suppression)
MTBF >1,000,000 hours
Dimensions H x D x W (single twin unit) 145 x 113 x 205 mm | 5.7 x 4.4 x 8 in (Twin unit)
Dimensions H x D x W (dual twin unit) 145 x 230 x 205 mm | 5.7 x 9 x 8 in (Quad unit)
Weight 4.8kg | 10.6lbs (twin)
9.6kg | 21.15lbs (quad)
Finish Painted, light grey (RAL7035)
Connectors 4.3-10 (F) x 8 long neck (twin)
4.3-10 (F) x 16 long neck (quad)
Wind Load Front 225N, Side 74N (estimated, twin)
Front 205N, Side 161N (estimated,quad)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
TBC0082F1V74-1 TWIN, 2 in / 6 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) AWS-WCS/555-960/1900
TBC0082F1V74-2 QUAD, 4 in / 12 out DC AUTOSENSING WITHOUT LED 4.3-10 (F) AWS-WCS/555-960/1900

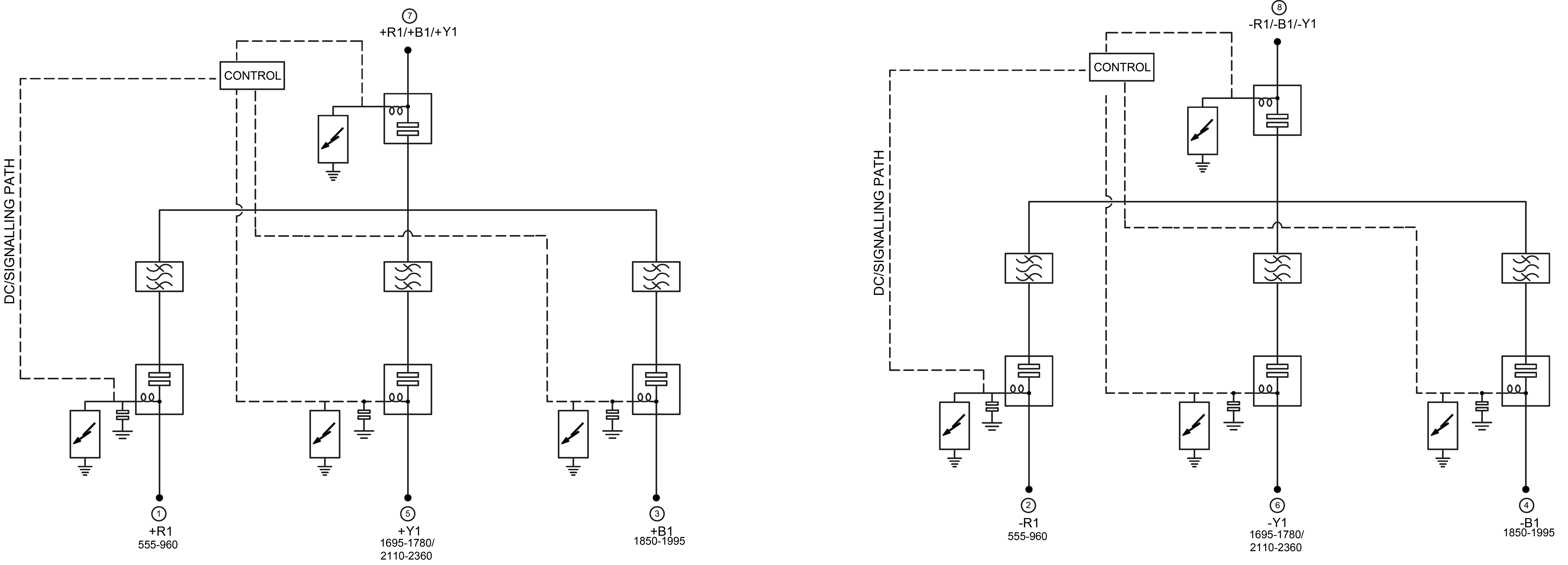

electrical block diagram

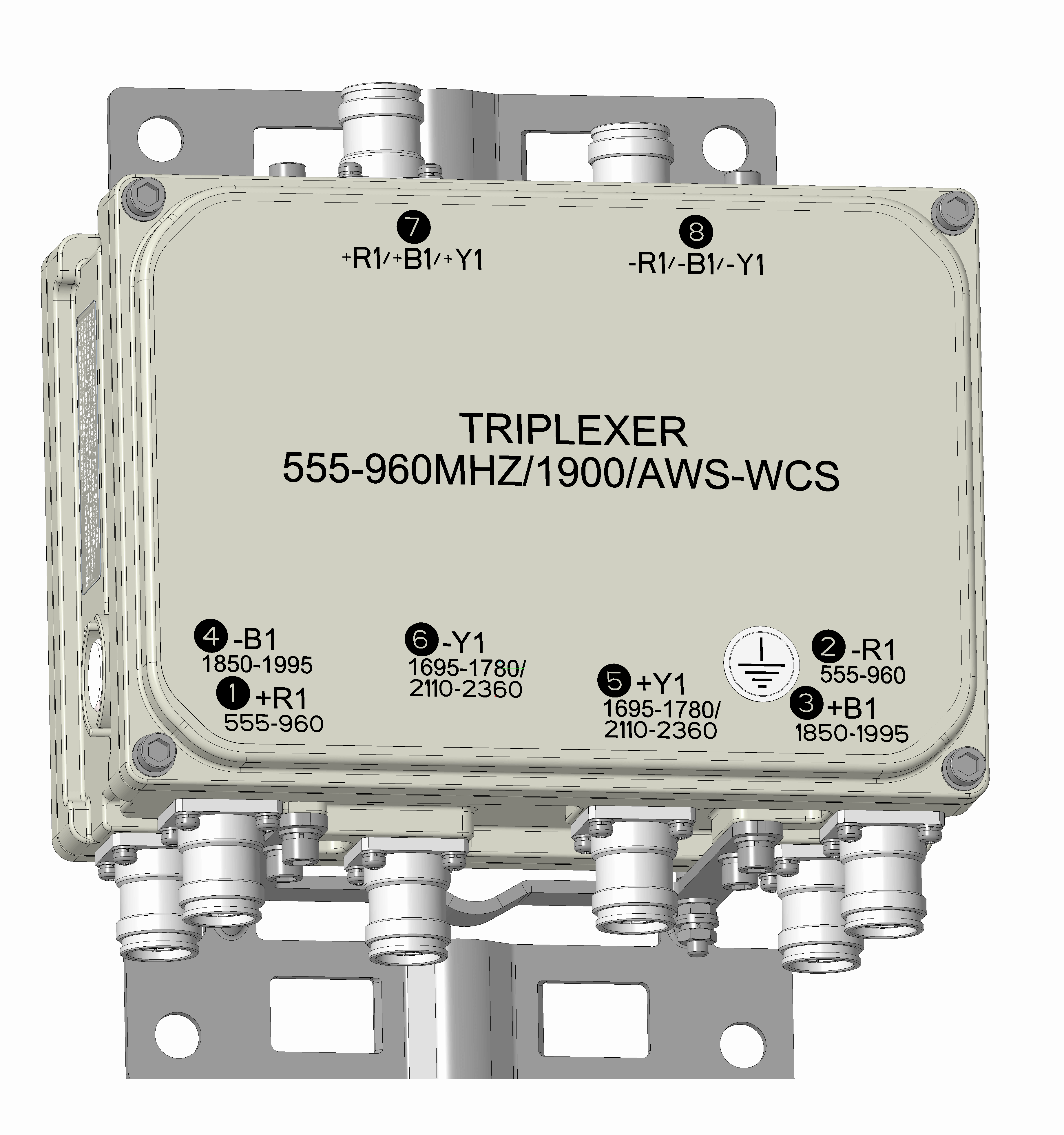

mechanical block diagram
