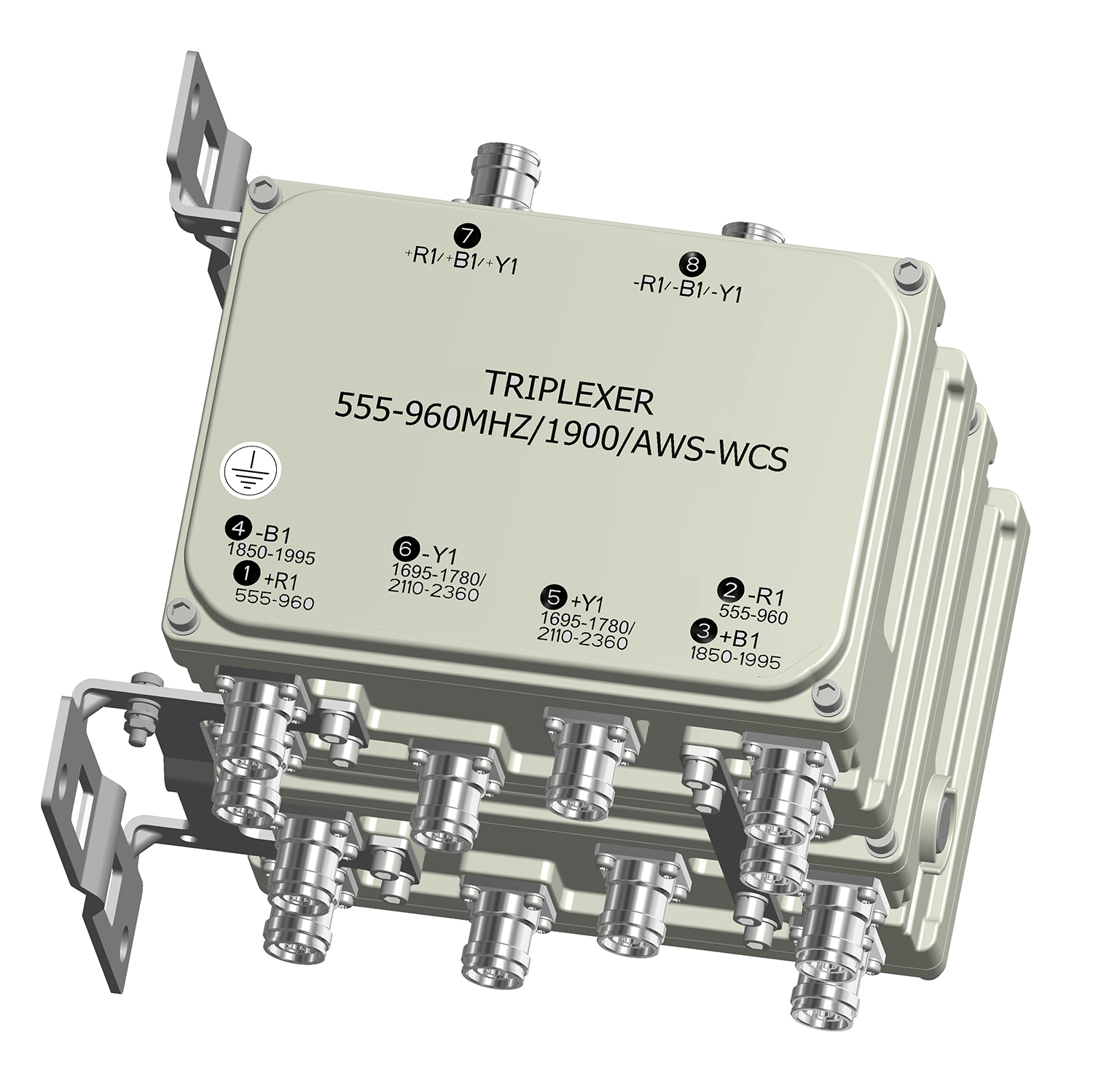

TBC0082F1V92-2

TRIPLEXER 555-960MHz/1900/AWS-WCS

The Kaelus TBC0082 is a bi-directional Triplexer, designed to combine or split 555-960MHz, 1900 and AWS-WCS bands. The TBC0082 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

Enables antenna & coax sharing for 555-960MHz, 1900 & AWS-WCS systems
Compact & lightweight - perfect for Small Cell applications
Low insertion loss & high return loss
Low passive IM performance
Single twin and dual twin models available
4.3-10 (F) long neck connectors standard
Hard Wired and DC Autosense versions available
Provisions for wall or mast mounting
AWS3 and 4 ready

Download PDF

GET A QUOTE

technical specifications

Band Name

555-960

1900

AWS-WCS

Passband

555 - 960MHz

1850 - 1995MHz

1695 - 1780MHz /
2110 - 2360MHz

Insertion loss

0.2dB typical

0.25dB typical

Return loss

24dB typical

Maximum input power

100W (average) / 1000W (PEP)

Isolation

40dB typical (35dB minimum)

electrical

Impedance

50Ohms

Intermodulation products

-161dBc typ, -156dBc maximum
with 2 x 43dBm carriers

environmental

For further details of environmental compliance, please contact Kaelus.

Temperature range

-40°C to +65ºC | -40°F to +149°F

Ingress protection

IP67, Outdoor unit

Lightning protection

IEC61312-1, RF: ±5kA maximum (8/20us)
survival without damage (no suppression)

MTBF

>1,000,000 hours

mechanical

Dimensions H x D x W (single twin unit)

145 x 113 x 205 mm | 5.7 x 4.4 x 8 in (Twin unit)

Dimensions H x D x W (dual twin unit)

145 x 230 x 205 mm | 5.7 x 9 x 8 in (Quad unit)

Weight

4.8kg | 10.6lbs (twin)
9.6kg | 21.15lbs (quad)

Finish

Painted, light grey (RAL7035)

Connectors

4.3-10 (F) x 8 long neck (twin)
4.3-10 (F) x 16 long neck (quad)

Wind Load

Front 225N, Side 74N (estimated, twin)
Front 205N, Side 161N (estimated,quad)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)

Mounting

Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles

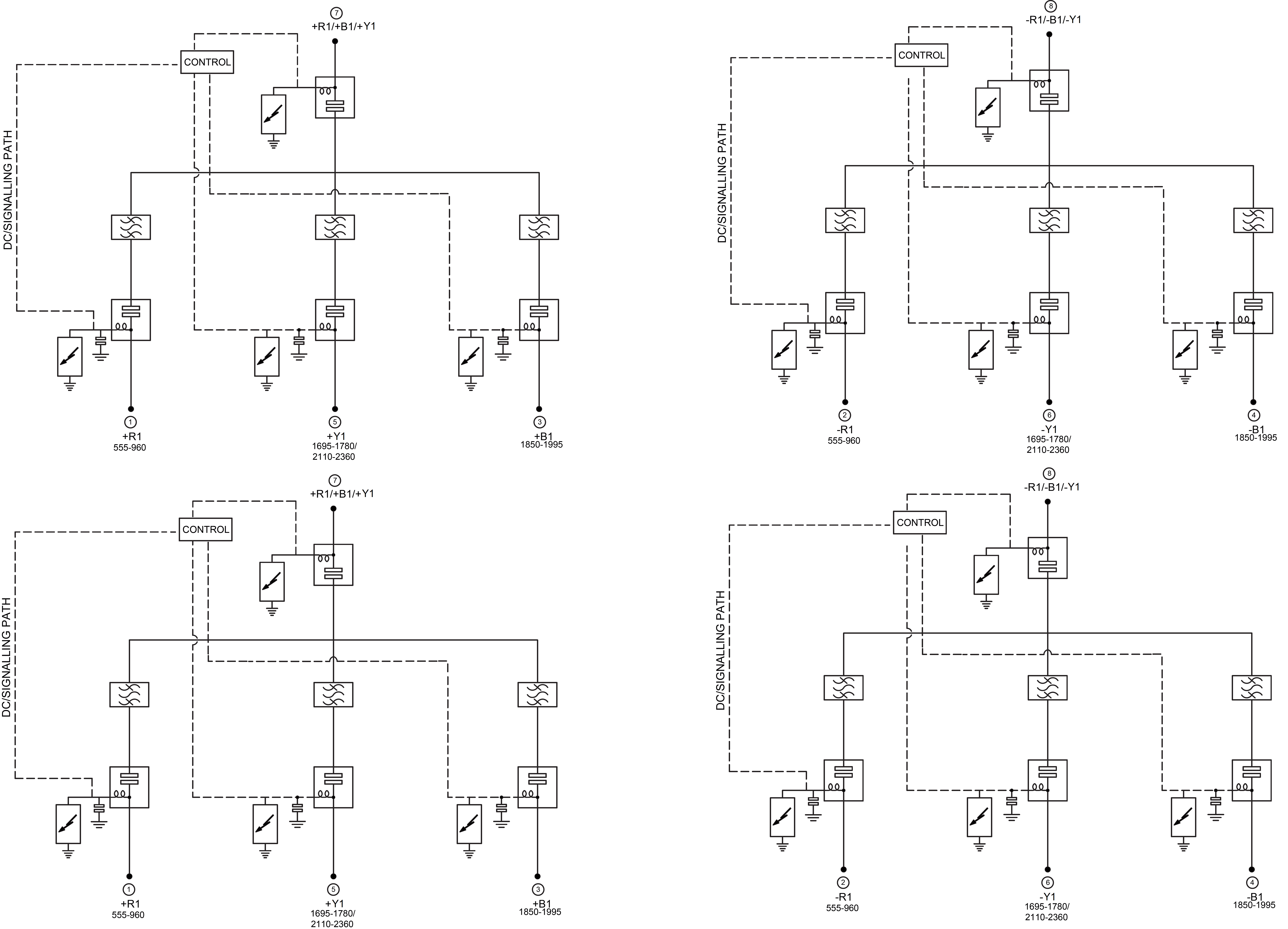

ordering information

Part Number

Configuration

Optional Features

Connectors

DC/AISG Configuration

TBC0082F1V92-1

TWIN, 2 in / 6 out

DC AUTOSENSING WITHOUT LED

4.3-10 (F)
