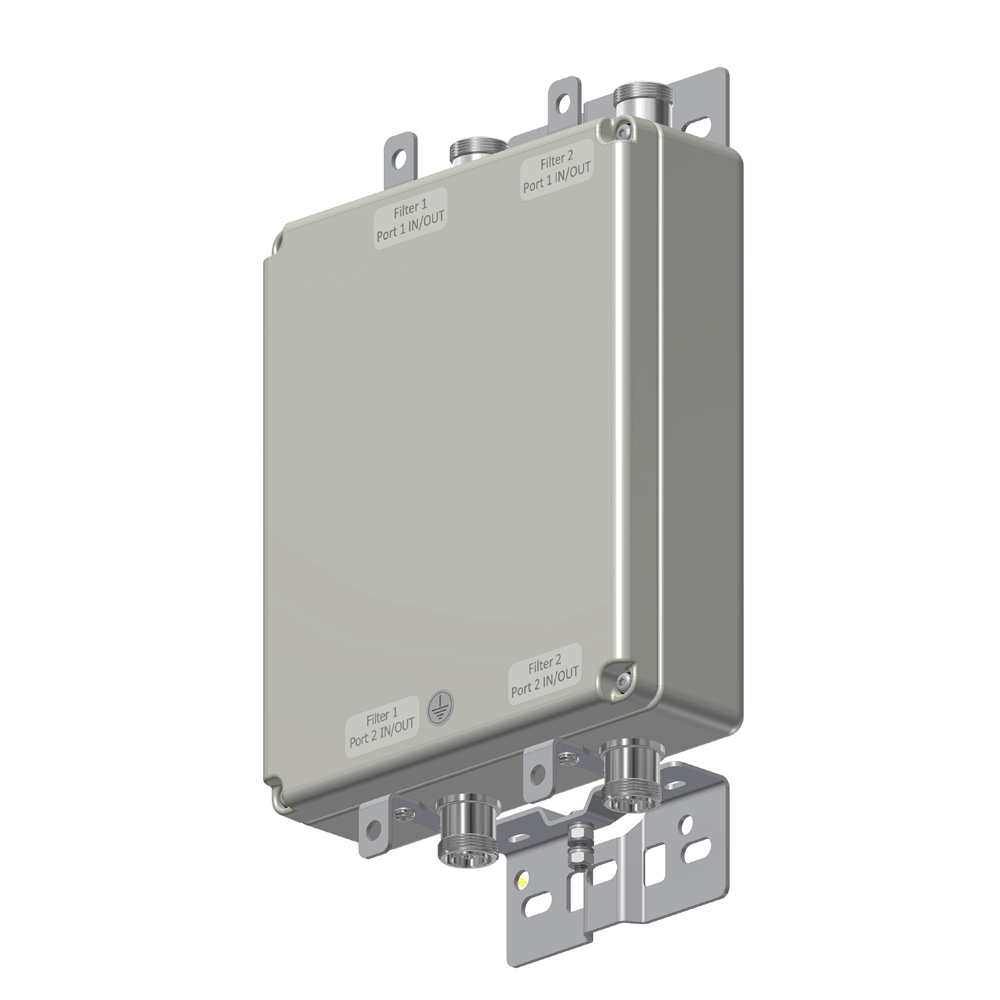

TWIN BANDPASS FILTER, E900
Ideal for co-located 850 and 900MHz systems the BPF0016 filter is a full band E900MHz bandpass filter. Capable of being used in an outdoor environment, the BPF0016 will provide rejection of the 850MHz downlink when small (2.5MHz) guard bands are required.
FEATURES
- Rejection of 850MHz downlink
- TwinFilter Structure (for main and diversity)
- Low insertion loss
- Full EGSM 900 Tx and Rx Band
- DC/AISG bypass path configurable
- Outdoor and indoor configurations
| BANDS |
DOWNLINK (TX) PATH |
UPLINK (RX) PATH |
| Passband |
925 – 960MHz |
880 – 915MHz |
| Bandwidth |
35MHz |
| Insertion loss |
0.2dB typical at mid-band |
0.3dB typical at mid-band, 1.2dB maximum at band edge |
| Return loss |
19dB minimum |
18dB minimum (-20°C to +60°C)
17dB minimum (-40°C to -20°C) |
| EVM |
2% maximum |
8.5% typical, 10% maximum @ 882.5MHz, 2% typical. >886MHz |
| Impedance |
50 Ohms |
| Intermodulation products |
-150dBc maximum all ports (3rd Order, 2 x 40W carriers) |
| Maximum input power |
300W (average) / 2.5kW (PEP) |
| Attenuation 870 – 877.5MHz |
46dB typical, 44dB minimum |
| Passband |
0 – 3MHz |
| Insertion loss |
0.3dB typical |
| Return loss |
15dB minimum |
| Input voltage range |
+/- 33V maximum |
| DC current rating |
2A continuous, 4A peak maximum |
| Temperature range |
-40ºC to +60ºC | -40°F to 140°F |
| Ingress protection |
IP67 |
| Altitude |
3,000m | 10,000ft |
| Lightning protection |
RF: ±5kA maximum (8/20us), IEC 61000-4-5 |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.2H, RoHS |
| Dimensions H x D x W (single unit) |
246 x 297 x 87mm | 9.7 x 11.7 x 3.4in Excluding brackets and connectors |
| Weight |
7.0kg | 15.4lbs |
| Finish |
Powder coated, light grey (RAL7035) |
| Connectors |
DIN 7-16 (F) x 4 long neck (BPF0016FxV1-1)
4.3-10 (F) x 4 long neck (BPF0016FxV2-1) |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| BPF0016F1V1-1 |
TWIN 2 in /2 out |
Reject 870-877.5MHz |
DIN 7-16 (F) |
FIXED DC |
| BPF0016F1V2-1 |
TWIN 2 in /2 out |
Reject 870-877.5MHz |
4.3-10 (F) |
FIXED DC |
| BPF0016F2V1-1 |
TWIN 2 in /2 out |
Reject 870-880MHz |
DIN 7-16 (F) |
FIXED DC |
| BPF0016F2V2-1 |
TWIN 2 in /2 out |
Reject 870-880MHz |
4.3-10 (F) |
FIXED DC |
