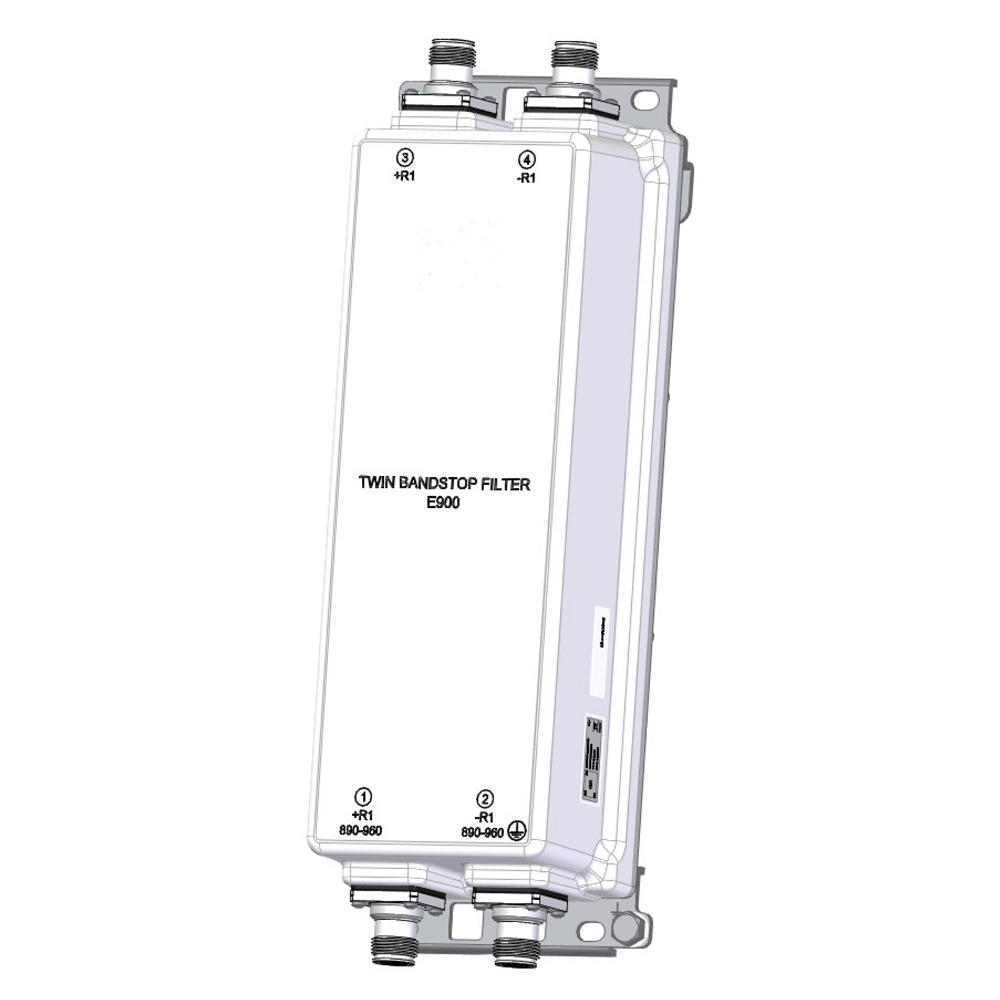

TWIN BANDSTOP 900MHZ FILTER
The BSF0021F1V1 is ideal for co-located 850 and 900 networks. Utilising a 2.5MHz guardband the BSF0021F1V1 provides rejection of the 850 band while passing 900 UL and DL bands. Capable of being used in an outdoor environment the BSF0021F1V1 contains two identical bandstop filters, suitable for 2×2 MIMO configuration, offereing excellent insertion loss, group delay, EVM and rejection.
FEATURES
- Rejection of 850MHz downlink
- Passes full 900 band
- Notch filter structure
- DC/AISG pass
- Low insertion loss
- Outdoor and indoor configurations
- Twin unit
| BAND NAME |
900 UPLINK PATH |
900 DOWNLINK PATH |
| Passband |
890 – 915MHz |
935 – 960MHz |
| Insertion loss |
0.3dB typical, 1.0dB maximum |
0.15dB typical, 0.2dB maximum |
| Return loss |
20dB typical, 18dB minimum |
| EVM |
1% typical, 3% maximum |
| Group delay variation |
200ns maximum across 10MHz |
| Absolute group delay |
250ns maximum |
| Rejection |
60dB minimum @ 869 – 885MHz |
| Impedance |
50Ohms |
| Intermodulation products |
-153dBc maximum with 2x20W (IM3) |
| Maximum input power (Per Port) |
200W |
| Passband |
0 – 3MHz |
| Insertion loss |
0.3dB maximum |
| Return loss |
15dB minimum |
| Input voltage range |
± 33V |
| DC current rating |
2A continuous, 4A peak |
| Compliance |
3GPP TS 25.461 |
| Temperature range |
-20ºC to +60ºC | -4°F to +140°F |
| Ingress protection |
IP67, Outdoor unit |
| Lightning protection |
RF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must terminated with some lightning protection circuits. |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.1E, RoHS |

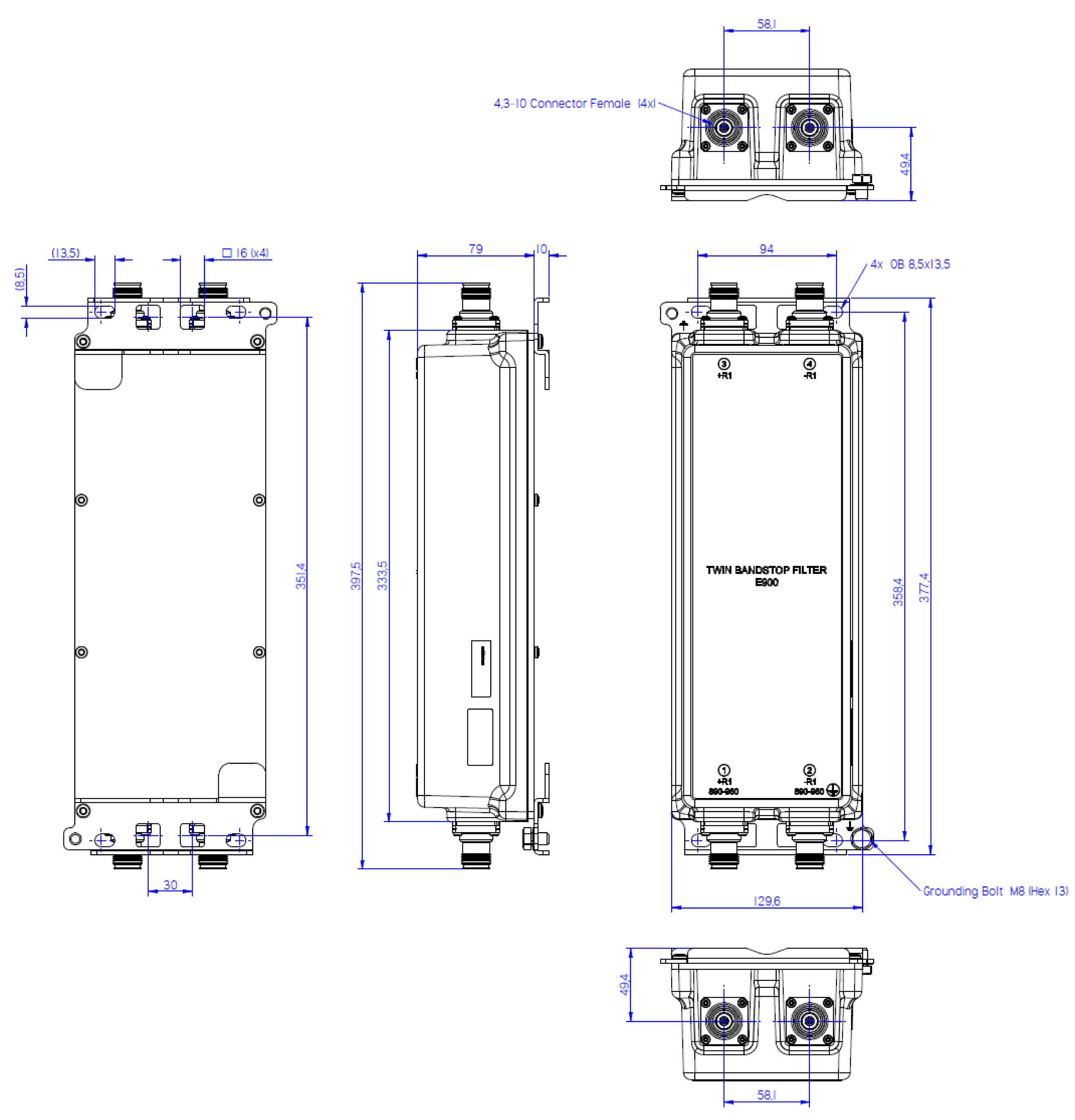

| Dimensions H x D x W |
334x130x80mm | 13.1 x 5.11 x 3.14in (Excluding brackets and connectors) |
| Weight |
4.4kg | 9.7lbs estimated |
| Finish |
Powder coated, light grey (NCS 1502-R) |
| Connectors |
RF: 4.3-10 (F) x 4 |
| Mounting |
Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles |
| PART NUMBER |
DESCRIPTION |
| BSF0021F1V1-1 |
TWIN BANDSTOP FILTER, 890-960MHz, 60dB REJECTION @869-885MHz, DC PASS, 4.3-10(F) |
