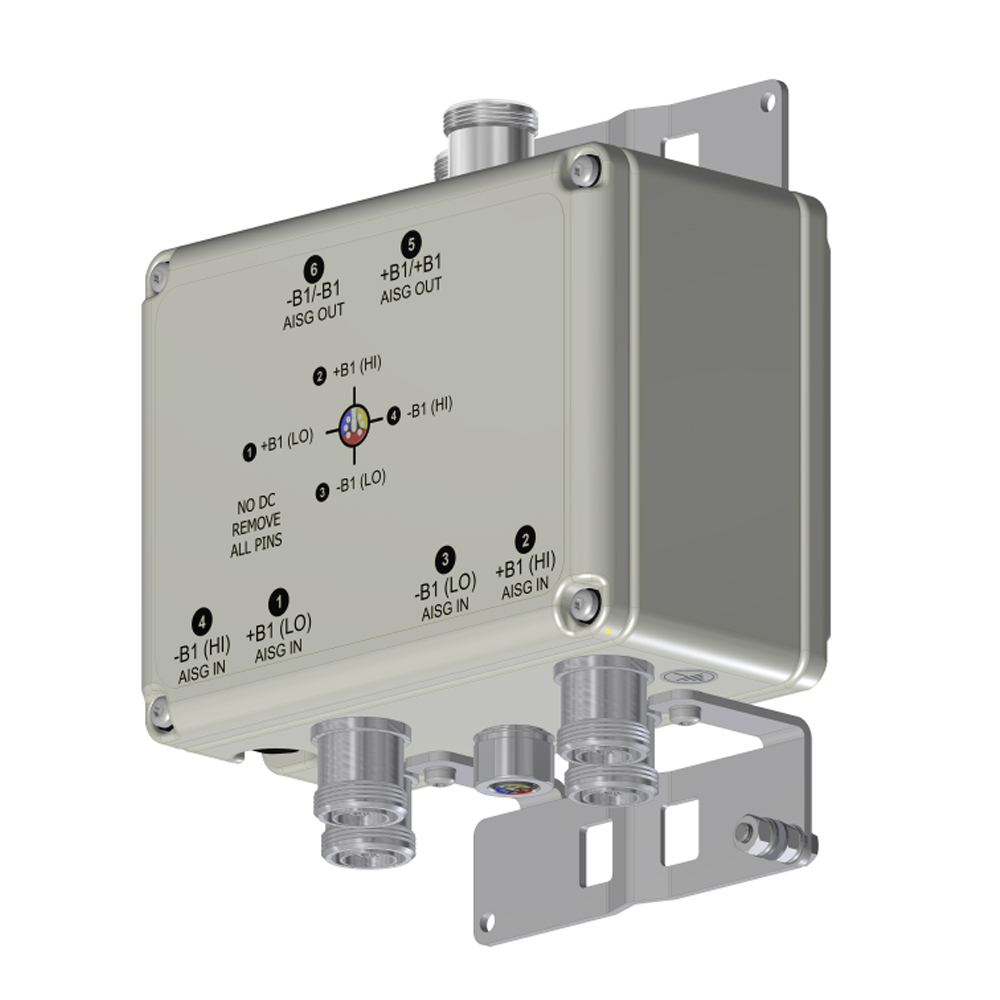

TWIN SAME BAND COMBINER, 1900
Designed to combine two sub-bands within the1900 band, the Kaelus DBC0081 provides a compact twin combining solution with low insertion, The DBC0081 solution minimizes feeders, TMA’s and antennas thereby saving both capital and operational expenditure when combining two base stations.
FEATURES
- Allows two 1900 base stations to share feeders, TMAs and antennae

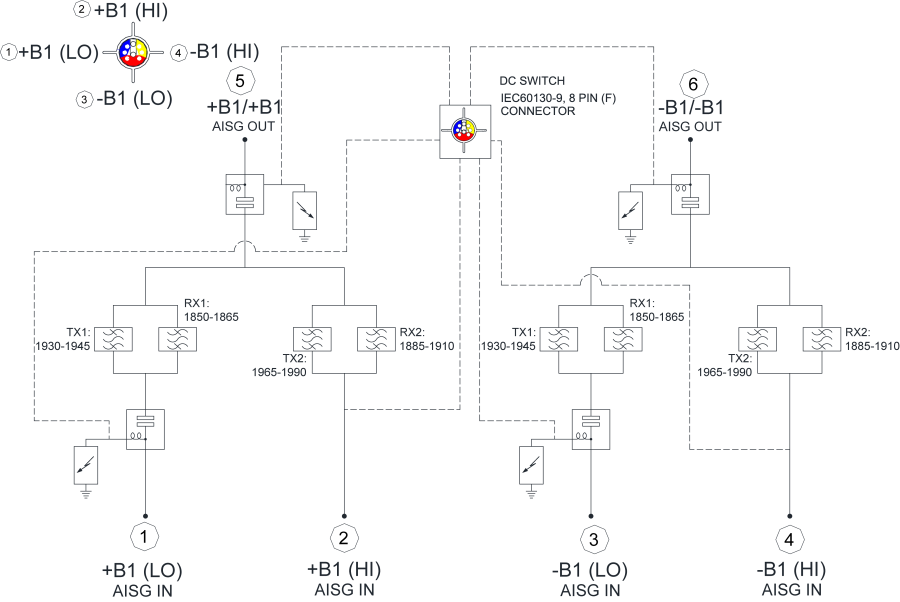

- Field selectable DC/AISG bypass with built-in lightening protection
- Low downlink and uplink insertion losses
- Suitable for indoor and outdoor use
| BAND NAME |
B1 (LO) |
B1 (HI) |
| Bandwidth |
15MHz |
25MHz |
| Insertion loss |
0.5dB typical |
| Bandwidth |
15MHz |
25MHz |
| Insertion loss |
0.65dB typical |
0.8dB typical |
| B1 (LO) TX frequency range |
35dB typical, 30dB minimum |
| B1 (HI) TX frequency range |
35dB typical, 30dB minimum |
| B1 (LO) RX frequency range |
35dB typical, 30dB minimum |
| B1 (HI) RX frequency range |
35dB typical, 30dB minimum |
| Impedance |
50Ohms |
| Return loss |
18dB minimum |
| Intermodulation products |
-161dBc typical / -155dBc maximum all ports with 2 x 20W carriers in RX band |
| Maximum input power |
100W (average) / 1kW (PEP) |
| Guardband (frequency separation between B1 LO and B 1 HI) |
20MHz minimum |
| Passband |
0 – 3MHz |
| Insertion loss, single DC/AISG pass |
1dB maximum |
| Return loss, single DC/AISG pass |
12dB minimum |
| Insertion loss, two DC/AISG pass |
4.5dB typical |
| Return loss, two DC/AISG pass |
9dB typical |
| Input voltage range |
± 31V |
| DC current rating |
2A continuous, 4A peak |
| Temperature range |
-20ºC to +55ºC | +4°F to +131°F |
| Ingress protection |
IP67 |
| Altitude |
2,000m | 6,500ft |
| Lightning protection |
RF: ±5kA maximum (8/20us) |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.1, RoHS |

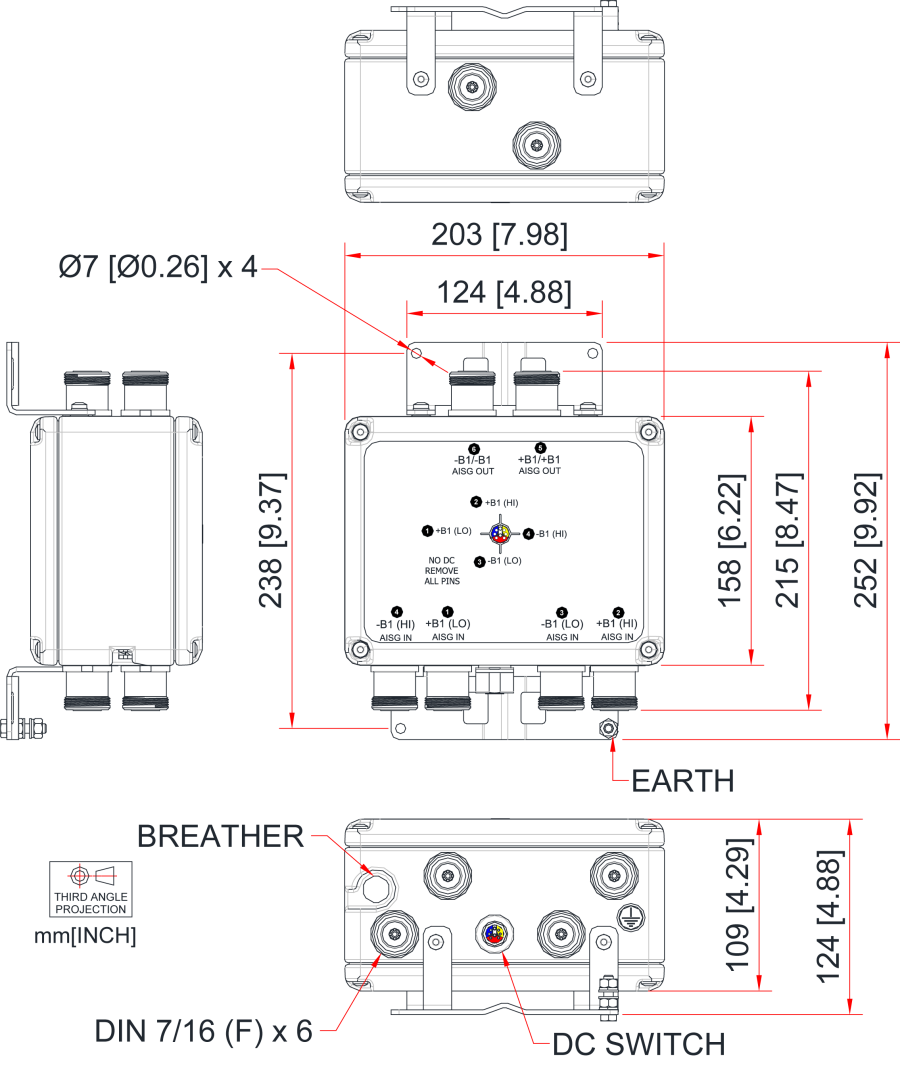

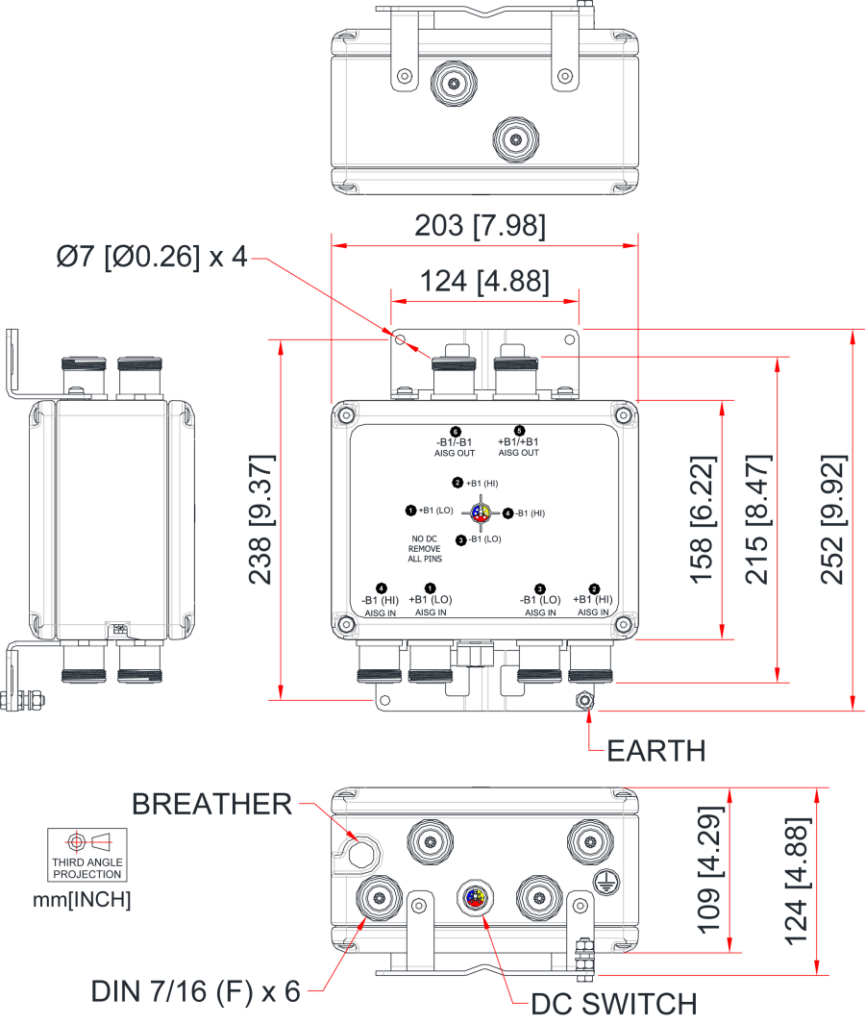

| Dimensions H x D x W |
203 x 158 x 109mm | 8 x 6.2 x 4.3in |
| Weight |
6.30kg | 13.9lbs |
| Finish |
Powder coated, light grey (RAL7035) |
| Connectors |
DIN 7-16 (F) x 6 long neck |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
B1 (LO) BAND |
B1 (HI) BAND |
DESCRIPTION |
| DBC0081F1V51-1 |
A |
E, F &C |
Twin Same Band Combiner 1900 – DC/AISG field selectable through external DC switch |
| DBC0081F3V51-1 |
A4,A5, D |
F&C&G |
Twin Same Band Combiner 1900 – DC/AISG field selectable through external DC switch |
| DBC0081F4V51-1 |
A5, D&B3 |
C&G |
Twin Same Band Combiner 1900 – DC/AISG field selectable through external DC switch |
