DC INSERTER

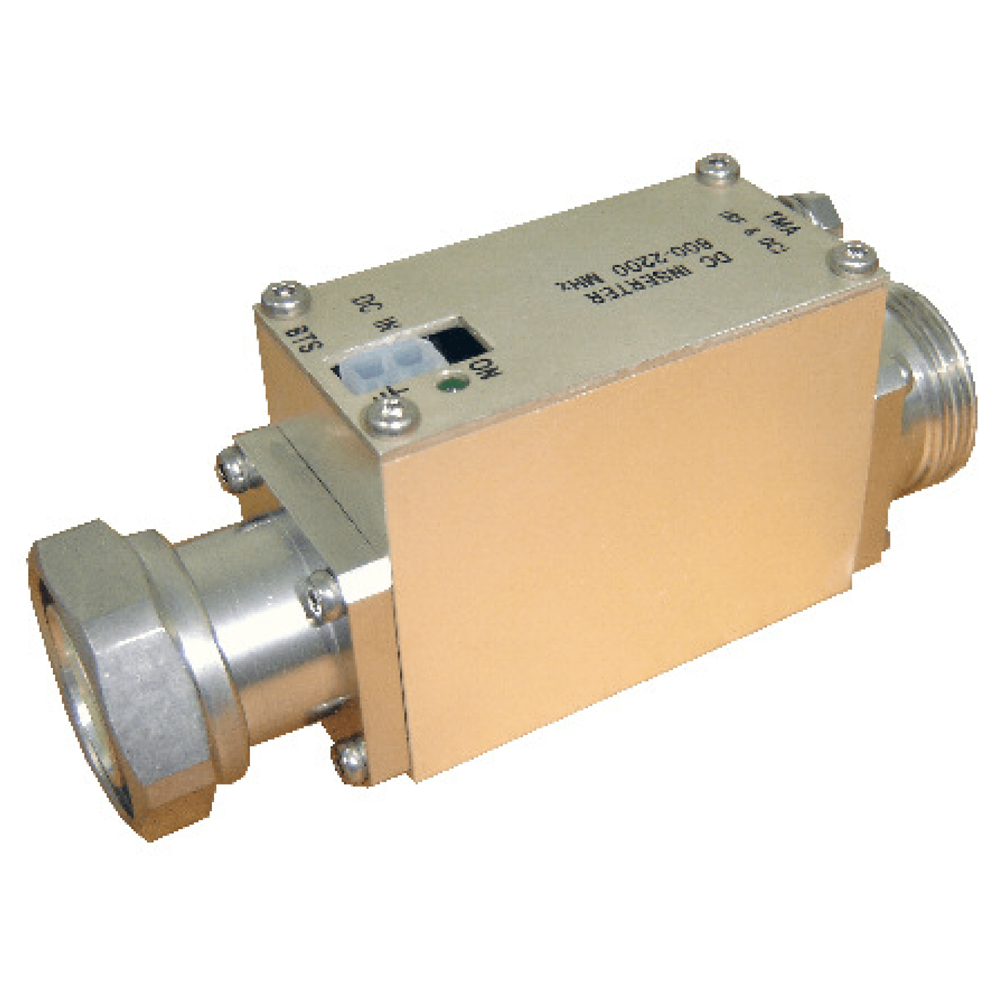

Designed to be deployed as an indoor DC inserter, or bias-T, in cellular base station systems, the Kaelus DCI0001F1Vx provides high quality performance.
FEATURES
- Primary surge protection fitted to the DC input
- LED indicator to show the presence of DC power
- Designed to handle the high RF power levels of TX carriers associated with duplex tower mounted amplifiers
- Can be mounted in a cable tray or directly onto the BTS RF connector
TECHNICAL SPECIFICATIONS |
| RF | |||||||||||||||
| Passband | 880 – 2200MHz | ||||||||||||||
| Return loss | 21dB minimum input and output | ||||||||||||||
| Insertion loss | 0.1dB maximum | ||||||||||||||
| Maximum input power with no damage | 200W (average) maximum | ||||||||||||||
| RF impedance | 50ohms | ||||||||||||||
| Intermodulation, passive | <-155dBc with 2 x 20W carriers | ||||||||||||||
| DC | |||||||||||||||
| Voltage rating | +40V DC (limited by surge protect circuits) | ||||||||||||||
| Current rating | 5A maximum | ||||||||||||||
| Power present indication | Green LED (power applied) | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -20ºC to +55ºC | -4ºF to +131ºF | ||||||||||||||
| Ingress protection | Indoor use only | ||||||||||||||
| Lightning protection | IEC-801-5, 8/20µs, ±10kA maximum, 10strikes each | ||||||||||||||
| MTBF | >500,000 hours at 22ºC indoor | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Finish | Aluminium | ||||||||||||||
| Connectors | DC in = molex, mini-fit junior (2-way) | ||||||||||||||
| Connector 1 | RF to BTS = 7/16 male | ||||||||||||||
| Connector 2 | RF to antenna = 7/16 female | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| DCI0001F1V1 | DC inserter, 7/16 (M) to the BTS including R18-0401, 6.0m/19.7ft PDU to DCI cable | ||||||||||||||
| DCI0001F1V4 | DC inserter, 7/16 (M) to the BTS including R18-0527, 2.0m/6.6ft PDU to DCI cable | ||||||||||||||
OPTIONAL ACCESSORIES |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| R18-0401 | Molex to molex cable assembly for connection from PUD000x to DCI0001 DC inserter, 6.0m/19.7ft | ||||||||||||||
| R18-0527 | Molex to molex cable assembly for connection from PUD000x to DCI0001 DC inserter, 2.0m/6.6ft | ||||||||||||||
| R90-PDU0003FxVx | 6-way power distribution and alarm unit, high power | ||||||||||||||

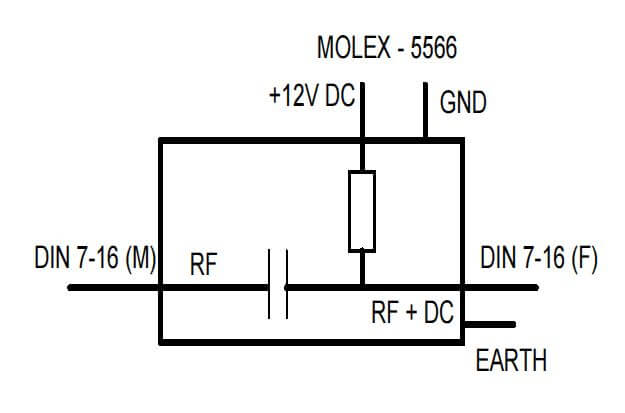

| ELECTRICAL BLOCK DIAGRAM |
MECHANICAL BLOCK DIAGRAM |
