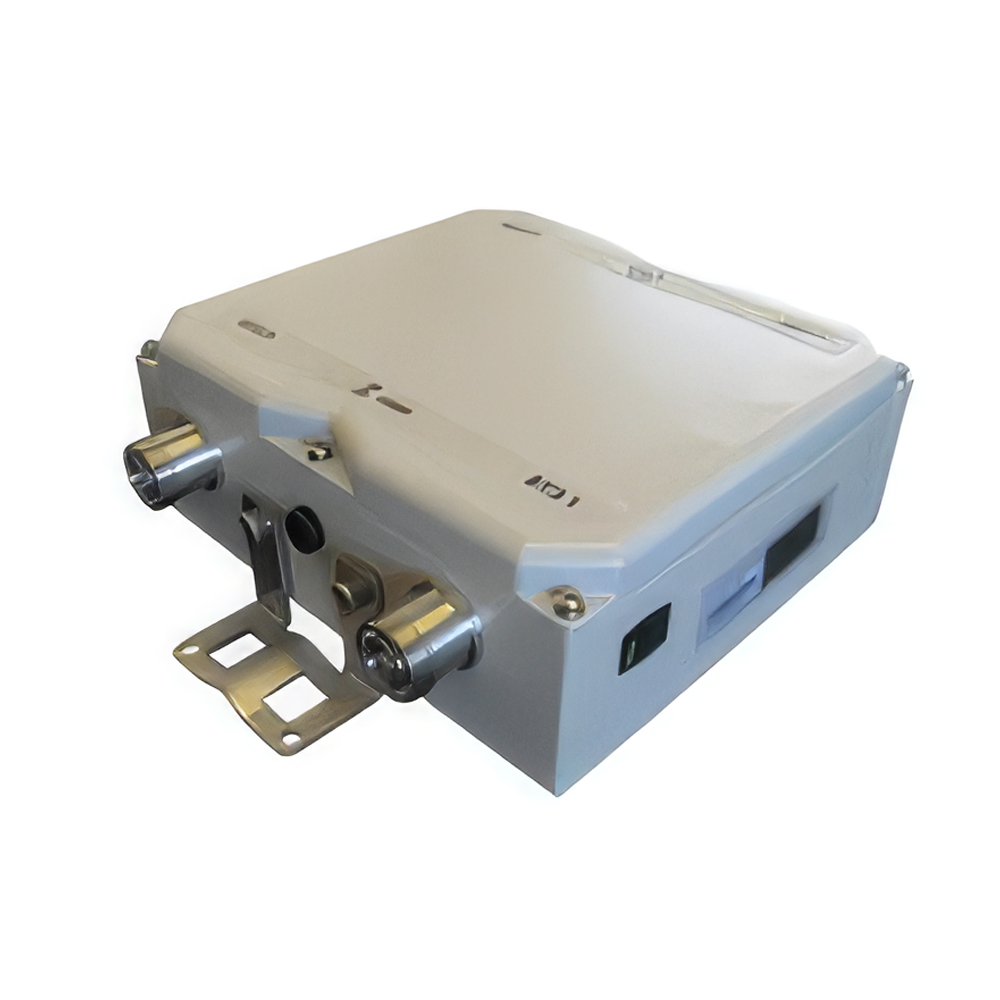

TWIN DUAL DUPLEXED FILTER 850
Designed as an 850MHz Transmit filter the DDF0019 is used to attenuate spurious emitting from a 850MHz Base Station over and adjacent 900MHz RX carriers.
FEATURES
- For use in 850MHz applications with 900MHz co-location
- Low downlink insertion loss while attenuating spurious outside the 850MHz transmit spectrum

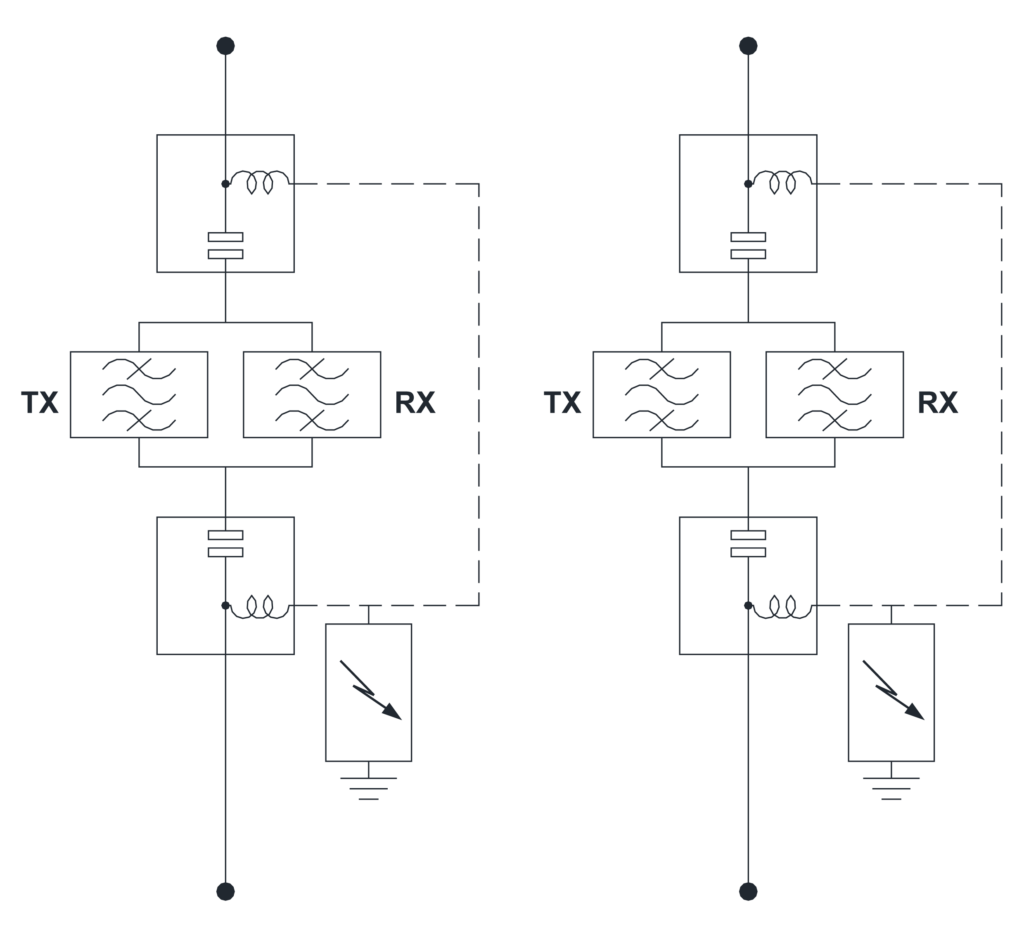

- DC pass configured for use with Tower Mounted amplifiers
- Economical twin filter solution
- Suitable for retuning to bandwidths of 10-18MHz with guard bands >4MHz
| BAND NAME |
DOWNLINK (TX) PATH |
UPLINK (RX) PATH |
| Passband |
870 – 885MHz |
825 – 840MHz |
| Insertion loss |
1.05dB maximum |
0.5dB maximum |
| Return loss |
18dB minimum |
| Rejection |
45dB minimum @ 890 – 915MHz |
| Impedance |
50ohms |
| Intermodulation products |
-160 dBc max ( 2x 20 W carriers, in receive band) |
| Maximum input power |
100W (average) / 800W (PEP) |
| Passband |
0 – 3MHz |
| Insertion loss |
1dB maximum |
| Return loss |
12dB minimum |
| Temperature range |
-20ºC to +60ºC | 4ºF to +140ºF |
| Ingress protection |
IP67 (outdoors) |
| Altitude |
2,600m | 8,530ft maximum |
| Lightning protection |
IEC61312-1
8/20us, 5kA max
DC grounded, all ports |
| MTBF |
>1,000,000 hours |

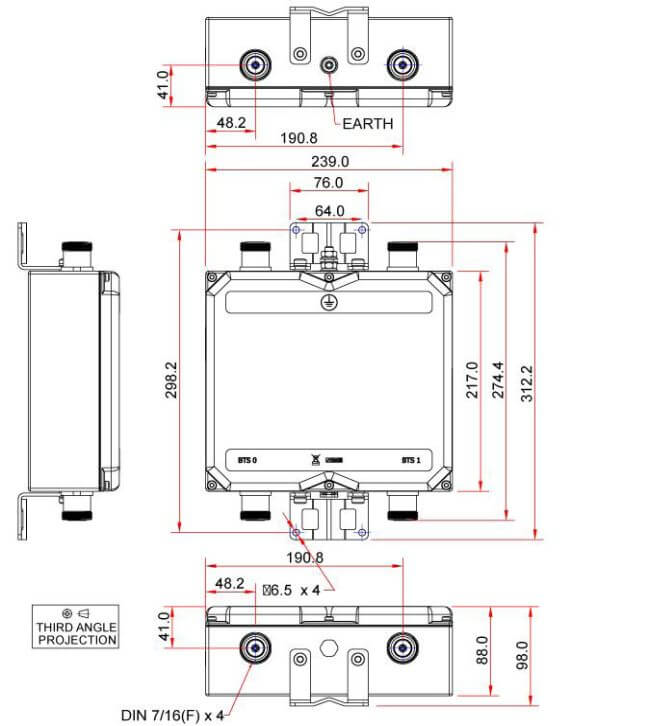

| Dimensions H x D x W |
239 x 217 x 88mm | 9.40 x 8.54 x 3.46in |
| Weight |
7kg | 15.4lbs |
| Finish |
Painted light grey |
| Connectors |
DIN 7-16 (F) x 4 |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
DESCRIPTION |
| DDF0019F2V2-1 |
TWIN DUAL DUPLEXED FILTER 825-840/870-885 REJ 45 @ 890, DC |
| DDF0019FxVx-1 |
TWIN DUAL DUPLEXED FILTER 850 |
