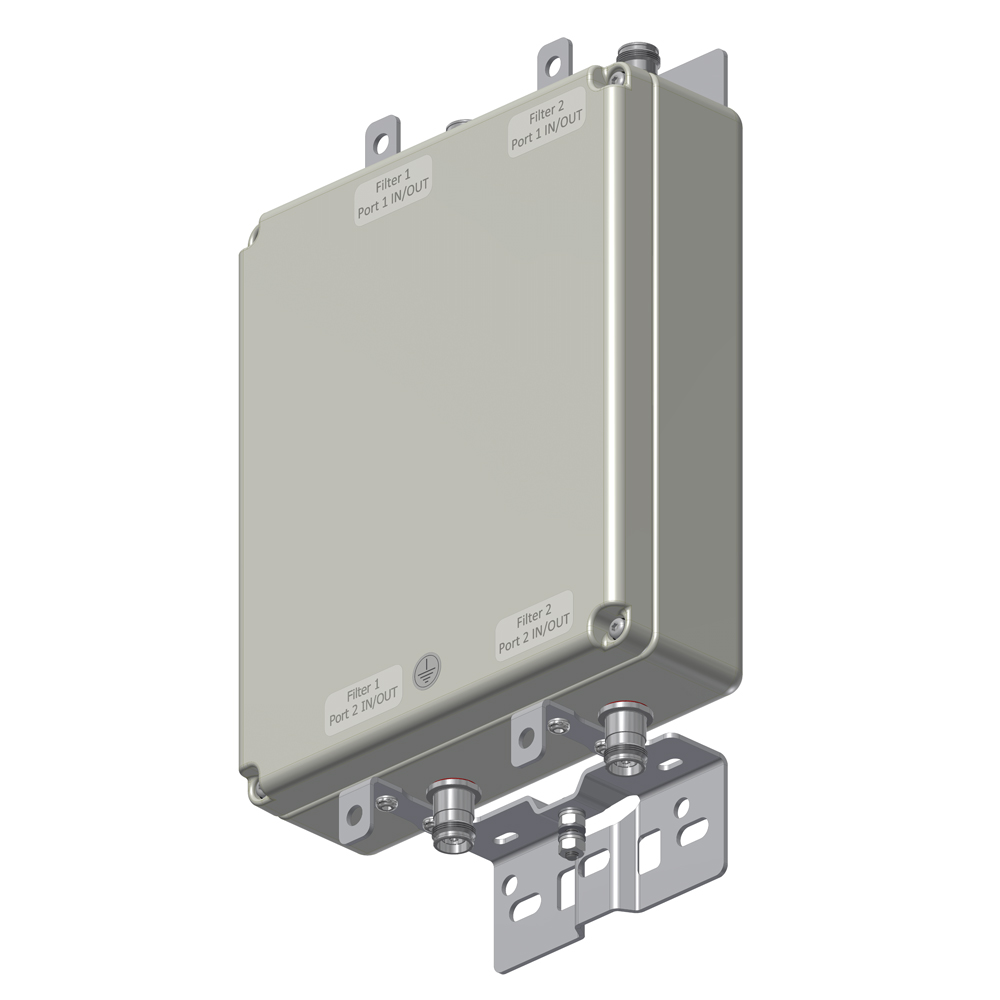

TWIN BANDPASS FILTER, E900
Ideal for co-located 850 and 900MHz systems the BPF0016 filter is a full band E900 bandpass filter. Capable of being used in an outdoor environment, the BPF0016 will provide rejection of the 850MHz downlink when small (2.5MHz) guard bands are required.
FEATURES
- Rejection of 850MHz downlink
- TwinFilter Structure (for main and diversity)
- Low insertion loss
- Full EGSM 900 Band
- DC/AISG bypass path configurable
- Outdoor and indoor configurations
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BANDS | DOWNLINK (TX) PATH | UPLINK (RX) PATH | |||||||||||||
| Passband | 927.5 – 960MHz | 882.5 – 915MHz | |||||||||||||
| Bandwidth | 32.5MHz | ||||||||||||||
| Insertion loss | 0.2dB typical at mid-band | 0.3dB typical at mid-band, 1.2dB maximum at band edge | |||||||||||||
| Return loss | 19dB minimum | 18dB minimum (-20°C to +60°C) 17dB minimum (-40°C to -20°C) |
|||||||||||||
| EVM | 2% maximum | 8.5% typical, 10% maximum @ 885MHz, 2% typical. >888.5MHz | |||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50 Ohms | ||||||||||||||
| Intermodulation products | -150dBc maximum all ports (3rd Order, 2 x 40W carriers) | ||||||||||||||
| Maximum input power | 300W (average) / 2.5kW (PEP) | ||||||||||||||
| Attenuation 870 – 880MHz | 46dB typical, 44dB minimum | ||||||||||||||
| DC / AISG | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss | 0.3dB typical | ||||||||||||||
| Return loss | 15dB minimum | ||||||||||||||
| Input voltage range | +/- 33V maximum | ||||||||||||||
| DC current rating | 2A continuous, 4A peak maximum | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| Temperature range | -40ºC to +60ºC | -40°F to 140°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Altitude | 3,000m | 10,000ft | ||||||||||||||
| Lightning protection | RF: ±5kA maximum (8/20us), IEC 61000-4-5 | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | ETSI EN 300 019 class 4.2H, RoHS | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single unit) | 246 x 297 x 87mm | 9.7 x 11.7 x 3.4in Excluding brackets and connectors | ||||||||||||||
| Weight | 7.0kg | 15.4lbs | ||||||||||||||
| Finish | Powder coated, light grey (RAL7035) | ||||||||||||||
| Connectors | DIN 7-16 (F) x 4 long neck (BPF0016FxV1-1) 4.3-10 (F) x 4 long neck (BPF0016FxV2-1) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| BPF0016F1V1-1 | TWIN 2 in /2 out | Reject 870-877.5MHz | DIN 7-16 (F) | FIXED DC | |||||||||||
| BPF0016F1V2-1 | TWIN 2 in /2 out | Reject 870-877.5MHz | 4.3-10 (F) | FIXED DC | |||||||||||
| BPF0016F2V1-1 | TWIN 2 in /2 out | Reject 870-880MHz | DIN 7-16 (F) | FIXED DC | |||||||||||
| BPF0016F2V2-1 | TWIN 2 in /2 out | Reject 870-880MHz | 4.3-10 (F) | FIXED DC | |||||||||||
ELECTRICAL BLOCK DIAGRAM |

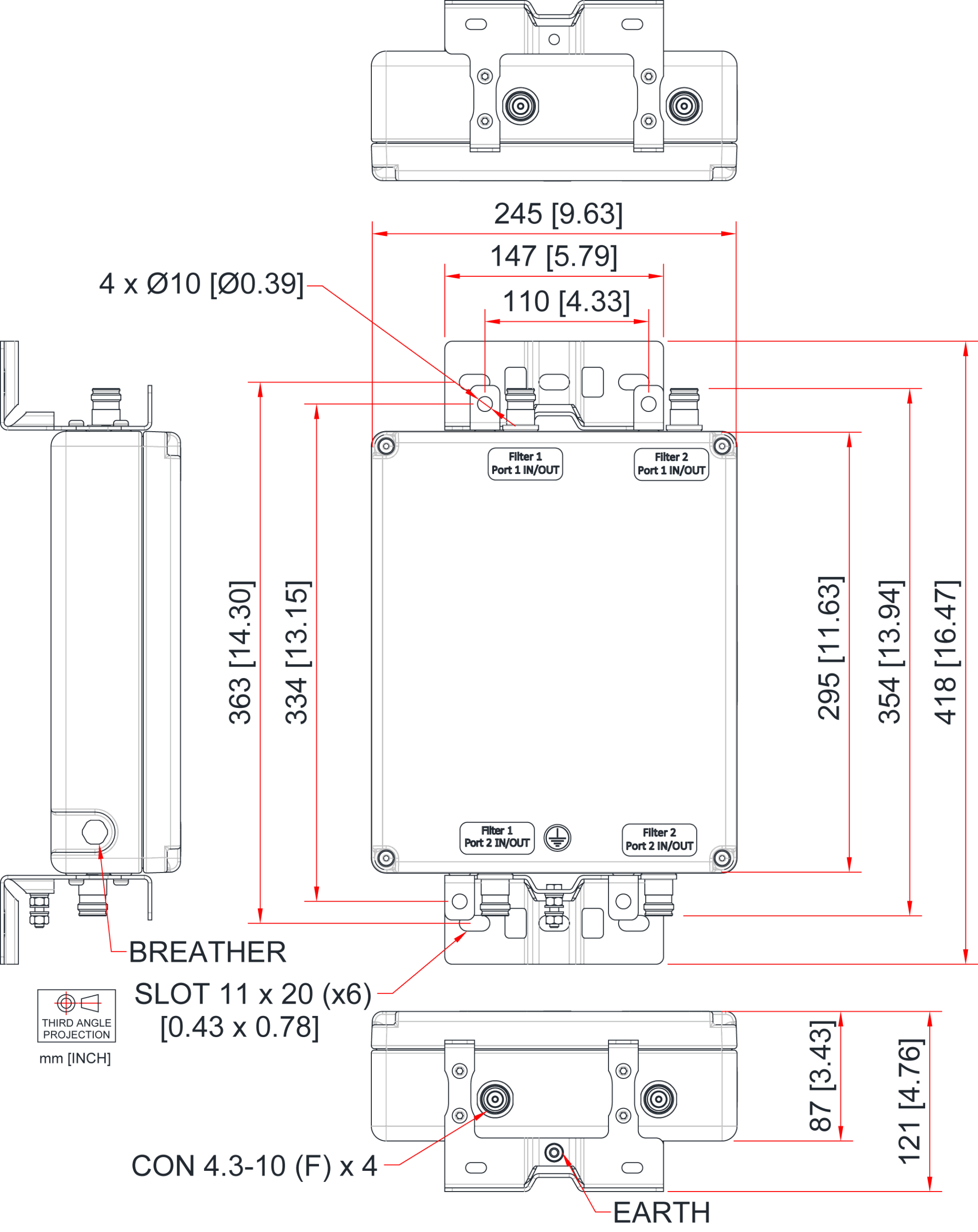

MECHANICAL BLOCK DIAGRAM |
