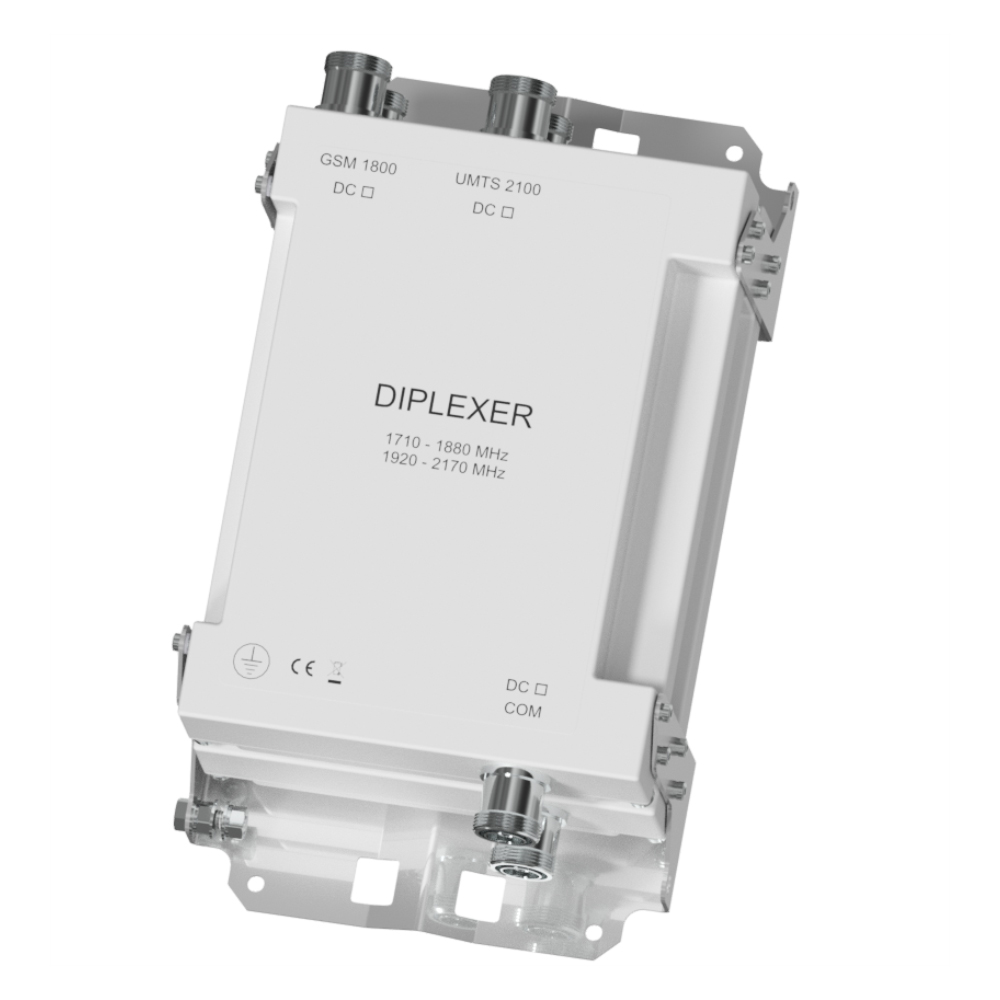

DIPLEXER 1800/2100
The Kaelus DBC0021 combiner provides diplexing of 1800 and 2100MHz bands wherever both signals are required on a single output. This may be at the BTS end of the feeder or at the antenna, saving infrastructure capital expenditure and improving network reliability.
FEATURES
- Combines 1800 and 2100 bands
- Options for bypassing DC and AISG internal to the diplexer
- Single or dual configurations available, suitable for indoor/outdoor use, wall or pole mounting kit
- Built in lightning protection on all ports
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| PORT NAME | 1800 | 2100 | |||||||||||||
| Passband | 1710 – 1880MHz | 1920 – 2170MHz | |||||||||||||
| Insertion loss | 0.20dB typical, 0.3dB maximum | 0.20dB typical, 0.35dB maximum | |||||||||||||
| Return loss | 20.7dB minimum | ||||||||||||||
| EVM | 0.3% typical / 2% maximum over 4.2MHz | ||||||||||||||
| Group delay variation | 7ns maximum over 4.2MHz | 5ns maximum over 4.2MHz | |||||||||||||
| Maximum input power | 250W (average) / 1kW (PEP) | 160W (average) / 1kW (PEP) | |||||||||||||
| Intermodulation products | <-155dBc (2 x 20W, 3rd order) | ||||||||||||||
| Attenuation COM to 1800 | |||||||||||||||
| 698-960MHz | 75dB min | N/A | |||||||||||||
| 1920 – 1980MHz | 55dB minimum | N/A | |||||||||||||
| 2110 – 2170MHz | 55dB minimum | N/A | |||||||||||||
| 2450 – 2900MHz | 60dB minimum | N/A | |||||||||||||
| Attenuation COM to 2100 | |||||||||||||||
| 698 – 960MHz | N/A | 50dB minimum | |||||||||||||
| 1710 – 1880MHz | N/A | 55dB minimum | |||||||||||||
| 2450 – 2900MHz | N/A | 60dB minimum | |||||||||||||
| DC / AISG | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss | 1dB maximum | ||||||||||||||
| Return loss | 12dB typical | ||||||||||||||
| DC current rating | 2.5A/50V maximum | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67, outdoor | ||||||||||||||
| Lightning protection | 3kA maximum (10/350us), IEC61312-1 | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single unit) | 270 x 200 x 53mm | 10.62 x 7.87 x 2in | ||||||||||||||
| Dimensions H x D x W (twin unit) | 270 x 200 x 112mm | 10.62 x 7.87 x 4.4in | ||||||||||||||
| Weight | 4.0kg | 8.8lbs single unit 8.0kg | 17.6.8lbs dual unit |
||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | DIN 7-16 (F) x 3 long neck (single unit) DIN 7-16 (F) x 6 long neck (twin unit) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| DBC0021F3V1-1 | SINGLE, 1 in / 2 out | FIXED DC | 7-16 (F) | DC ON 2100 | |||||||||||
| DBC0021F3V2-1 | SINGLE, 1 in / 2 out | FIXED DC | 7-16 (F) | DC ON 1800 | |||||||||||
| DBC0021F3V3-1 | SINGLE, 1 in / 2 out | FIXED DC | 7-16 (F) | DC ON 1800 & 2100 | |||||||||||
| DBC0021F3V4-1 | SINGLE, 1 in / 2 out | FIXED DC | 7-16 (F) | NO DC | |||||||||||
| DBC0021F3V21-2 | TWIN, 2 in / 4 out | FIXED DC | 7-16 (F) | DC ON 2100 | |||||||||||
| DBC0021F3V22-2 | TWIN, 2 in / 4 out | FIXED DC | 7-16 (F) | DC ON 1800 | |||||||||||
| DBC0021F3V23-2 | TWIN, 2 in / 4 out | FIXED DC | 7-16 (F) | DC ON 1800 & 2100 | |||||||||||
| DBC0021F3V24-2 | TWIN, 2 in / 4 out | FIXED DC | 7-16 (F) | NO DC | |||||||||||
ELECTRICAL BLOCK DIAGRAM |
MECHANICAL BLOCK DIAGRAM |
