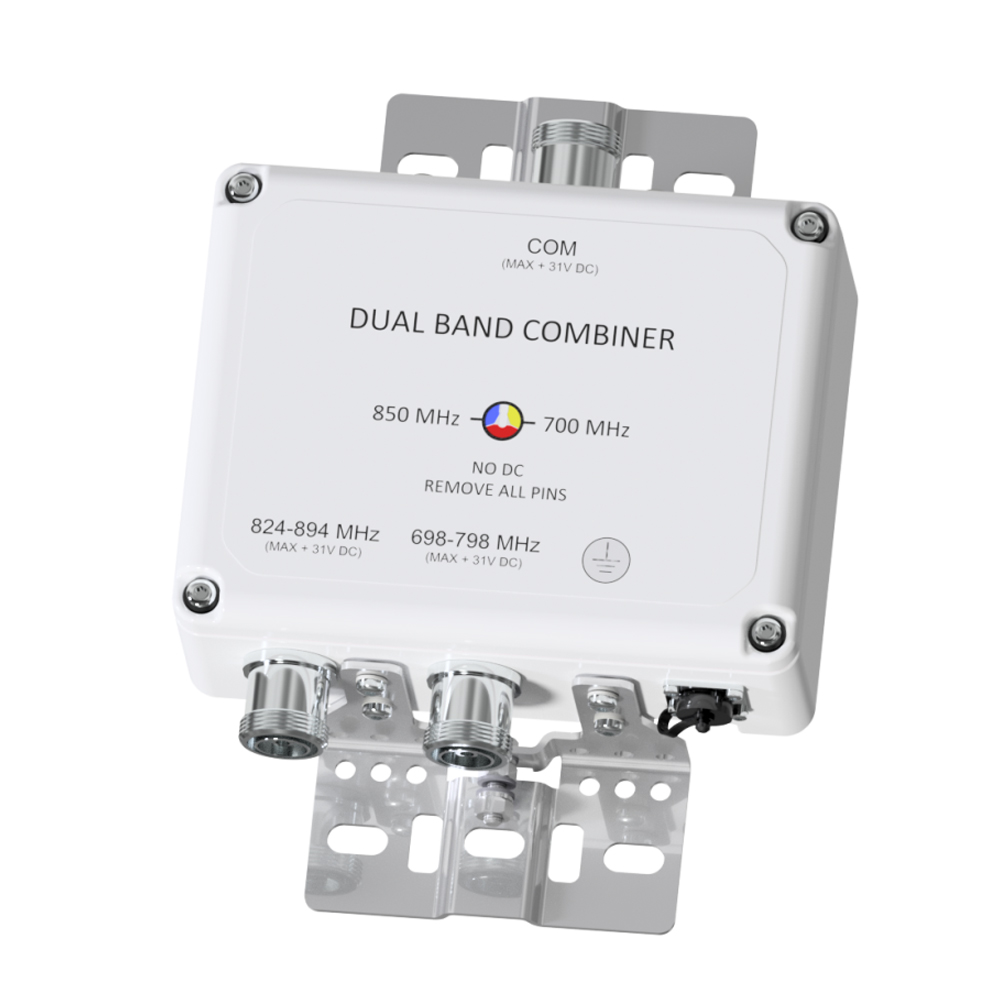

DIPLEXER 700/850
Designed to combine 700 and 850 technologies, the Kaelus DBC0061 provides excellent insertion loss and passive intermodulation performance. Suitable for outdoor or indoor environments.
FEATURES
- Combines 700 and 850 BTS into one feeder
- Covers 700MHz US Public Safety Bands
- Very low insertion losses
- Designed for low passive intermodulation
- Wall ,pole or rack mounting
- DC/AISG bypass field settable
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 700 | 850 | |||||||||||||
| Passband | 698 – 798MHz | 824 – 894MHz | |||||||||||||
| Insertion loss | 0.25dB typical 698-793MHz 0.35dB typical 793-798MHz |
0.25dB typical | |||||||||||||
| Return loss | 20dB minimum 698-798MHz 24dB typical 746-787MHz |
24dB typical | |||||||||||||
| Maximum input power | 300W (average) / 3kW (PEP) | 300W (average) / 3kW (PEP) | |||||||||||||
| Phase linearity over any 10MHz | < 10º | ||||||||||||||
| Group delay variation over any 10MHz | 15ns typical | 8ns typical | |||||||||||||
| Isolation port to port | 50dB minimum 698-793MHz and 824-894MHz 35dB minimum 793-798MHz |
||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| Intermodulation products | -155dBc maximum all ports with 2 x 20W carriers | ||||||||||||||
| DC / AISG | |||||||||||||||
| A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see electrical block diagram). | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss, single DC/AISG pass | 1dB maximum | ||||||||||||||
| Return loss, single DC/AISG pass | 12dB minimum | ||||||||||||||
| Insertion loss, two DC/AISG pass | 4.5dB typical | ||||||||||||||
| Return loss, two DC/AISG pass | 9dB typical | ||||||||||||||
| Input voltage range | ± 31V | ||||||||||||||
| DC current rating | 2A continuous, 4A peak | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Altitude | 3000m | 10,000ft maximum | ||||||||||||||
| Lightning protection | RF port: ±5kA maximum (8/20us), IEC61312-1 | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | ETSI EN 300 019 class 4.1, RoHS | ||||||||||||||
| MECHANICAL | |||||||||||||||

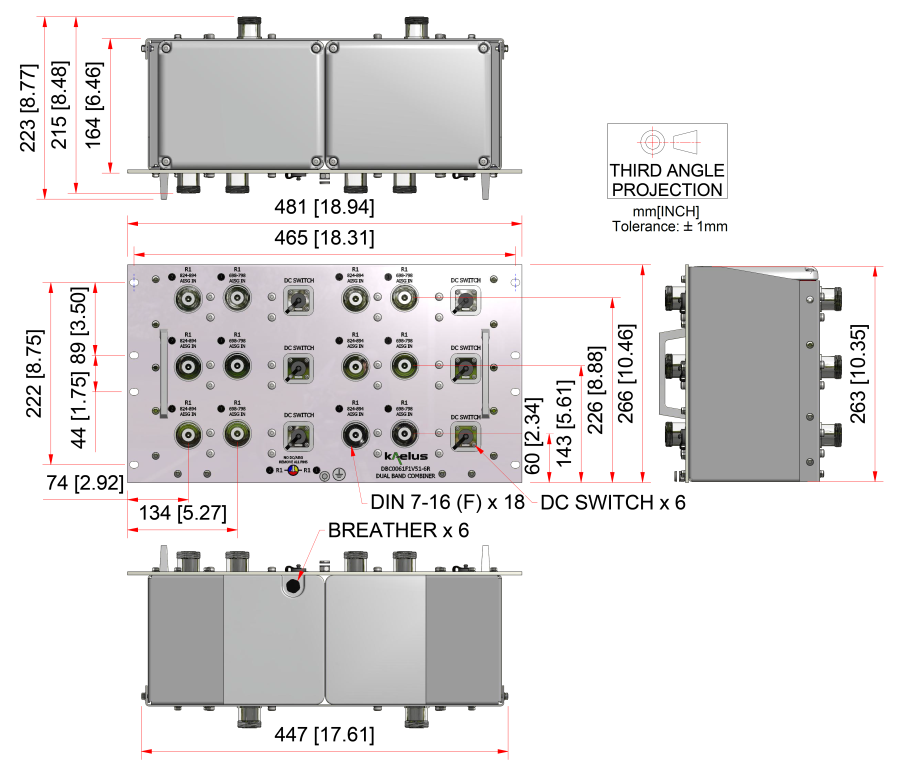

| Dimensions H x D x W | 481 x 266 x 164mm | 18.94 x 10.46 x 6.46in (rack of units: -6R version) | ||||||||||||||
| Dimensions H x D x W (single unit) | 203 x 158 x 81mm | 8 x 6.2 x 3.2in | ||||||||||||||
| Dimensions H x D x W (twin unit) | 203 x 158 x 164mm | 8 x 6.2 x 6.45in | ||||||||||||||
| Weight | 4.3kg | 9.5lbs (single unit) 8.3kg | 18.3lbs (dual unit) 26 kg | 57.3lbs (rack of units: -6R version) |
||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | DIN 7-16 (F) x 3 long neck (single unit) x 6 long neck (dual unit) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| DBC0061F1V51-1 | SINGLE 1 in / 2 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
| DBC0061F1V51-2 | TWIN 2 in / 4 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
| DBC0061F1V51-6R | RACK 6 in / 12 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
| E92-K0057 | SINGLE MOUNT BRACKET KIT | NA | NA | NA | |||||||||||
| E92-K0055 | DUAL MOUNT BRACKET KIT | NA | NA | NA | |||||||||||

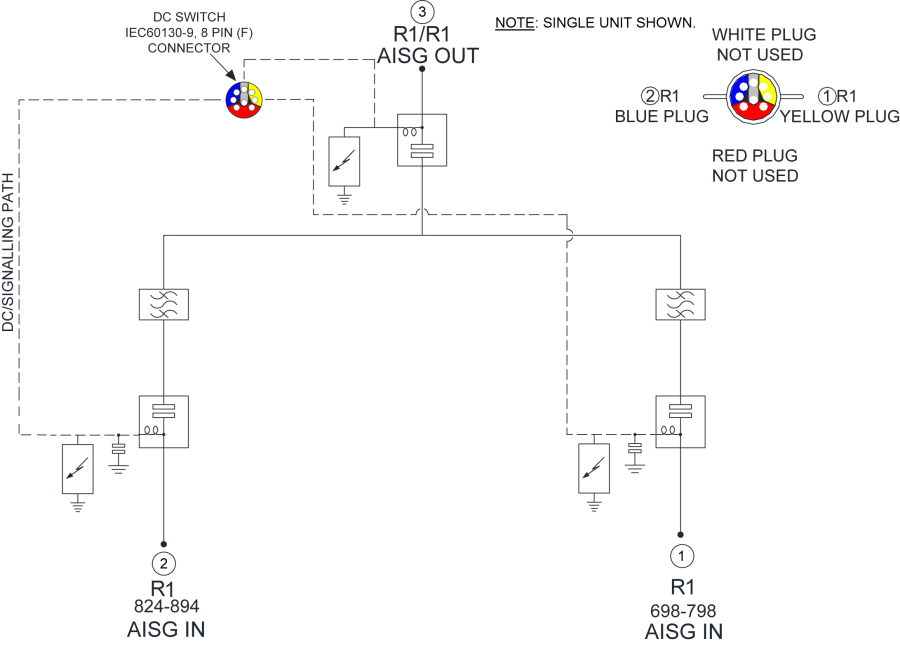

ELECTRICAL BLOCK DIAGRAM |

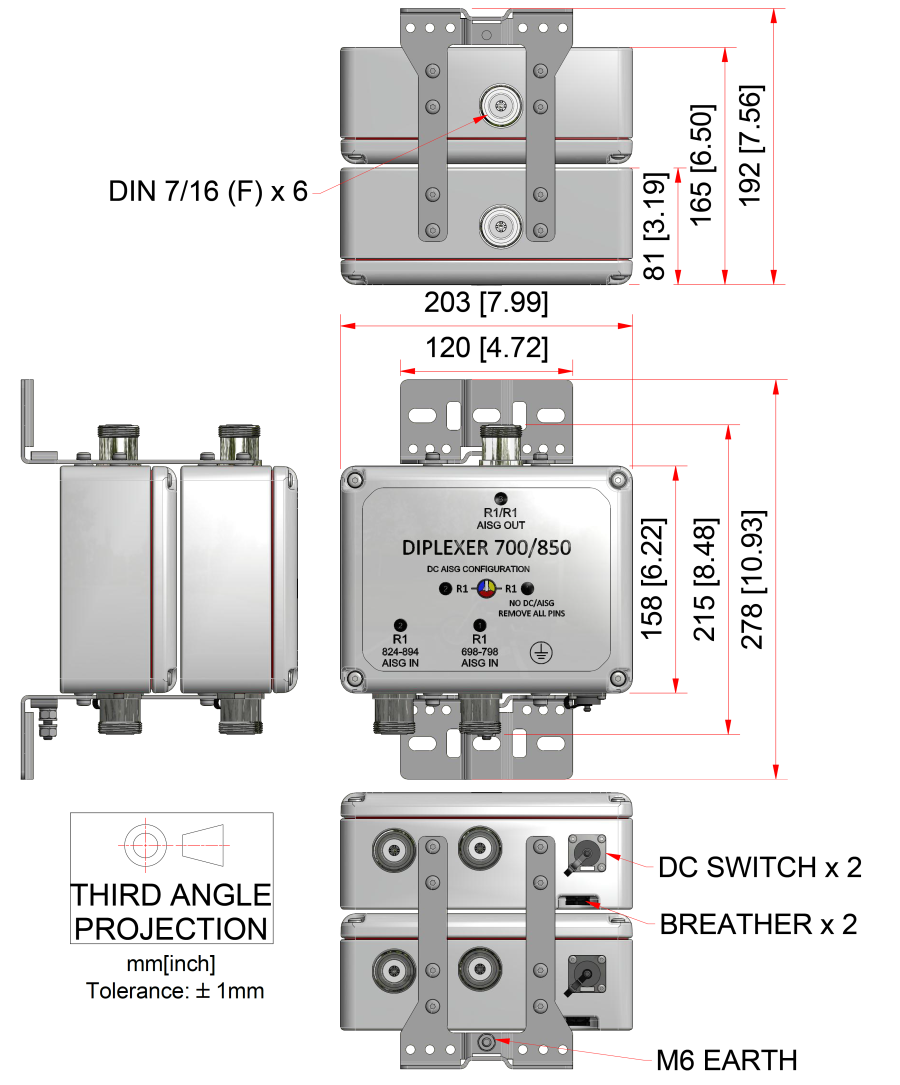

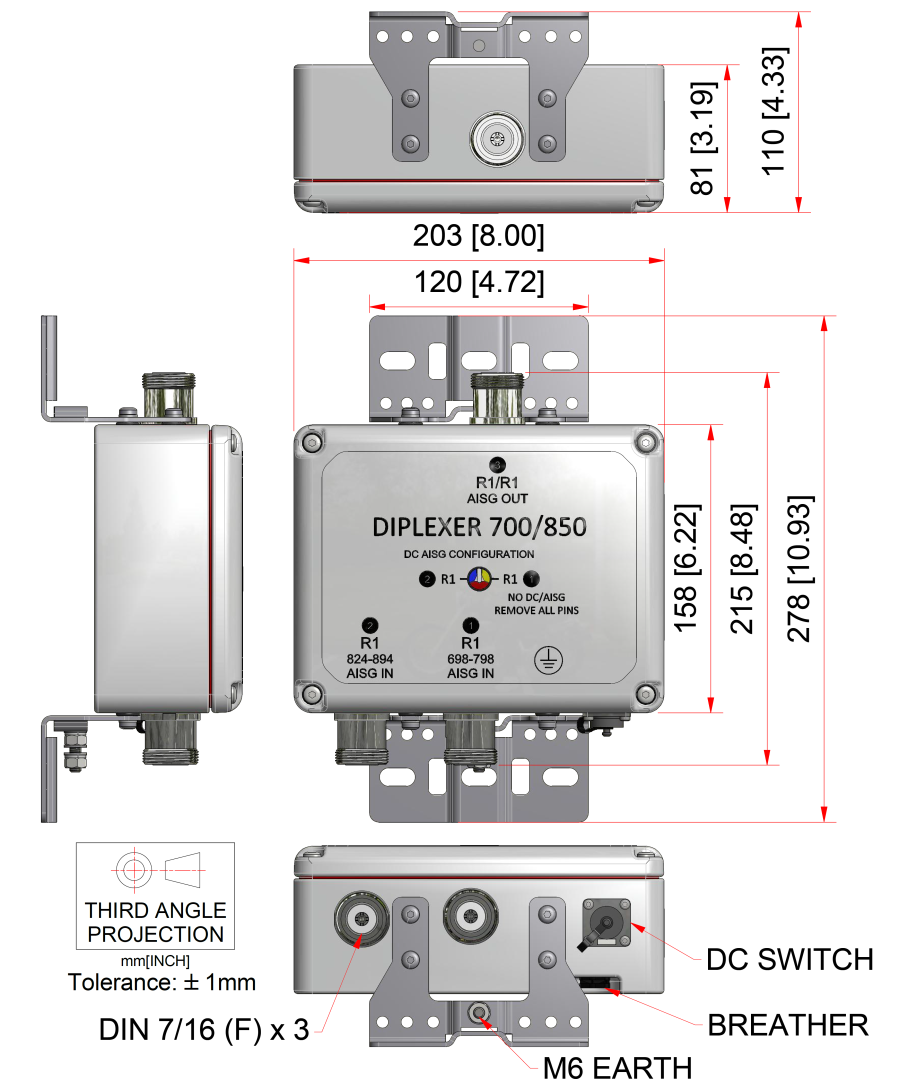

MECHANICAL BLOCK DIAGRAM |
