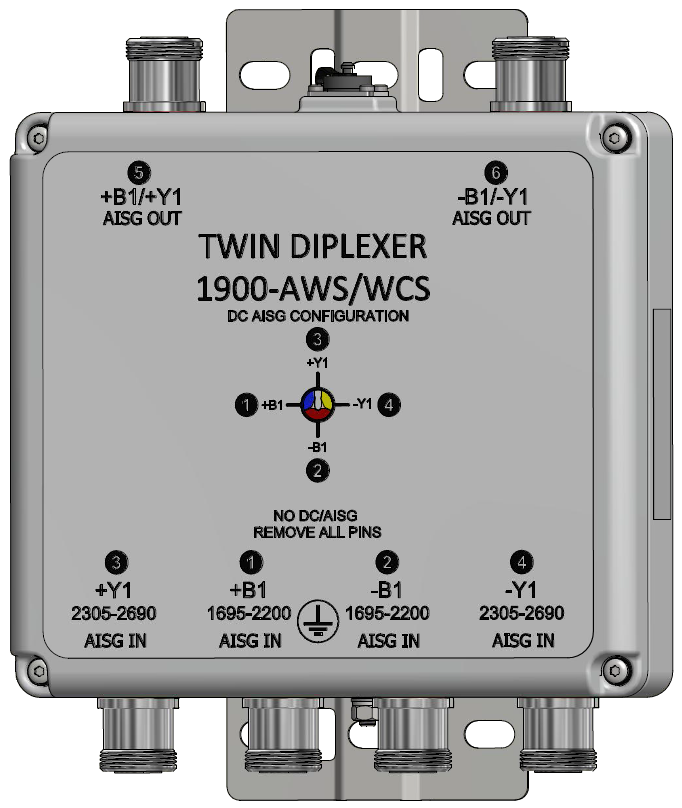

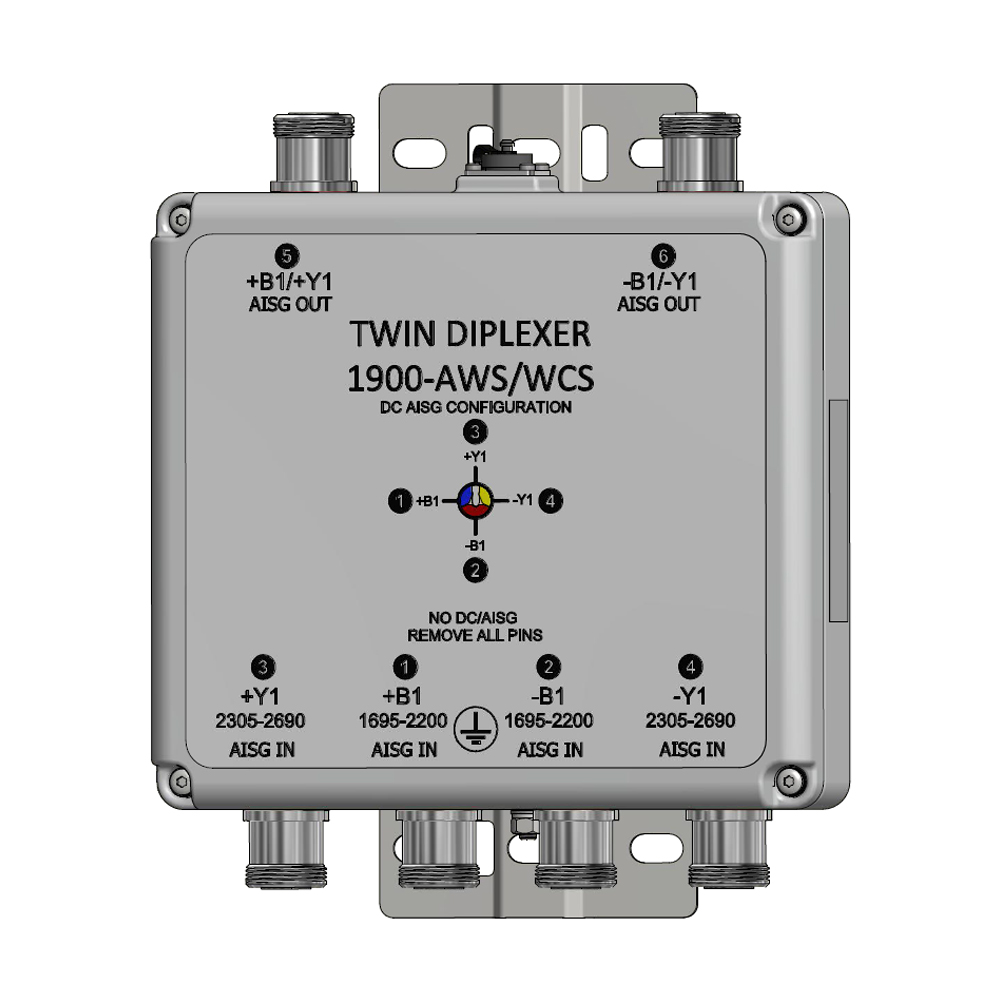

TWIN DIPLEXER 1695-2200/2305-2600
Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0062 combines AWS, 1900, WCS and 2600 bands onto a single feeder and provided the following features:
FEATURES
- AWS 3 and AWS 4 ready
- Enables feeder sharing of various technologies
- Low insertion loss and high isolation
- Field configurable DC switch.
- Low passive IM performance

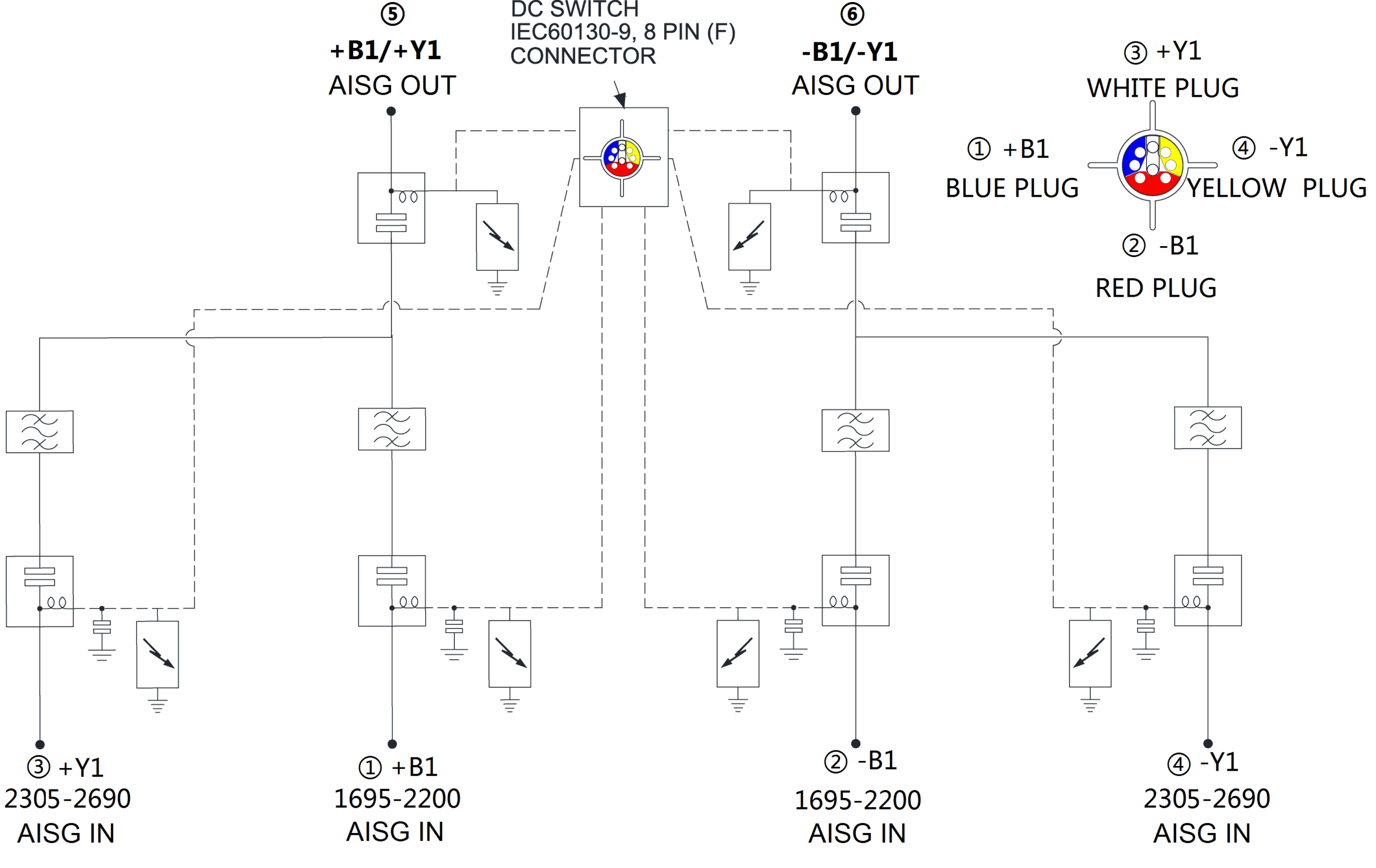

Electrical block diagram

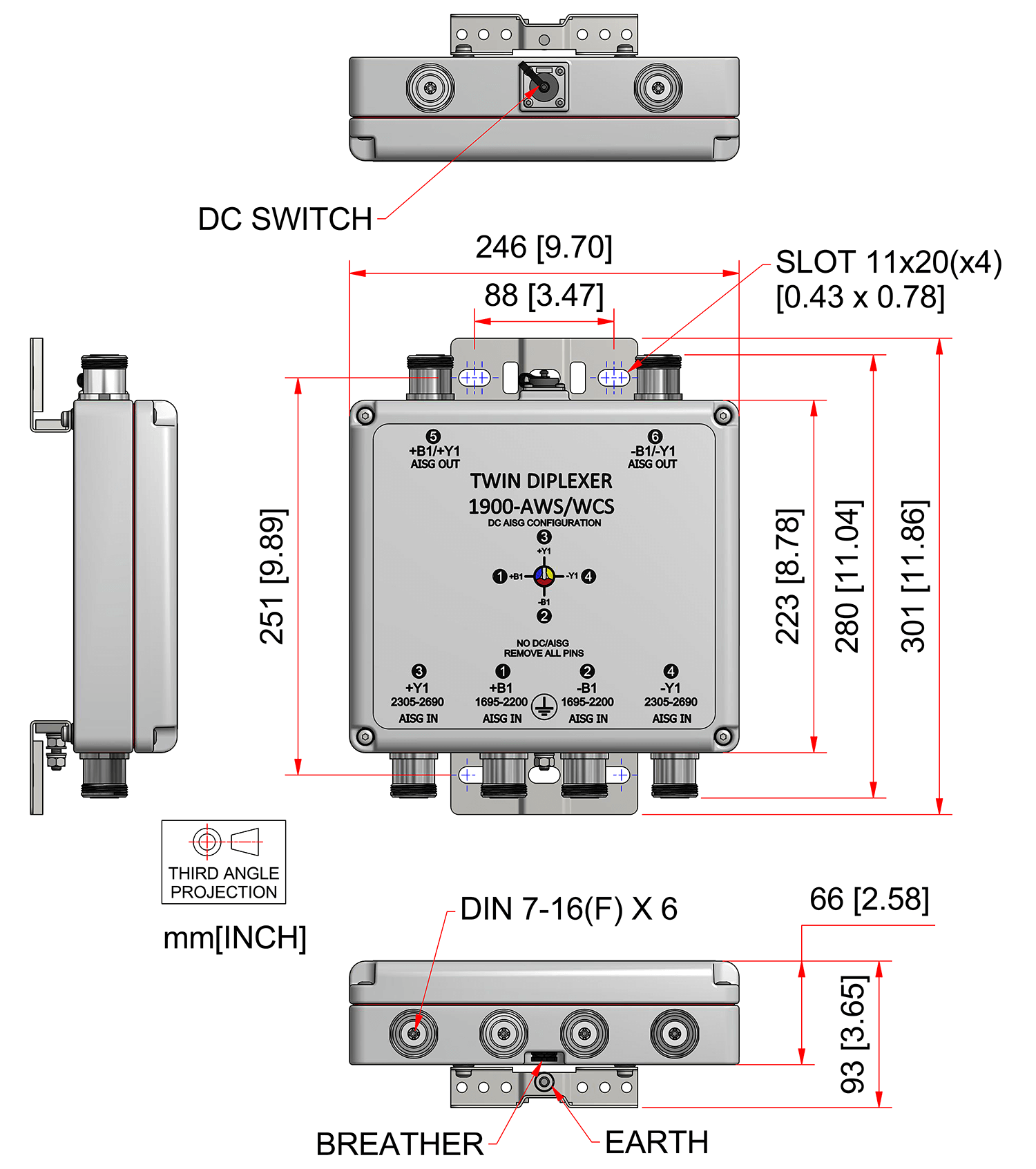

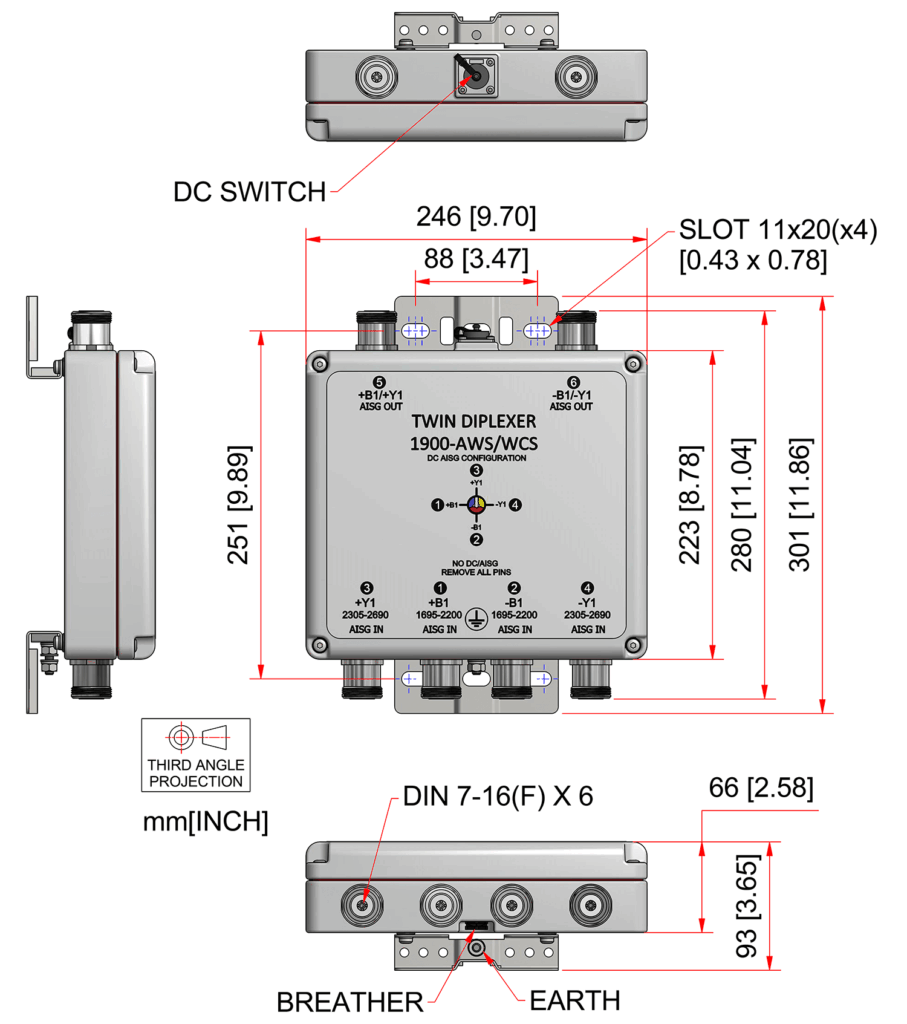

Mechanical block diagram
Technical specifications |
|||||||||||||||
| Band Name | 1900-AWS | WCS-2600 | |||||||||||||
| Passband | 1695 – 2200MHz | 2305 – 2690MHz | |||||||||||||
| Insertion loss | 0.15dB typical | ||||||||||||||
| Return loss | 20dB minimum, 22dB typical. | ||||||||||||||
| Maximum input power | 200W (average) / 2kW (PEP) | 200W (average) / 2kW (PEP) | |||||||||||||
| Isolation | 50dB minimum | ||||||||||||||
Electrical |
|||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| Intermodulation products | -153dBc maximum all ports with 2 x 20W carriers | ||||||||||||||
DC/ aisg |
|||||||||||||||
| A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see electrical block diagram). | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss, single DC/AISG pass | 1dB maximum | ||||||||||||||
| Return loss, single DC/AISG pass | 12dB minimum | ||||||||||||||
| Insertion loss, two DC/AISG pass | 4.5dB typical | ||||||||||||||
| Return loss, two DC/AISG pass | 9dB typical | ||||||||||||||
| Input voltage range | ±31V | ||||||||||||||
| DC current rating | 2A continuous, 4A peak | ||||||||||||||
| Compliance | AISG 1.1/2.0 | ||||||||||||||
Environmental |
|||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -20ºC to +65ºC | -4ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | IEC61312-1, RF: ±5kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | ETSI EN 300 019 class 4.1, RoHS | ||||||||||||||
Mechanical |
|||||||||||||||
| Dimensions H x D x W | 246 x 223 x 66mm | 9.7 x 8.8 x 2.6in | ||||||||||||||
| Weight | 6.2kg | 13.2lbs | ||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | RF: DIN 7-16 (F) x 6 long neck | ||||||||||||||
| Wind Load | Front 338N, Side 48N At 74m/s (AS/NZS 1170-2-2011 Structural design – Wind actions – Cyclone areas) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
Ordering information |
|||||||||||||||
| Part Number | Configuration | Optional Features | Connectors | DC/AISG Configuration | |||||||||||
| DBC0062F3V52-1 | TWIN 2 in / 4 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
