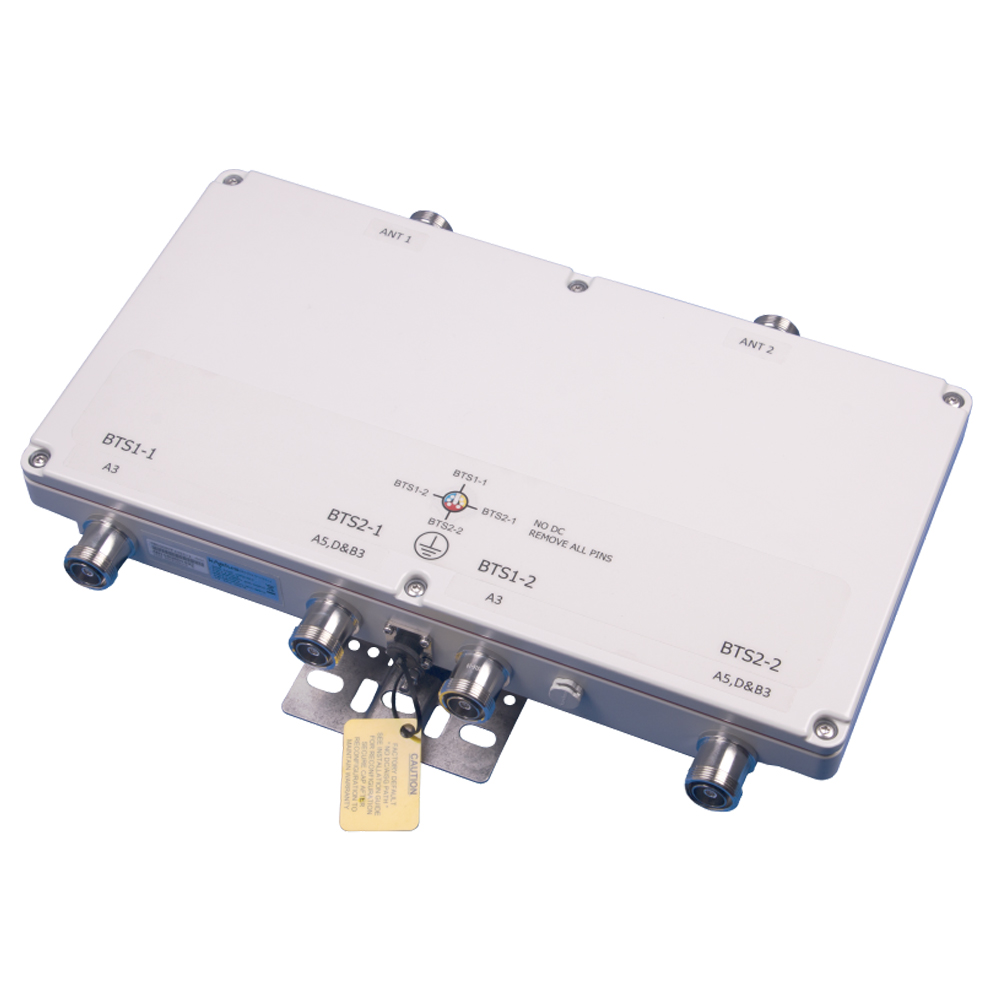

TWIN SAME BAND COMBINER, 1900
Designed to combine two 1900MHz BTS with minimum 5MHz spacing, the Kaelus DBC0097 provides a compact twin combining solution with low insertion. The DBC0097 solution minimizes feeders, TMA’s and antennas thereby saving both capital and operational expenditure when combining two base stations.
FEATURES
- Allows CDMA and LTE base stations to share feeders, TMAs and antennae
- Low downlink and uplink insertion losses
- DC/AISG bypass field settable
- Suitable for indoor and outdoor use
- Down to 5MHz guard band
| BAND NAME |
B-1 DOWNLINK (TX)
AT BTS1-1, BTS1-2 |
B-1 UPLINK (RX)
AT BTS1-1, BTS1-2 |
B-2 DOWNLINK (TX)
AT BTS2-1, BTS2-2 |
B-2 UPLINK (RX)
AT BTS2-1, BTS2-2 |
| Bandwidth |
20MHz (including 500kHz) |
20MHz (including 500kHz) |
15MHz (including 500kHz) |
15MHz (including 500kHz) |
| Insertion Loss (excluding 500kHz guardband) |
0.5dB typical, 1.0dB maximum |
0.5dB typical, 1.0dB maximum |
0.5dB typical, 1.0dB maximum |
0.5dB typical, 1.0dB maximum |
| B-1 TX frequency range |
35dB typical, 30dB minimum |
| B-2 TX frequency range |
35dB typical, 30dB minimum |
| B-1 RX frequency range |
35dB typical, 30dB minimum |
| B-2 RX frequency range |
35dB typical, 30dB minimum |
| Passband |
0 – 3MHz |
| Insertion loss, single DC/AISG pass |
1dB maximum |
| Return loss, single DC/AISG pass |
12dB minimum |
| Insertion loss, two DC/AISG pass |
4.5dB typical |
| Return loss, two DC/AISG pass |
9dB typical |
| Input voltage range |
± 31V |
| DC current rating |
2A continuous, 4A peak |
| Impedance |
50Ohms |
| Return loss |
20dB minimum |
| Intermodulation products |
-161dBc typical / -155dBc maximum on all ports with 2 x 20W carriers in RX band |
| Maximum input power |
150W (average) / 1.5kW (PEP) |
| Guardband (frequency separation between BTS1 and BTS2) |
5MHz minimum |
| Temperature range |
-20ºC to +55ºC | +4ºF to +131ºF |
| Ingress protection |
IP67 |
| Lightning protection |
±5kA maximum (8/20us), IEC61312-1 |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.1, RoHS |

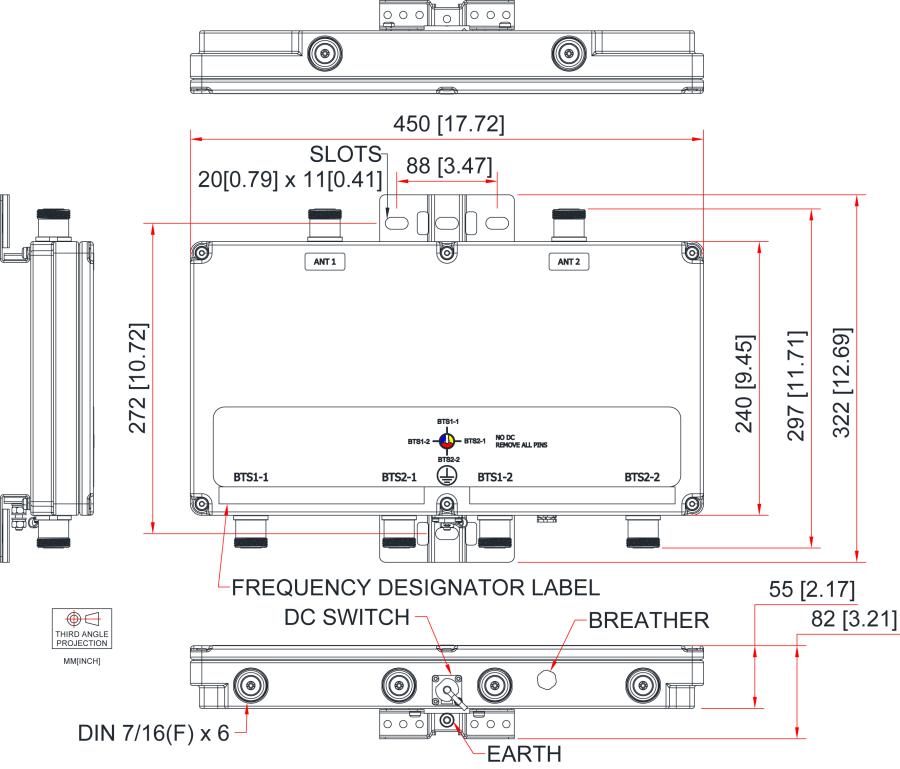

| Dimensions H x D x W |
240 x 55 x 450mm | 9.45 x 2.17 x 17.72in |
| Weight |
9kg | 19.84lbs estimate |
| Finish |
Painted, light grey (RAL7035) |
| Connectors |
DIN 7-16 (F) x 6 long neck |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
B-1 BAND |
B-2 BAND |
DESCRIPTION |
| DBC0097F1V51-1 |
A3 |
A5,D&B3 |
Twin Same Band Combiner 1900 |
| DBC0097F2V51-1 |
A3 & A4 |
D,B3&B4 |
Twin Same Band Combiner 1900 |
| DBC0097F3V51-1 |
A |
B |
Twin Same Band Combiner 1900 |
| DBC0097F4V51-1 |
A&D |
B4,B5&E |
Twin Same Band Combiner 1900 |
| DBC0097F5V51-1 |
A4,A5,D&B3 |
B5,E & F |
Twin Same Band Combiner 1900 |
| DBC0097F6V51-1 |
A5,D,B3&B4 |
E, F & C3 |
Twin Same Band Combiner 1900 |
| DBC0097F7V51-1 |
D&B |
F, C3&C4 |
Twin Same Band Combiner 1900 |
| DBC0097F8V51-1 |
B&E |
C |
Twin Same Band Combiner 1900 |
| DBC0097F9V51-1 |
B4,B5,E&F |
C4, C5&G |
Twin Same Band Combiner 1900 |
| DBC0097F10V51-1 |
B5,E, F&C3 |
C5, G&H |
Twin Same Band Combiner 1900 |
| DBC0097F11V51-1* |
E, F, C3&C4 |
G&H |
Twin Same Band Combiner 1900 |
