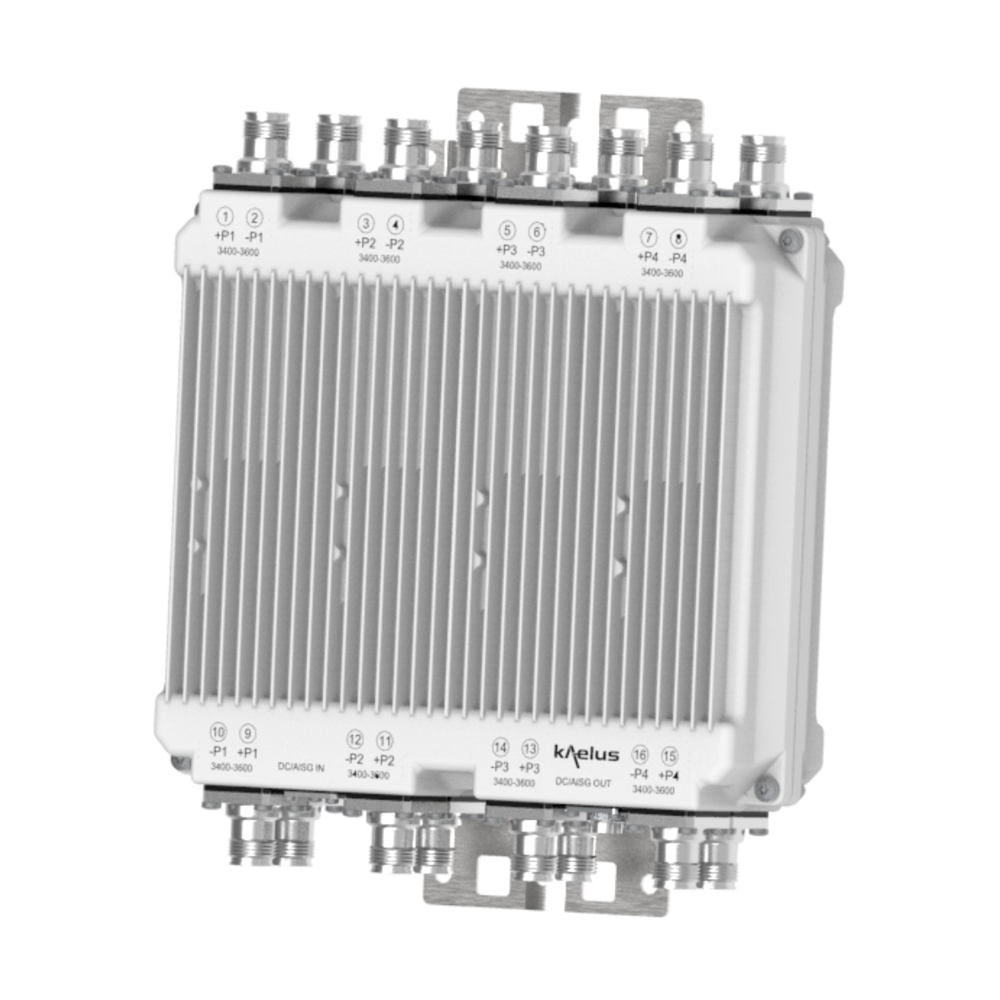

TMA TDD B42/B43 4X4 & 8X8 MIMO
Kaelus B42/B43 (3500MHz) TDD TMA KA-1004 can be deployed as a 4×4 or 8×8 MIMO.
FEATURES
- Improved base station sensitivity through gain in 3500MHz
- Suitable for 5G NR signals
- Full AISG operation and RET antenna support
- Small and light for minimum visual impact
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND | B42/B43 (3500MHZ) | ||||||||||||||
| DOWNLINK | |||||||||||||||
| Passband | 200MHz Band within 3400 – 3800MHz | ||||||||||||||
| Insertion loss | 1.3dB typical | ||||||||||||||
| Return loss | 18dB minimum | ||||||||||||||
| Maximum input power | 40W per channel | ||||||||||||||
| UPLINK | |||||||||||||||
| Passband | 200MHz Band within 3400 – 3800MHz | ||||||||||||||
| Bandwidth | Note: 200MHz Bandwidth, factory tunable anywhere within 3400 – 3800MHz | ||||||||||||||
| Gain | 12dB | ||||||||||||||
| Return loss | 18dB minimum | ||||||||||||||
| Bypass return loss | 18dB minimum | ||||||||||||||
| Bypass loss | 1.3dB typical | ||||||||||||||
| Noise figure | 1.6dB typical | ||||||||||||||
| Output IP3 | +25dBm typical | ||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| AISG MODE OF OPERATION | |||||||||||||||
| DC/AISG signal must be applied to the AISG IN port to power up the Low Noise Amplifiers (LNA) in the Uplink path. Each LNA is controlled uniquely by its sub-unit number. | |||||||||||||||
| DC supply voltage | +9V to +30V DC | ||||||||||||||
| AISG version | 2.0 | ||||||||||||||
| Power consumption, AISG mode | 2W per channel | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | +40°F to +149°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | RF: ±5kA maximum (8/20us), AISG: ±5kA maximum (common mode) | ||||||||||||||
| MTBF | 1.0Mh (4×4), 0.5Mh (8×8) | ||||||||||||||
| Compliance | EMC:EN 301 489-50 SAFETY: IEC/EN 62368-1 OPERATION: ETSI 300 019-1-4. CLASS 4.1E STORAGE: ETSI 300 019-1-1, CLASS 1.2 |
||||||||||||||
| MECHANICAL | |||||||||||||||
| Feature | 8×8 | 4×4 | |||||||||||||
| Dimensions H x D x W | 290x240x80 mm | 11.4×9.5×3.1 in | 290x240x44 mm | 11.4×9.5×1.7 in | |||||||||||||
| Volume | 5.6 L | 3.1 L | |||||||||||||
| Weight | 8.9kg | 19.8 lbs | 4.8kg | 10.7 lbs | |||||||||||||
| Finish | NCS 1502-R | ||||||||||||||
| Wind Load | 286 N @70 m/s | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps 40-140mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | PASSBAND | CONNECTORS | AISG MODE | |||||||||||
| KA-1004-4041 | 4×4, 4 in / 4 out | 3400-3600MHz | NEX10(F) | ONEQUAD | |||||||||||
| KA-1004-4031 | 4×4, 4 in / 4 out | 3400-3600MHz | 4.3-10 (F) | ONEQUAD | |||||||||||
| KA-1004-8041 | 8×8, 8 in / 8 out | 3400-3600MHz | NEX10(F) | ONEOCT | |||||||||||
| KA-1004-8031 | 8×8, 8 in / 8 out | 3400-3600MHz | 4.3-10 (F) | ONEOCT | |||||||||||
| KA-1004-4141 | 4×4, 4 in / 4 out | 3600-3800MHz | NEX10(F) | ONEQUAD | |||||||||||
| KA-1004-4131 | 4×4, 4 in / 4 out | 3600-3800MHz | 4.3-10 (F) | ONEQUAD | |||||||||||
| KA-1004-8141 | 8×8, 8 in / 8 out | 3600-3800MHz | NEX10(F) | ONEOCT | |||||||||||
| KA-1004-8131 | 8×8, 8 in / 8 out | 3600-3800MHz | 4.3-10 (F) | ONEOCT | |||||||||||
| Other frequency tuning available, please contact Kaelus. | |||||||||||||||

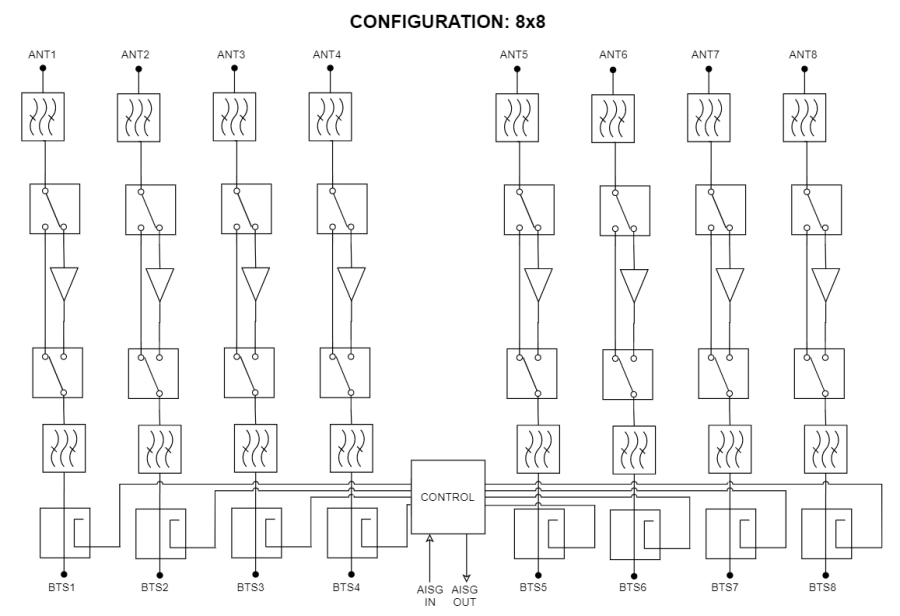

ELECTRICAL BLOCK DIAGRAM |
|||||||||||||||

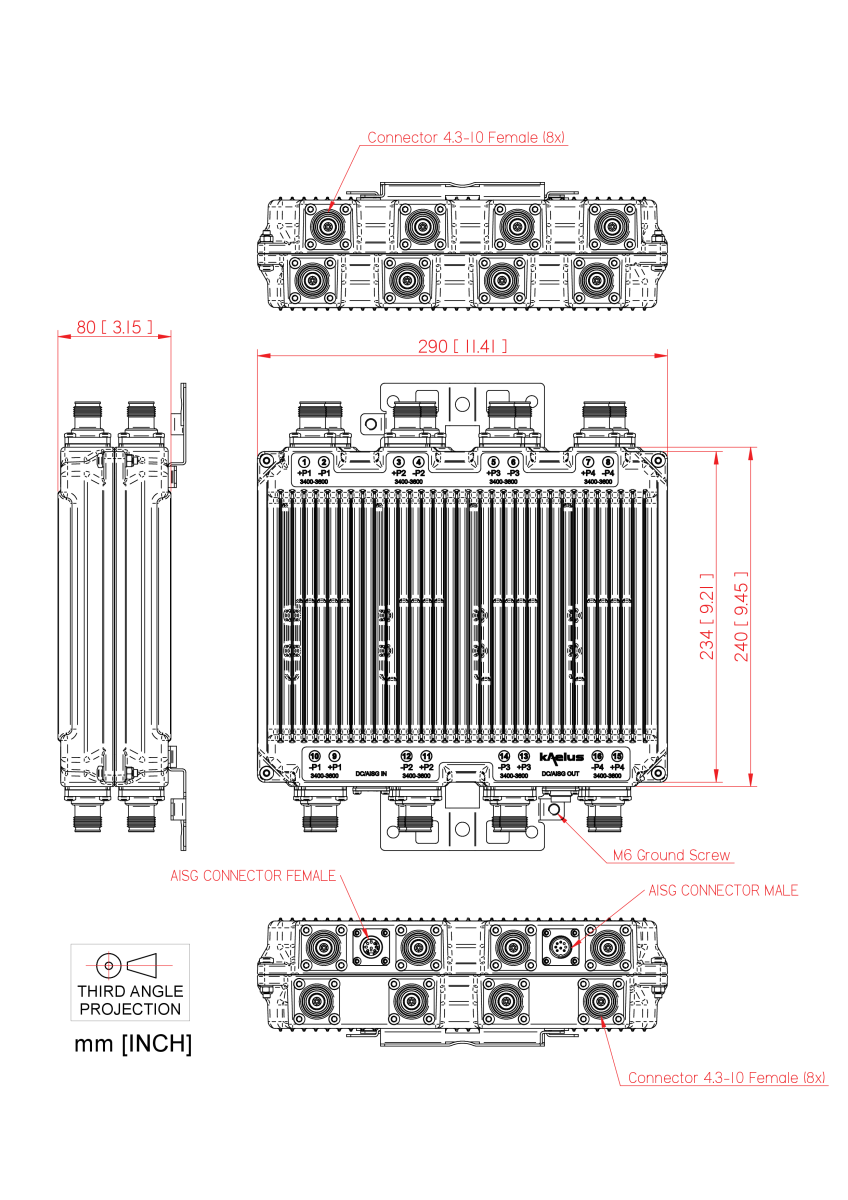

MECHANICAL BLOCK DIAGRAM |
