TMA TDD 3700-4100 4X4 & 8X8 MIMO

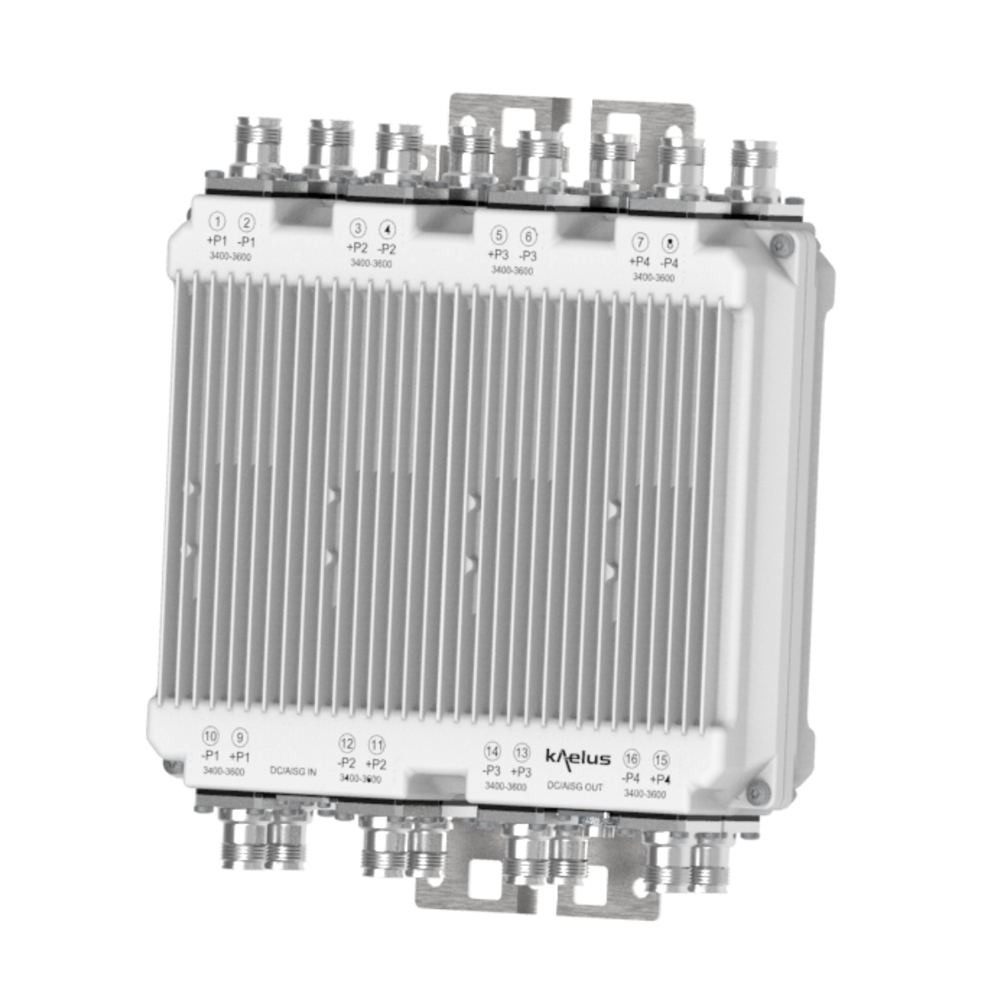

Designed to be deployed with 3700-4100MHz TDD systems, the Kaelus KA-1006 enhances cell uplink coverage through improved system noise figure, thereby saving operational and capital expenditure. It can be used in 4×4 or 8×8 MIMO systems.
FEATURES
- Improved base station sensitivity through gain in 3700-4100MHz
- Suitable for 5G NR signals
- Full AISG operation and RET antenna support
- Small and light for minimum visual impact
| Passband |
200MHz Band within 3700 – 4100MHz |
| Insertion loss |
1.3dB typical |
| Return loss |
18dB minimum |
| Maximum input power |
50W per channel |
| Passband |
200MHz Band within 3700 – 4100MHz |
| Gain |
12dB |
| Return loss |
18dB minimum |
| Bypass return loss |
18dB minimum |
| Bypass loss |
1.3dB typical |
| Noise figure |
1.6dB typical |
| Output IP3 |
+25dBm typical |
| DC supply voltage |
+9V to +30V DC |
| AISG version |
2.0 |
| Power consumption, AISG mode |
2W per channel |
| Temperature range |
-40ºC to +65ºC | +40°F to +149°F |
| Ingress protection |
IP67 |
| Lightning protection |
RF: ±5kA maximum (8/20us), AISG: ±2.5kA maximum (common mode) |
| MTBF |
1.0Mh (4×4), 0.5Mh (8×8) |
| Compliance |
EMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS |
| Feature |

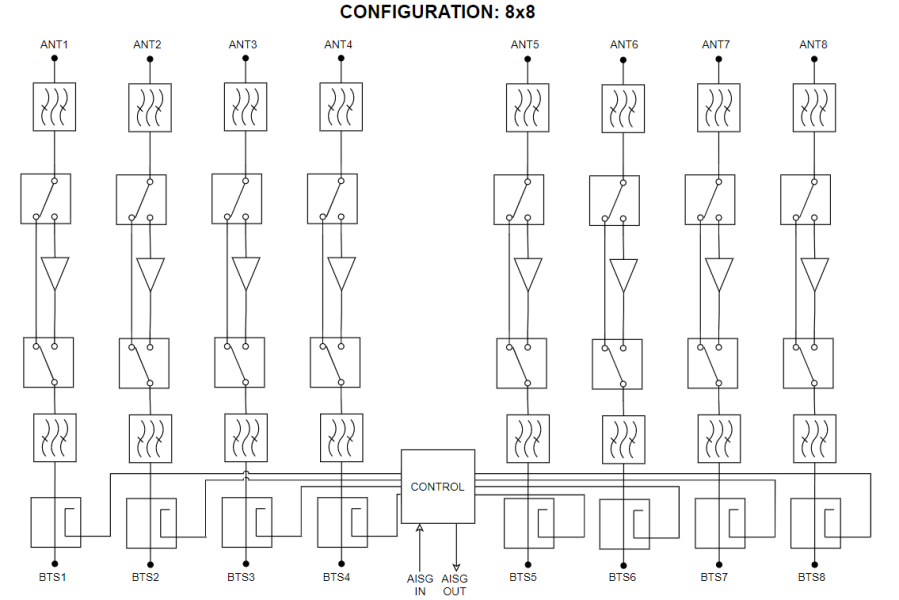

8×8 |
4×4 |

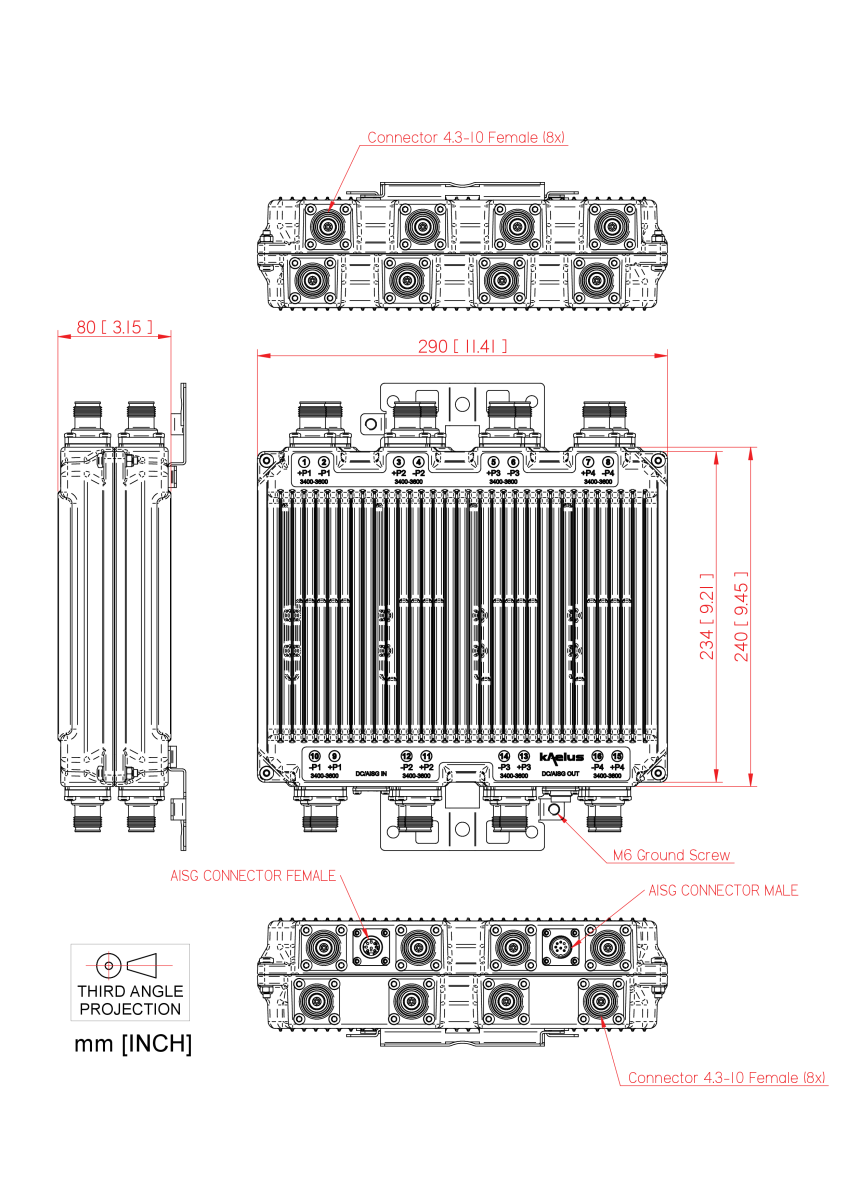

| Dimensions H x D x W |
290x240x80 mm | 11.4×9.5×3.1 in |
290x240x44 mm | 11.4×9.5×1.7 in |
| Volume |
5.6 L |
3.1 L |
| Weight |
8.9kg | 19.8 lbs |
4.8kg | 10.7 lbs |
| Finish |
NCS 1502-R |
| Wind Load |
286 N @70 m/s |
| Mounting |
Pole/wall bracket supplied with two metal clamps 40-140mm diameter poles |
| Carton size |
400 x 500 x 200mm |
400 x 500 x 160mm |
| Gross weight (including packaging) |
9.9kg |
5.8kg |
| PART NUMBER |
CONFIGURATION |
PASSBAND |
CONNECTORS |
AISG MODE |
| KA-1006-4041 |
4×4, 4 in / 4 out |
3700-3900MHz |
NEX10(F) |
ONEFOR |
| KA-1006-4031 |
4×4, 4 in / 4 out |
3700-3900MHz |
4.3-10 (F) |
ONEFOR |
| KA-1006-8041 |
8×8, 8 in / 8 out |
3700-3900MHz |
NEX10(F) |
ONEOCT |
| KA-1006-8031 |
8×8, 8 in / 8 out |
3700-3900MHz |
4.3-10 (F) |
ONEOCT |
| KA-1006-4141 |
4×4, 4 in / 4 out |
3900-4100MHz |
NEX10(F) |
ONEFOR |
| KA-1006-4131 |
4×4, 4 in / 4 out |
3900-4100MHz |
4.3-10 (F) |
ONEFOR |
| KA-1006-8141 |
8×8, 8 in / 8 out |
3900-4100MHz |
NEX10(F) |
ONEOCT |
| KA-1006-8131 |
8×8, 8 in / 8 out |
3900-4100MHz |
4.3-10 (F) |
ONEOCT |
