TRIPLEXER 1800-2100/2300/2600

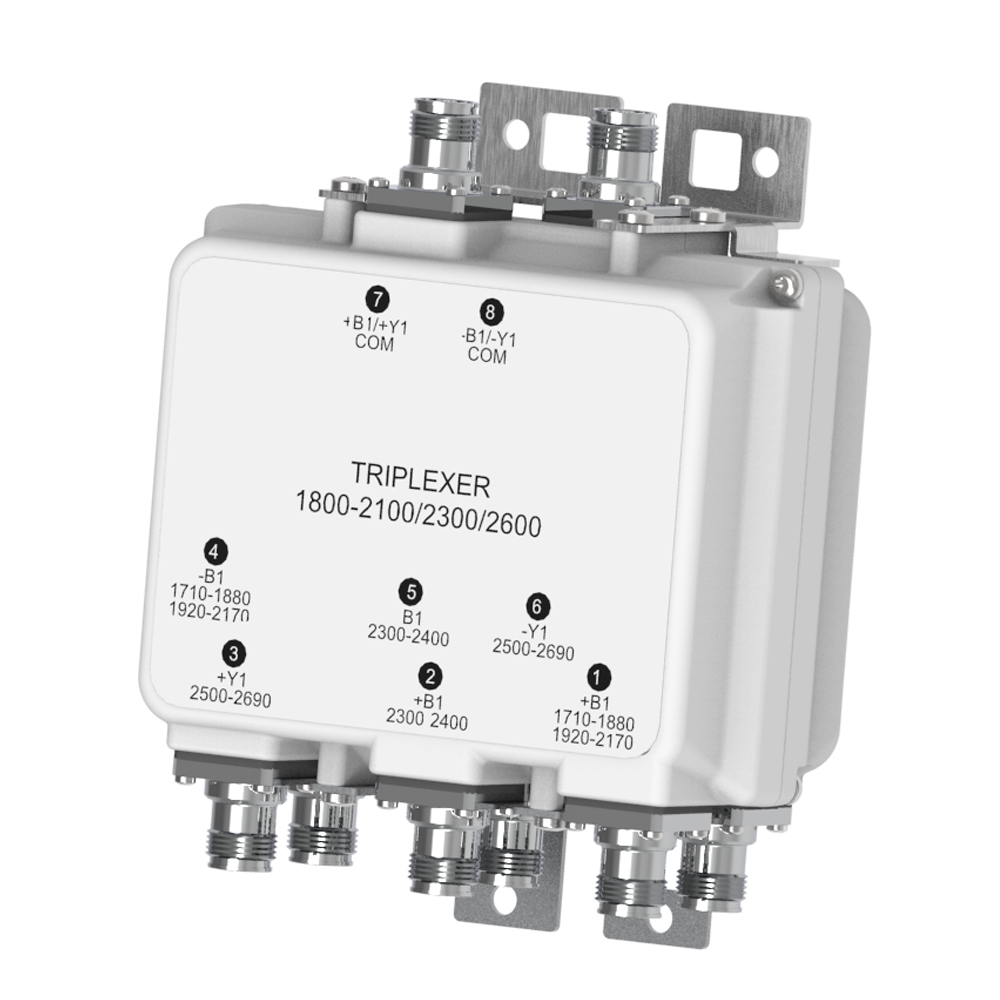

The Kaelus KA-3003 is a bi-directional triplexer, designed to combine or split 1800-2100, 2300 and 2600 bands. The KA-3003 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 1800, 2100, 2300 and 2600 systems
- Compact & lightweight
- Low insertion loss & high return loss
- Low passive IM performance
- Dual unit and quad unit versions available
- Hard wired and DC autosense versions available
| BAND NAME |
1800-2100 |
2300 |
2600 |
| Passband |
1710 – 2170MHz |
2300 – 2400MHz |
2500-2690MHz |
| Insertion loss |
0.2dB typical, 0.3dB max |
0.2dB typical, 0.3dB max |
0.2dB typical, 0.35dB max |
| Return loss |
20dB typical, 18dB minimum |
| Maximum input power |
250W (average) * |
250W (average) * |
250W (average) * |
| Intermodulation products |
< -160dBc at 2 x 43dBm TX Carrier |
| Rejection |
50dB minimum in 2300 and 2600 band |
50dB minimum in 1800-2100 and 2600 band |
50dB minimum in 1800-2100 and 2300 band |
| Passband |
0 – 3MHz |
| Insertion loss |
1dB maximum |
| Return loss |
12dB minimun |
| Input voltage range |
± 30V |
| DC current rating |
3A continuous |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40ºC to +70ºC | -40ºF to +158ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5kA maximum (8/20us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS |
| Feature |
Dual Unit (6 in / 2 out) |
Quad Unit (12 in / 4 out) |

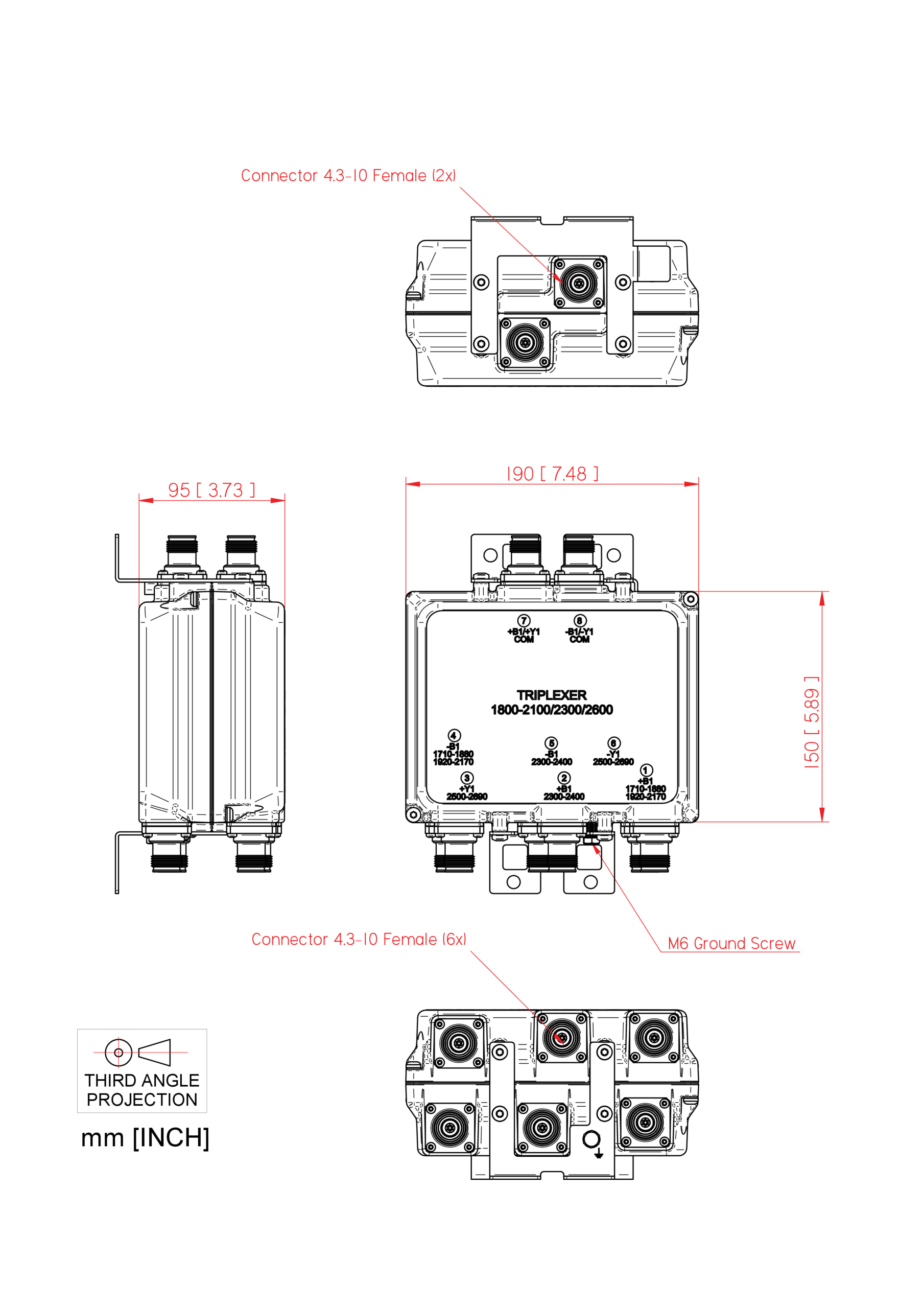

| Dimensions H x D x W |
150 x 95 x 190mm | 5.89 x 3.73 x 7.48in |
150 x 190 x 190mm | 5.89 x 7.48 x 7.48in |
| Weight |
4.7kg |
9.2kg |
| Finish |
Powder Coated, light grey, NCS 1502-R |
| Connectors |
4.3-10 (F) long neck |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| Feature |
Dual Unit (6 in / 2 out) |
Quad Unit (12 in / 4 out) |
| Carton size |
300 x 267 x 200mm |
300 x 267 x 290mm |
| Gross weight (including packaging) |
5.3kg |
9.9kg |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |

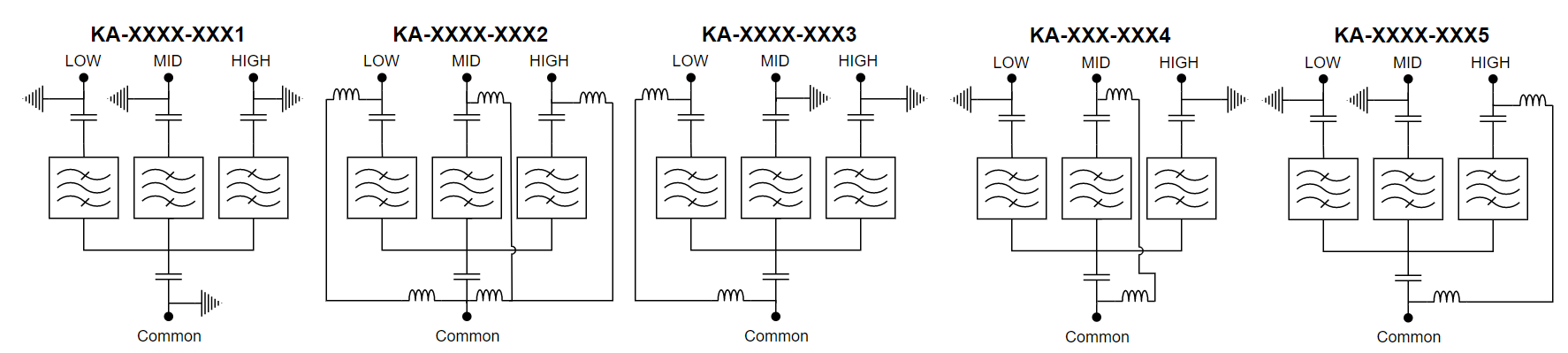

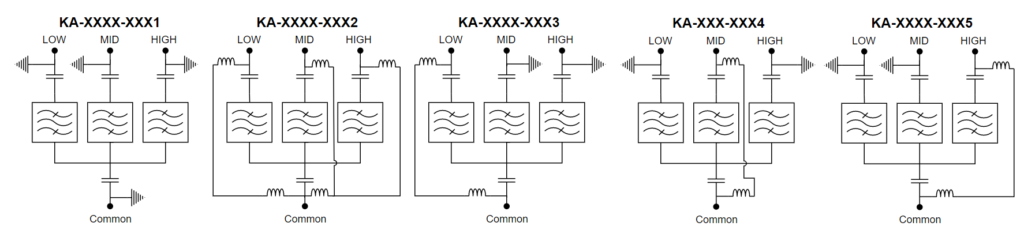

DC/AISG CONFIGURATION |
| KA-3003-2032 |
6 in / 2 out |
FIXED DC
FACTORY CONFIGURABLE |
4.3-10 (F) |
DC TO ALL |
| KA-3003-4032 |
12 in / 2 out |
FIXED DC
FACTORY CONFIGURABLE |
4.3-10 (F) |
DC TO ALL |
