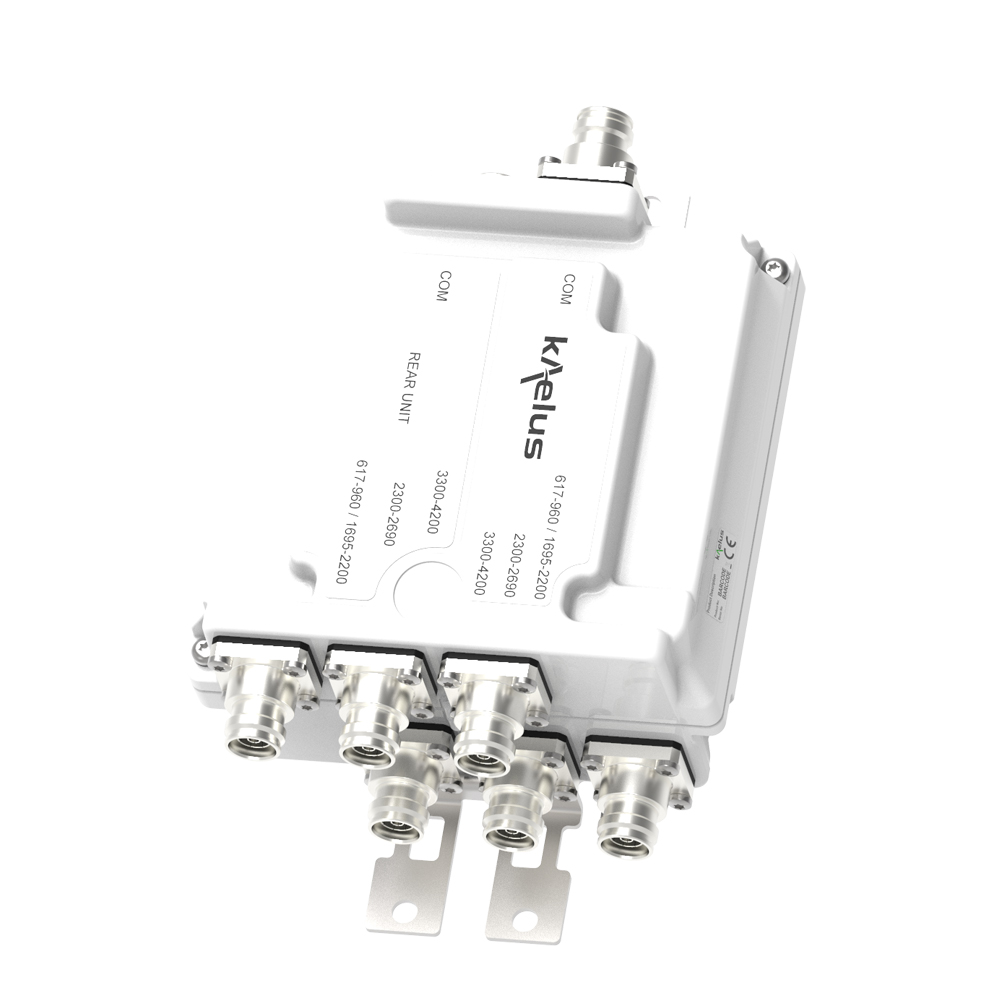

TRIPLEXER LB+PCS+AWS/WCS+BRS/C-BAND
The Kaelus KA-3006 is a bi-directional Triplexer, designed to combine or split Lowband, AWS, PCS and 2.6 GHz and 3.5GHz bands. The KA-3006 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for Lowband, AWS, PCS, 2.6 GHz and C-band systems
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Single, dual and quad models available
- Provisions for wall or mast mounting
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 617-960/1695-2200MHZ | 2300-2690MHZ | 3300-4200MHZ | ||||||||||||
| Passband | 617-960/1695-2200 MHz | 2300-2690 MHz | 3300-4200 MHz | ||||||||||||
| Insertion loss | <0.25dB typical, 0.3dB max | <0.35dB typical, 0.4dB max | <0.25dB typical, 0.3dB max | ||||||||||||
| Return loss | 20dB typical, 18dB minimum | ||||||||||||||
| Maximum input power | 100W (average) / 1000W (PEP) | 100W (average) / 1000W (PEP) | 100W (average) / 1000W (PEP) | ||||||||||||
| Intermodulation products | <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) | <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) | <-145 dBc typ at 2 x +43dBm TX Carrier (IM3) | ||||||||||||
| Rejection | 40dB minimum 2300-2690 MHz 3300-4200 MHz |
40dB minimum 617-960/1695-2200 MHz 3300-4200 MHz |
40dB minimum 617-960/1695-2200 MHz 2300-2690 MHz |
||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40°F to 149°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | +/-5kA 8/20 µs | ||||||||||||||
| MTBF | > 1,000,000 Hours | ||||||||||||||
| Compliance | ETSI 300 019-1-4 Class 4.1 ETSI 300 019-2-3 Class 3.2 |
||||||||||||||
| DC / AISG | |||||||||||||||
| DC/AISG path is factory configurable, see ordering information | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss | 1dB maximum | ||||||||||||||
| Return loss | 12dB minimum | ||||||||||||||
| Input voltage range | ± 30V | ||||||||||||||
| DC current rating | 3A continuous | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single unit) | 170 x 177 x 53mm | 6.7 x 7.3 x 2.1in | ||||||||||||||
| Dimensions H x D x W (twin unit) | 170 x 177 x 98mm | 6.7 x 7.3 x 3.9in | ||||||||||||||
| Dimensions H x D x W (quad unit) | 170 x 177 x 200mm | 6.7 x 7.3 x 7.9in | ||||||||||||||
| Weight | 5.0kg | 11.0lbs (Twin) 10.0kg | 22.0lbs (Quad) |
||||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Connectors | 4.3-10 Female | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| KA-3006-1031 | 3 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-3006-1033 | 3 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC LOW TO COMMON | |||||||||||
| KA-3006-1034 | 3 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC MID TO COMMON | |||||||||||
| KA-3006-2031 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-3006-2033 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC LOW TO COMMON | |||||||||||
| KA-3006-2034 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC MID TO COMMON | |||||||||||
| KA-3006-4031 | 12 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-3006-4033 | 12 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC LOW TO COMMON | |||||||||||
| KA-3006-4034 | 12 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC MID TO COMMON | |||||||||||

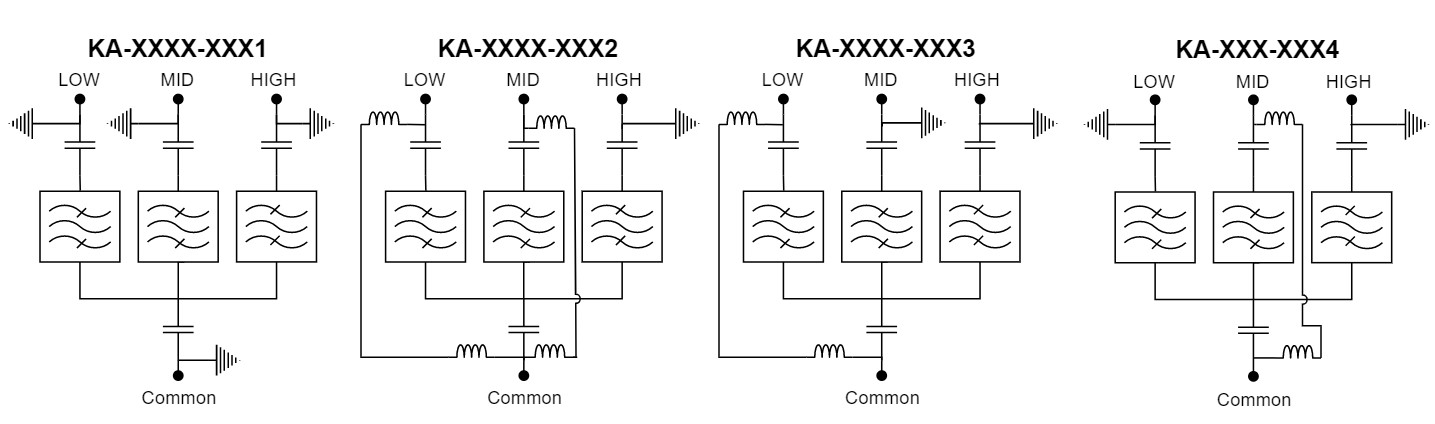

ELECTRICAL BLOCK DIAGRAM |
| KA-3006-XXXZ where Z denotes the DC path variant LOW port is 617-960/1695-2200 MHz MID port is 2300-2690 MHz HIGH port is 3300-4200 MHz |

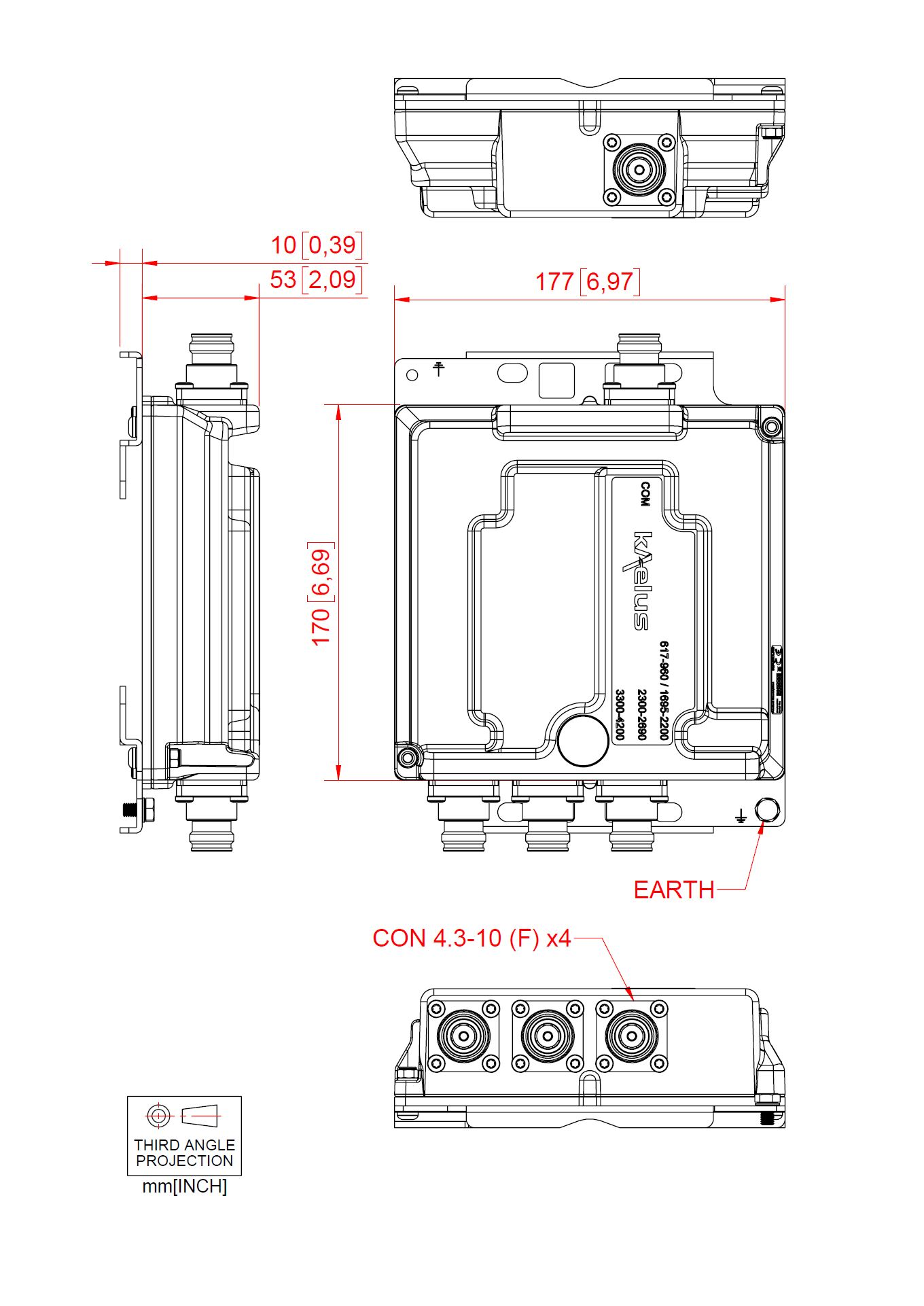

MECHANICAL BLOCK DIAGRAM |
