TRIPLEXER LB/PCS+AWS+WCS+BRS/C-BAND

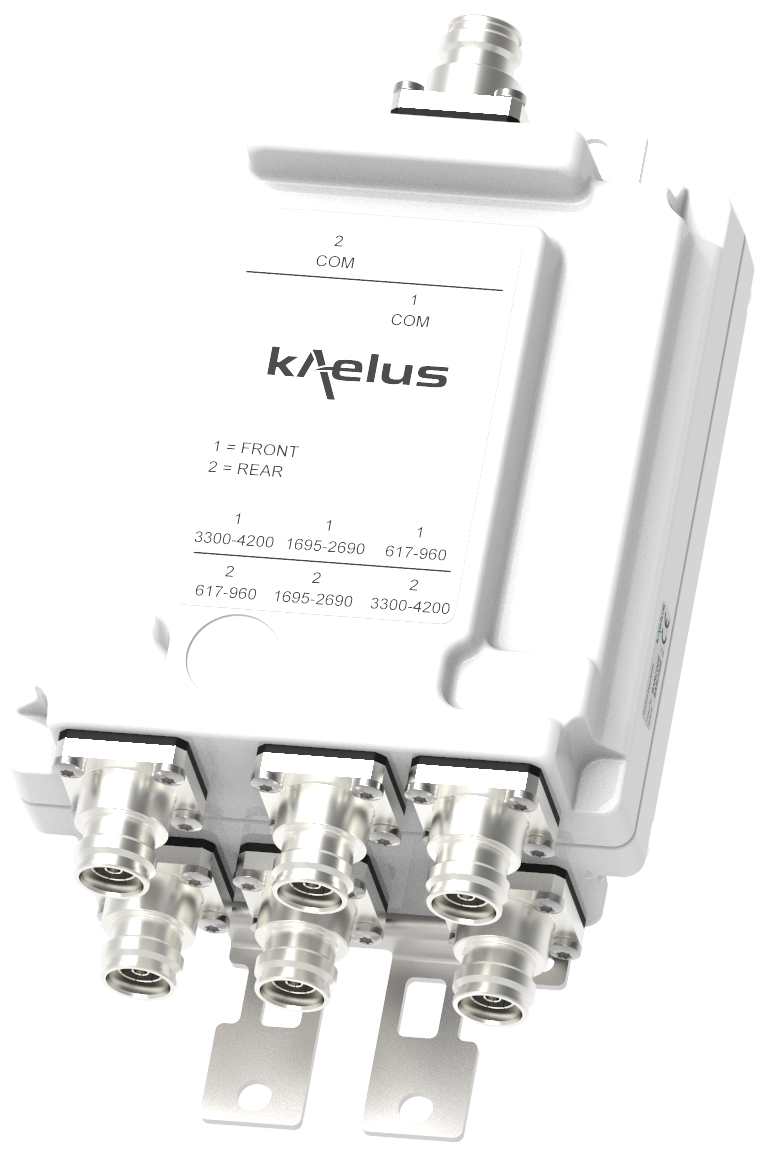

The Kaelus KA-3009 is a bi-directional Triplexer, designed to combine or split Lowband, AWS, PCS and 2.6 GHz and 3.5GHz bands. The KA-3009 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for Lowband, AWS, PCS and 2.6 GHz to C-band systems
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Single twin and dual twin models available
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting

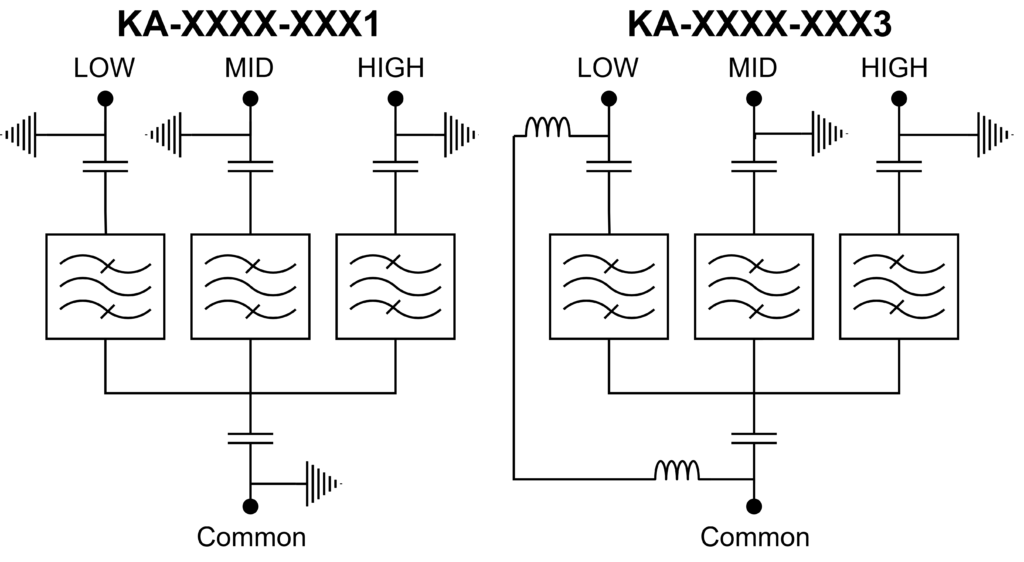

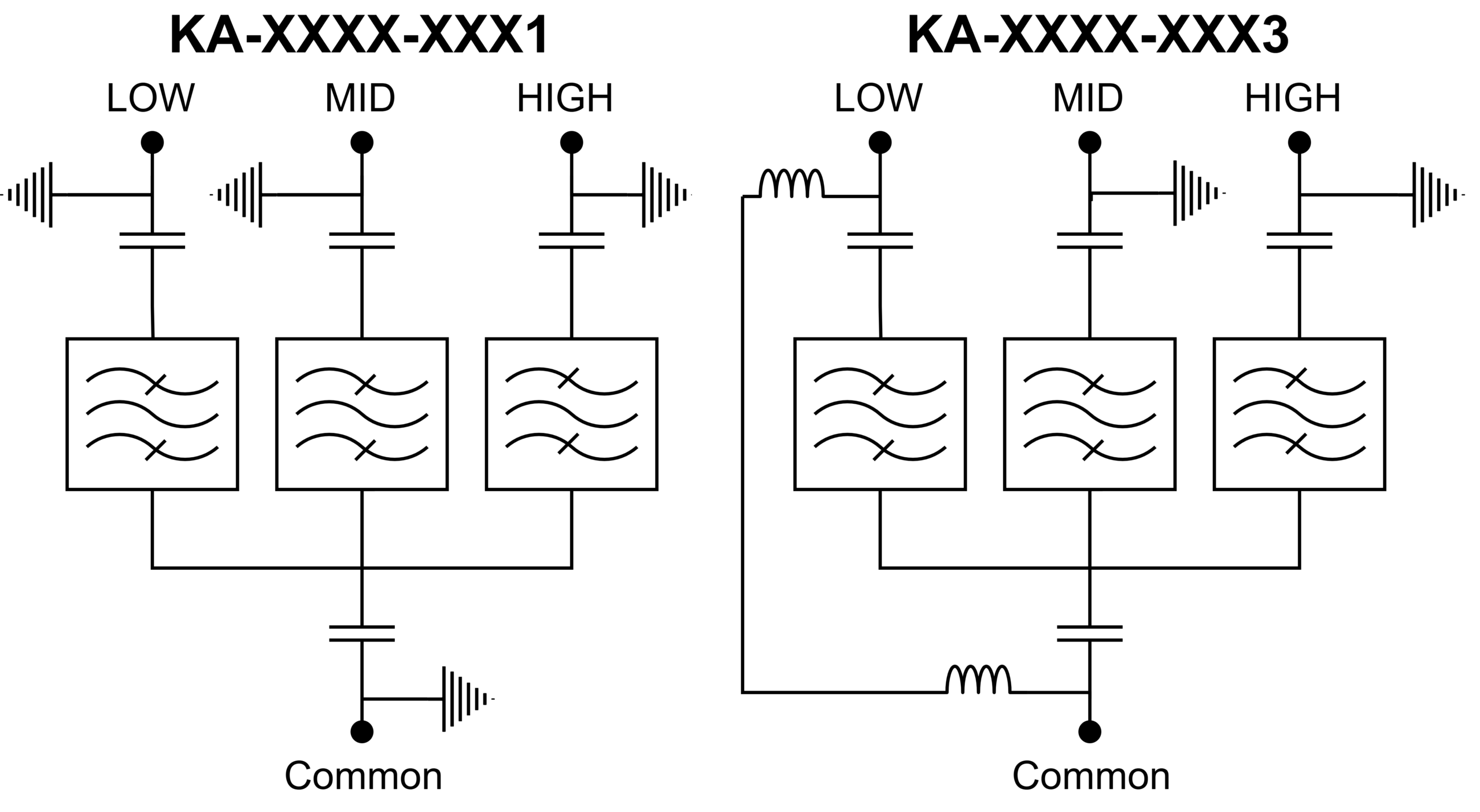

Electrical block diagram
KA-3009-XXXZ where
Z denotes the DC path variant
LOW port is 617-960 MHz
MID port is 1695-2690 MHz
HIGH port is 3300-4200 MHz
Please note if DC ALL is used that all ports which are DC shorted need to have a DC block

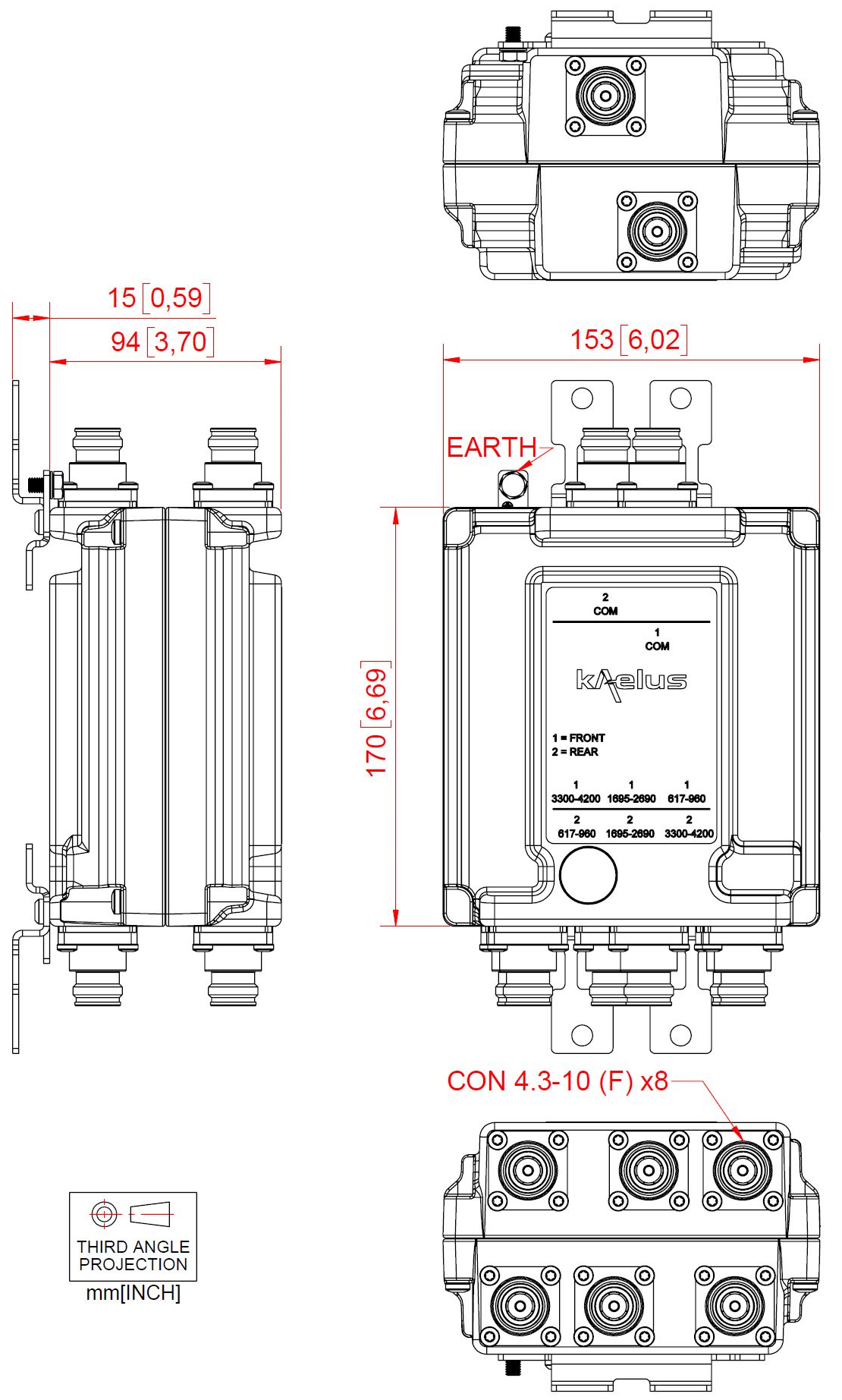

Mechanical block diagram
Technical specifications |
|||||||||||||||
| Band Name | 617-960 MHz | 1695-2690 MHz | 3300-4200 MHz | ||||||||||||
| Passband | 617-960 MHz | 1695-2690 MHz | 3300-4200 MHz | ||||||||||||
| Insertion loss | 0.3 dB typical, 0.4 dB max | 0.2 dB typical, 0.3 dB max | 0.2 dB typical, 0.3 dB max | ||||||||||||
| Return loss | 20 dB typical, 18 dB minimum | ||||||||||||||
| Maximum input power | 100 W (average) / 1000 W (PEP) | 100 W (average) / 1000 W (PEP) | 100 W (average) / 1000 W (PEP) | ||||||||||||
| Intermodulation products | <-160 dBc with 2 x +43 dBm TX Carrier (IM3) | <-160 dBc with 2 x +43 dBm TX Carrier (IM3) | <-153 dBc with 2 x +43 dBm TX Carrier (IM3) | ||||||||||||
| Rejection | 40 dB minimum 1695-2690 MHz 3300-4200 MHz |
40 dB minimum 617-960 MHz 3300-4200 MHz |
40 dB minimum 617-960 MHz 1695-2690 MHz |
||||||||||||
Electrical |
|||||||||||||||
| Impedance | 50 Ω | ||||||||||||||
| environmental | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40 º C to +65 ºC | -40 °F to 149 °F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | +/-5 kA 8/20 µs | ||||||||||||||
| MTBF | > 1,000,000 Hours | ||||||||||||||
| Compliance | ETSI 300 019 1-4 Class 4.1 ETSI 300 019-2-3 Class 3.2 |
||||||||||||||
DC/ aisg |
|||||||||||||||
| DC/AISG path is factory configurable, see ordering information | |||||||||||||||
| Passband | 0 – 3 MHz | ||||||||||||||
| Insertion loss | 1 dB maximum | ||||||||||||||
| Return loss | 12 dB minimum | ||||||||||||||
| Input voltage range | ± 30 V | ||||||||||||||
| DC current rating | 3 A continuous | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
Mechanical |
|||||||||||||||
| Dimensions H x D x W (single unit) | 170 x 51 x 153 mm | 6.7 x 2.0 x 6.0 in | ||||||||||||||
| Dimensions H x D x W (twin unit) | 170 x 94 x 153 mm | 6.7 x 3.7 x 6.0 in | ||||||||||||||
| Dimensions H x D x W (quad unit) | 170 x 198 x 162 mm | 6.7 x 7.8 x 6.4 in | ||||||||||||||
| Weight | 2.2 kg | 4.7 lbs (single unit) 3.9 kg | 8.6 lbs (twin unit) 7.8 kg | 17.1 lbs (quad unit) |
||||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Connectors | 4.3-10 Female | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
Ordering information |
|||||||||||||||
| Part Number | Configuration | Optional Features | Connectors | DC/AISG Configuration | |||||||||||
| KA-3009-1031 | 3 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-3009-1033 | 3 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC LOW TO COMMON | |||||||||||
| KA-3009-2031 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-3009-2033 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC LOW TO COMMON | |||||||||||
| KA-3009-4031 | 12 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-3009-4033 | 12 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC LOW TO COMMON | |||||||||||
