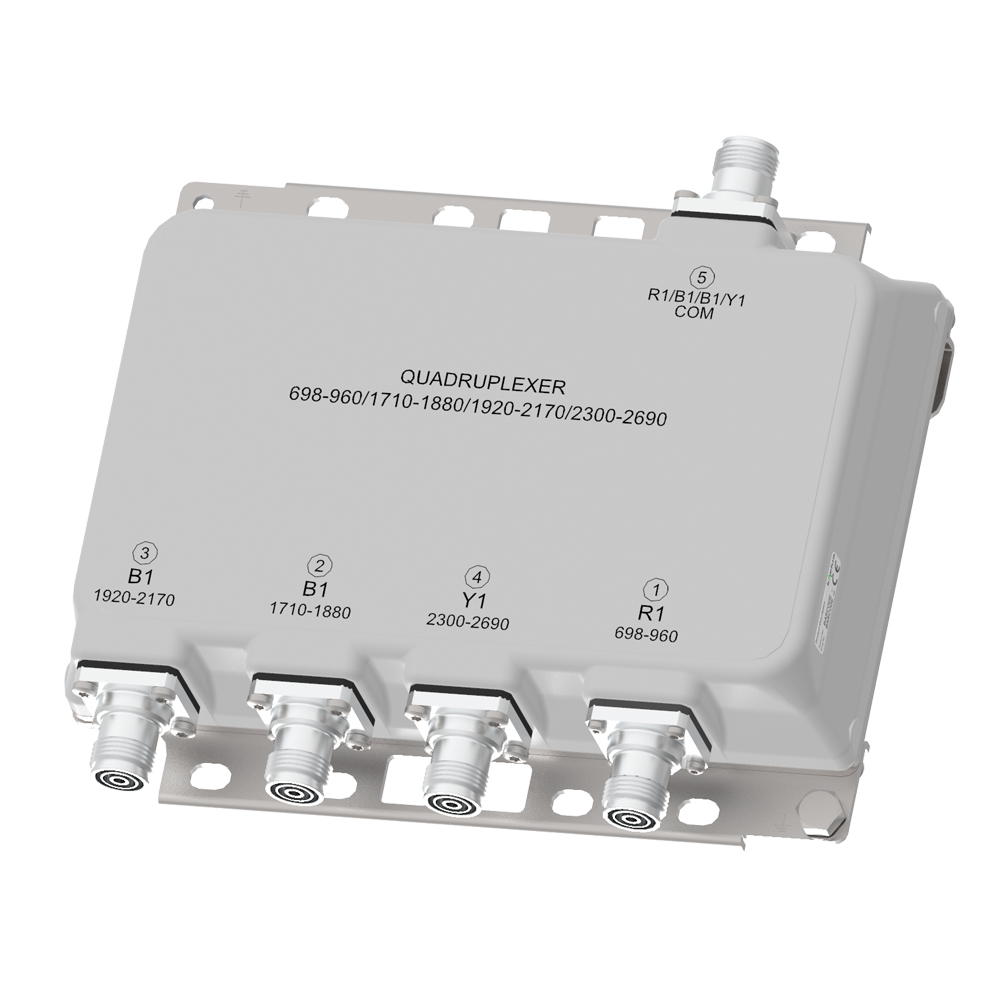

QUADRUPLEXER 700-900/1800/2100/2300-2600
Designed to combine 700/850/900/1800/2100/2300/2600 bands, the Kaelus KA-4005 saves significant capital and operational expenses by limiting feeder runs, and components needed on the tower. Available in an outdoor package the KA-4005 has the following features:
FEATURES
- Combines 700/850/900/1800/2100/2300 and 2600 bands
- Very low insertion loss
- Very low passive intermodulation
- DC/AISG bypass field settable
- Wall or pole mounting
- High power handling
- Single and twin configurations available
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 700-900 | 1800 | 2100 | 2300-2600 | |||||||||||
| Passband | 698 – 960MHz | 1710 – 1880MHz | 1920 – 2170MHz | 2300 – 2690MHz | |||||||||||
| Insertion loss | 0.1dB typical, 0.2dB maximum | 0.3dB typical, 0.5dB maximum | 0.3dB typical, 0.5dB maximum | 0.2dB typical, 0.3dB maximum | |||||||||||
| Return loss | 20dB typical, 18dB minimum | ||||||||||||||
| Maximum input power | 250W (average) * | 250W (average) * | 250W (average) * | 250W (average) * | |||||||||||
| Intermodulation products | < -153dBc at 2 x 43dBm TX Carrier | < -153dBc at 2 x 43dBm TX Carrier | < -160dBc at 2 x 43dBm TX Carrier (IM7) | < -153dBc at 2 x 43dBm TX Carrier | |||||||||||
| Rejection | 1710-2690MHz: 50dB | 698-960MHz: 50dB 1920-2690MHz: 50dB |
698-1880MHz: 50dB 2300-2690MHz: 50dB |
698-2170MHz: 50dB | |||||||||||
| (*) Limited to 500W (average) combined power at the common port. | |||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| DC / AISG | |||||||||||||||
| DC/AISG path is factory configurable, see ordering information | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss | 1dB maximun | ||||||||||||||
| Return loss | 12dB minimun | ||||||||||||||
| Input voltage range | ± 30V | ||||||||||||||
| DC current rating | 3A continuous | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | ±5kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | Operation: ETSI EN 300 019 class 4.1E Storage: ETS 300 019-1-1 class 1.3E Transport: ETS 300 019-1-2 class 2.3 RoHS |
||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single unit) | 250 x 160 x 49mm | 9.84 x 6.30 x 1.93″ | ||||||||||||||
| Dimensions H x D x W (twin unit) | 250 x 160 x 104mm | 9.84 x 6.30 x 4.09″ | ||||||||||||||
| Weight | 4.5kg | 9.8lbs (Single) 8.2kg | 18.0lbs (Dual) |
||||||||||||||
| Finish | Powder Coated, light grey, NCS 1502-R | ||||||||||||||
| Connectors | 4.3-10 (F) or 7/16 (F) | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 40-140 mm diameter poles | ||||||||||||||
| SHIPPING INFORMATION | |||||||||||||||
| Carton size | 330 x 305 x 160mm | 13.0×12.0x6.3″ (Single) | 330 x 310 x 190mm | 13.0 x 12.2 x 7.5″ (Twin) | |||||||||||||
| Gross weight (including packaging) | 5.5kg | 12.1lbs (Single) | 9.2kg | 20.2lbs (Twin) | |||||||||||||
| Carton Qty / Pallet | 56 | 48 | |||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| KA-4005-1031 | 4 in / 1 out | FIXED DC | 4.3-10 (F) | NO DC | |||||||||||
| KA-4005-1032 | 4 in / 1 out | FIXED DC | 4.3-10 (F) | DC TO ALL | |||||||||||
| KA-4005-1033 | 4 in / 1 out | FIXED DC | 4.3-10 (F) | DC to 700 – 900 | |||||||||||
| KA-4005-1034 | 4 in / 1 out | FIXED DC | 4.3-10 (F) | DC to 1800 | |||||||||||
| KA-4005-1035 | 4 in / 1 out | FIXED DC | 4.3-10 (F) | DC to 2100 | |||||||||||
| KA-4005-1036 | 4 in / 1 out | FIXED DC | 4.3-10 (F) | DC TO 2300 – 2600 | |||||||||||
| KA-4005-2031 | 8 in / 2 out | FIXED DC | 4.3-10 (F) | NO DC | |||||||||||
| KA-4005-2032 | 8 in / 2 out | FIXED DC | 4.3-10 (F) | DC TO ALL | |||||||||||
| KA-4005-2033 | 8 in / 2 out | FIXED DC | 4.3-10 (F) | DC to 700 – 900 | |||||||||||
| KA-4005-2034 | 8 in / 2 out | FIXED DC | 4.3-10 (F) | DC to 1800 | |||||||||||
| KA-4005-2035 | 8 in / 2 out | FIXED DC | 4.3-10 (F) | DC to 2100 | |||||||||||
| KA-4005-2036 | 8 in / 2 out | FIXED DC | 4.3-10 (F) | DC TO 2300 – 2600 | |||||||||||
| KA-4005-1001 | 4 in / 1 out | FIXED DC | 7/16 (F) | NO DC | |||||||||||
| KA-4005-1002 | 4 in / 1 out | FIXED DC | 7/16 (F) | DC TO ALL | |||||||||||
| KA-4005-1003 | 4 in / 1 out | FIXED DC | 7/16 (F) | DC to 700 – 900 | |||||||||||
| KA-4005-1004 | 4 in / 1 out | FIXED DC | 7/16 (F) | DC to 1800 | |||||||||||
| KA-4005-1005 | 4 in / 1 out | FIXED DC | 7/16 (F) | DC to 2100 | |||||||||||
| KA-4005-1006 | 4 in / 1 out | FIXED DC | 7/16 (F) | DC TO 2300 – 2600 | |||||||||||
| KA-4005-2001 | 8 in / 2 out | FIXED DC | 7/16 (F) | NO DC | |||||||||||
| KA-4005-2002 | 8 in / 2 out | FIXED DC | 7/16 (F) | DC TO ALL | |||||||||||
| KA-4005-2003 | 8 in / 2 out | FIXED DC | 7/16 (F) | DC to 700 – 900 | |||||||||||
| KA-4005-2004 | 8 in / 2 out | FIXED DC | 7/16 (F) | DC to 1800 | |||||||||||
| KA-4005-2005 | 8 in / 2 out | FIXED DC | 7/16 (F) | DC to 2100 | |||||||||||
| KA-4005-2006 | 8 in / 2 out | FIXED DC | 7/16 (F) | DC TO 2300 – 2600 | |||||||||||
| Other DC path options are available. DC autosensing available. Contact Kaelus for details |
|||||||||||||||

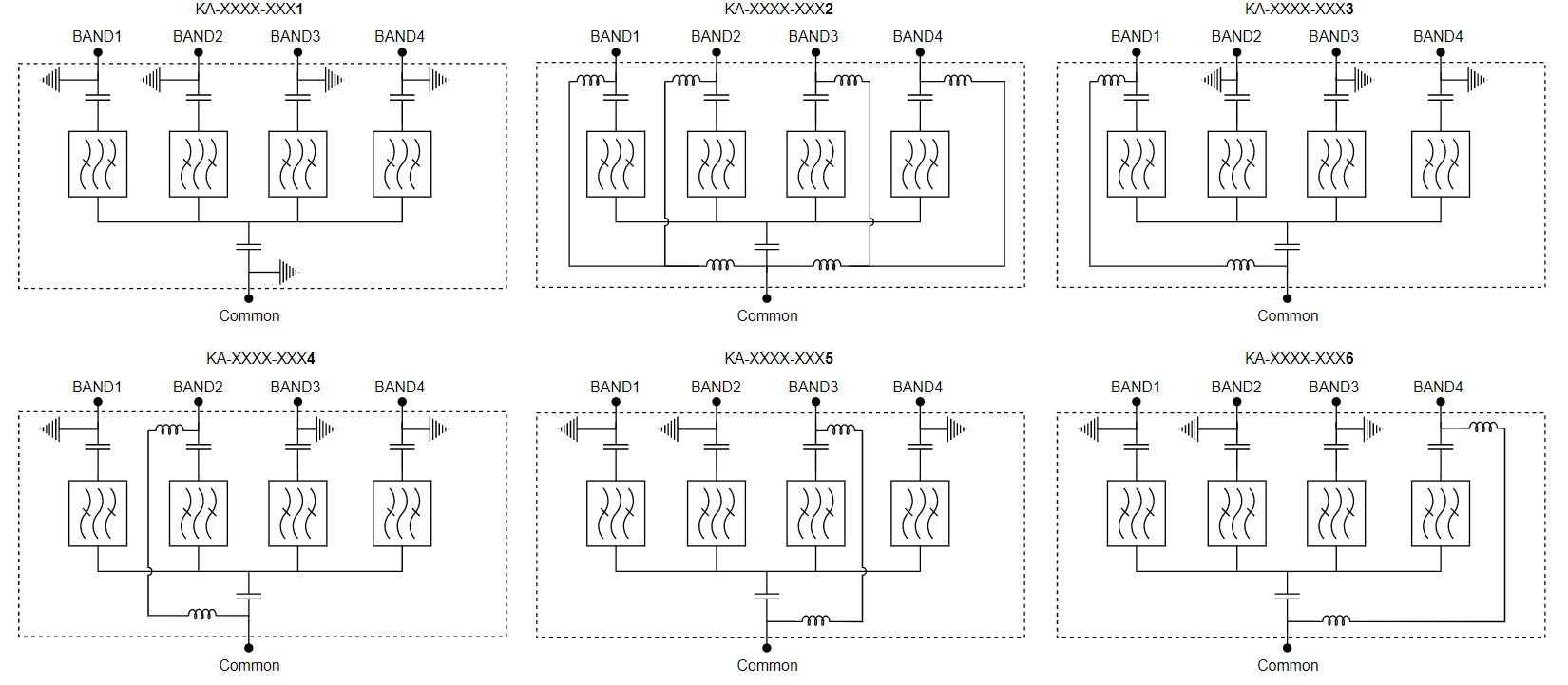

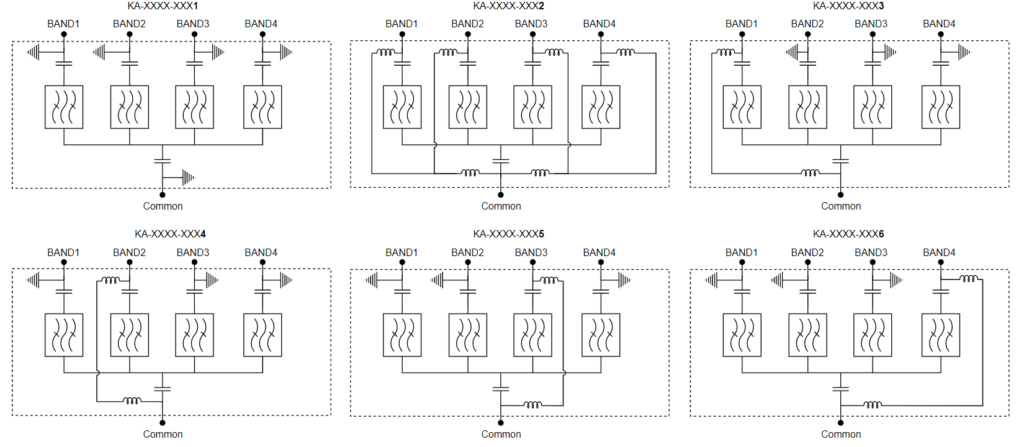

ELECTRICAL BLOCK DIAGRAM |
|||||||||||||||
KA-4005-WXYZ where
|
|||||||||||||||
|

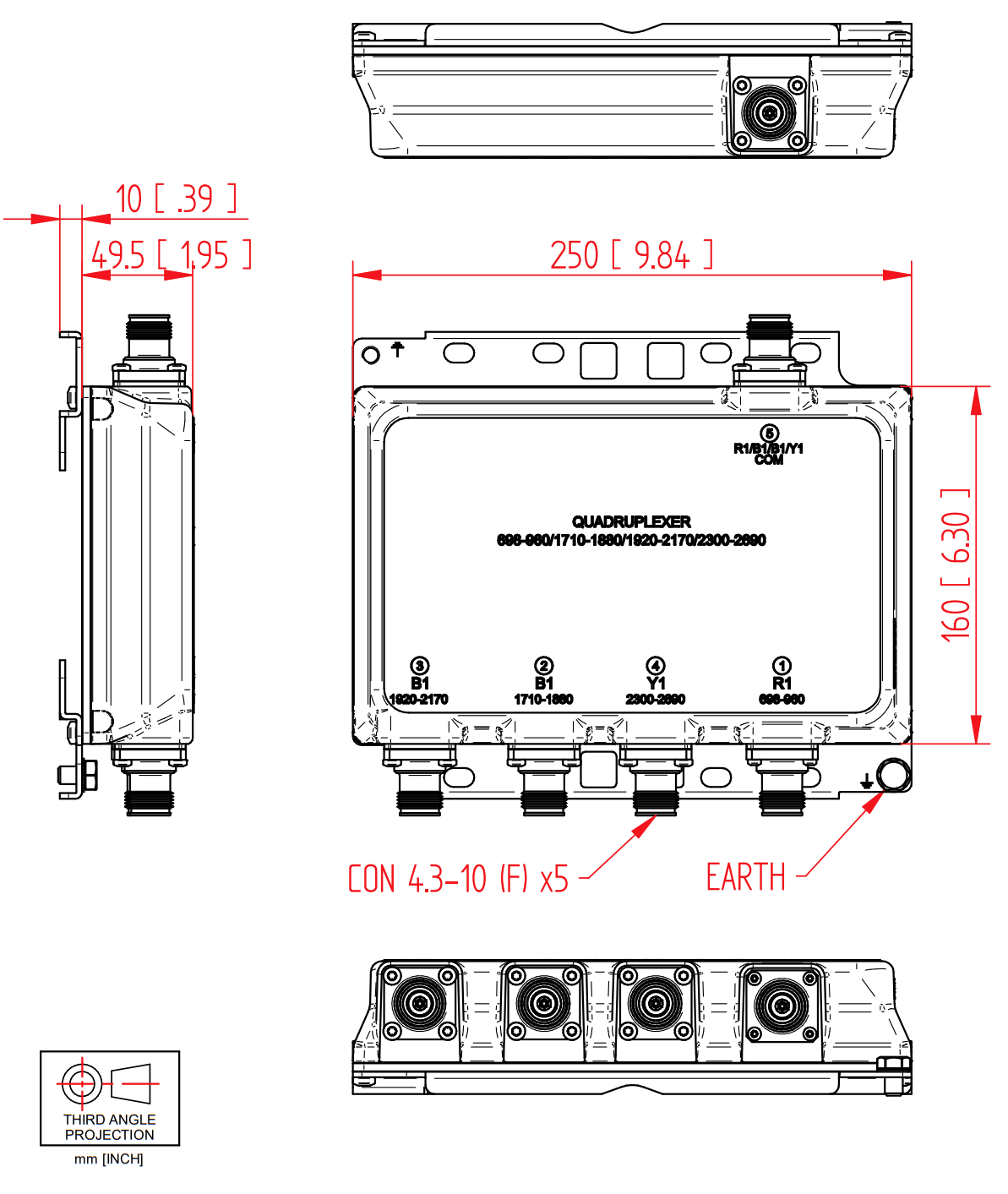

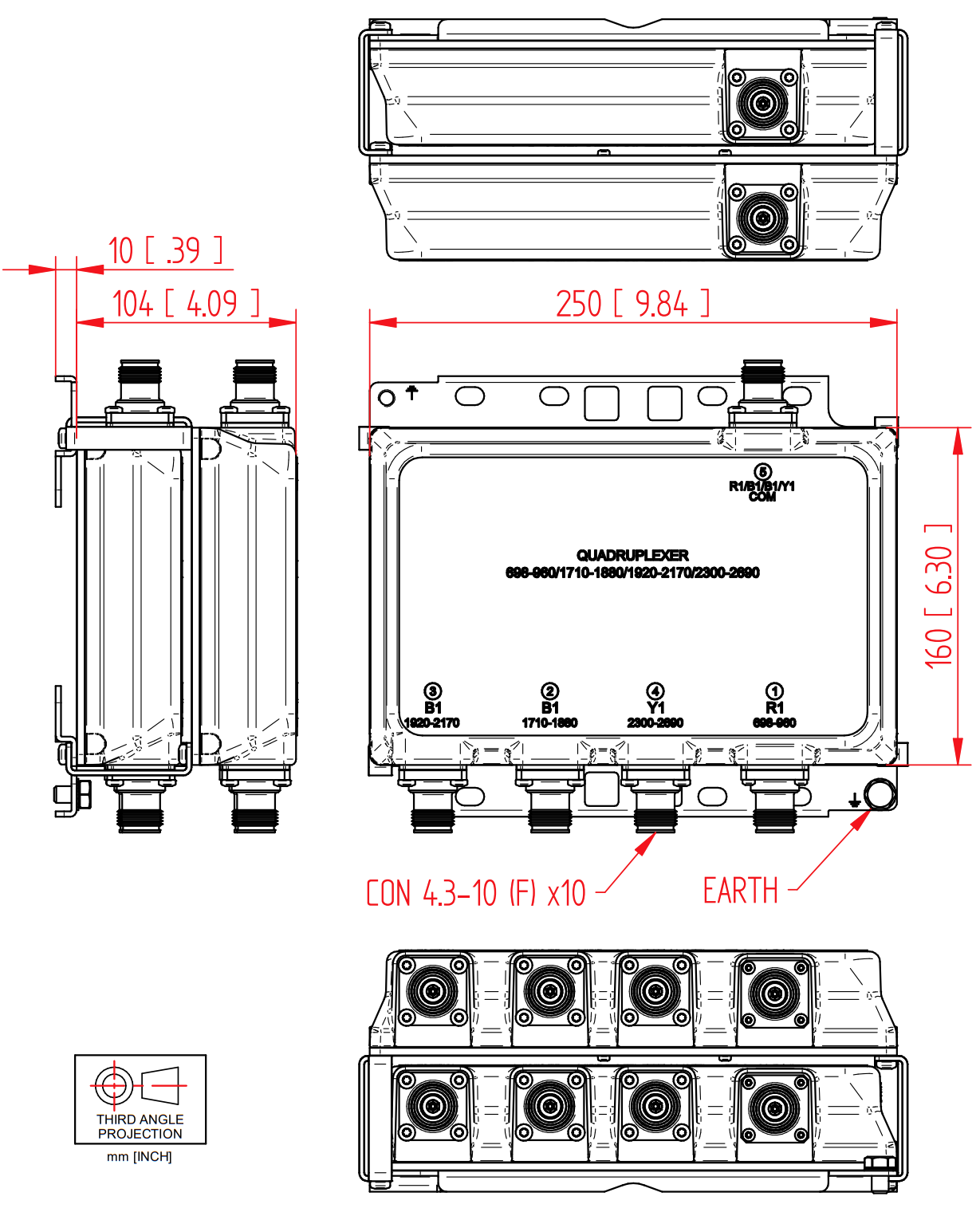

MECHANICAL BLOCK DIAGRAM |
