QUADRAPLEXER LB/PCS+AWS/WCS+BRS/C-BAND

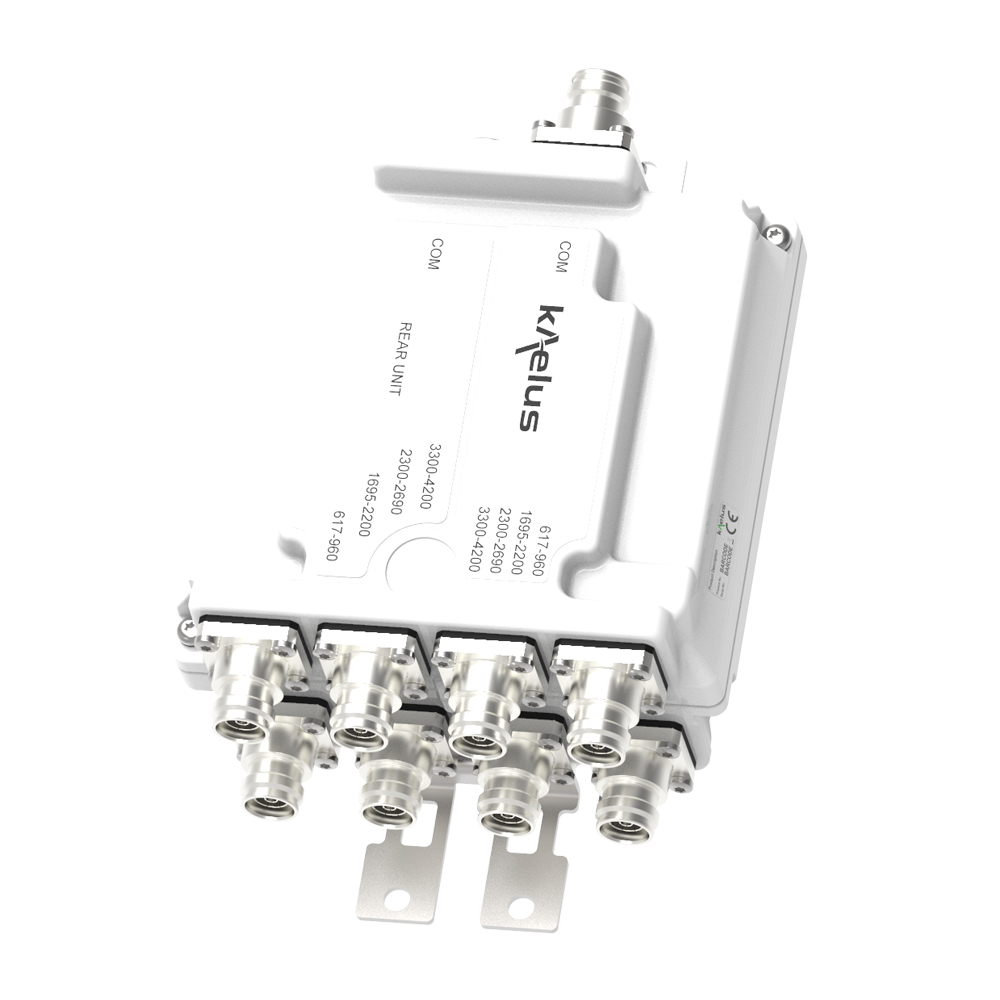

The Kaelus KA-4006 is a bi-directional Quadraplexer, designed to combine or split Lowband, AWS, PCS and 2.6 GHz and 3.5GHz bands. The KA-4006 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for Lowband, AWS, PCS, 2.6 GHz and C-band systems
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Single, dual and quad models available
- Provisions for wall or mast mounting
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 617-960MHZ | 1695-2200MHZ | 2300-2690MHZ | 3300-4200MHZ | |||||||||||
| Passband | 617 – 960MHz | 1695 – 2200MHz | 2300 – 2690 MHz | 3300 – 4200MHz | |||||||||||
| Insertion loss | <0.25dB typical, 0.3dB max | <0.25dB typical, 0.3dB max | <0.35dB typical, 0.4dB max | <0.25dB typical, 0.3dB max | |||||||||||
| Return loss | 20dB typical, 18dB minimum | ||||||||||||||
| Maximum input power | 100W (average) / 1000W (PEP) | 100W (average) / 1000W (PEP) | 100W (average) / 1000W (PEP) | 100W (average) / 1000W (PEP) | |||||||||||
| Intermodulation products | <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) | <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) | <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) | <-145 dBc typ at 2 x +43dBm TX Carrier (IM3) | |||||||||||
| Rejection | 40dB minimum 1695-2200 MHz 2300-2690 MHz 3300-4200 MHz |
40dB minimum 617-960 MHz 2300-2690 MHz 3300-4200 MHz |
40dB minimum 617-960 MHz 1695-2200 MHz 3300-4200 MHz |
40dB minimum 617-960 MHz 1695-2200 MHz 2300-2690 MHz |
|||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40°F to 149°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | +/-5kA 8/20 µs | ||||||||||||||
| MTBF | > 1,000,000 Hours | ||||||||||||||
| Compliance | ETSI 300 019-1-4 Class 4.1 ETSI 300 019-2-3 Class 3.2 |
||||||||||||||
| DC / AISG | |||||||||||||||
| DC/AISG path is factory configurable, see ordering information | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss | 1dB maximum | ||||||||||||||
| Return loss | 12dB minimum | ||||||||||||||
| Input voltage range | ± 30V | ||||||||||||||
| DC current rating | 3A continuous | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single unit) | 170 x 177 x 53mm | 6.7 x 7.3 x 2.1in | ||||||||||||||
| Dimensions H x D x W (twin unit) | 170 x 177 x 98mm | 6.7 x 7.3 x 3.9in | ||||||||||||||
| Weight | 5.0kg | 11.0lbs (Twin) | ||||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Connectors | 4.3-10 Female | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| KA-4006-1031 | 4 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-4006-1033 | 4 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 617-960 TO COMMON | |||||||||||
| KA-4006-1034 | 4 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 1427-2200 TO COMMON | |||||||||||
| KA-4006-1035 | 4 in / 1 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 2300-2690 TO COMMON | |||||||||||
| KA-4006-2031 | 8 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-4006-2033 | 8 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 617-960 TO COMMON | |||||||||||
| KA-4006-2034 | 8 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 1427-2200 TO COMMON | |||||||||||
| KA-4006-2035 | 8 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 2300-2690 TO COMMON | |||||||||||
| KA-4006-4031 | 16 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | NO DC | |||||||||||
| KA-4006-4033 | 16 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 617-960 TO COMMON | |||||||||||
| KA-4006-4034 | 16 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 1427-2200 TO COMMON | |||||||||||
| KA-4006-4035 | 16 in / 4 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC 2300-2690 TO COMMON | |||||||||||

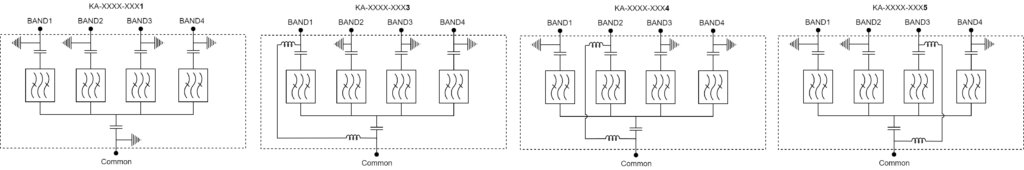

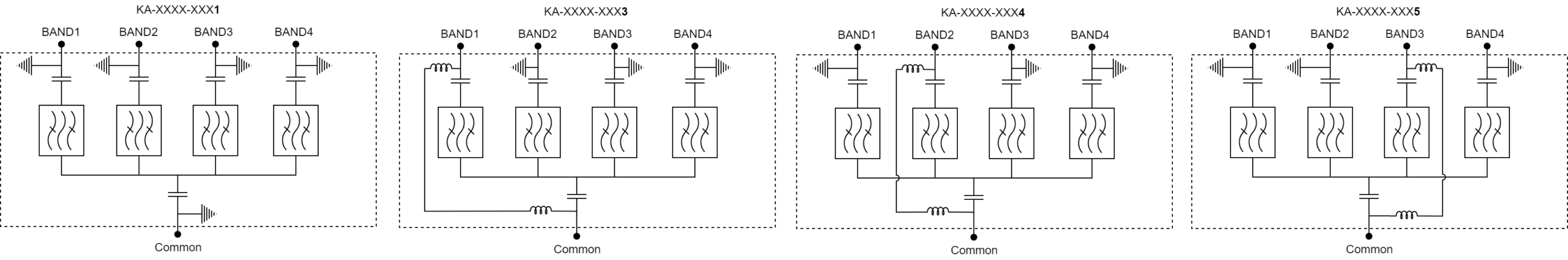

ELECTRICAL BLOCK DIAGRAM |
| KA-4006-XXXZ where
Z denotes the DC path variant BAND 1 port is 617-960 MHz BAND 2 port is 1695-2200 MHz BAND 3 port is 2300-2690 MHz BAND 4 port is 3300-4200 MHz |

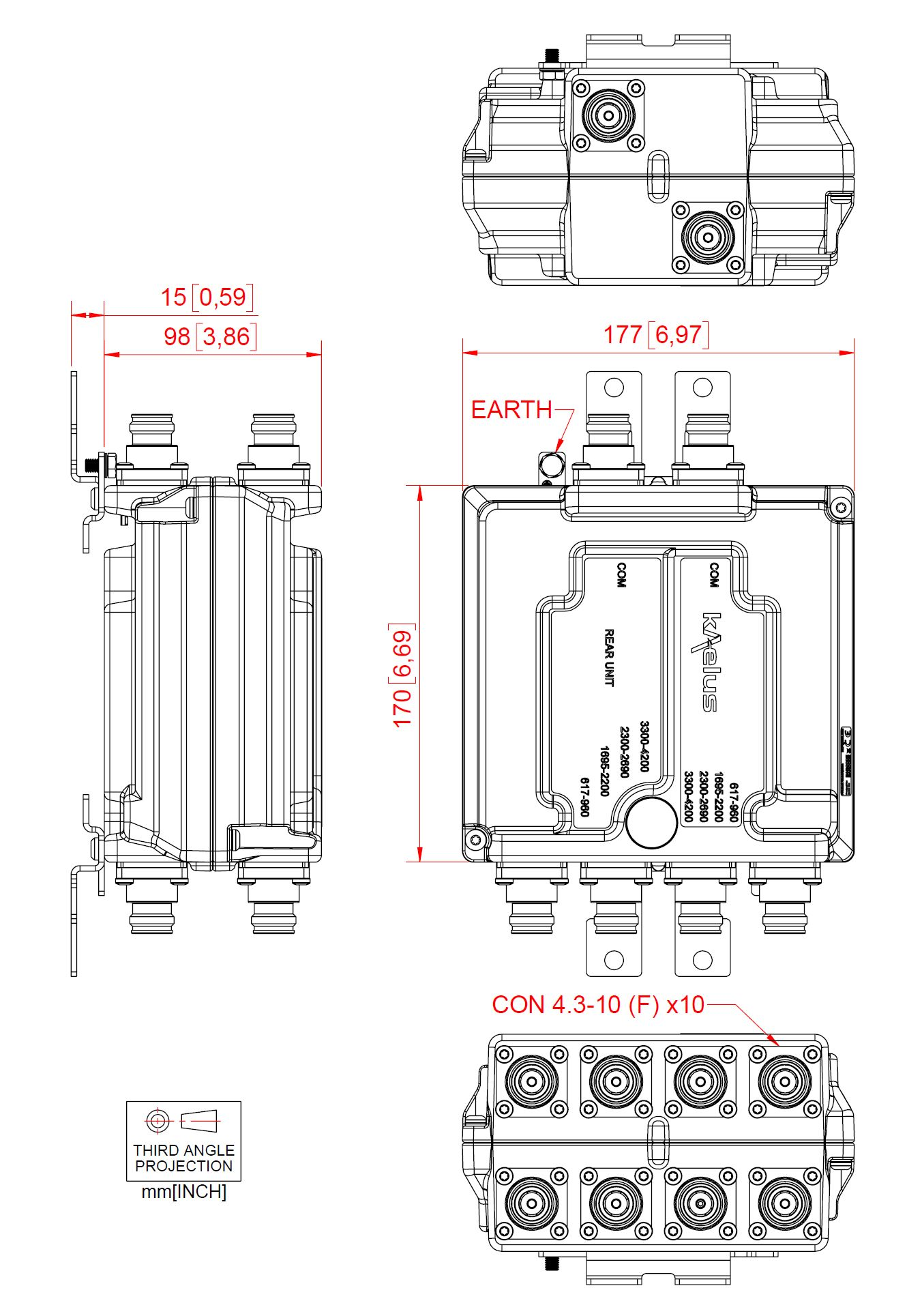

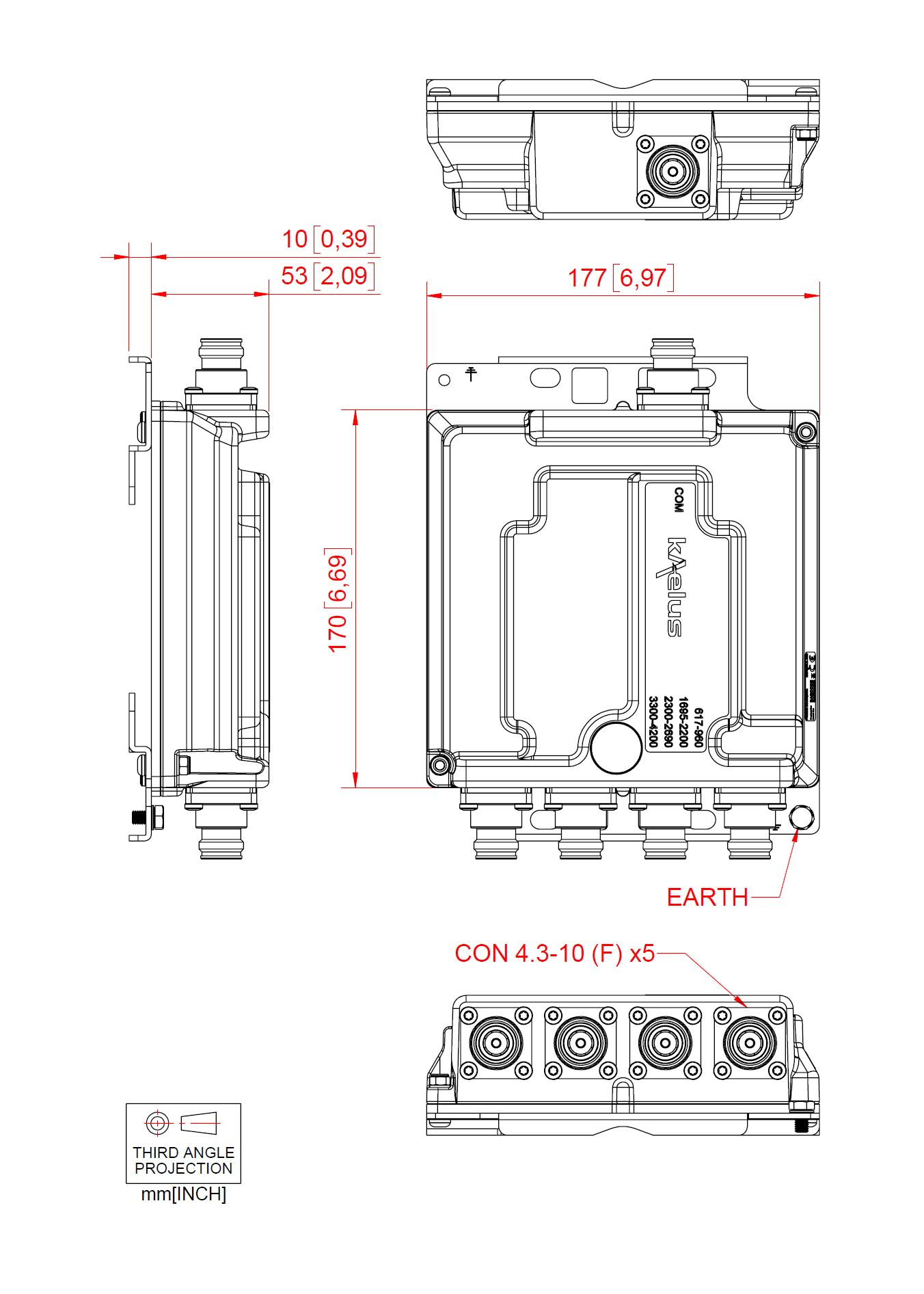

MECHANICAL BLOCK DIAGRAM |
