3.7GHz BAND INTERFERENCE MITIGATION FILTER

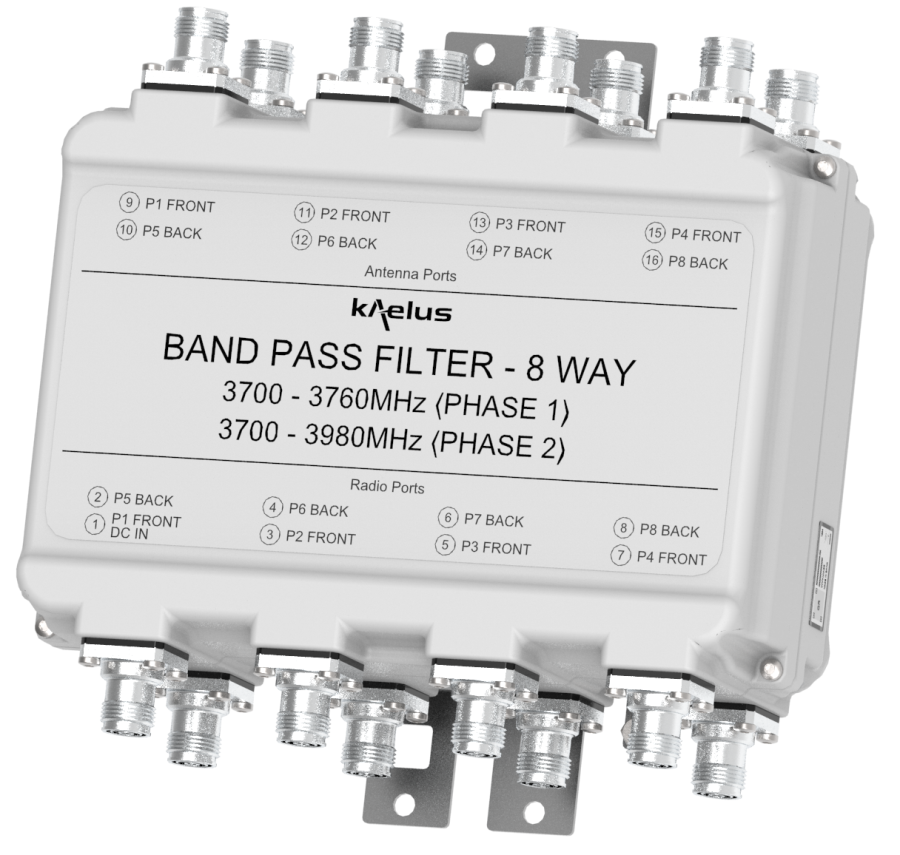

The KA-6008-8433 is an interference mitigation filter tunable to two different positions: when set to position one, it rejects interference in the Satellite Communication Band (3820-3980MHz) band while passing 3700-3760MHz (A1/A2/A3 Block). When the Satellite Communication Band is vacated, the filter can be reconfigured to position two to pass 3700-3980MHz (A, B and C block). The change of configuration can be performed remotely via AISG. Capable of being used in an outdoor environment, the KA-6008-8433 contains eight identical filters, suitable for 8×8 MIMO configuration, offering excellent insertion loss and rejection.
FEATURES
- Remote tunable filter set to 2 positions: position one, passing A1/A2/A3 block only, mitigates interference in the Satellite Communication band and position two allows the full 3.7GHz (A, B and C block) spectrum use, once the Satellite Communication band has been vacated.
- Low insertion loss
- Outdoor and indoor configurations
- 8 in, 8 out configuration suitable for 8×8 MIMO configuration

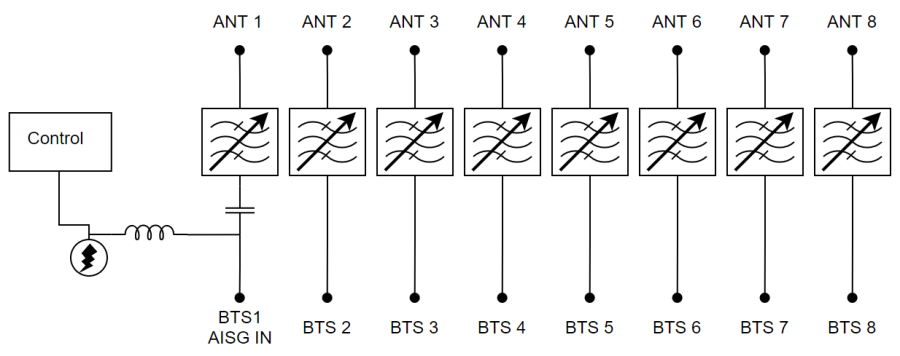

Electrical block diagram
KA-6008-WXYZ where
|

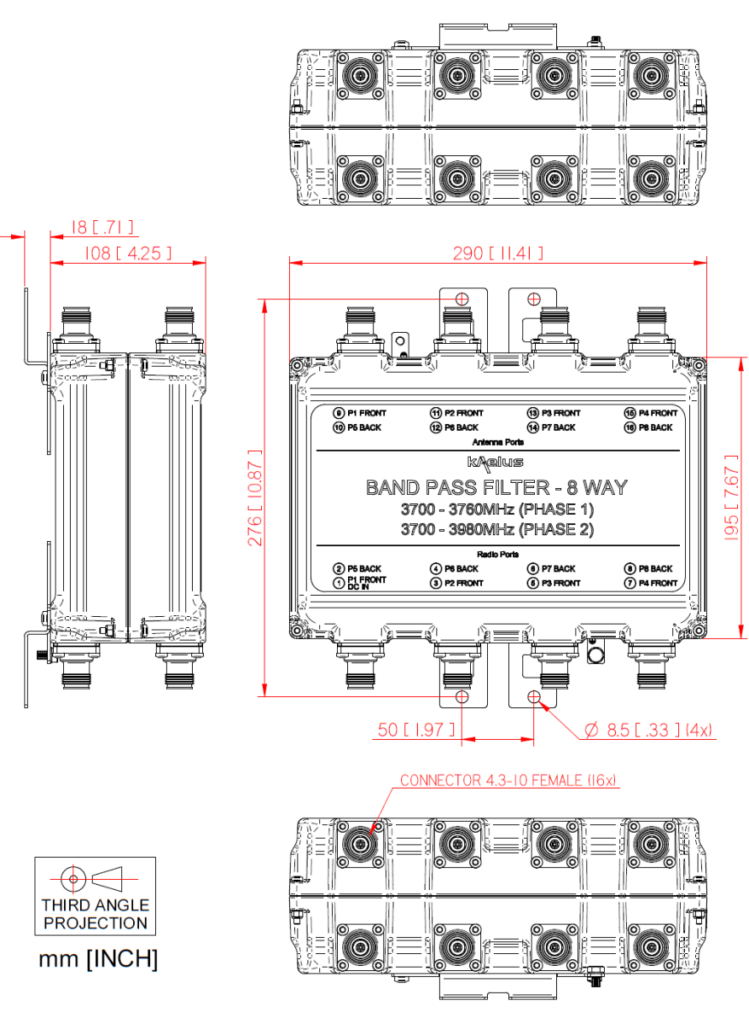

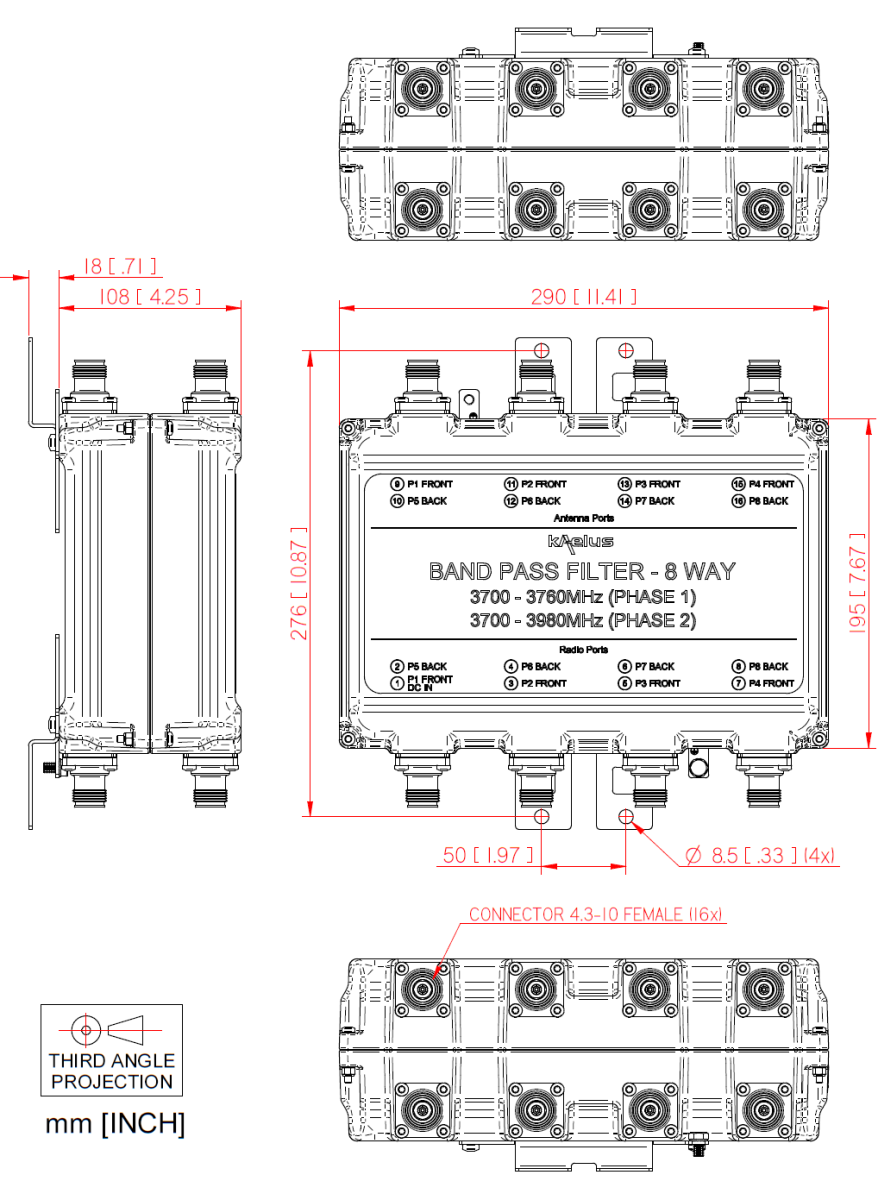

Mechanical block diagram
Technical specifications |
|||||||||||||||
| POSITION | POSITION 1 (Factory setting) | POSITION 2 | |||||||||||||
| Passband | 3700-3760MHz | 3700-3980MHz | |||||||||||||
| Insertion loss | 0.55 typ / 0.75dB maximum | 0.35dB typ / 0.5dB max | |||||||||||||
| Return loss | 24dB typical, 20dB minimum | ||||||||||||||
| Maximum input power | 75W per channel | ||||||||||||||
| Intermodulation products | -153dBc (2x20W, IM5) | ||||||||||||||
| Group Delay Absolute | 20ns typ, 30ns max | 3ns typ, 4.5ns max | |||||||||||||
| Group Delay Variation across 60MHz | 7ns typ, 15ns max | 1ns typ, 2ns max | |||||||||||||
| Group Delay Tracking between channels | 15ns ±5ns at 3700MHz 10ns ±5ns at 3730MHz 17ns ±10ns at 3760MHz |
< 4.5ns | |||||||||||||
| Rejection | 60dB minimum @ 3820-3980MHz | N/A | |||||||||||||
Electrical |
|||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| dc / aisg | |||||||||||||||
| Compliance | AISG2.0, 3GPP TS 25.461 | ||||||||||||||
| Input voltage range | 10 – 30V | ||||||||||||||
| DC current rating | 2A average maximum, 4A peak | ||||||||||||||
| Power Consumption | 2W maximum in idle state 15W maximum during tuning |
||||||||||||||
| Device Type | TMAAP | ||||||||||||||
| AISG command for device setting | Position 1: “TMA SET Mode” to Normal Mode Position 2: “TMA SET Mode” to Bypass Mode |
||||||||||||||
Environmental |
|||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40°F to +149°F | ||||||||||||||
| Ingress protection | IP67, Outdoor unit | ||||||||||||||
| Lightning protection | RF port: ±5kA maximum (8/20us), IEC 61000-4-5 |
||||||||||||||
| MTBF | >500,000 hours | ||||||||||||||
| Compliance | ETSI EN 300 019 class 4.1E, RoHS | ||||||||||||||
Mechanical |
|||||||||||||||
| Dimensions H x D x W | 201 x 108 x 296mm | 7.91 x 4.25 x 11.65in (Excluding brackets and connectors) | ||||||||||||||
| Weight | 12kg | 26.5lbs estimated | ||||||||||||||
| Finish | Powder coated, light grey (NCS 1502-R) | ||||||||||||||
| Connectors | RF: 4.3-10 (F) | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles | ||||||||||||||
Ordering information |
| models | |||||||||||||||
| PRODUCT NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | ||||||||||||
| KA-6008-8433 | 8 way, 8 in / 8 out | Tunable filter AISG IN on port BTS1 |
4.3-10 (F) | ||||||||||||
Accessories |
|||||||||||||||
| PRODUCT NUMBER | DESCRIPTION | ||||||||||||||
| KA-9007-0001 | Low-PIM bracket | ||||||||||||||
