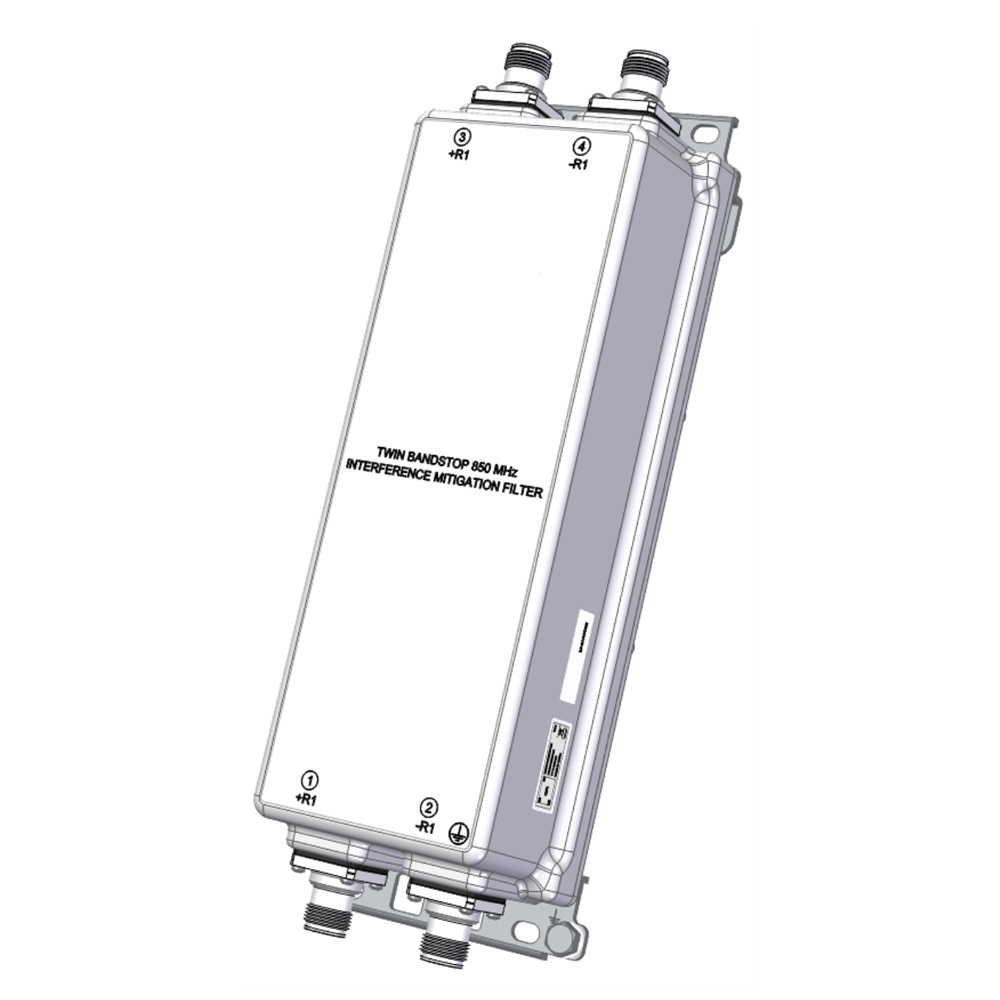

TWIN BANDSTOP 700/900 INTERFERENCE MITIGATION FILTER
The KA-6029 is ideal for co-located 700, 850 and 900 networks. Utilising a 1.5MHz guardband the KA-6029 provides rejection of the 850 band while passing 700 & 900 UL and DL bands. Capable of being used in an outdoor environment the KA-6029 contains two identical bandstop filters, suitable for 2×2 MIMO configuration, offering excellent insertion loss, group delay, EVM and rejection.
FEATURES
- Rejection of 850MHz downlink
- Passes full 700 & 900 band
- Notch filter structure
- DC/AISG pass
- Low insertion loss
- Outdoor and indoor configurations
- Twin or quad unit
| BAND NAME |
700 PATH |
900 UPLINK PATH |
900 DOWNLINK PATH |
| Passband |
703 – 803MHz |
890 – 915MHz |
935 – 960MHz |
| Insertion loss |
0.2dB typical, 0.25dB maximum |
0.2dB typical, 3.3dB maximum |
0.2dB typical, 0.25dB maximum |
| Return loss |
20dB typical, 18dB minimum |
| Rejection |
50dB typical, 47dB minimum @ 880-888.5MHz
30dB typical, 20dB minimum @ 888.5-889MHz |
| Impedance |
50Ohms |
| Intermodulation products |
-160dBc typical
-153dBc maximum with 2x20W |
| Maximum input power (Per Port) |
200W |
| Passband |
0 – 3MHz |
| Insertion loss |
0.3dB maximum |
| Return loss |
15dB minimum |
| Input voltage range |
± 33V |
| DC current rating |
2A continuous, 4A peak |
| Compliance |
3GPP TS 25.461 |
| Temperature range |
-40ºC to +65ºC | -40°F to +149°F |
| Ingress protection |
IP67, Outdoor unit |
| Lightning protection |
RF port: ±5kA maximum (8/20us), IEC 61000-4-5 – Unit must terminated with some lightning protection circuits. |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.1E, RoHS |

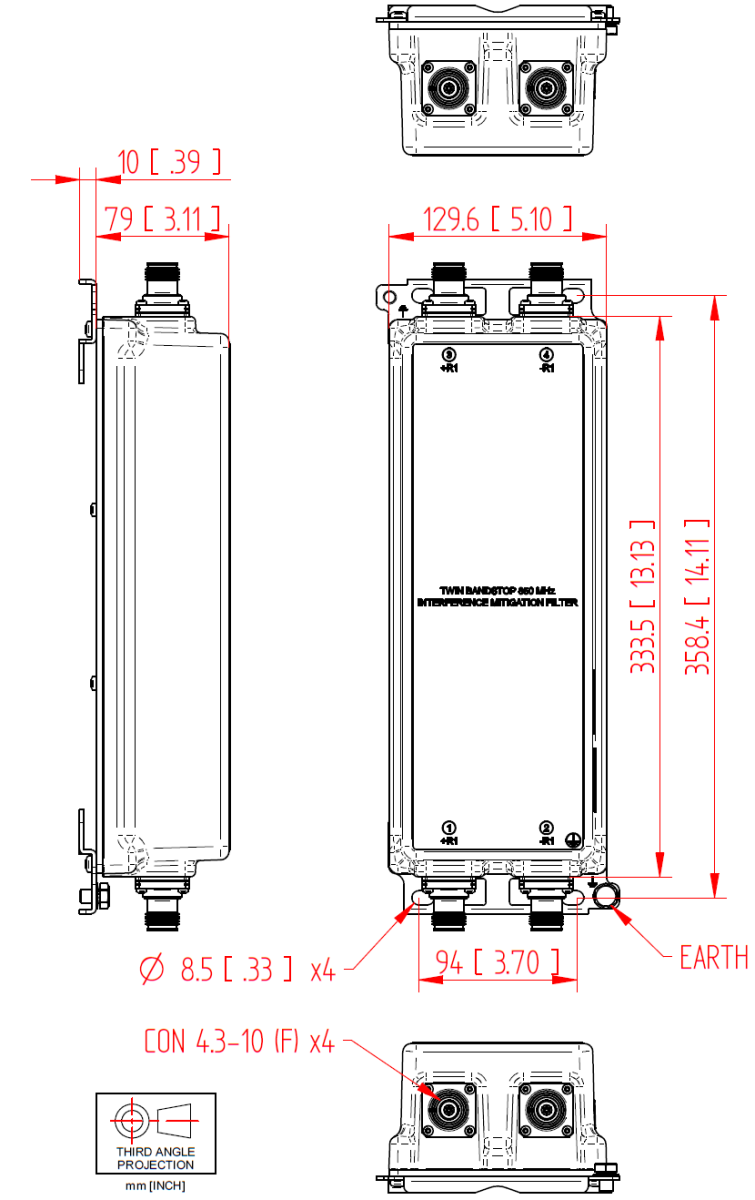

| Dimensions H x D x W (twin unit) |
334x130x79 mm | 13.1 x 5.11 x 3.11 in (Excluding brackets and connectors) |
| Dimensions H x D x W (quad unit) |
334x130x170 mm | 13.1 x 5.11 x 6.69 in (Excluding brackets and connectors) |
| Weight |
4.4 kg | 9.7 lbs (twin)
9.0 kg | 19.8 lbs (quad) |
| Finish |
Powder coated, light grey (NCS 1502-R) |
| Connectors |
RF: 4.3-10 (F) x 4 (twin)
RF: 4.3-10 (F) x 8 (quad) |
| Mounting |
Pole/wall bracket supplied with two metal clamps 45-178 mm diameter poles |
| Carton size |
470 x 210 x 155mm (twin) |
| Gross weight (including packaging) |
4.7kg (twin) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
| KA-6029-2032 |
TWIN, 2 in / 2 out |
DC/AISG PASS |
4.3-10 (F) |
| KA-6029-4032 |
QUAD, 4 in / 4 out |
DC/AISG PASS |
4.3-10 (F) |
