TWIN TMA AWS

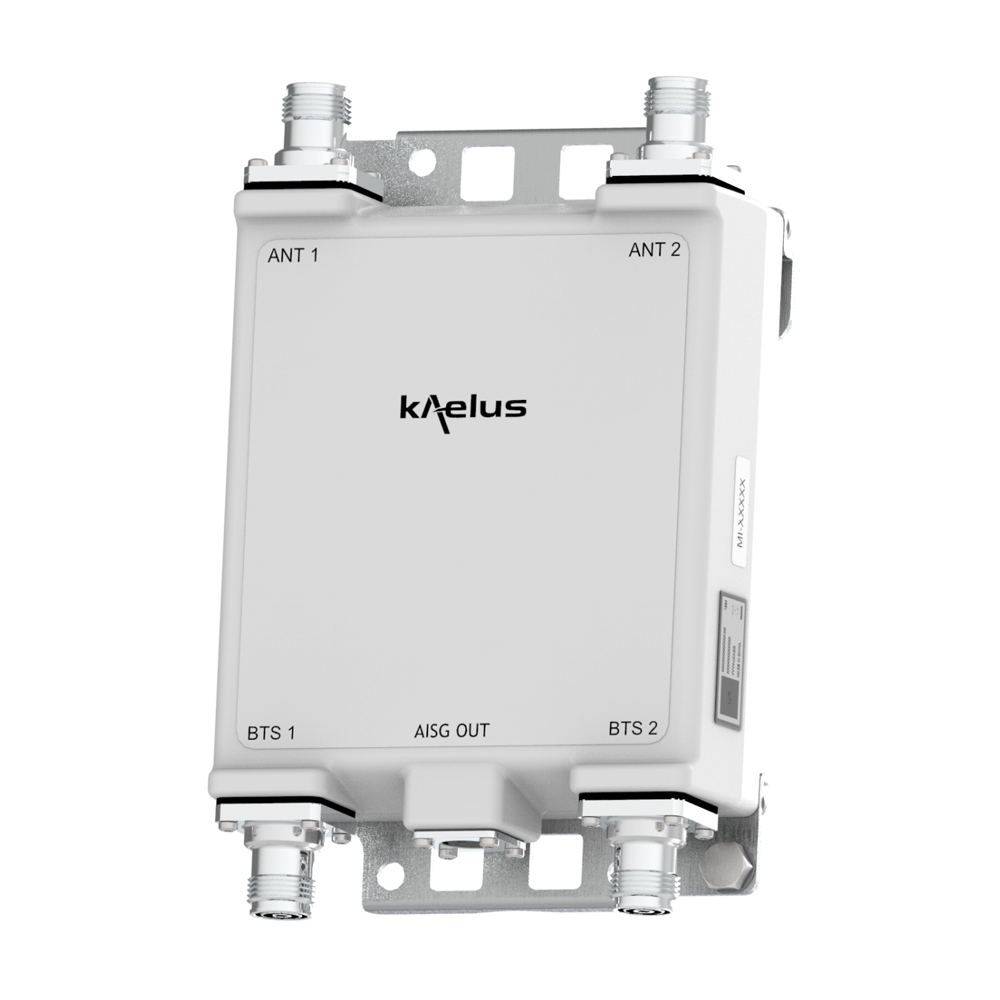

Designed to be deployed in collocated AWS systems, the Kaelus MI-124 enhances cell uplink coverage in AWS through improved system noise figure, thereby saving operational and capital expenditure.
FEATURES
- Improved base station sensitivity through gain in the AWS uplink
- Excellent noise figure performance
- Full AISG operation and RET antenna support, AISG2.0 compatible
- Small and light for minimum visual impact
| Passband |
2110 – 2200MHz |
| Insertion loss |
0.3dB typical |
| Return loss |
20dB typical, 18dB minimum |
| Maximum input power |
200W (average) |
| Intermodulation products |
-165dBc typ in RX band at ANT |
| Passband |
1710 – 1780MHz |
| Gain |
12dB |
| Return loss |
16dB |
| Bypass return loss |
12dB |
| Bypass loss |
2dB typical |
| Noise figure |
1.3dB typical |
| Output IP3 |
25dBm typical |
| Maximum input power with no damage |
12dB typical |
| DC supply voltage |
+9 to +15V DC |
| DC supply current, normal mode |
80-130mA |
| DC supply current, alarm mode |
170-180mA |
| DC supply voltage |
+9.0V to +30V DC |
| AISG version |
2.0 |
| Power consumption, AISG mode |
< 2W |
| AISG connector, current rating |
IEC60130-9, 8-pin female, 1.6A |
| Temperature range |
-40ºC to +65ºC | -40°F to +149°F |
| Ingress protection |
IP67 |
| MTBF |
>1,200,000 hours |
| Compliance |
EMC: EN 301 489-8
Safety: IEC/EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2 |

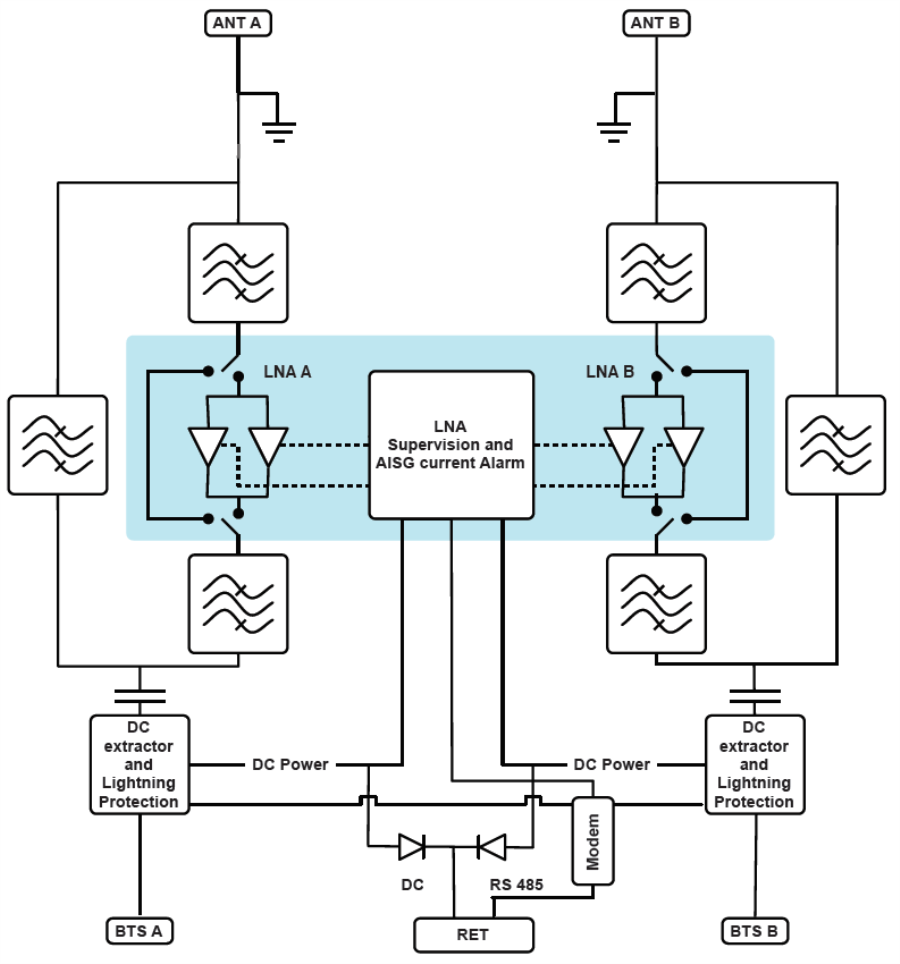

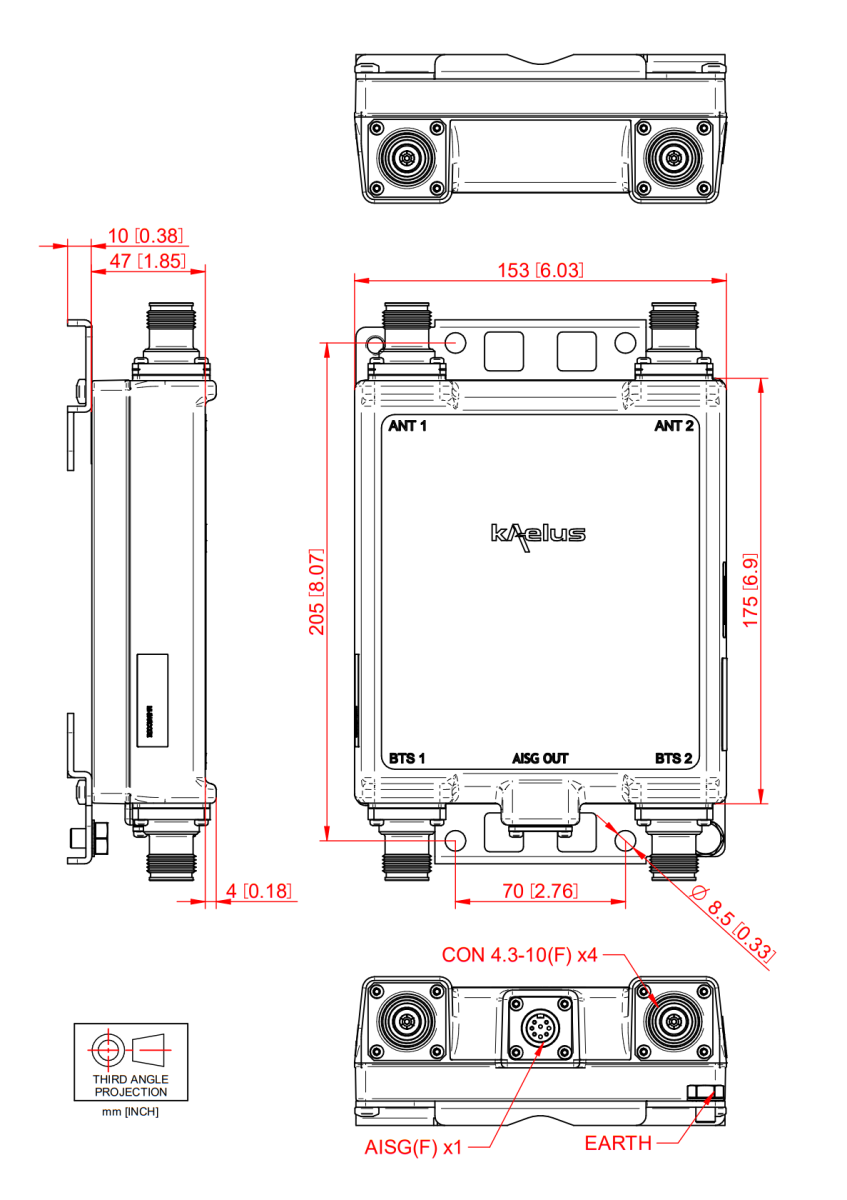

| Dimensions H x D x W |
175 x 47 x 153 mm | 6.9 x 1.85 x 6.0 1in (excluding brackets and connectors) |
| Weight |
2.5kg | 5.511lbs |
| Finish |
Powder coated, NCS 1502-R |
| Connectors |
4.3-10 (F) long neck or 7/16(F)
AISG (F) |
| Wind Load |
165N @70m/s |
| Mounting |
Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
AISG MODE |
| MI-12401 |
TWIN, 2 in / 2 out |
BASE MODEL |
7/16 (F) |
Refer to AISG MODE OF OPERATION section |
| MI-12431 |
TWIN, 2 in / 2 out |
BASE MODEL |
4.3-10 (F) |
Refer to AISG MODE OF OPERATION section, |
