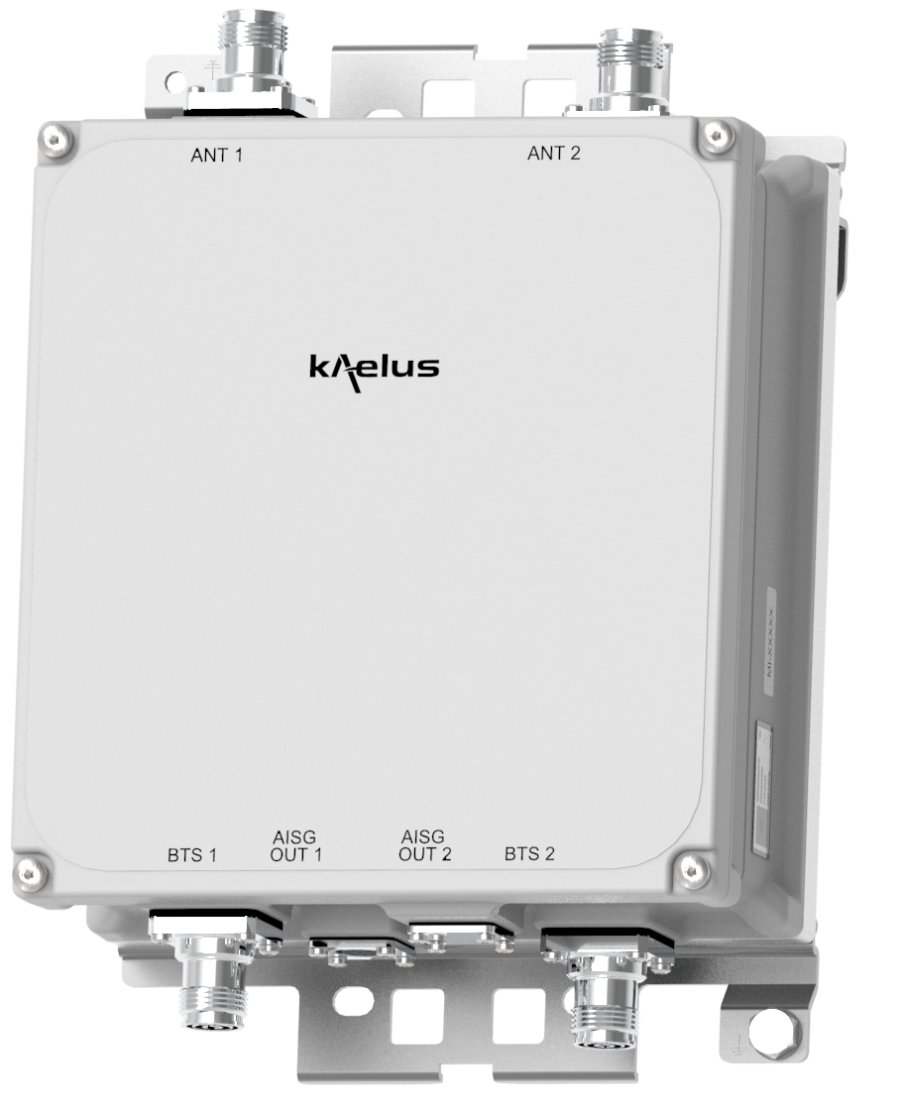

TMA TWIN 1800/2100
Designed to be deployed in collocated 1800, 2100 systems, the Kaelus MI-127 enhances cell uplink coverage in 1800, 2100 through improved system noise figure, thereby saving operational and capital expenditure.
FEATURES
- Improved base station sensitivity through gain in the 1800, 2100 uplink
- Internal diplexing on the high band port of 1800,2100 bands: 2 Antenna ports
- Excellent noise figure performance
- Full AISG operation and RET antenna support, AISG2.0 compatible
- Small and light for minimum visual impact

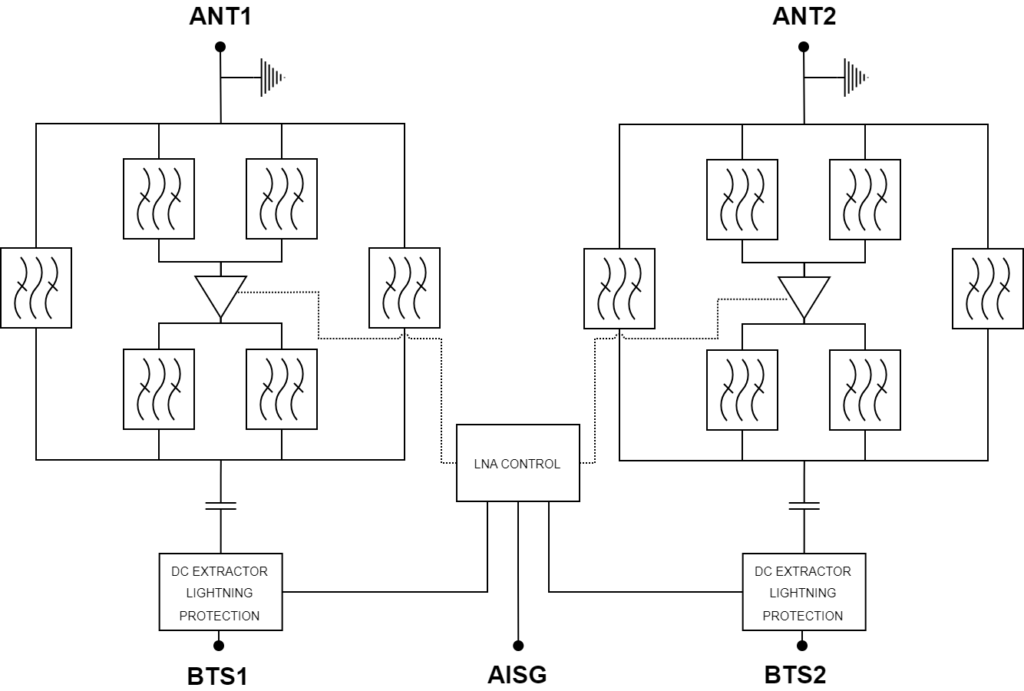

Electrical block diagram

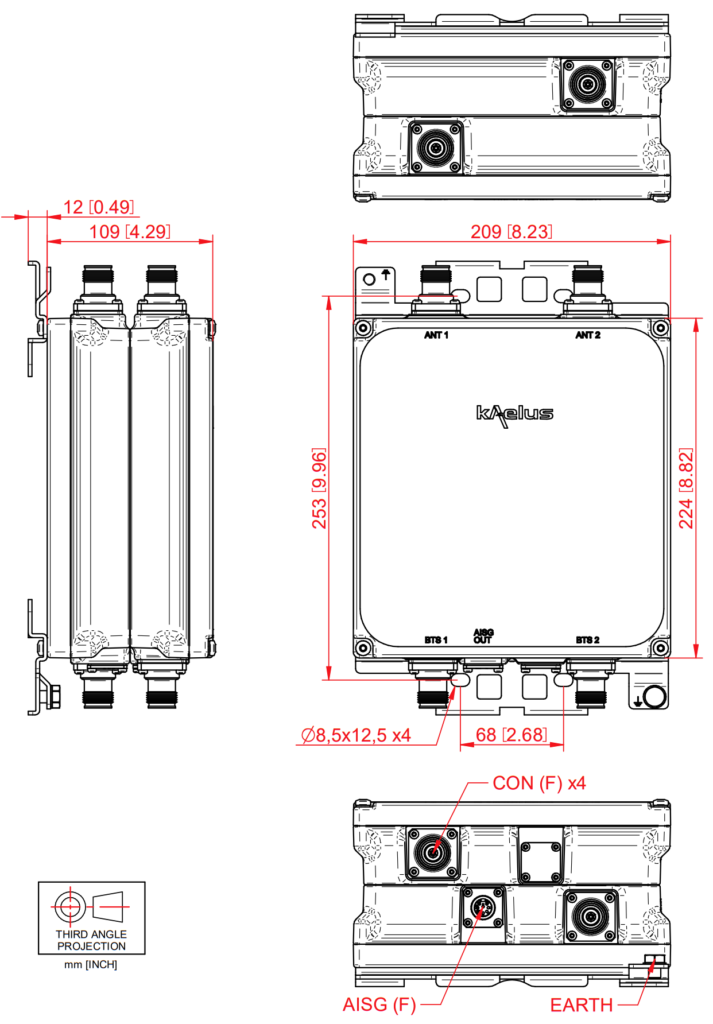

Mechanical block diagram
Technical specifications |
|||||||||||||||
| Band Name | 1800 | 2100 | |||||||||||||
Downlink |
|||||||||||||||
| Passband | 1805 – 1880MHz | 2110 – 2170MHz | |||||||||||||
| Insertion loss | 0.5dB typical | 0.3dB typical | |||||||||||||
| Return loss | 20dB typical, 18dB minimum | ||||||||||||||
| Maximum input power | 200W (average) | 200W (average) | |||||||||||||
| Intermodulation products | -160dBc in RX band at ANT | -168dBc in RX band at ANT | |||||||||||||
Uplink |
|||||||||||||||
| Passband | 1710 – 1785MHz | 1920 – 1980MHz | |||||||||||||
| Gain | 12dB | ||||||||||||||
| Return loss | 16dB | ||||||||||||||
| Bypass return loss | 14dB | ||||||||||||||
| Bypass loss | 2dB typical | 2.2dB typical | |||||||||||||
| Noise figure | 1.4dB typical | 1.3dB typical | |||||||||||||
| Output IP3 | 25dBm typical | ||||||||||||||
| Maximum input power with no damage | 12dB typical | ||||||||||||||
Electrical |
|||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
Power supply and alarm (current window alarm mode, default) |
|||||||||||||||
| Current window alarm mode (CWA) is the default operating mode and can be configured to specific customer requirements. Please contact Kaelus for more information. | |||||||||||||||
| DC supply voltage | +9 to +15V DC | ||||||||||||||
| DC supply current, normal mode | 165mA @ 12V | ||||||||||||||
| DC supply current, alarm mode | 320mA max | ||||||||||||||
Aisg mode of operation (auto selected on valid aisg 2.0 frames) |
|||||||||||||||
| AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. | |||||||||||||||
| DC supply voltage | +9.0V to +31V DC | ||||||||||||||
| AISG version | 2.0 | ||||||||||||||
| Power consumption, AISG mode | < 4W | ||||||||||||||
| AISG connector, current rating | IEC60130-9, 8-pin female, 1.6A | ||||||||||||||
Environmental |
|||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40°F to +149°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | IEC61312-1, RF: ±5kA (8/20us), AISG: ±2.5kA (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | EMC: EN 301 489-8 Safety: IEC/EN 62368-1 Operation: ETSI EN 300 019-1-4 class 4.1E Storage: ETS 300 019-1-1 class 1.2 |
||||||||||||||
Mechanical |
|||||||||||||||
| Dimensions H x D x W | 224 x 109 x 209 mm | 8.8 x 4.3 x 8.21in (excluding brackets and connectors) | ||||||||||||||
| Weight | 6.7kg | 14.8lbs | ||||||||||||||
| Finish | Powder coated, NCS 1502-R | ||||||||||||||
| Connectors | See ordering information | ||||||||||||||
| Mounting | Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles | ||||||||||||||
Shipping information |
|||||||||||||||
| Carton size | 360 x 270 x 180mm │ 14.7 x 10.63 x 7.09in | ||||||||||||||
| Gross weight (including packaging) | 7.5kg │ 16.5lb | ||||||||||||||
| Carton Qty / Pallet | 48 | ||||||||||||||
Ordering information |
|||||||||||||||
| Part Number | Configuration | Optional Features | Connectors | AISG Mode | |||||||||||
| MI-12751 | TWIN, 2 in / 2 out | BASE MODEL | 7/16 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-12752 | TWIN, 2 in / 2 out | BASE MODEL | 7/16 (F) 1xAISG |
COMMON MODE TWOTWO (**) |
|||||||||||
| MI-12756 | TWIN, 2 in / 2 out | BASE MODEL | 7/16 (F) 2xAISG |
INDEPENDENT | |||||||||||
| MI-12758 | TWIN, 2 in / 2 out | BASE MODEL | 7/16 (F) 1xAISG |
COMMON MODE ONEFOR (***) |
|||||||||||
| MI-12731 | TWIN, 2 in / 2 out | BASE MODEL | 4.3-10 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-12732 | TWIN, 2 in / 2 out | BASE MODEL | 4.3-10 (F) 1xAISG |
COMMON MODE TWOTWO (**) |
|||||||||||
| MI-12736 | TWIN, 2 in / 2 out | BASE MODEL | 4.3-10 (F) 2xAISG |
INDEPENDENT | |||||||||||
| (*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits each | |||||||||||||||
| (**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each | |||||||||||||||
| (***) ONEFOR: the TMA is identified as 1 logic unit with 4 subunits each | |||||||||||||||
