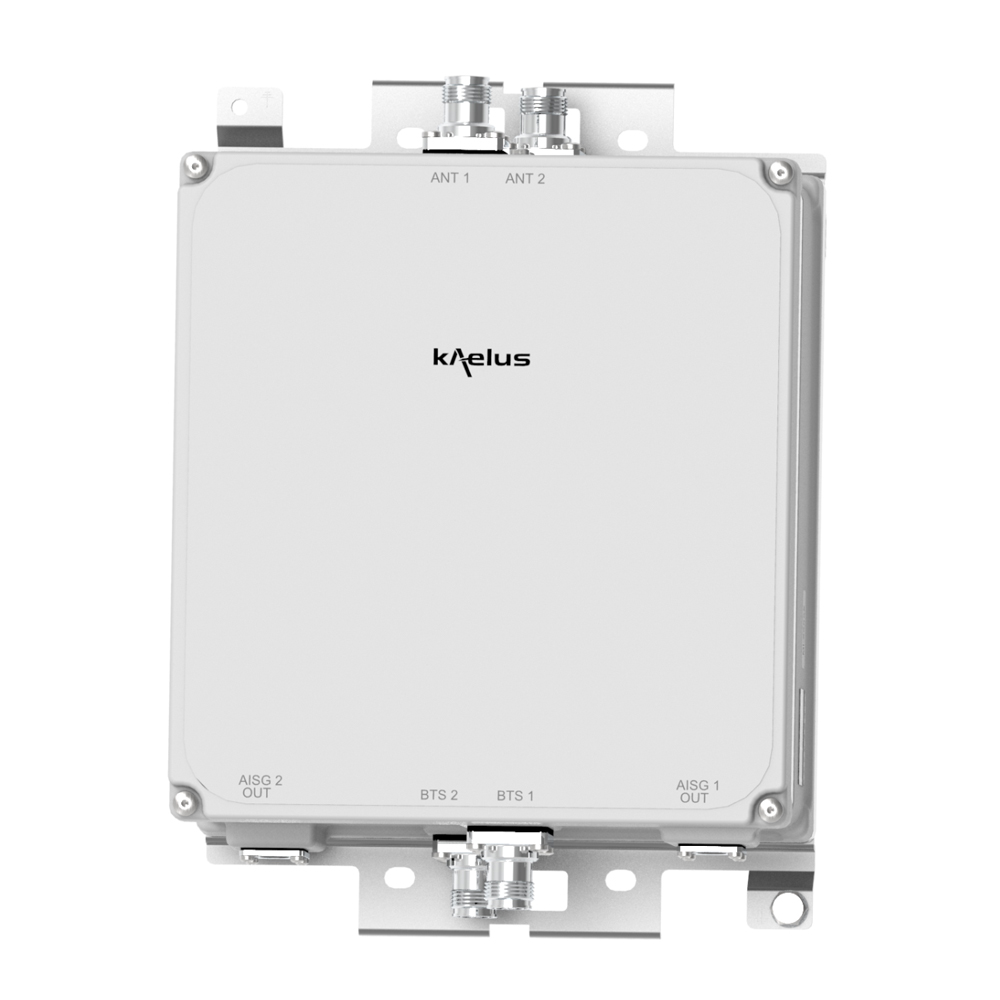

TWIN TMA 700/900
Designed to be deployed in collocated 700, 900 systems, the Kaelus MI-175 enhances cell uplink coverage in 700, 900 through improved system noise figure, thereby saving operational and capital expenditure.
FEATURES
- Improved base station sensitivity through gain in the 700, 900 uplink
- Internal diplexing on the high band port of 700,900 bands: 2 Antenna ports
- Excellent noise figure performance
- Full AISG operation and RET antenna support, AISG2.0 compatible
- Small and light for minimum visual impact
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 700 | 900 | |||||||||||||
| DOWNLINK | |||||||||||||||
| Passband | See ordering information | 925 – 960 MHz | |||||||||||||
| Insertion loss | 0.4dB typical | ||||||||||||||
| Return loss | 18dB | ||||||||||||||
| Maximum input power | 200W (average)* | 200W (average)* | |||||||||||||
| Intermodulation products | -160dBc in RX band at ANT | ||||||||||||||
| UPLINK | |||||||||||||||
| Passband | See ordering information | 880 – 915 MHz | |||||||||||||
| Gain | 12dB | ||||||||||||||
| Return loss | 16dB | ||||||||||||||
| Bypass return loss | 12dB | ||||||||||||||
| Bypass loss | 1.7dB typical | ||||||||||||||
| Noise figure | 1.1dB typical | ||||||||||||||
| Output IP3 | 25dBm typical | ||||||||||||||
| Maximum input power with no damage | +10dB | ||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| AISG MODE OF OPERATION (AUTO SELECTED ON VALID AISG 2.0 FRAMES) | |||||||||||||||
| AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. Each LNA is controlled uniquely by its sub-unit number. | |||||||||||||||
| DC supply voltage | 24 V DC nominal (+9.0V to +31V DC) | ||||||||||||||
| AISG version | 2.0 | ||||||||||||||
| Power consumption, AISG mode | < 4W | ||||||||||||||
| AISG connector, current rating | IEC60130-9, 8-pin female, 1.6A | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40°F to +149°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | IEC61312-1, RF: ±5kA (8/20us), AISG: ±3kA (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | EMC: EN 301 489-50 Safety: EN 62368-1 Operation: ETSI EN 300 019-1-4 class 4.1E Storage: ETS 300 019-1-1 class 1.2 |
||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 265 x 147 x 245 mm | 10.43 x 5.79 x 9.65in (excluding brackets and connectors) | ||||||||||||||
| Weight | 11.80kg | 26.01lbs | ||||||||||||||
| Finish | Powder coated, NCS 1502-R | ||||||||||||||
| Connectors | See ordering information | ||||||||||||||
| Mounting | Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | AISG MODE | |||||||||||
| MI-17501 | TWIN, 2 in / 2 out | D/L: 743-788MHz U/L: 703-733MHz |
7/16 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-17502 | TWIN, 2 in / 2 out | D/L: 753-798MHz U/L: 713-743MHz |
7/16 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-17503 | TWIN, 2 in / 2 out | D/L: 758-803MHz U/L: 718-748MHz |
7/16 (F) 2xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-17504 | TWIN, 2 in / 2 out | D/L: 743-788MHz U/L: 703-733MHz |
7/16 (F) 1xAISG |
COMMON MODE TWOTWO (*) |
|||||||||||
| MI-17505 | TWIN, 2 in / 2 out | D/L: 753-798MHz U/L: 713-743MHz |
7/16 (F) 1xAISG |
COMMON MODE TWOTWO (*) |
|||||||||||
| MI-17509 | TWIN, 2 in / 2 out | D/L: 758-803MHz U/L: 718-748MHz |
7/16 (F) 2xAISG |
COMMON MODE TWOTWO (*) |
|||||||||||
| MI-17506 | TWIN, 2 in / 2 out | D/L: 743-788MHz U/L: 703-733MHz |
7/16 (F) 2xAISG |
INDEPENDENT | |||||||||||
| MI-17507 | TWIN, 2 in / 2 out | D/L: 753-798MHz U/L: 713-743MHz |
7/16 (F) 2xAISG |
INDEPENDENT | |||||||||||
| MI-17508 | TWIN, 2 in / 2 out | D/L: 758-803MHz U/L: 718-748MHz |
7/16 (F) 2xAISG |
INDEPENDENT | |||||||||||
| MI-17531 | TWIN, 2 in / 2 out | D/L: 743-788MHz U/L: 703-733MHz |
4.3-10 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-17532 | TWIN, 2 in / 2 out | D/L: 753-798MHz U/L: 713-743MHz |
4.3-10 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-17533 | TWIN, 2 in / 2 out | D/L: 758-803MHz U/L: 718-748MHz |
4.3-10 (F) 1xAISG |
COMMON MODE ONETWO (*) |
|||||||||||
| MI-17534 | TWIN, 2 in / 2 out | D/L: 743-788MHz U/L: 703-733MHz |
4.3-10 (F) 1xAISG |
COMMON MODE TWOTWO (*) |
|||||||||||
| MI-17535 | TWIN, 2 in / 2 out | D/L: 753-798MHz U/L: 713-743MHz |
4.3-10 (F) 1xAISG |
COMMON MODE TWOTWO (*) |
|||||||||||
| MI-17539 | TWIN, 2 in / 2 out | D/L: 758-803MHz U/L: 718-748MHz |
4.3-10 (F) 1xAISG |
COMMON MODE TWOTWO (*) |
|||||||||||
| MI-17536 | TWIN, 2 in / 2 out | D/L: 743-788MHz U/L: 703-733MHz |
4.3-10 (F) 2xAISG |
INDEPENDENT | |||||||||||
| MI-17537 | TWIN, 2 in / 2 out | D/L: 753-798MHz U/L: 713-743MHz |
4.3-10 (F) 2xAISG |
INDEPENDENT | |||||||||||
| MI-17538 | TWIN, 2 in / 2 out | D/L: 758-803MHz U/L: 718-748MHz |
4.3-10 (F) 2xAISG |
INDEPENDENT | |||||||||||
| (*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits | |||||||||||||||
| (**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each | |||||||||||||||

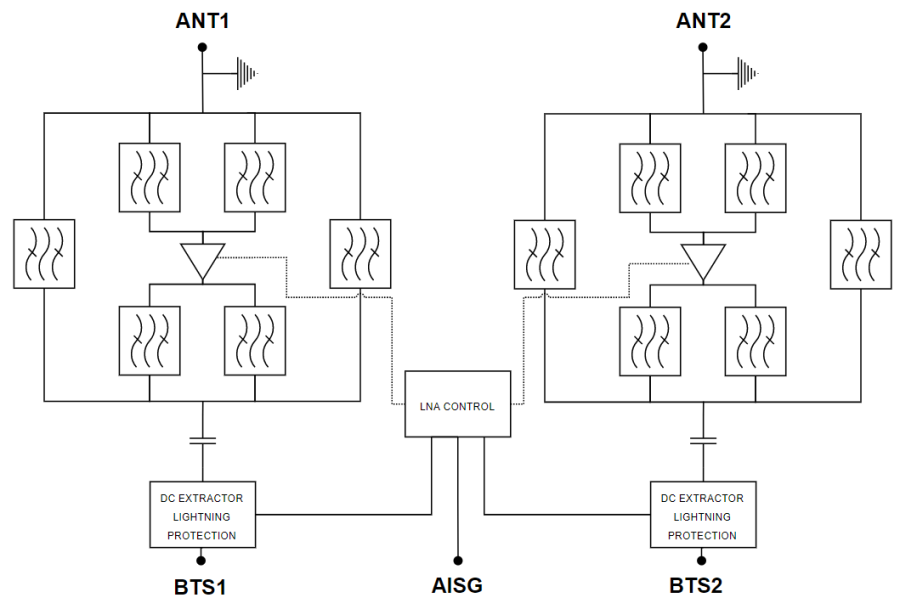

ELECTRICAL BLOCK DIAGRAM |

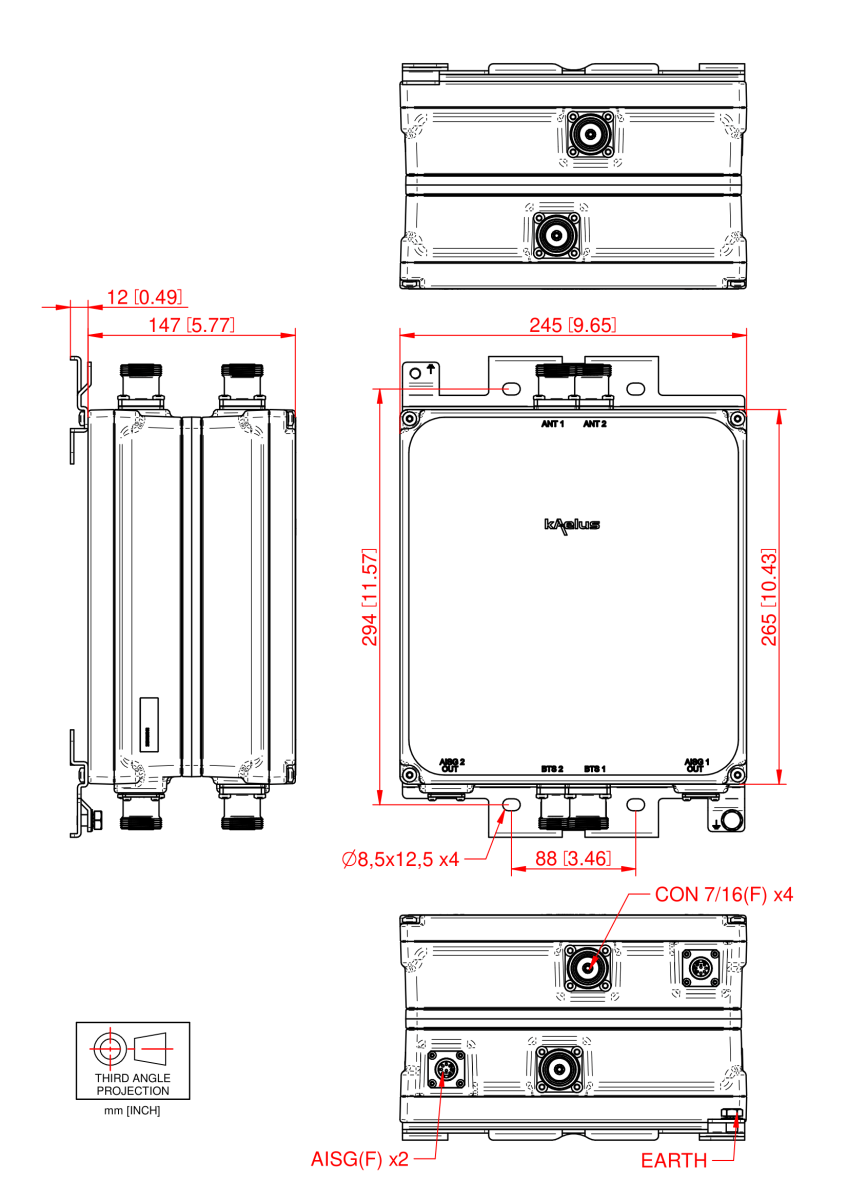

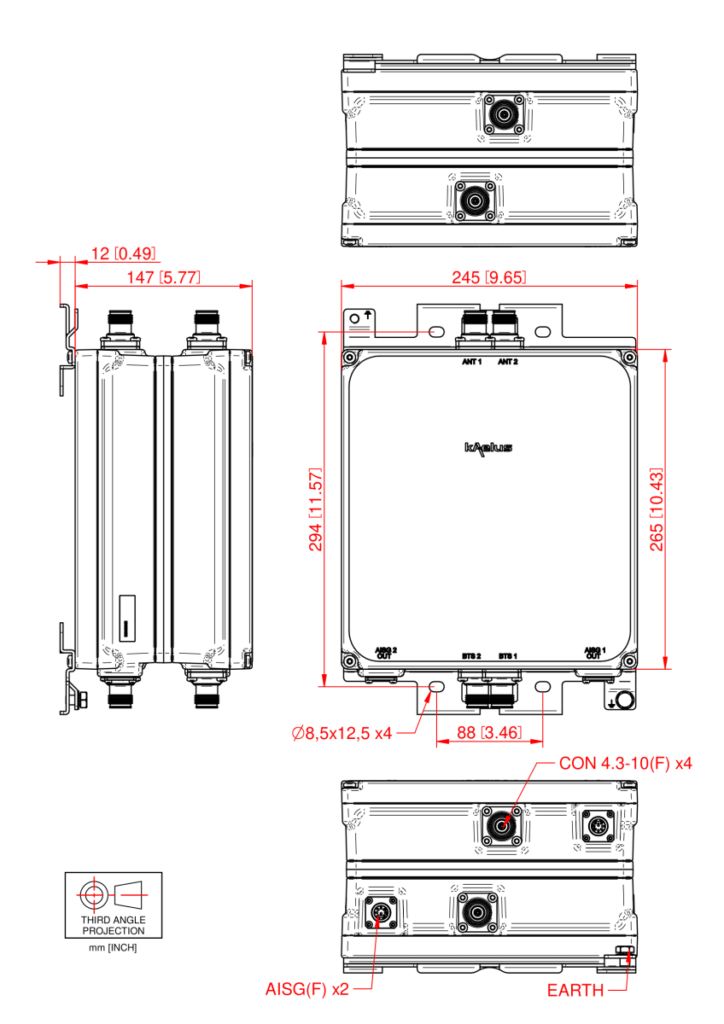

MECHANICAL BLOCK DIAGRAM |
